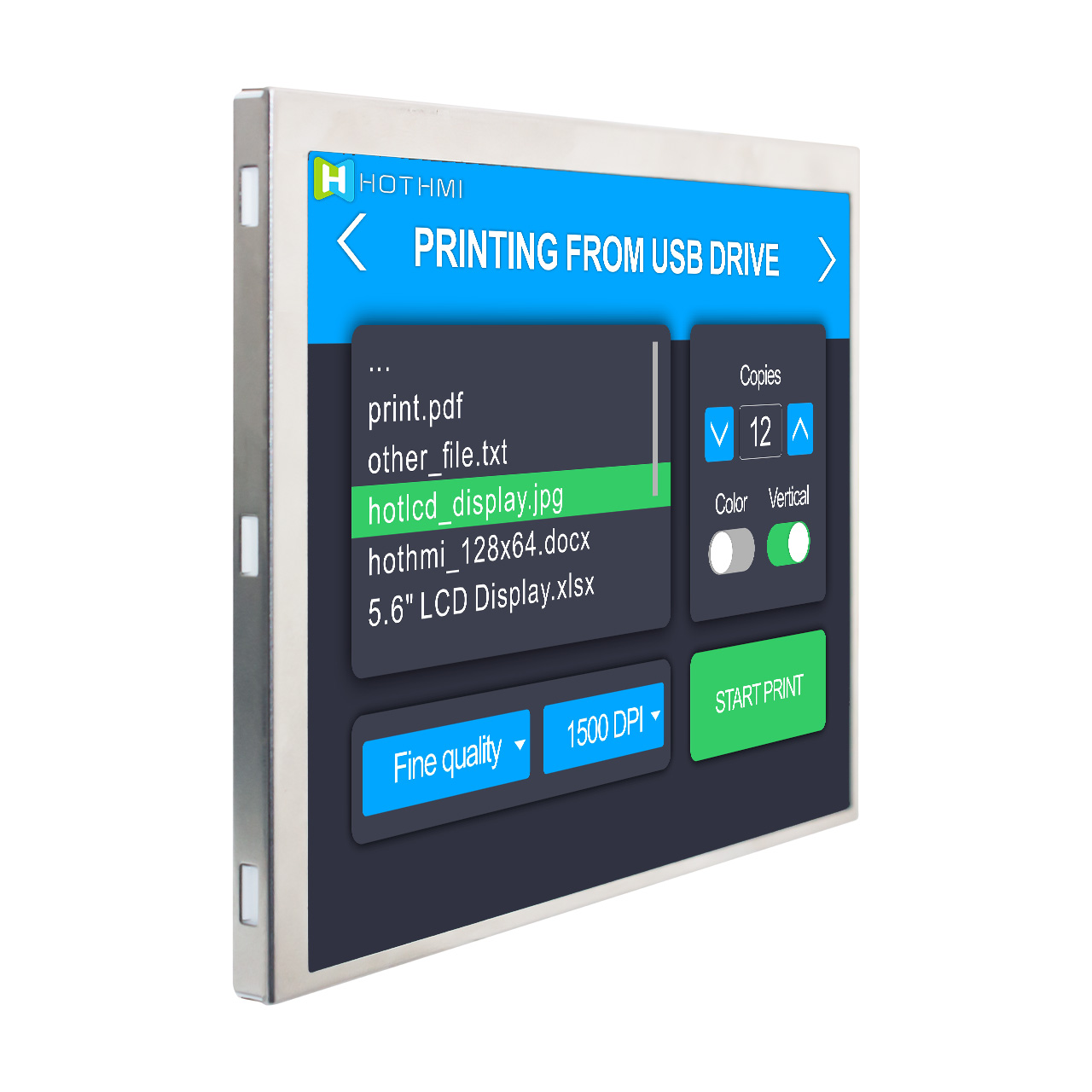

 | 5.7 Inch TFT LCD Display Features
|
| Specification | RGB Color Model | LVDS Color Model | Monochrome Model |
|---|---|---|---|
| Model | TFT-H057A03VGIJDKN50 | TFT-H057A02VGTHX9N30 | HTM057A02-MONO TFT |
| Display Size | 5.7 inch | 5.7 inch | 5.7 inch |
| Resolution | 640x480 | 640x480 | 320x240 |
| Display Type | IPS TFT LCD | IPS TFT LCD | Monochrome TFT |
| Interface | RGB | LVDS | MCU |
| Brightness | 1000 cd/m² | 900 cd/m² | 500 cd/m² |
| Connector | 50-pin FPC | 30-pin FFC | 20-pin FPC |
| Module Dimensions | 126.5 × 100 × 4.55 mm | 127.04 × 98.47 × 5.9 mm | 159.2 × 111.0 × 6.7 mm |
| Active Area | 115.2 × 86.4 mm | 115.2 × 86.4 mm | 115.2 × 86.16 mm |
| Operating Temperature | -30°C to +80°C | -20°C to +70°C | -20°C to +70°C |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| ESD Protection | 8KV | 8KV | 8KV |
Looking for a 5.7 inch TFT LCD display that fits your existing equipment, stays readable in bright environments or works reliably across a wide temperature range?
HotDisplay offers 5.7 inch TFT LCD displays for industrial control, medical equipment, instrumentation and outdoor terminals. The range includes 640x480 color displays with IPS viewing angles, high-brightness backlighting and RGB or LVDS interfaces, as well as a 320x240 monochrome TFT LCD option.
Whether you are replacing an older display or developing a new product, you can compare display technologies, interface configurations and operating specifications to find a suitable module for your project.
The 640x480 resolution provides a 4:3 screen format for equipment interfaces, monitoring screens and graphical control systems. It is suitable for projects that need color graphics and a familiar display layout.
HotDisplay offers two color display configurations:
RGB interface: A 640x480 IPS display with 1000 cd/m² brightness, a 50-pin FPC and a 3.3V supply.
LVDS interface: A 640x480 IPS display with 900 cd/m² brightness, a 30-pin FFC and a 3.3V supply.
Check the exact pinout, signal timing and electrical requirements before choosing a replacement or integrating the display into a new board.
Bright ambient light can make standard displays difficult to read. Selected HotDisplay 5.7 inch models offer 900 or 1000 cd/m² brightness to improve visibility in bright indoor and outdoor operating environments.
The 1000 cd/m² RGB model is particularly relevant for industrial equipment and systems exposed to strong ambient light. The 900 cd/m² LVDS model provides another high-brightness option for compatible systems.
For direct-sunlight applications, consider the complete display assembly, including cover glass, reflections, optical bonding and viewing angle. Brightness alone does not guarantee sunlight readability in every installation.
IPS technology provides wide viewing angles, helping maintain image visibility when operators view the screen from different positions.
This can be useful in industrial control panels, medical equipment and instrumentation where the screen is not always viewed straight on. Both color 640x480 models in this range offer IPS full-view display characteristics.
The 5.7 inch 640x480 LVDS model is designed for systems that use an LVDS display connection. It features IPS viewing angles, 900 cd/m² brightness, a 30-pin FFC and a 3.3V supply.
Before selecting this module, confirm that your host board supports the required LVDS format and that the connector and pin assignment match your design.
For applications that prioritize clear information display over full-color graphics, HotDisplay also offers a 5.7 inch monochrome TFT LCD with 320x240 resolution and an MCU interface.
This option features 500 cd/m² brightness, a 20-pin FPC, 3.3V supply and an operating temperature range of -20°C to +70°C. It is designed for outdoor instrumentation and other equipment using monochrome visual interfaces.

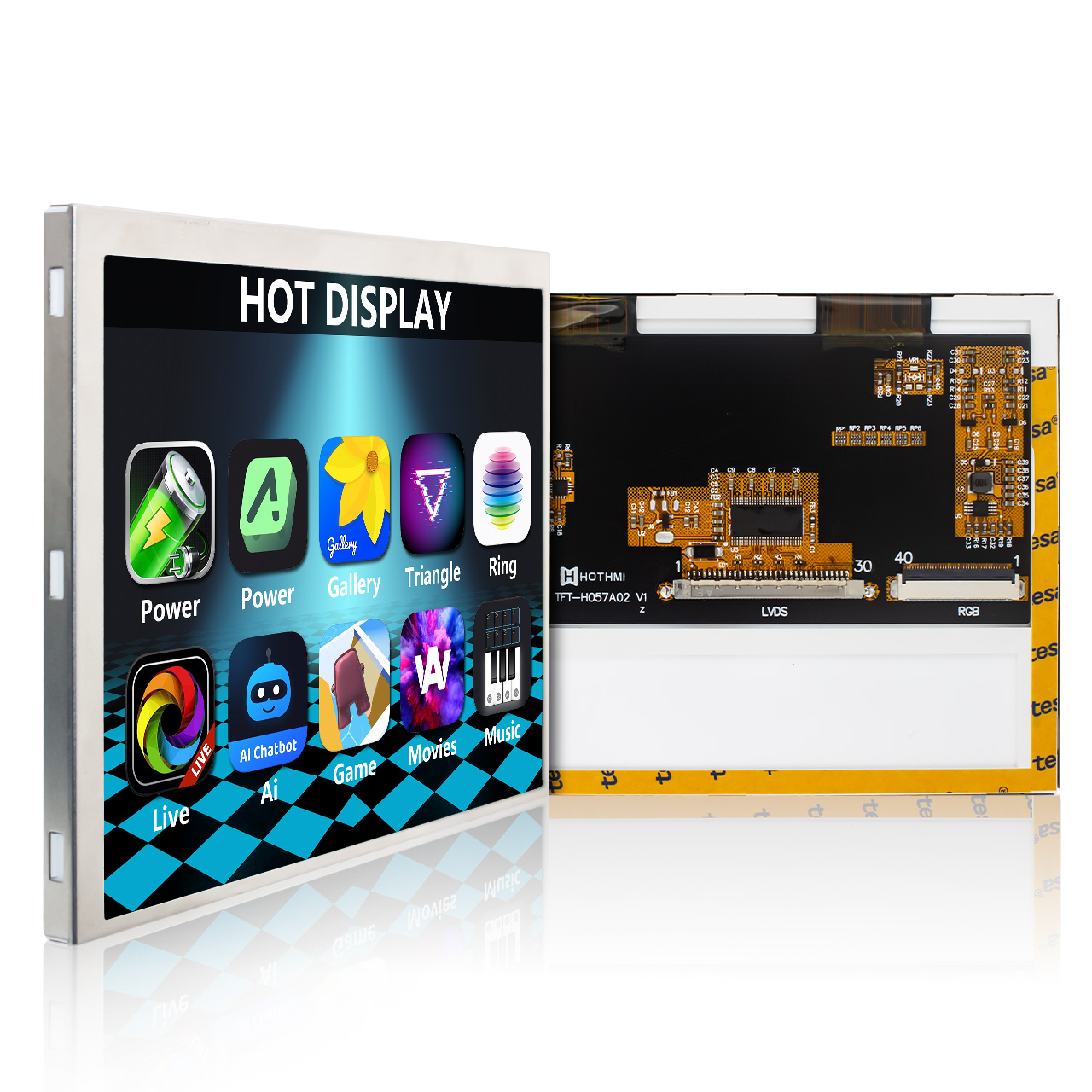

Different projects may require more than a standard display module. HotDisplay provides customization support for selected display applications, including:
FPC length, position and pinout adjustments
Connector and cable configuration
Capacitive or resistive touch integration
Custom cover glass
Anti-glare, anti-reflection and anti-fingerprint surface treatments
Optical bonding
Interface adaptation
Customized LCD and PCBA solutions
Customization feasibility depends on the selected panel, project requirements and engineering evaluation. Share your drawings and technical specifications to discuss suitable options.

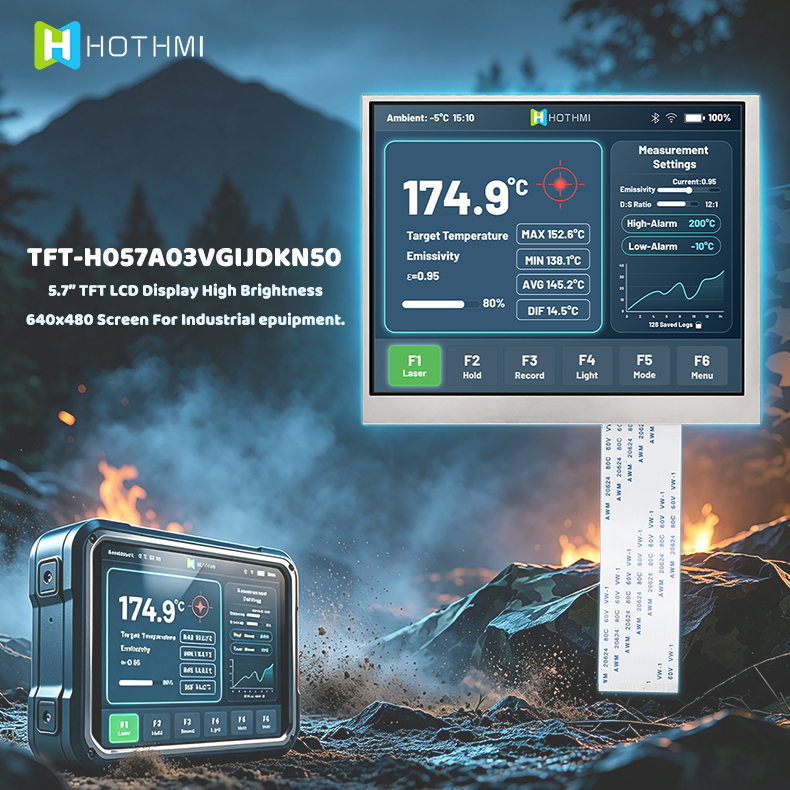

HotDisplay 5.7 inch TFT LCD modules support a variety of industrial and specialized applications.
Industrial Automation and HMI
| Medical and Instrumentation
|
Outdoor and Field Equipment
| Embedded and Replacement Projects
|
Choosing a display based only on screen size can lead to costly integration problems. Before placing an order, check these important points.
Choose 640x480 color TFT for graphical interfaces and color information. Consider 320x240 monochrome when your application uses a simpler visual interface and monochrome output.
RGB, LVDS and MCU are different interface configurations. Check the controller support, signal timing, pin assignment, connector type and voltage requirements. A display with the same resolution and size may still be incompatible with your existing electronics.
A 900–1000 cd/m² display may help in bright environments, but the final visibility also depends on reflections, cover glass and viewing conditions. If your equipment is used outdoors, discuss the complete optical configuration before finalizing the module.
Compare the module outline, active area, thickness, mounting points and FPC position with your enclosure. For replacement projects, verify the dimensions and connector location rather than relying on the diagonal size alone.
Check the product's rated temperature range and supply requirements against the actual conditions inside your equipment. Also confirm the backlight power requirements in the datasheet.
If you are replacing an older 5.7 inch display, provide the original model number, datasheet, connector details and photographs if available. HotDisplay can help review the specifications and identify potential compatibility issues before you commit to a replacement.
Compare high-brightness color displays, RGB and LVDS interfaces, and a monochrome option within the 5.7 inch range.
For replacement projects, the 1000 cd/m² RGB model is presented as an upgrade option for compatible AT056TN52 V.3 designs. HotDisplay can help review the original display's key specifications to reduce the risk of selecting an incompatible module.
From FPC and connector requirements to touch integration and optical bonding, HotDisplay offers project-oriented support for display integration.
HotDisplay describes production quality controls covering cleanliness, appearance, soldering, consistency and environmental reliability testing. Customers can request relevant quality documentation and product test information when evaluating a display for industrial or long-term use.
Providing the datasheet, interface details, operating conditions and mechanical drawings early helps both sides identify potential integration issues before sampling or production.
Yes. HotDisplay offers 640x480 IPS color modules with high brightness, RGB or LVDS interfaces and model-specific industrial temperature ranges. Confirm that the selected model meets your equipment's environmental and electrical requirements.
RGB and LVDS use different signal transmission methods and require compatible host-board interfaces. The RGB model listed here uses a 50-pin FPC, while the LVDS model uses a 30-pin FFC. Check the datasheets and pin assignments before selecting either option.
The 900 cd/m² LVDS and 1000 cd/m² RGB color models are high-brightness options. The 320x240 monochrome model is also listed for outdoor instrumentation. Actual outdoor readability depends on the full display assembly and lighting conditions.
The TFT-H057A03VGIJDKN50 is presented as a form-fit-function upgrade option for compatible AT056TN52 V.3 designs. Before ordering, confirm the original module's connector, pinout, dimensions, voltage, timing and system requirements with HotDisplay.
Selected configurations may support FPC, connector, touch, cover glass, optical bonding and interface-related customization. Contact HotDisplay with your project requirements for a feasibility review.
Need a 5.7 inch TFT LCD display for a new industrial product or an existing equipment replacement?
Send us your target resolution, interface, brightness, operating temperature, mechanical dimensions and annual demand. If you are replacing an existing screen, include the original model number or datasheet.
HotDisplay can help you compare available 5.7 inch display options, review compatibility requirements and discuss customization for your application. Contact HotDisplay for product recommendations, datasheets, samples and a quotation.
