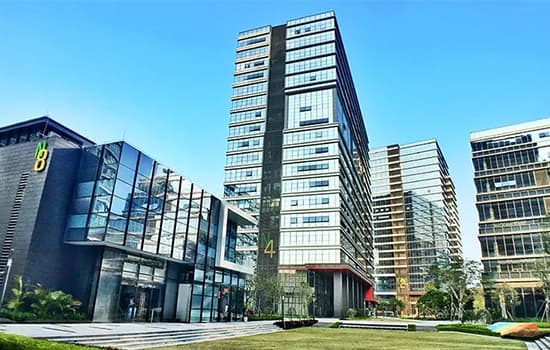

Founded in 2004, HOTDISPLAY is a national high-tech enterprise lcd display manufacturer headquartered in Shenzhen, Guangdong-Hong Kong-Macao Greater Bay Area. With over 21 years of industry experience, we have evolved from a specialized R&D team into a globally recognized LCD display factory. We hold numerous invention patents, utility model patents, and software copyrights, serving 1,700+ clients across 50+ countries. Our long-term partnerships—many exceeding 10 years—testify to our reliability and continuous innovation in the new-generation information industry.

Our manufacturing footprint combines two strategic hubs:

Ganzhou Manufacturing Base (Jiangxi): Approximately 46,000 m², serving as the core raw material and front-end processing center for LCD panels.

Dongguan Headquarters (Guangdong): Over 2,000 m² high-precision assembly and R&D hub.

Total Annual Capacity: 60,000 m² of LCD panels, 7 million LCD modules, 7 million touch panels, and 5 million backlights annually.

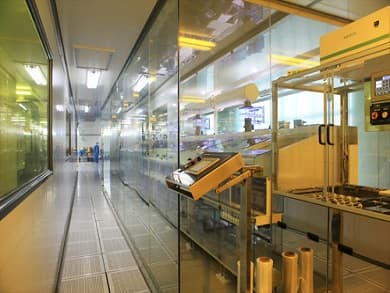

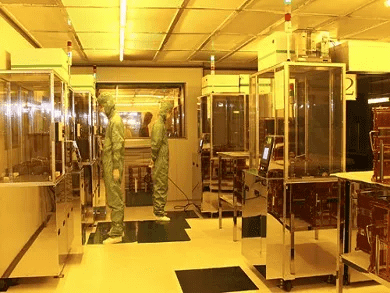

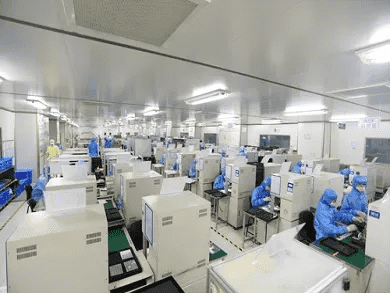

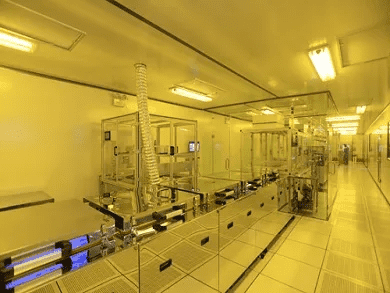

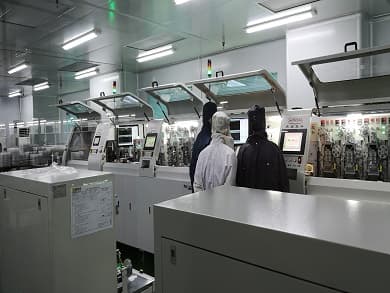

Our facilities feature AI-driven logistics, Class 100 cleanrooms, and optimized workflow layouts to ensure maximum efficiency and strict environmental control.

Hotdisplay operates a fully integrated, vertical production chain—from glass substrate to finished smart display module. Key production stages include:

1. COG Automatic Bonding Line: High-density Chip-On-Glass integration (capacity: 1,000K units/month).

2. FOG Bonding Process: Flexible Printed Circuit on Glass with AI-assisted alignment.

3. LCD Front-End Lines: Photoresist coating, UV exposure, precision etching, and liquid crystal filling.

4. Backlight Module Line: Uniform high-brightness assembly (600K units/month).

5. CTP Full Lamination Line: Vacuum OCA/OCR optical bonding (300K units/month).

6. High-Speed SMT Line: 0201 component placement for rapid prototyping.

Our batch production yield consistently exceeds 98%, supported by MES systems and 100% inspection checkpoints (IQC, IPQC, FQC, OQC).

Our R&D team comprises 30+ senior engineers with an average of 10+ years of experience in optics, electrical engineering, and structural design. Core technical strengths include:

1. Panel Technologies: TN, HTN, STN, FSTN, VA, IPS, and high-brightness TFT.

2. Harsh Environment Solutions: Ultra-wide-temperature range (-40°C to +85°C), high vibration resistance, and EMI immunity.

3. Smart HMI Integration: Combining touch, voice, and driver systems with expertise in Renesas, Espressif, and ST platforms.

4. Frontier R&D: AMOLED flexible displays, Mini-LED backlighting, and transparent display technologies.

We offer a "48-Hour Flash Prototyping" service and have developed 2,000+ product specifications, ensuring fast customization from concept to mass production.

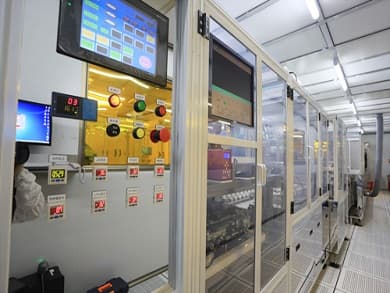

1. Automatic COG Binding Machines – Chip-on-Glass bonding, micron-level precision

2. FOG Bonding Systems – FPC attachment with AI-assisted alignment

3. LCD Exposure & Etching Lines – Sub-micron photoresist patterning

4. Vacuum Laminating Machines – Bubble-free OCA/OCR optical bonding

5. Automated Optical Inspection (AOI) – ML-integrated 100% defect detection

6. High/Low-Temperature Shock Chambers – -40°C to +85°C reliability testing

7. ESD & Vibration Testers – Electrostatic discharge and mechanical durability validation

8. High-Speed SMT Line – 0201 component placement for rapid prototyping

9. Backlight Assembly Line – 600K units/month high-brightness module production

10. Polarizer Lamination Workshop – Large-area precision aging-tested lamination
