Hotdisplay develops TFT LCD displays and modules for customers with specific requirements for display size, resolution, interface, mechanical dimensions and product integration.
This case study section presents documented TFT LCD development projects based on Hotdisplay's technical and product development materials. Each project focuses on the available engineering information, including display specifications, module configuration, interfaces, mechanical requirements and production documentation.
Where customer names, commercial information or project results are not publicly available, they are not disclosed.
Watch the video below to explore out hotdisplay TFT LCD display case studies
The video above you can see our TFT LCD display even in bright sunlight, the screen content remains clearly visible—whether it's data from instruments or the user interface of portable devices, everything is instantly readable. Combined with an IPS full-viewing angle and a 720×1280 resolution, the colors are accurate and the image is clear. Plus, its 8KV anti-static durability ensures consistent brightness, making it suitable for both outdoor work and everyday portable use.
 | From TFT LCD Specification to ProductionA custom display project normally begins with a defined set of technical requirements. Depending on the project, these requirements may include:
Hotdisplay's engineering and manufacturing capabilities allow these requirements to be evaluated at the display-module level. |
A compact square TFT LCD module based on the TFT-H034A03ZHINV4N30 project.
The documented specification includes a 3.4-inch display, 480 × 480 resolution, MIPI interface, NV3049 driver IC and IPS full viewing angle configuration.
[View 3.4-Inch TFT LCD Project]
The TFT-H040B34 Series is documented as a 4.0-inch TFT LCD module with 480 × 800 pixel resolution.
The project documentation includes preliminary specification information and customer confirmation fields for trial production and mass production.
[View 4.0-Inch TFT LCD Project]

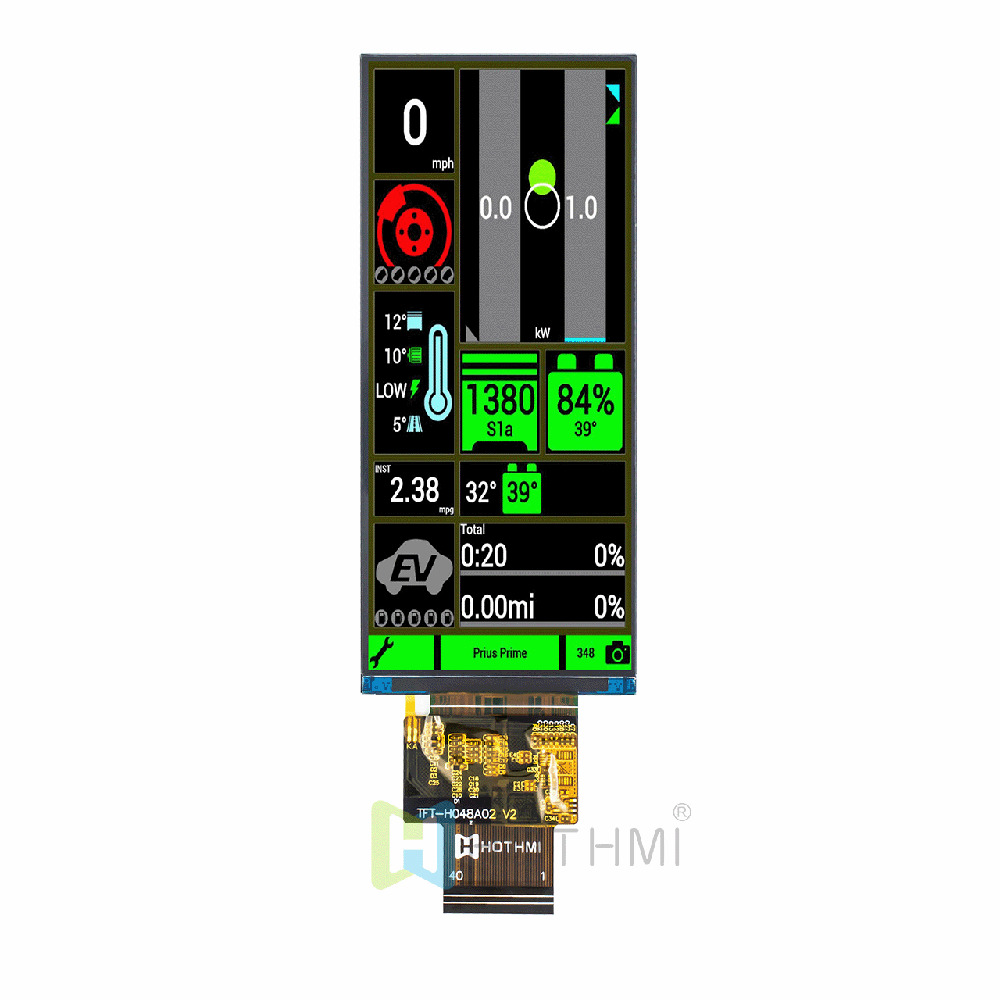

The TFT-H062A01 Series is documented as a 6.2-inch TFT LCD module with a 360 × 960 pixel resolution.
Its project documentation includes preliminary specification and customer confirmation sections covering trial production and mass production.
[View 6.2-Inch TFT LCD Project]
The HTM-H101A19-LVDS-A01 Series is a documented 10.1-inch TFT LCD module project.
The project documentation specifies an 800 × 1280 pixel display, LVDS interface, NV3051F driver IC, normally black display configuration and defined mechanical dimensions.
[View 10.1-Inch TFT LCD Project]
These project records demonstrate the engineering detail required when developing a TFT LCD module for product integration.
Depending on the project, Hotdisplay can work with requirements involving:
Screen size, resolution, active area, viewing angle, brightness and display type.
MIPI, LVDS and other display interfaces, driver ICs, operating voltage and backlight requirements.
Overall module dimensions, active area, FPC position, connector configuration and installation requirements.
Capacitive or resistive touch panels can be considered when touch functionality is required.
Cable length, connector position, pin configuration and other FPC requirements can be customized according to the project.
Custom cover glass, surface treatment and optical bonding are available for projects requiring additional display integration.
A professional TFT LCD project requires more than a product name.
Hotdisplay's project documentation can include:
Preliminary specifications
Official specifications
Mechanical drawings
Electrical specifications
Interface definitions
FPC and connector information
Display performance requirements
Production confirmation
These documents provide an engineering reference for integrating the display into the customer's equipment.
Hotdisplay combines TFT LCD R&D, engineering and manufacturing capabilities.
Its manufacturing processes include COG bonding, FOG bonding, LCD processing, lamination and product testing. Automated optical inspection is also used for product inspection and defect detection.
This allows display development to be connected with manufacturing and quality control rather than treating product engineering and production as separate processes.
If your product requires a specific TFT LCD size, resolution, interface, touch configuration, FPC or mechanical structure, Hotdisplay can evaluate your requirements and recommend a suitable display development approach.
Send us your display size, resolution, interface, mechanical drawing and application requirements.
