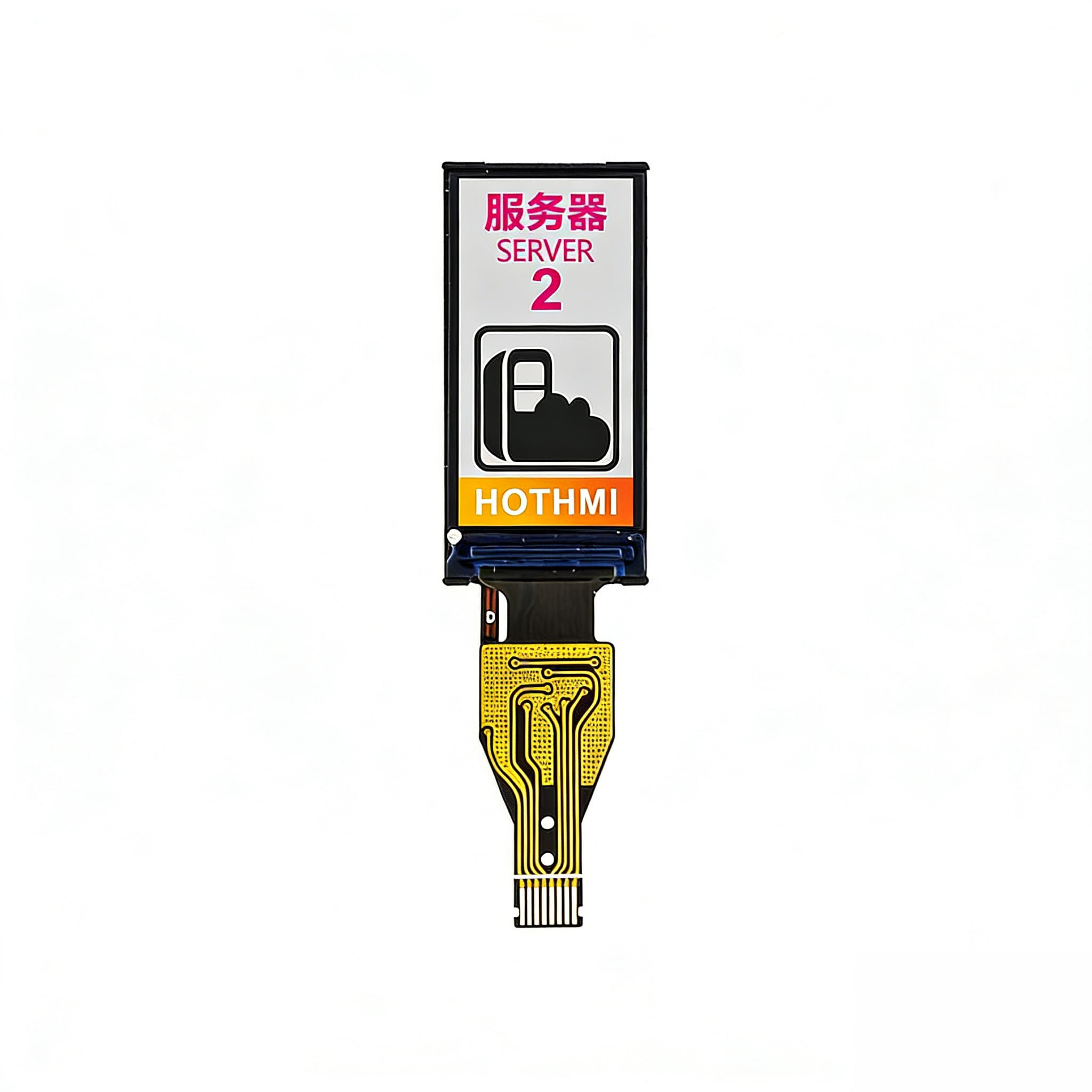

A 0.96-inch TFT LCD Display Module is an ultra-thin (1.46mm) active-matrix micro-screen designed for high-density, full-color visual output in severely restricted spaces. Engineered for product miniaturization, its core architecture integrates an 80×160 IPS portrait panel for full-viewing-angle performance, a reliable ST7735S driver IC for internal GRAM and power sequencing, and a 4-wire serial SPI interface that reduces pin complexity down to critical data lines (CS, SCL, SDA, D/C). Structurally reinforced by a 0.10mm plastic-metal hybrid frame and an FPC tail with polyimide gold finger stiffeners, it helps B2B clients seamlessly upgrade legacy segment or monochrome screens. This allows devices to feature dynamic UI menus, data readouts, and vivid graphics without expanding their physical footprint or increasing power consumption.
Hotdisplay categorizes its 0.96-inch ecosystem into three distinct deployment tiers to accommodate varying R&D capabilities and production scopes:

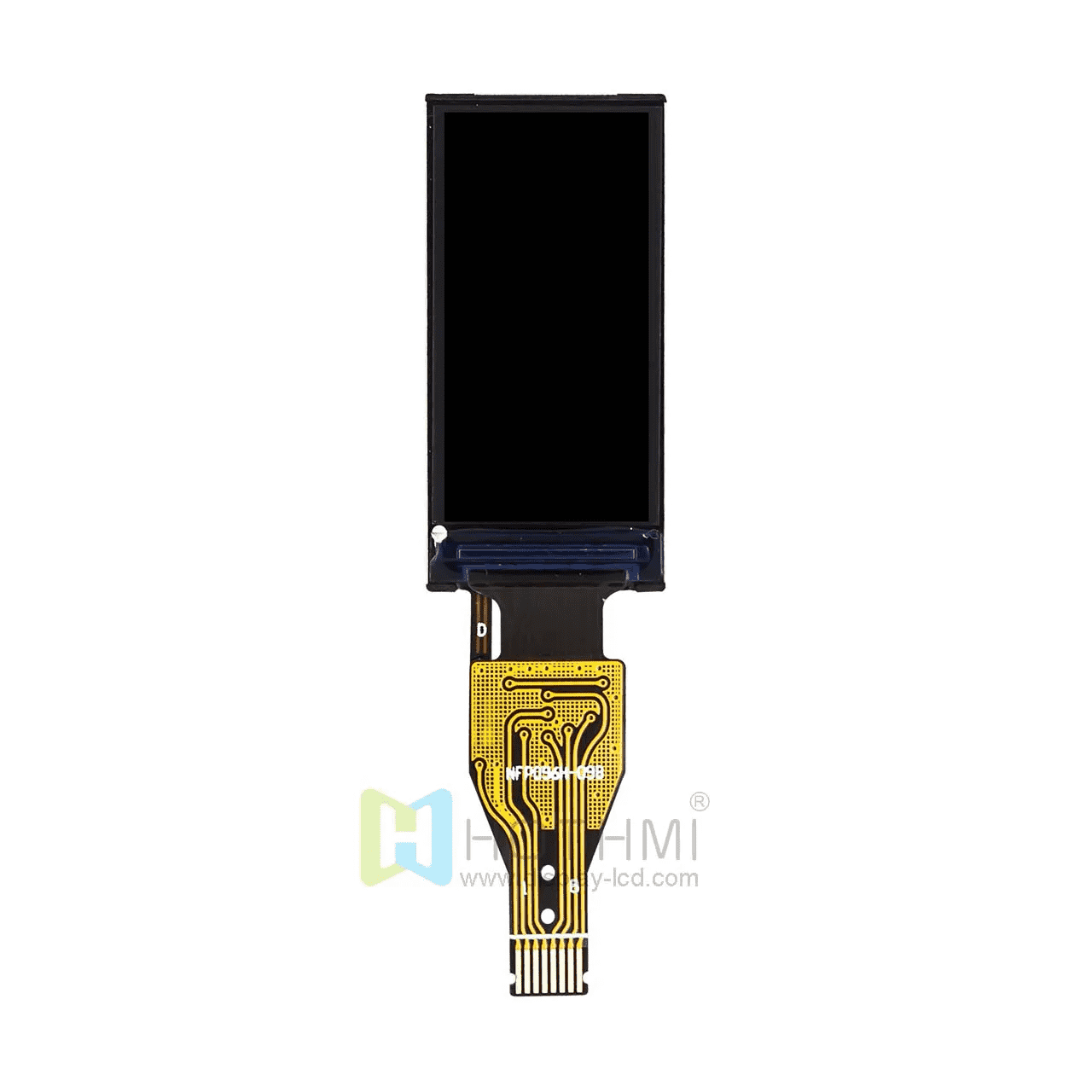

Standard Component Level (Model: TFT-H010W21AIST4N8): The base module featuring a bare FPC tail without an integrated driver board. This tier provides maximum mechanical and electrical freedom for developers designing their own proprietary mainboards and custom pin layouts.
Alternate Pin Configuration Variant (Model: SPEC-H010A11AIST4N10): A specialized 10-pin hardware variation engineered to match pre-existing legacy board connections or unique routing pathways.
Turnkey Smart UART Display (Model: HTM-H010A1-UART-A01): An intelligent module integrated with Hotdisplay's proprietary EzUI driver board. It processes simple serial commands via UART, removing the need for complex, low-level graphical programming and significantly shortening time-to-market.
Micro-Form Precision: Offers an optimized footprint of 13.5 × 27.95 × 1.46 mm, fitting easily into pocket-sized or finger-worn casings.
High-Ambient Readability: Delivers a typical backlight brightness of 400 cd/m², rendering legible content in outdoor shade or bright indoor workspaces.
Ultra-Wide IPS Viewing Geometry: Features full-viewing-angle performance (U80/D80/L80/R80), preventing color inversion or contrast wash-out when viewed off-axis.
Optimized Electrical Parameters: Operating voltage (VCI) runs at a stable 3.2V ±0.2V. The backlight operates under constant-current conditions (Vf=3.0–3.4V, If=40mA) to preserve LED lifecycle and output consistency.
Universal Platform Compatibility: The native ST7735S instruction set is fully compatible with mainstream open-source libraries and embedded frameworks, including Arduino, Raspberry Pi, STM32, and LVGL.
The Ultimate 0.96-Inch Sweet Spot: This precise dimension represents the ultimate architectural balance between extreme mechanical shrinkage and vital user visibility, offering a fully functional full-color UI where larger displays simply cannot fit.
Micro-Enclosure Geometric Match: Measuring just 13.5 x 27.95 mm with a 1.46mm thickness, the 0.96" footprint slips easily into restrictive, curved, or finger-worn casings (like slim fitness trackers, smart rings, and compact vape mods) without forcing bulky casing modifications.
High-Density Spatial Efficiency: By packing an 80x160 portrait layout into less than an inch of glass, it concentrates rich graphics and micro-text with superb sharpness, proving that shrinking a device's form factor does not mean sacrificing critical data legibility.
Ultra-Low Profile Structural Integration: Bound by an ultra-thin 0.10mm hybrid frame, this sub-inch module minimizes bezel waste to achieve high screen-to-body ratios. This helps engineering teams optimize internal board layouts and free up space for sensors or antennas.
Minimal Resource & Power Demands: Restricting screen real estate to 0.96 inches reduces backlight power draw to a modest 40mA. This enables B2B clients to deploy full-color, dynamic menus while easily sticking to strict hardware weight allocations and tight micro-battery power budgets.
When preparing an RFQ (Request for Quote) or verifying engineering samples for a 0.96 inch TFT LCD Display module, your procurement and engineering teams should cross-reference these critical technical considerations to ensure long-term product reliability:
Software Anti-Image Retention Protocols: Because this 0.96" mini TFT LCD utilizes a normally black IPS panel architecture, displaying continuous static text or fixed icons can result in image ghosting or burn-in. Engineering teams should integrate a software-level screensaver mechanism or dynamic screen-clear cycles every 2 minutes within the ST7735S driver firmware layout.
Backlight Power & Thermal Constraints: The built-in LED backlight of the 0.96 inch LCD module requires a strict constant current source of 40mA. Ensure your mainboard hardware design utilizes a dedicated constant-current driver chip rather than a basic voltage divider circuit to guarantee the display’s rated 20,000+ hour backlight lifespan and prevent thermal degradation.
Deep Sleep Command Architecture: For battery-driven products deploying this sub-inch screen, leverage the ST7735S display controller chip's native low-power sleep mode commands. Deactivating the internal display matrix and disabling the backlight circuit during system idle states reduces the power draw of the 0.96-inch micro display down to minimal micro-amp levels, significantly extending device battery lifecycles.
Outdoor Sunlight Readability Modifications: While the standard 0.96 inch 80x160 screen delivers a solid 400 cd/m² brightness for indoor workspaces or shaded environments, it can wash out under high ambient lighting. For applications deployed under intense direct sunlight, you should request custom optical bonding (OCM) or localized brightness enhancement films (BEF) during the RFQ phase to maximize outdoor contrast and legibility.
