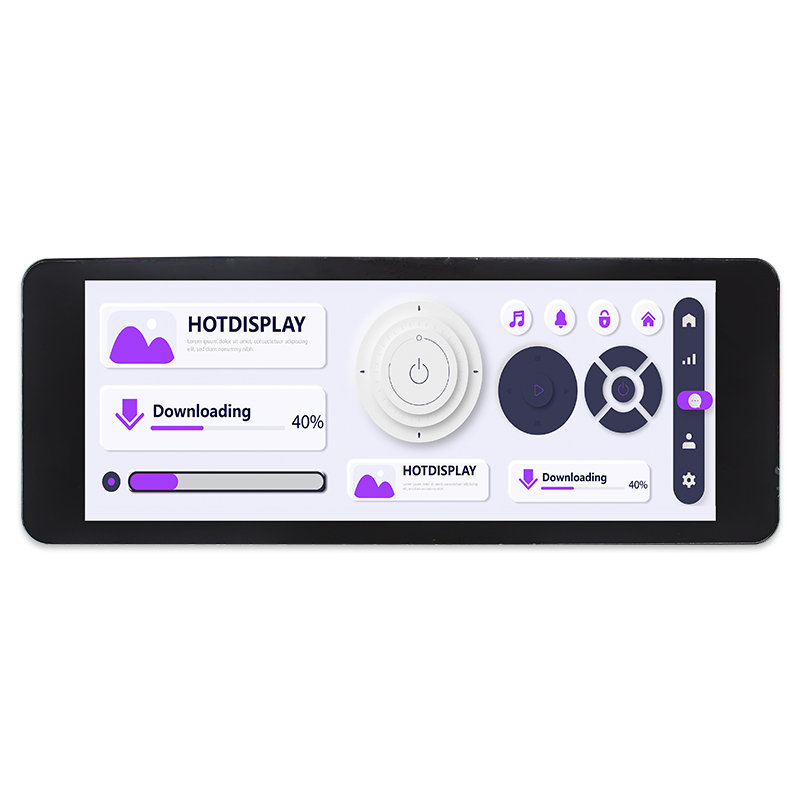

 | Key Features of Our 6.86 Inch TFT LCD Displays
|
| Parameter | Available configurations |
|---|---|
| Display size | 6.86 inch |
| Resolution | 480×1280 |
| Display technology | TFT LCD, IPS full viewing angle |
| Display format | Long bar / portrait-oriented |
| Brightness | 500 cd/m² and 800 cd/m² options listed |
| Touch options | Capacitive touch and non-touch configurations |
| Interface | RGB-related configurations; verify by model |
| Driver IC | ST7701 or NV3052, depending on model |
| FPC | 40-pin configurations listed |
| Operating temperature | -20°C to +70°C on listed models |
| Supply voltage | 3.3V on listed models |
| Customization | Touch, FPC, cover glass and integration options |

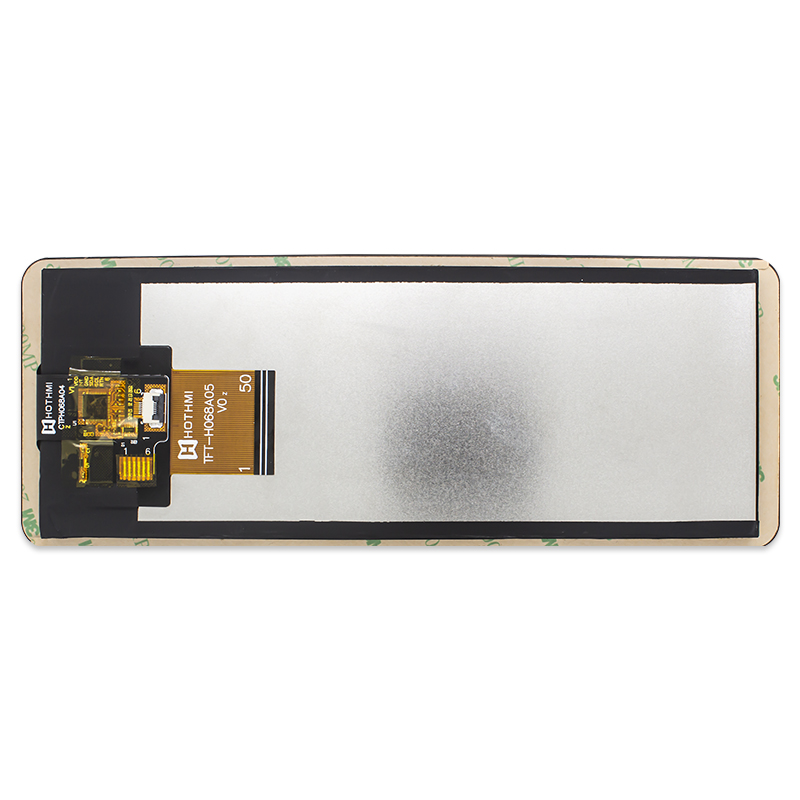

Our 6.86 inch TFT LCD displays can be considered for:
Industrial control equipment: Vertical operating menus, status information and equipment interfaces.
Portable instruments: Tall graphical interfaces for handheld measurement and field devices.
Outdoor handheld equipment: High-brightness options for devices used in bright environments.
Interactive terminals: Touch-enabled user interfaces for control and information access.
Medical and monitoring equipment: Displaying measurement data and operating information, subject to the product's system and regulatory requirements.
IoT and smart devices: Compact interfaces for connected equipment and embedded applications.
Commercial and self-service equipment: Vertical menus, instructions and interactive content where the display configuration fits the device.

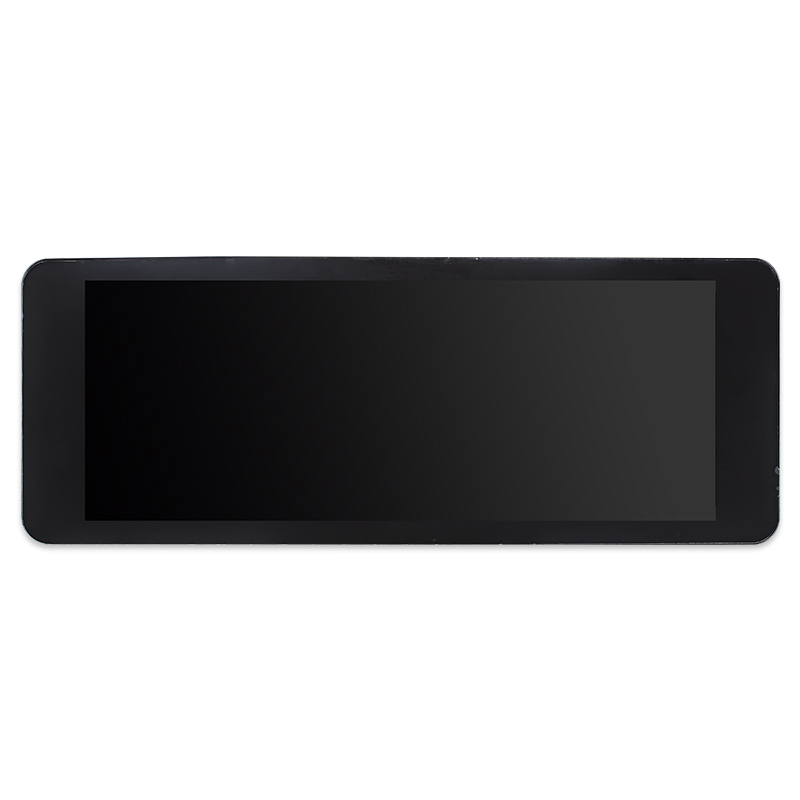

A standard display may not fully match your product's enclosure, user interface or electrical design. HotDisplay provides customization support to help align the display configuration with your project requirements.
Depending on technical feasibility, our customization services can include:
FPC customization: Cable length, routing, connector position and pin configuration.
Touchscreen integration: Capacitive or other suitable touch options based on project needs.
Cover glass customization: Cover dimensions, shape and thickness for device integration.
Interface evaluation: Reviewing the display interface and host-board requirements.
Optical integration: Discussing brightness, surface reflection and optical bonding requirements.
PCBA and assembly support: Reviewing related electronics and assembly needs for the project.
Send us your target specifications, enclosure drawings or existing display model. Our team can help assess compatibility and recommend the next steps for sampling and development.
For applications that need improved visibility in bright environments, our 6.86 inch TFT LCD series includes high-brightness options up to 800 cd/m², depending on the model.
The IPS panel supports wide viewing angles, while the 480×1280 resolution provides a tall display area for vertically arranged information. These models are suitable for projects where screen readability and a narrow, elongated form factor are important.
For interactive equipment, we offer 6.86 inch TFT LCD configurations with capacitive touch options. Touchscreen integration allows users to operate menus, select functions and interact directly with the device.
Depending on the selected model and project requirements, touch integration can be discussed alongside cover glass, FPC and mechanical design. Confirm the touch interface and controller compatibility with your host system before ordering.
The 480×1280 resolution and tall screen format make this series suitable for equipment that needs to display vertically organized content within a limited installation area.
The long-screen configuration can support status panels, operating menus, measurement information and other content designed for portrait-oriented interfaces.
A display used in bright indoor spaces or outdoor equipment needs an appropriate brightness level and optical configuration. Our 6.86 inch TFT LCD range includes higher-brightness options to help improve screen visibility.
We can help you compare brightness requirements, viewing conditions and cover-glass configurations. For direct-sunlight applications, reflectance, installation angle and optical bonding should also be evaluated rather than relying on brightness alone.
A 480×1280 long bar display is useful when the device needs a vertically extended interface but has limited width for installation.
Our team can review the outline dimensions, active area, mounting space and FPC routing against your product enclosure. This helps reduce mechanical conflicts and avoid selecting a display based on diagonal size alone.
For products requiring direct user input, we provide capacitive touch configurations and can discuss touch panel and cover-glass integration.
Before selecting a touch model, our team can help review the touch controller, host-board connection, cover dimensions and intended operating environment to identify potential integration issues.
Display compatibility depends on more than resolution. The interface, signal timing, driver IC, pin definition and power requirements must match the host board.
Share your controller or existing display specifications with us. We can help review the available model options and identify the information needed for system integration.
Multiple display configurations: Compare brightness, touch and mechanical options within the 6.86 inch series.
Engineering support: Review interface, dimensions, pinout and power requirements before design-in.
Customization capability: Discuss FPC, touch, cover glass and related integration requirements.
Application-oriented selection: Choose a display based on actual viewing conditions and equipment design rather than size alone.
Project support: Request product information, datasheets, samples and quotation details for your development or purchasing plan.
The listed 6.86 inch models use a 480×1280 resolution. This tall format is suitable for portrait-oriented interfaces and vertically arranged information.
Yes. The listed range includes capacitive touch and non-touch configurations. The exact touch function, controller and interface depend on the selected model.
The listed models include 500 cd/m² and 800 cd/m² options. A higher brightness rating can help in bright environments, but the correct choice also depends on sunlight exposure, reflections, viewing angle and power constraints.
Compatibility depends on the display interface, resolution timing, driver requirements, pinout and voltage. Provide your controller-board model or technical documentation so the display can be checked before purchase.
FPC and cover-glass requirements can be discussed as part of a custom display project. Feasibility depends on the selected panel and the requested mechanical and electrical changes.
Please share your required resolution, brightness, touch preference, interface, operating temperature, installation dimensions, estimated order quantity and target schedule. If you are replacing an existing screen, include its model number or datasheet.
Tell us about your application, brightness requirements, touch preference and system interface. Our team can help compare available models, review integration requirements and discuss customization, samples and bulk purchasing.
Contact HotDisplay to find a suitable 6.86 inch TFT LCD solution for your product.
