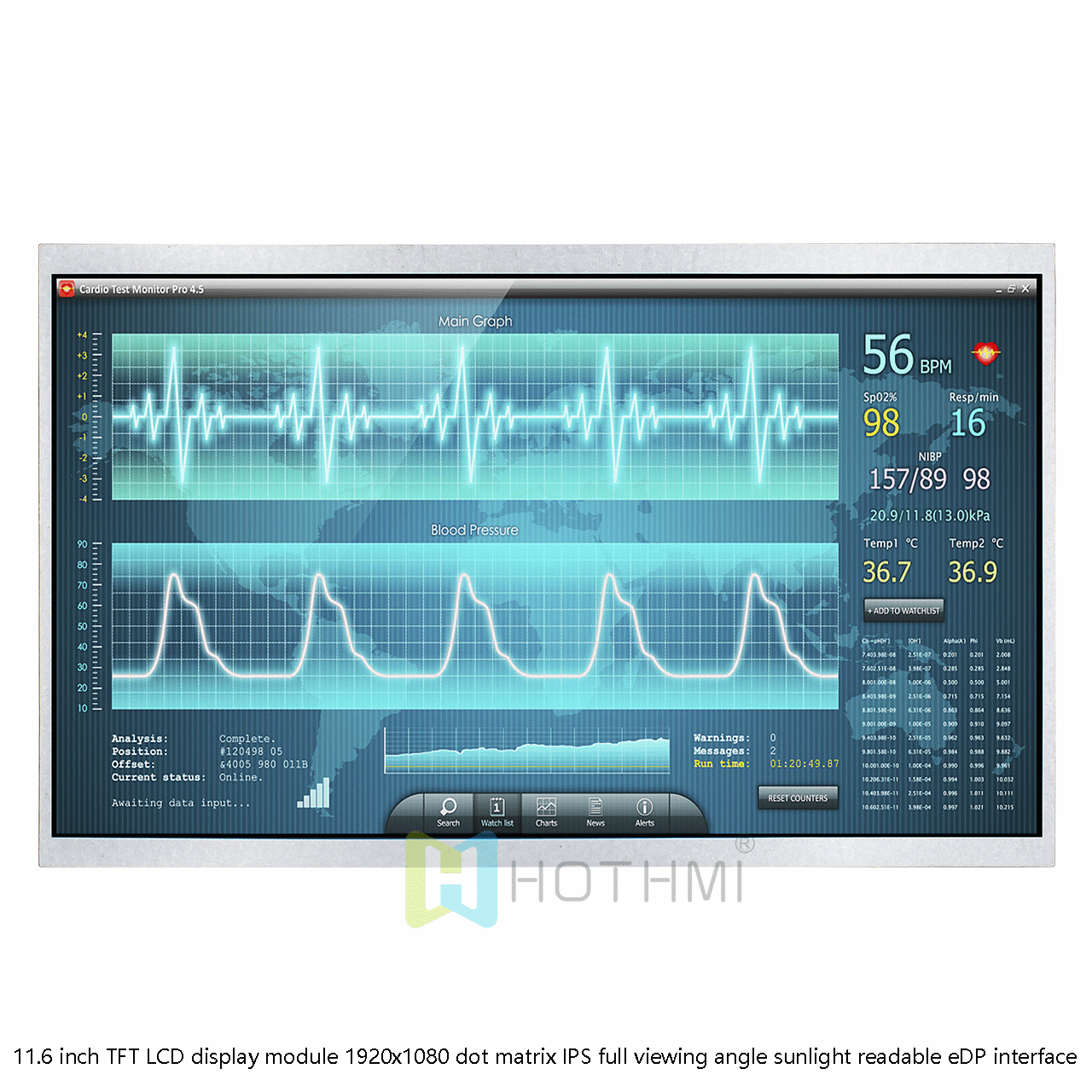

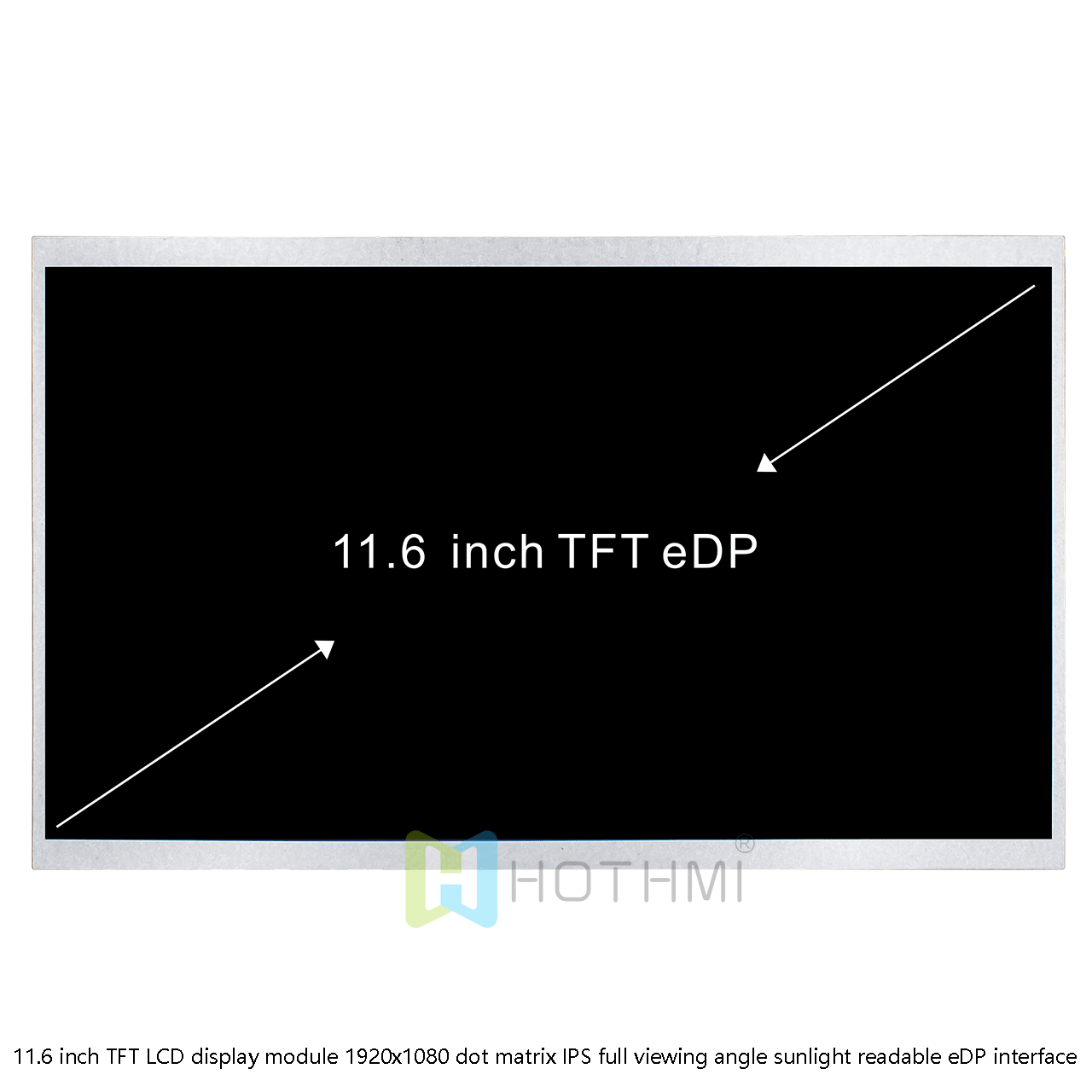

HotDisplay provides 11.6-inch TFT LCD displays for industrial computers, vehicle-mounted equipment, and professional embedded systems. Featuring Full HD 1920×1080 resolution, IPS wide viewing angles, 1000 cd/m² brightness, and an eDP interface, this display is designed for applications that require detailed images and improved visibility in bright environments.
Beyond the display module, HotDisplay offers technical support and customization options for touch integration, FPC cables, interface adaptation, and cover glass to help customers build a display solution that fits their equipment.
 | Key Features of the 11.6 Inch TFT LCD Display
|
| Parameter | Specification |
|---|---|
| Model | TFT-H116D01FHIWZKN30 |
| Display Size | 11.6 inches |
| Resolution | 1920 × 1080 |
| Display Technology | TFT LCD, IPS |
| Brightness | 1000 cd/m² |
| Viewing Angle | 85° / 85° / 85° / 85° |
| Contrast Ratio | 1000:1 |
| Interface | eDP |
| Connector | FPC, 30-pin |
| Module Dimensions | 267.72 × 164.42 × 6.15 mm |
| Active Area | 256.32 × 144.18 mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Supply Voltage | 3.3V |
| ESD | 8 kV |
| Touch | Standard module without touch; optional touch solutions |
The 1920×1080 resolution provides space for detailed control interfaces, monitoring dashboards, and equipment status information. HotDisplay can help assess the display-to-host connection and mechanical integration requirements.
High brightness and IPS viewing angles support visibility across different viewing positions. For vehicle applications, evaluate vibration, ambient temperature, sunlight exposure, and the host system's eDP compatibility before selection.
The 1000-nit backlight improves readability in bright environments. Actual sunlight readability depends on the complete optical structure, including cover glass, surface reflections, bonding, and installation conditions.
The Full HD display supports information-rich interfaces. Optional touch integration and customized cable solutions can help adapt the module to different control-panel designs.
Choosing a display is only one part of a successful product design. HotDisplay helps customers address the engineering details that affect compatibility, assembly, and user experience.
Interface and Host Compatibility: Review eDP requirements, connector orientation, pin definition, and host-board compatibility.
Touchscreen Integration: Provide capacitive or resistive touch options, with touch glass dimensions and structure evaluated for the application.
FPC and Connector Customization: Adjust cable length, routing, connector position, or pin arrangement where feasible and confirmed by engineering.
Cover Glass and Optical Bonding: Evaluate customized cover glass and bonding options to reduce reflections and improve protection against dust or moisture.
Mechanical and Electrical Review: Check module dimensions, mounting clearance, power requirements, and thermal conditions before design-in.
Project-Based Technical Support: Help customers review specifications, samples, and integration requirements before moving toward production.
Before purchasing, confirm these key points:
Resolution and aspect ratio: Verify that 1920×1080 matches the host system's output and the user-interface design.
Interface compatibility: The listed module uses eDP. Confirm the host board supports the required eDP configuration, lane mapping, and connector pinout.
Brightness and reflections: 1000 cd/m² is a high-brightness specification, but direct-sunlight readability also depends on reflections and the front-cover design.
Touch requirements: The standard module is listed without a touch panel. Confirm whether capacitive or resistive touch is needed and specify the touch controller and connection requirements.
Mechanical clearance: Check the complete module dimensions, active area, FPC bending space, and mounting structure—not only the diagonal screen size.
Operating environment: Confirm that the -20°C to +70°C operating range covers the actual equipment environment, including heat generated inside the enclosure.
Supply and lifecycle: Request the latest datasheet, sample availability, lead time, and lifecycle information for your project.
Its 1000 cd/m² brightness supports use in bright environments. For direct sunlight, evaluate the complete display assembly, especially surface reflections, cover glass, and optical bonding.
The listed standard module has no touch panel. HotDisplay can discuss optional capacitive or resistive touch integration based on the project's mechanical and electrical requirements.
Not directly based on the listed eDP interface. An appropriate controller or conversion solution may be required. Confirm the host output, resolution, refresh requirements, and available controller options before ordering.
FPC customization may be available for cable length, routing, connector position, or pin arrangement. Feasibility depends on the panel design and should be confirmed with engineering.
Share your target quantity, application, host-board interface, touch requirements, operating environment, mechanical constraints, and project schedule. A host-board or existing display reference can help accelerate compatibility review.
Looking for an 11.6-inch Full HD TFT LCD display for an industrial computer, vehicle-mounted system, or embedded device?
Contact HotDisplay with your project specifications. Our team can help review display compatibility, touch integration, cable customization, and optical requirements to identify a practical solution for your application.
