LVDS LCD displays use low-voltage differential signaling to transmit display data. This interface is widely used in industrial and embedded display designs where signal integrity, controlled electromagnetic interference and reliable data transmission are important considerations.
HOTDISPLAY provides TFT LCD products with LVDS interface options for compatible host platforms and display architectures.
Differential signaling can improve resistance to common-mode noise when the complete system is designed correctly. LVDS is often used in medium- and larger-format TFT displays, including industrial equipment, control systems and instrumentation.
Actual performance depends on cable or FPC design, grounding, connector quality, signal routing and host compatibility.

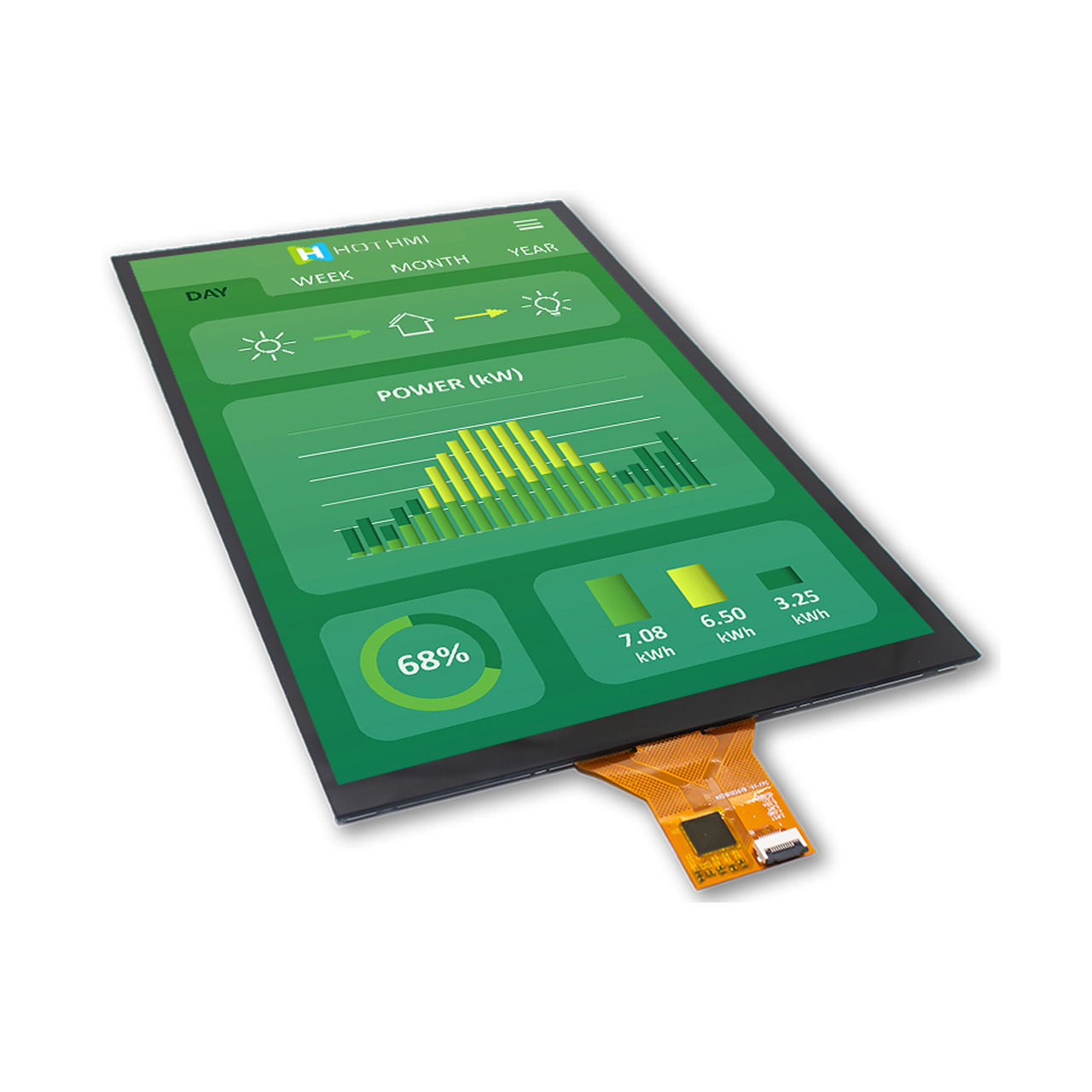

Check the host controller's LVDS output, single- or dual-channel configuration, supported resolution and timing, color depth, mapping format, connector pinout and voltage requirements.
Also compare panel size, brightness, viewing angle, operating temperature, backlight power and mounting dimensions. Do not assume that two LVDS panels are interchangeable merely because they use the same connector size.

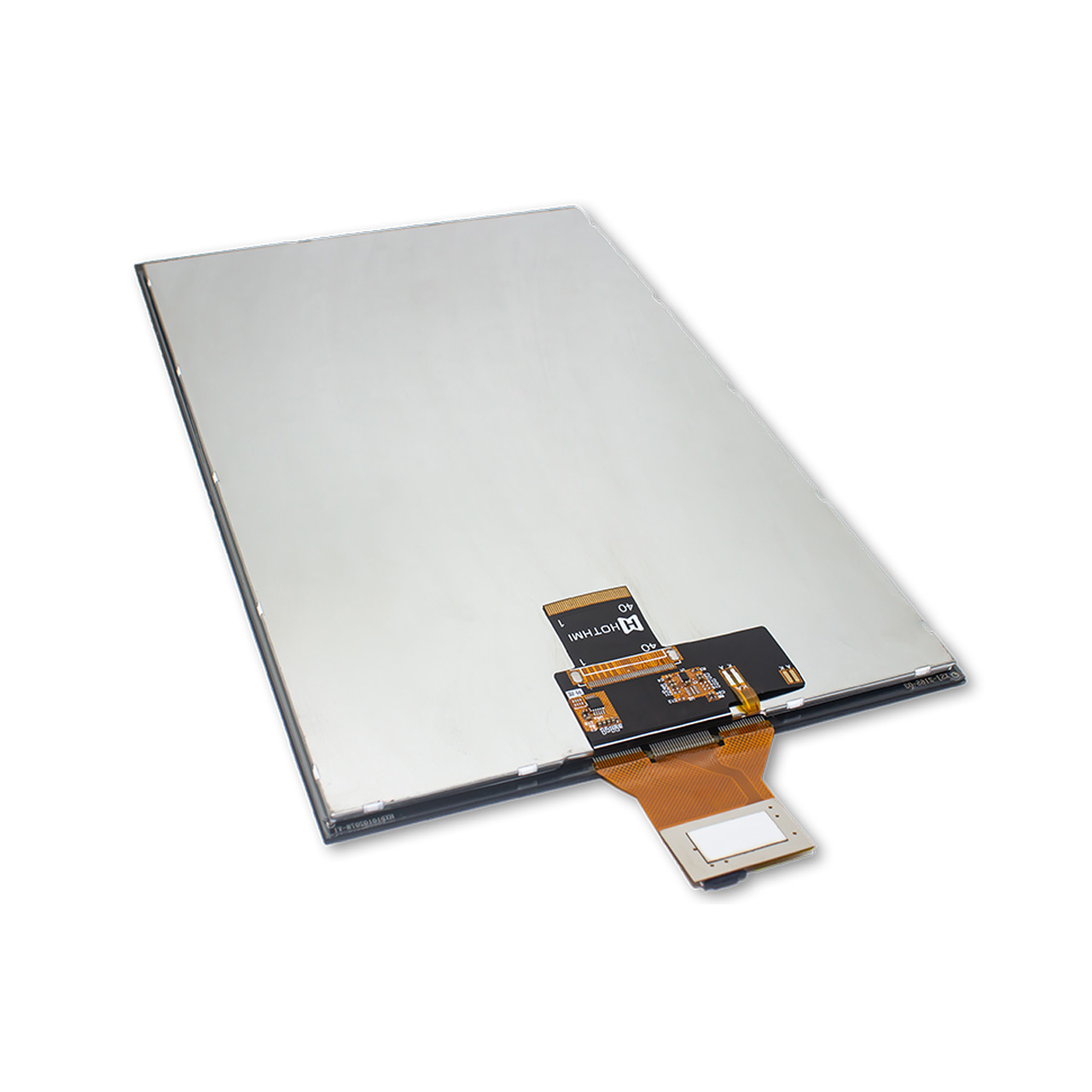

HOTDISPLAY's published product portfolio includes LVDS displays, including high-brightness options. The website lists a 10.1-inch 1024 × 600 high-brightness display with LVDS among its product examples. Model-specific parameters and interface configuration should always be checked against the relevant datasheet.
Industrial HMI, control terminals, test instruments, embedded monitors and equipment that uses a compatible LVDS display controller.
No. The host must support the appropriate LVDS signaling, channel configuration, timing and panel data mapping.
Neither is universally better. LVDS uses differential signaling, while RGB generally uses parallel pixel data and timing signals. The best choice depends on the host platform, resolution, PCB design and operating environment.
Yes, if its brightness, optical characteristics, temperature range and mechanical protection are suitable for the environment. Outdoor readability may require a high-brightness panel and additional optical measures.
A candidate can be evaluated using the original panel datasheet, connector pinout, resolution, timing, dimensions and electrical specifications. Final compatibility must be confirmed before substitution.
Send HOTDISPLAY your existing panel model or system specification to evaluate suitable LVDS TFT LCD options.
