Hotdisplay's 2.7 inch TFT LCD category currently covers two distinct display formats:
| Model | Display Format | Resolution | Controller | Dimensions |
|---|---|---|---|---|
| TFT-H027A02ZPINV5N10 | Narrow TFT LCD | 142x428 | NV3007 | 24.38 × 69.43 × 2.09 mm |
| TFT-H027A01HQINV4N40 | Square TFT LCD | 320x320 | ST7796 | 53.40 × 59.90 × 2.27 mm |
The two modules provide different combinations of screen shape, pixel resolution, controller and mechanical dimensions, allowing product designers to select a 2.7 inch TFT LCD according to the available installation space and display requirements.
A compact TFT LCD module needs to satisfy both display and mechanical requirements. Screen size alone does not determine whether a display will fit a finished product.
When selecting a 2.7 inch TFT LCD, designers should consider:
Display size
Pixel resolution
Screen format and aspect ratio
Module dimensions
Controller
Available installation space
Required display orientation
System and display interface requirements
Hotdisplay provides different 2.7 inch display geometries so customers can compare the module dimensions and resolution before selecting the appropriate TFT LCD for their product design.
Our 2.7 inch TFT LCD display range includes different screen formats and pixel configurations to meet different product design requirements.

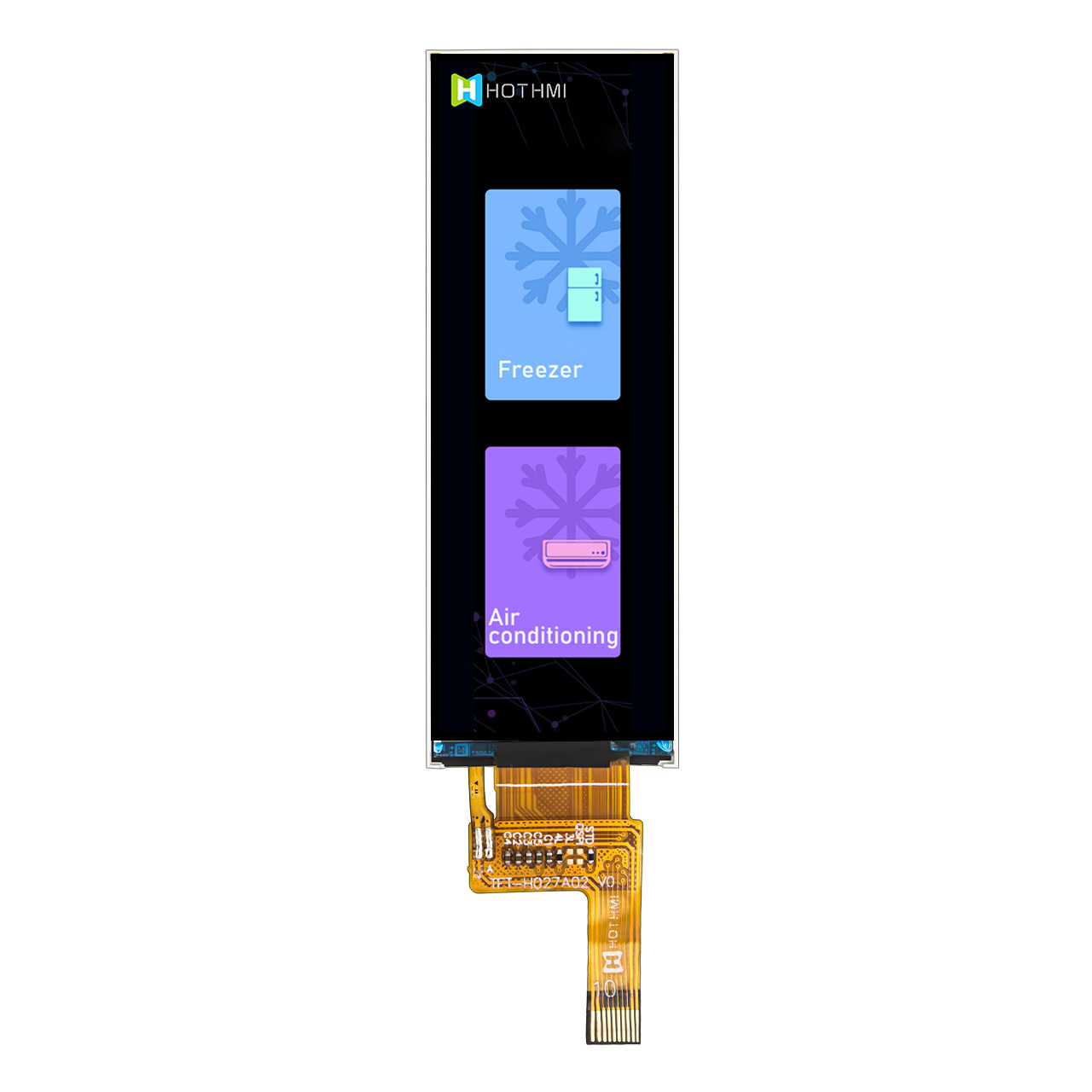

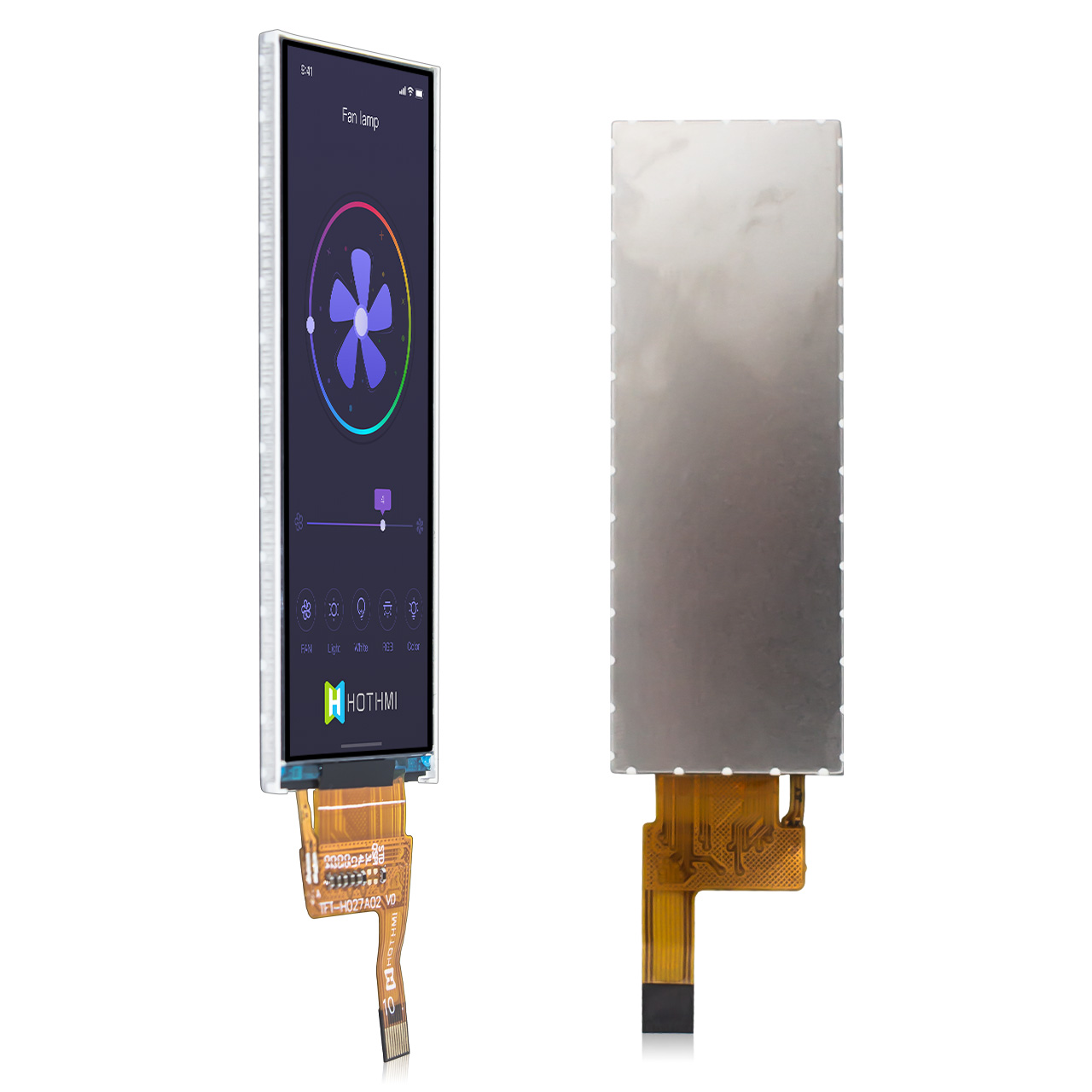

The TFT-H027A02ZPINV5N10 is a 2.7 inch TFT LCD display with a 142x428 pixel resolution and NV3007 controller.
Display size: 2.7 inch
Resolution: 142x428 pixels
Controller: NV3007
Dimensions: 24.38 × 69.43 × 2.09 mm
Product type: TFT LCD display
Its narrow display format and compact mechanical dimensions make this module suitable for embedded products where a vertically oriented or narrow display area is required.

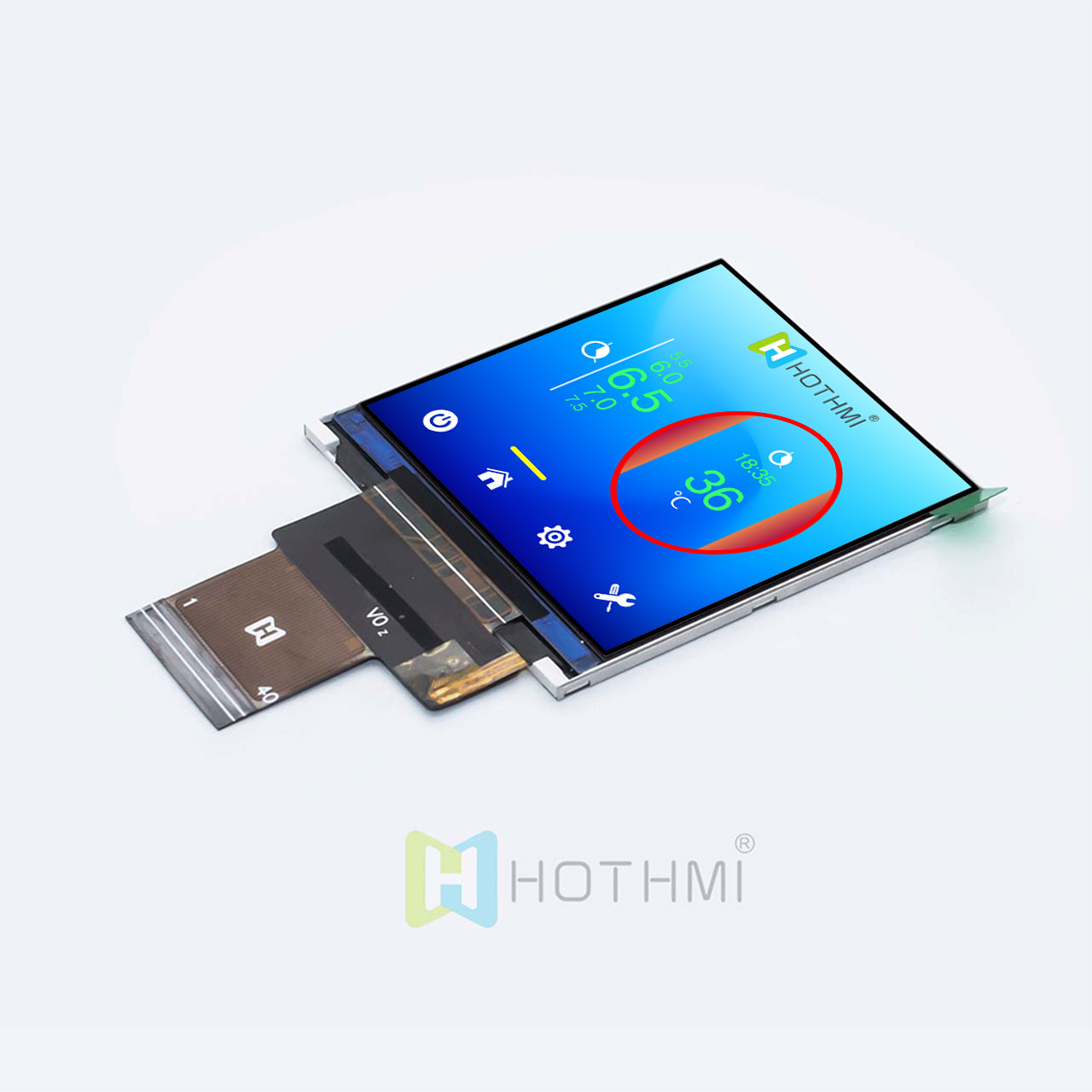

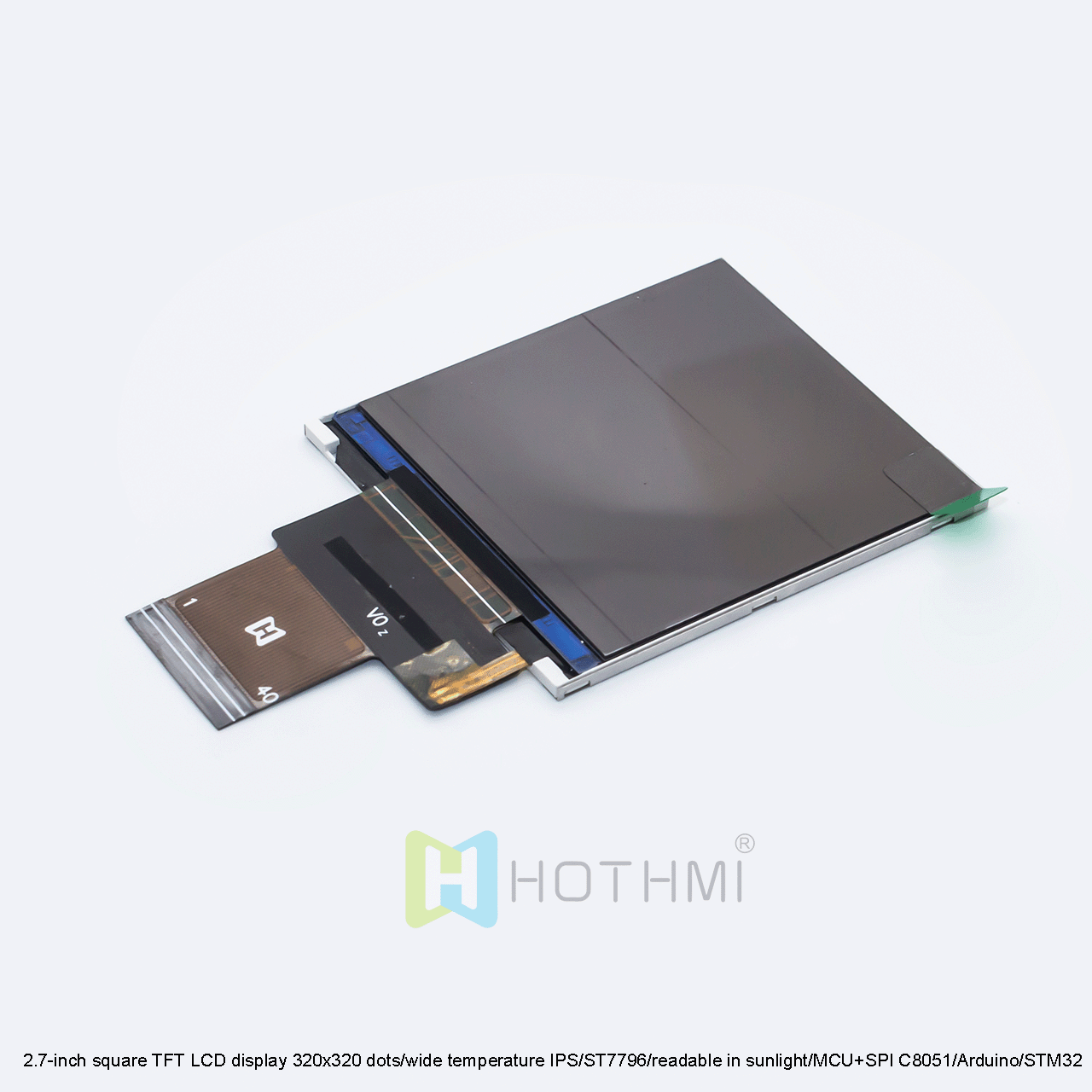

The TFT-H027A01HQINV4N40 is a 2.7 inch square TFT LCD display featuring a 320x320 dot-matrix resolution and ST7796 controller.
Display size: 2.7 inch
Resolution: 320x320 pixels
Controller: ST7796
Dimensions: 53.40 × 59.90 × 2.27 mm
Product type: Square TFT LCD display
The square screen format provides a different display geometry from conventional rectangular TFT modules, making it an option for compact products requiring a square display interface.
The 2.7 inch TFT LCD modules can be considered for compact embedded display applications where a small display form factor is required.
Typical application considerations include:
Compact embedded devices
Portable electronic equipment
Instrument displays
Control interfaces
Smart devices
Industrial equipment interfaces
Specialized electronic products
Space-constrained display systems
The appropriate model depends on the required display format, resolution, controller and available mechanical space.
The screen geometry is one of the first factors to consider.
For a narrow display format, the 142x428 pixel TFT LCD provides a compact 24.38 × 69.43 mm module footprint.
For a square display requirement, the 320x320 TFT LCD provides a 53.40 × 59.90 mm module format.
The two available models use different resolutions:
142x428 pixels for the narrow-format display
320x320 pixels for the square display
The appropriate resolution should be selected according to the amount and layout of information that the product needs to display.
The controller is another important consideration during system integration.
NV3007 — used on TFT-H027A02ZPINV5N10
ST7796 — used on TFT-H027A01HQINV4N40
The controller should be checked against the customer's hardware and software architecture before final display selection.
Mechanical dimensions are critical when the display must fit into an existing enclosure.
The two 2.7 inch TFT LCD modules have different footprints:
24.38 × 69.43 × 2.09 mm
53.40 × 59.90 × 2.27 mm
Customers should confirm the available display opening and internal installation space before selecting a module.
Hotdisplay provides different 2.7 inch TFT LCD configurations for compact product designs.
The current range includes both a narrow 142x428 TFT LCD and a square 320x320 TFT LCD, giving designers more flexibility when selecting the screen geometry.
The product range includes 142x428 and 320x320 pixel configurations for different information layouts and display requirements.
The 2.7 inch range includes modules using NV3007 and ST7796 controllers, allowing customers to select according to their system integration requirements.
The modules are designed in compact mechanical formats, with thicknesses of approximately 2.09–2.27 mm based on the current product specifications.
Instead of selecting a TFT LCD based only on screen size, customers can compare resolution, format, controller and module dimensions to identify the appropriate display for their product.
A 2.7 inch TFT LCD display is a compact thin-film transistor liquid crystal display module with a nominal 2.7 inch display size. Hotdisplay currently offers 2.7 inch TFT LCD modules in different screen formats and resolutions.
The current 2.7 inch product range includes 142x428 pixels and 320x320 pixels.
Yes. Hotdisplay offers the TFT-H027A01HQINV4N40, a 2.7 inch square TFT LCD with a 320x320 dot-matrix resolution and ST7796 controller.
Yes. The TFT-H027A02ZPINV5N10 provides a narrow 142x428 pixel display format with an NV3007 controller.
The current modules have different dimensions. The 142x428 model measures 24.38 × 69.43 × 2.09 mm, while the 320x320 square model measures 53.40 × 59.90 × 2.27 mm.
The choice depends on the required screen format, resolution, controller and available installation space. Customers should compare the product specifications with their enclosure and system requirements before selecting a model.
Looking for a compact TFT LCD for your next product? Explore Hotdisplay's 2.7 inch TFT LCD displays and compare screen format, resolution, controller and mechanical dimensions to find the appropriate module for your application. Contact Hotdisplay for 2.7 inch TFT LCD display selection and customization requirements.
