Hotdisplay provides 2.3 inch TFT LCD displays with 320×240 pixel resolution for compact electronic and embedded applications. The product range includes standard TFT display and MCU interface configurations, with compact module dimensions of approximately 51.0×45.8 mm.
Different 2.3 inch TFT LCD configurations allow engineers to select a display according to interface and mechanical integration requirements.
Hotdisplay currently offers 2.3 inch TFT LCD displays in the following configurations:
| Model | Resolution | Type / Interface | Dimensions |
|---|---|---|---|
| TFT-H023A62LQTIL2N30 | 320×240 | Standard TFT Display | 51.0×45.8×2.3 mm |
| TFT-H023A61LQTIL2N40 | 320×240 | TFT LCD / MCU Interface | 51.00×45.80×2.50 mm |
The 2.3 inch form factor provides a compact display option for products with limited internal space.
The 320×240 pixel configuration provides a practical graphical display format for menus, status information and other interface content.
The TFT-H023A61LQTIL2N40 provides an MCU interface configuration for embedded system integration.
With module dimensions around 51.0×45.8 mm, engineers can evaluate the display against the available PCB and enclosure space before integration.

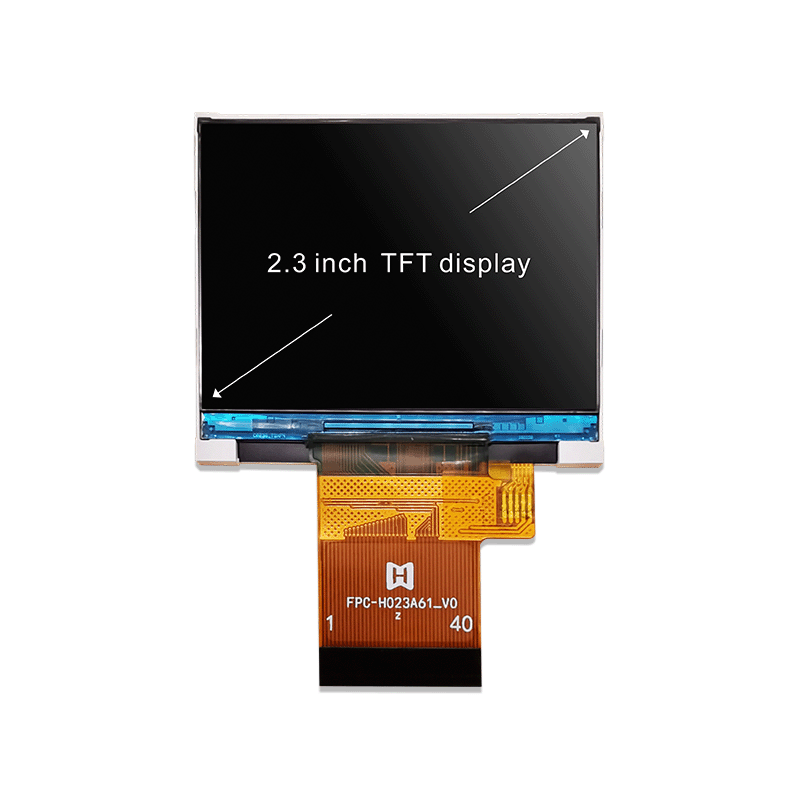

The 320×240 resolution is the core configuration of Hotdisplay's 2.3 inch TFT LCD range. It provides a compact graphical display format for products that require visual information within limited installation space.
Display size: 2.3 inch
Resolution: 320×240 pixels
Display type: TFT LCD
Module dimensions: approximately 51.0×45.8 mm
Available configuration: MCU interface

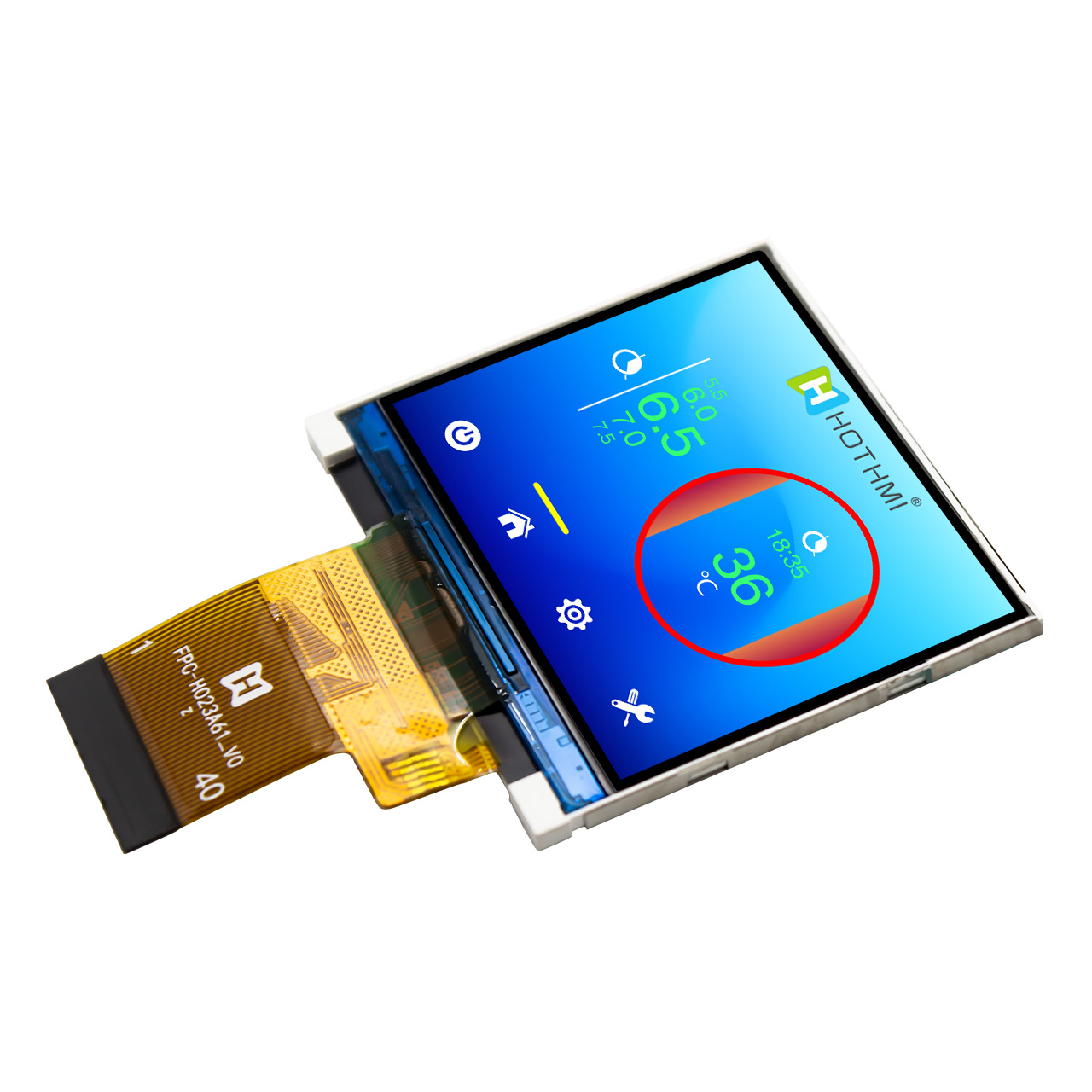

2.3 inch TFT LCD displays can be integrated into compact electronic products requiring a small graphical display.
Embedded electronic equipment
Compact control interfaces
Instrument displays
Portable electronic devices
Equipment status displays
Space-constrained product designs
2.3 Inch Compact Size: Designed for applications requiring a small TFT LCD module.
320×240 Resolution: Both current 2.3 inch models use 320×240 pixel resolution.
Multiple Configurations: Standard TFT and MCU interface configurations are available.
Compact Module Dimensions: Approximately 51.0×45.8 mm, depending on the model.
Clear Product Specifications: Resolution, display type, interface and mechanical dimensions are provided for engineering selection.
When selecting a 2.3 inch TFT LCD, consider:
Resolution: Both Hotdisplay models provide 320×240 pixels.
Interface: Choose the MCU interface configuration when it matches your host system.
Module Dimensions: Compare the complete 51.0×45.8 mm-class module dimensions with your product's available space.
Display Configuration: Select the model according to the required display and system integration configuration.
A 2.3 inch TFT LCD display is a compact TFT liquid crystal display with a nominal diagonal size of 2.3 inches. Hotdisplay's current models use 320×240 pixel resolution.
The current 2.3 inch TFT LCD products use 320×240 pixels.
Yes. The TFT-H023A61LQTIL2N40 is a 2.3 inch TFT LCD with MCU interface and 320×240 resolution.
The available models have dimensions of 51.0×45.8×2.3 mm and 51.00×45.80×2.50 mm, respectively.
Yes. Hotdisplay currently provides different 2.3 inch configurations based on display type and interface requirements.
Looking for a compact 2.3 inch TFT LCD display? Compare Hotdisplay's 320×240 TFT LCD models and select the configuration that matches your interface and mechanical requirements. Request a 2.3 Inch TFT LCD Display Now.
