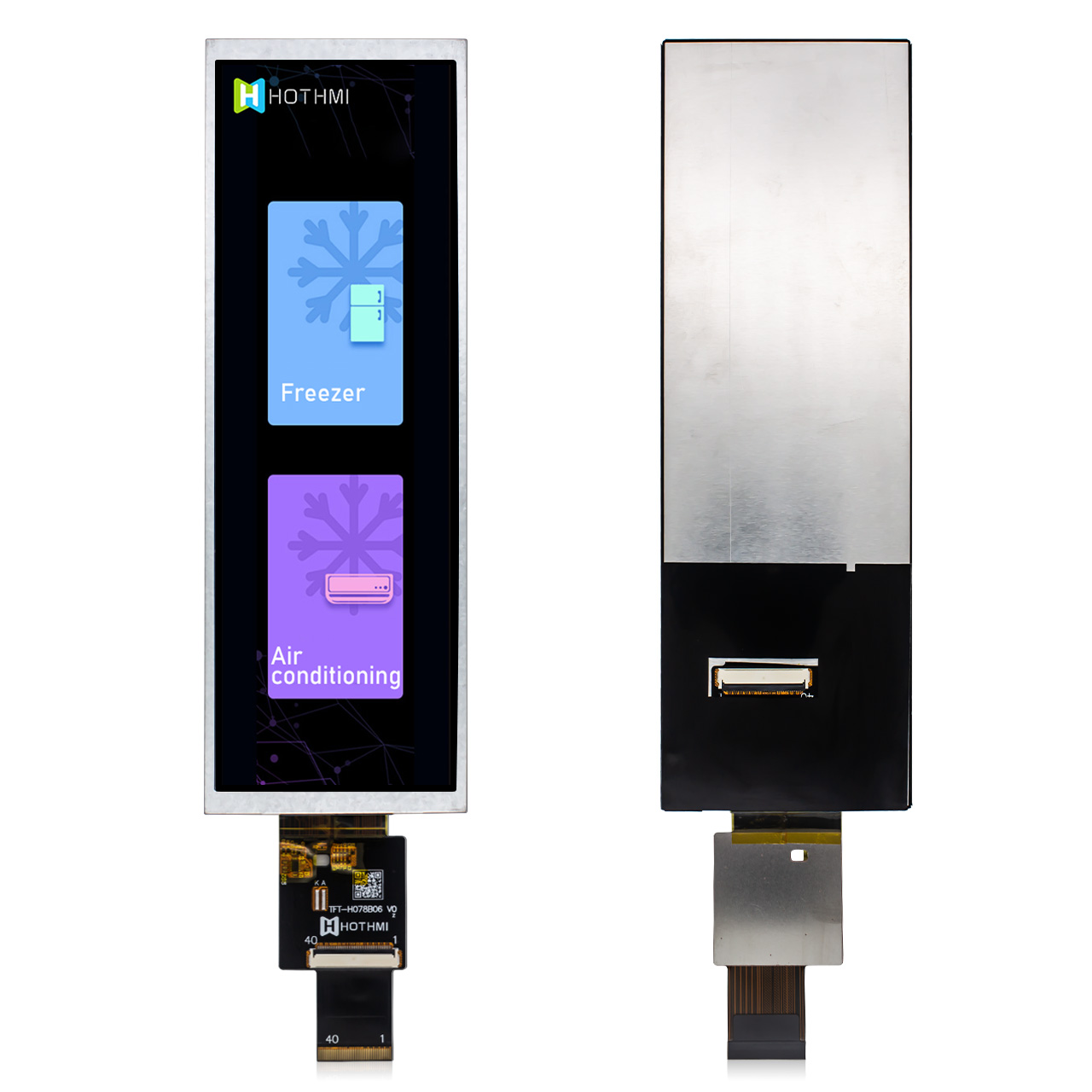

 | Key Features of Our 7.8 Inch TFT LCD Displays
|
| Parameter | Available configurations |
|---|---|
| Display size | 7.8 inch |
| Resolution | 400×1280 listed across the series |
| Display format | Long bar / portrait-oriented |
| Display technology | TFT LCD; IPS specified on selected models |
| Interface | MIPI DSI, RGB, LVDS, depending on model |
| Touchscreen | Capacitive touch and non-touch options |
| Optical configuration | Sunlight-readable and optical-bonding options on selected models |
| Outline dimensions | Vary by model; approximately 65.2–67.8 mm wide and 201.18–208.78 mm long |
| Customization | FPC, touch, cover glass and integration options |
For devices used in bright indoor environments or outdoors, selected 7.8 inch TFT LCD models feature sunlight-readable configurations. These options are designed to improve screen visibility under challenging lighting conditions.
Optical bonding is available on selected models. The final visibility depends on brightness, surface reflection, cover glass and installation conditions, so the complete optical configuration should be evaluated for your application.
MIPI DSI models are suitable for compatible embedded platforms that use a MIPI display interface. They can be considered for compact systems requiring a tall display format and a suitable connection to the host controller.
Before selection, verify the controller's MIPI support, lane configuration, timing, pinout and power requirements.
The series includes an RGB interface configuration for systems designed around compatible RGB display output. This option can be evaluated for embedded equipment and controller-based applications.
Check the exact signal configuration and driver requirements against your host board before design-in.
For systems that require an LVDS display connection, selected models offer an LVDS interface configuration. This provides another option for matching the display to the existing hardware architecture.
Interface compatibility, signal timing, connector definition and electrical requirements should be confirmed by model.
Selected 7.8 inch models are available with capacitive touchscreen integration for interactive equipment. Touch functionality can support menu navigation, user input and direct control.
Touch controller compatibility, cover-glass structure and connection requirements should be reviewed as part of the complete display solution.
We start by understanding how the display will be used and what your device requires. Important factors include screen layout, viewing distance, ambient light, touch interaction, available installation space and operating environment.
This helps narrow down the suitable 7.8 inch TFT LCD configuration before technical evaluation.
A display must match the host system's electrical and signal requirements. Our technical review can cover:
MIPI DSI, RGB or LVDS interface requirements
Controller and driver compatibility
Signal timing and pin definition
Supply voltage and power requirements
FPC connector and cable routing
Resolution and display orientation
Reviewing these details before sampling helps reduce the risk of selecting a screen that cannot be integrated into your existing hardware.
For bright environments, choosing a display based on brightness alone may not be sufficient. We help customers consider the complete optical configuration, including surface reflection, cover glass, optical bonding and installation angle.
This is particularly important for equipment exposed to strong ambient light or outdoor operating conditions.
The display's diagonal size does not determine whether it will fit your device. Outline dimensions, active area, thickness, mounting position and FPC routing all matter.
Provide your enclosure drawing or existing display specifications so the mechanical requirements can be checked against the selected model.
Before volume purchasing, evaluate the selected display in your own system under realistic operating conditions.
HotDisplay can assist with product information, datasheets, sample inquiries and quotation discussions. Sample availability, lead time and production arrangements are confirmed according to the selected model and project requirements.

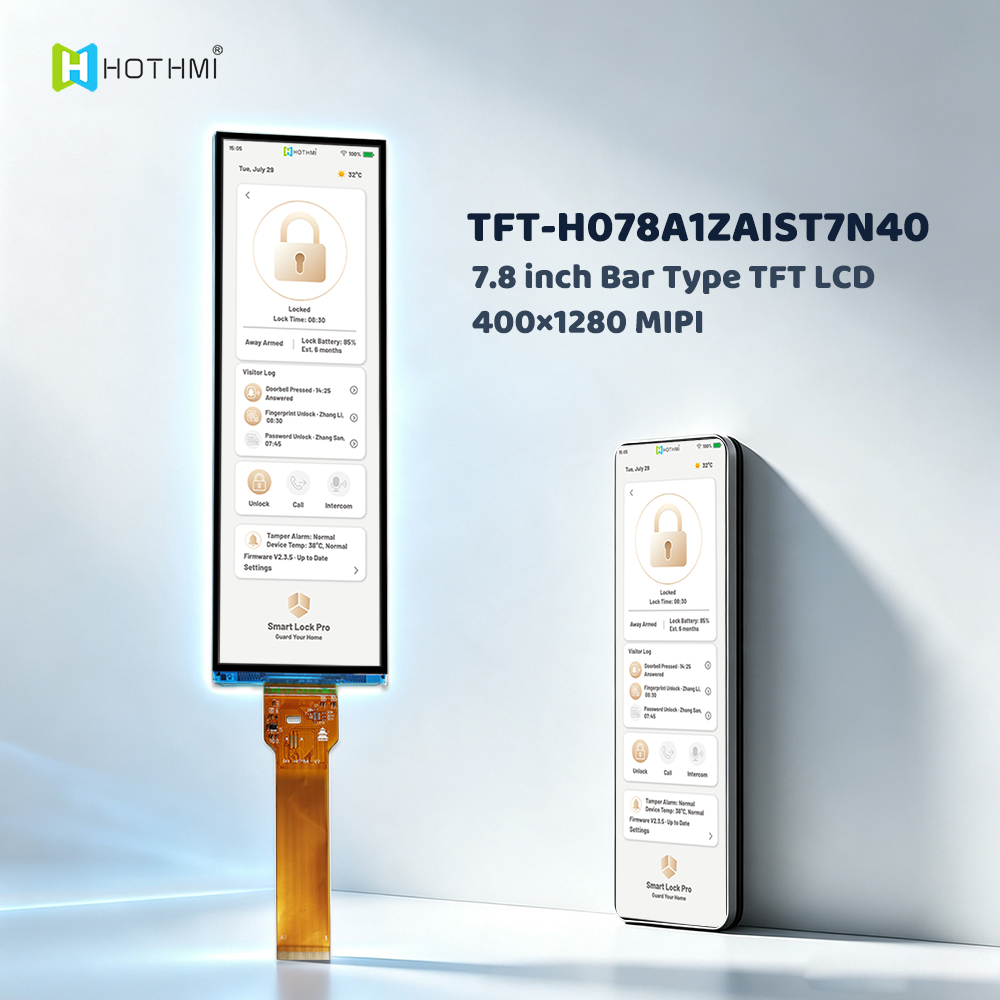

Our 7.8 inch long bar TFT LCD displays can be considered for:
Industrial control equipment: Vertical operating interfaces, machine status and control information.
Portable instruments: Tall graphical interfaces for handheld and field equipment.
Outdoor equipment: Selected sunlight-readable configurations for devices used in bright environments.
Interactive terminals: Touch-enabled menus, instructions and user-control interfaces.
Smart devices and IoT systems: Vertical information displays for connected equipment.
Commercial equipment: Information panels and specialized interfaces where the long bar format suits the product design.
Embedded systems: Applications using compatible MIPI DSI, RGB or LVDS display connections.

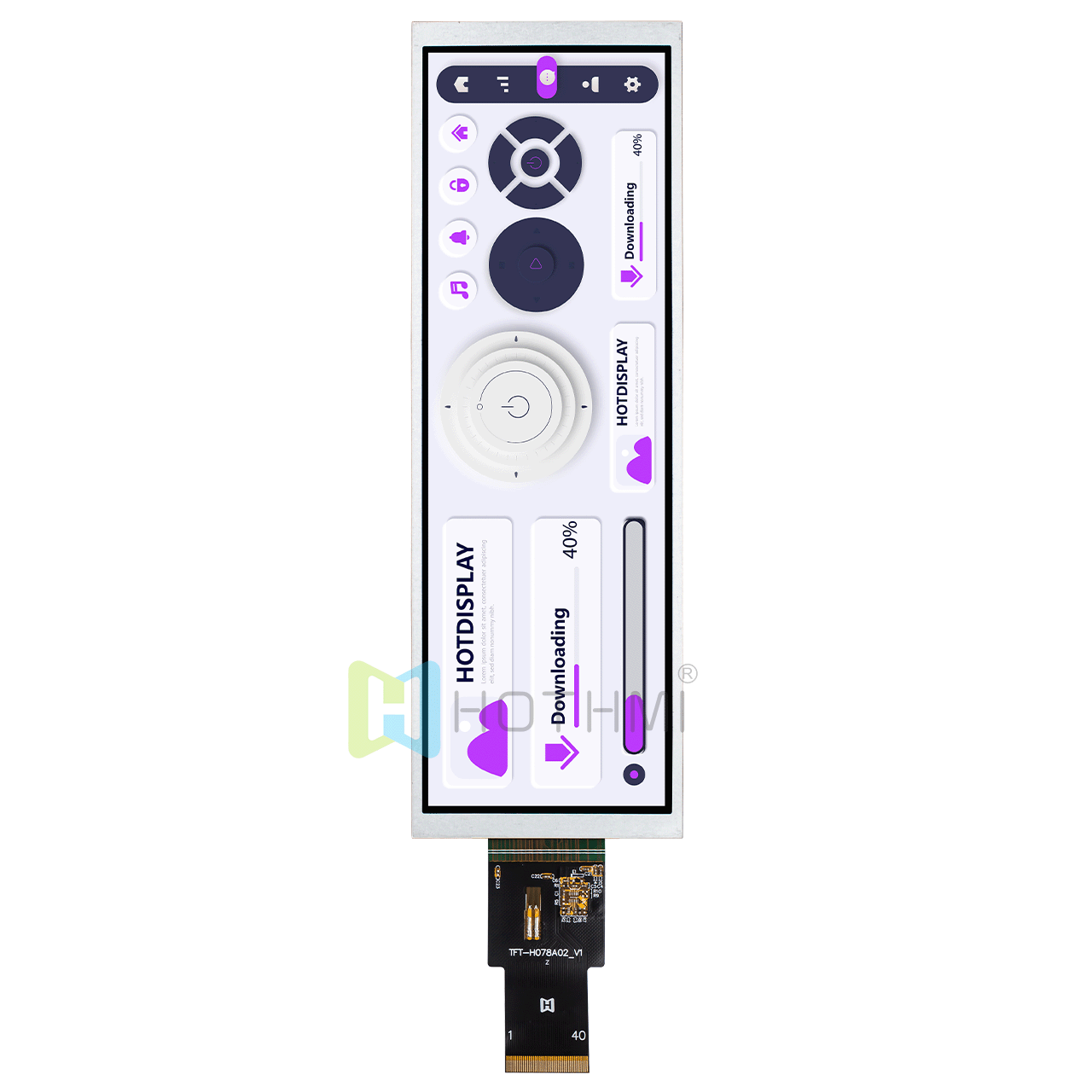

When a standard 7.8 inch display does not fully meet your design requirements, HotDisplay can discuss customized configurations based on technical feasibility.
Our project support may include:
Custom FPC: Cable length, connector position, routing and connection requirements.
Touchscreen integration: Capacitive touch options and touch-controller compatibility.
Cover-glass customization: Dimensions, shape and assembly requirements for your device.
Interface evaluation: Reviewing the host controller and display signal requirements.
Optical bonding: Discussing optical integration for applications with specific visibility requirements.
Mechanical integration: Reviewing outline dimensions, mounting space and enclosure constraints.
Related PCBA support: Evaluating supporting electronics and assembly requirements where needed.
HotDisplay offers standard display products as well as customized LCD, touch, FPC, interface and cover solutions. This gives customers a way to evaluate standard models first and discuss modifications when their project requires a different configuration.
We focus on the technical details that influence successful integration, including interface, dimensions, pinout, optical requirements and touch compatibility. This helps customers identify potential design issues before committing to a model.
Display quality depends on consistent components, assembly and inspection. HotDisplay provides manufacturing and production quality information to support customer evaluation. Project-specific quality requirements, inspection arrangements and available documentation can be discussed before ordering.
With selected sunlight-readable and optical-bonding configurations, our 7.8 inch series can address projects that need more than a standard indoor display. We help evaluate the optical requirements against the actual installation environment.
From initial model selection to sample evaluation and volume quotation, our team can help customers organize the technical information needed to move a display project forward.
The listed 7.8 inch series primarily uses a 400×1280 resolution. Confirm the exact resolution and active display area against the datasheet for your selected model.
Yes. The range includes selected sunlight-readable configurations, including an optical-bonding option. Actual readability depends on brightness, reflection, cover glass and the operating environment.
The category includes MIPI DSI, RGB and LVDS interface configurations across different models. These interfaces are not interchangeable, so check your host controller and the selected model's pinout and timing requirements.
Selected models include capacitive touch. If your project requires touch, confirm the touch controller, connection method, cover-glass structure and mechanical dimensions before ordering.
Possibly, but matching the diagonal size and resolution alone is not enough. Compare the active area, outline dimensions, thickness, interface, pinout, voltage, timing and mounting requirements. Send us the original model number or datasheet for a compatibility review.
Please share your application, required interface, brightness and touch requirements, mechanical dimensions, estimated order quantity and target schedule. For replacement projects, include the existing display model or technical documentation.
Looking for a 7.8 inch TFT LCD display for an industrial, portable or embedded product?
Tell us about your application, host system, viewing conditions and project quantity. HotDisplay can help you compare available models, review integration requirements and discuss customization, samples and purchasing arrangements.
Contact HotDisplay to find a suitable 7.8 inch TFT LCD display solution for your project.
