A 5.5 inch TFT LCD display is a full-color thin-film transistor liquid crystal display with a 5.5-inch diagonal screen. TFT active-matrix technology controls individual pixels to display text, images, graphics and interactive user interfaces.

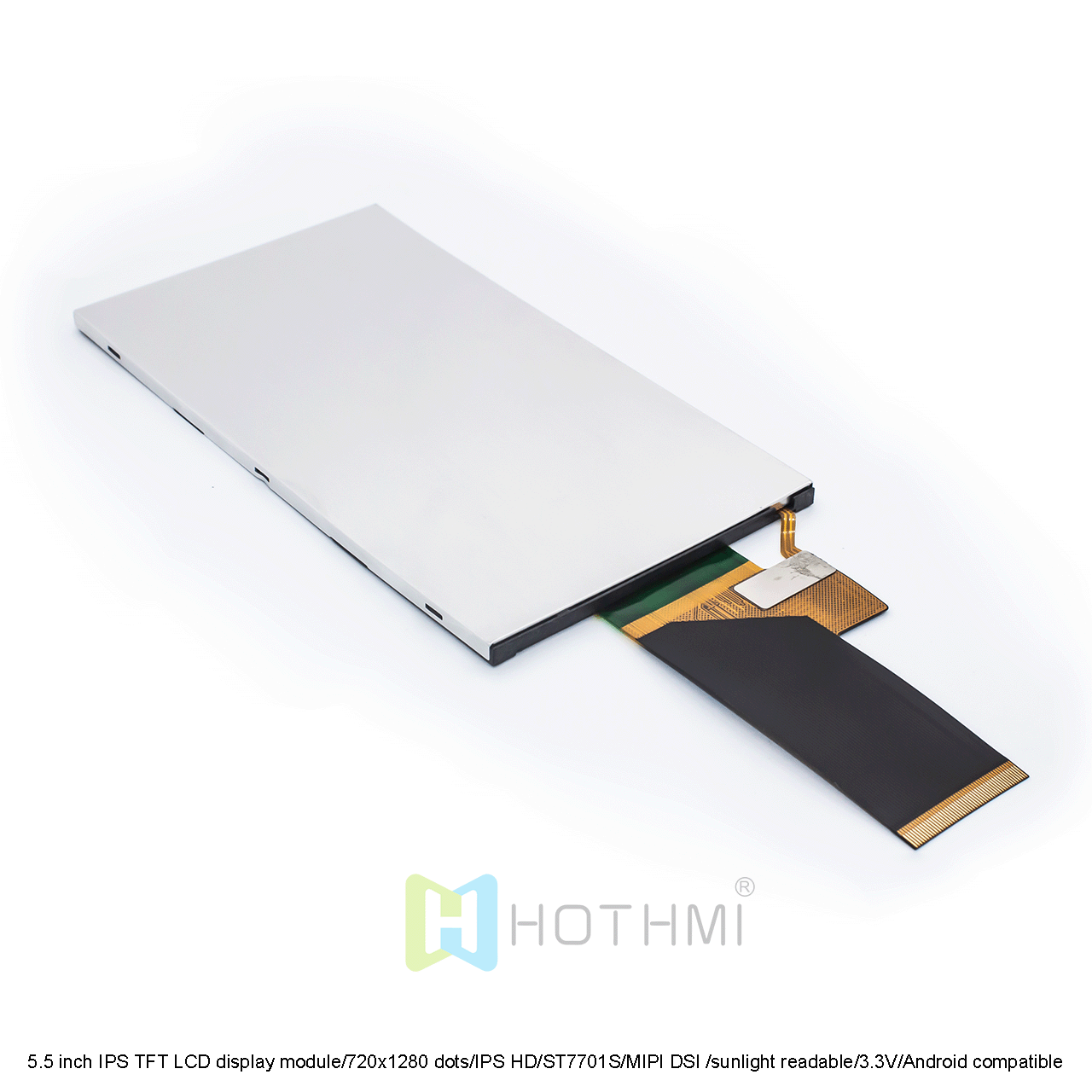

HotDisplay's 5.5 inch TFT LCD modules primarily feature 720x1280 resolution and a portrait-oriented screen format. IPS display options provide wide viewing angles, while MIPI interfaces support integration with compatible embedded processors and display controllers. Depending on the model, the display can also include capacitive touch functionality or high-brightness backlighting.
| Specification | Available Options |
|---|---|
| Display Size | 5.5 inch |
| Resolution | 720x1280 |
| Display Technology | TFT LCD, IPS, selected In-cell models |
| Interface | MIPI |
| Touch Options | Non-touch, capacitive touch, selected In-cell touch |
| Brightness | Model-dependent; selected models up to 1000 cd/m² |
| Viewing Angle | IPS full-view options |
| Display Format | Portrait; selected models support landscape mode |
| Applications | Industrial equipment, handheld devices, access control and embedded systems |
HotDisplay's 5.5 inch TFT LCD modules primarily feature 720x1280 resolution and a portrait-oriented screen format. IPS display options provide wide viewing angles, while MIPI interfaces support integration with compatible embedded processors and display controllers. Depending on the model, the display can also include capacitive touch functionality or high-brightness backlighting.
The 720x1280 resolution provides detailed image output on a compact 5.5-inch screen. It is suitable for graphical user interfaces, equipment monitoring, handheld devices and embedded systems that require a portrait display format.
IPS technology offers wide viewing angles and consistent image visibility from different viewing directions. A 5.5 inch IPS TFT LCD module is suitable for equipment and devices where users may view the screen from different positions.
MIPI interface options support connection to compatible processors and embedded platforms. Before selecting a MIPI TFT LCD module, check the number of data lanes, signal requirements, connector pinout, timing and driver compatibility against your system design.
Selected 5.5 inch TFT LCD models offer high-brightness backlighting for applications that require stronger screen luminance. Available models include options rated at up to 1000 cd/m², depending on configuration.
For outdoor or bright-environment applications, consider the actual brightness, cover glass, optical bonding and ambient lighting conditions of the complete display assembly.
Capacitive touch options enable interactive control through touch gestures and on-screen controls. These modules can be used in access control equipment, smart terminals, handheld devices and embedded user interfaces.
In-cell display technology integrates touch functionality into the display structure. HotDisplay offers a 5.5 inch In-cell TFT LCD option with 720x1280 resolution, IPS viewing angles and MIPI interface for compact interactive devices.
Non-touch configurations provide visual output without an integrated touch panel. They are suitable for systems controlled through physical buttons, external controllers or other input devices.

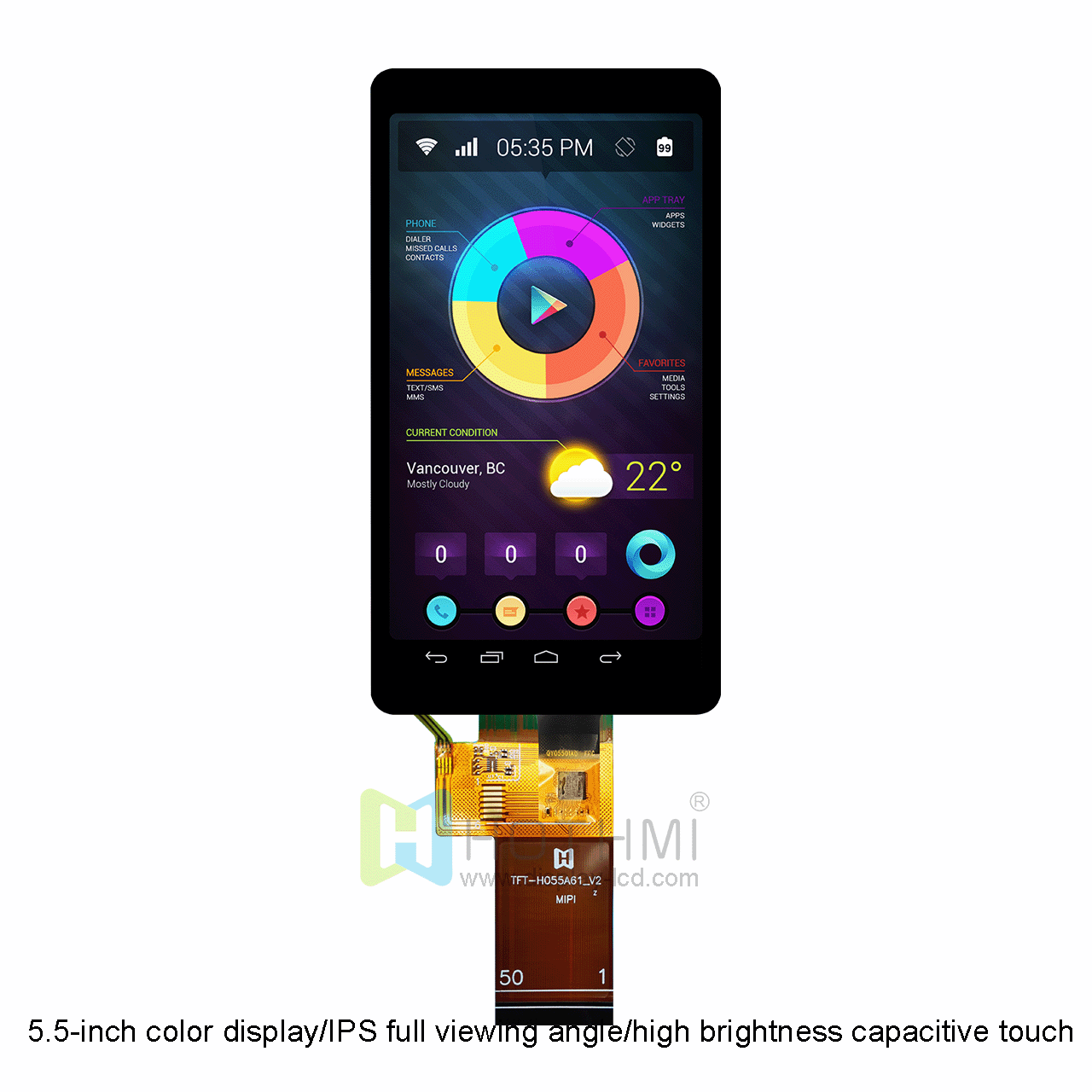

5.5 inch TFT LCD modules are suitable for products that require a compact, high-resolution color display.
Typical applications include:
Industrial control equipment
Handheld electronic devices
Access control systems
Smart terminals
Embedded computing systems
Instrumentation and monitoring equipment
Security equipment
Portable electronic devices
Interactive control interfaces
Android and compatible embedded platforms
The appropriate display depends on the system's interface, mechanical design, operating environment and user interaction requirements.

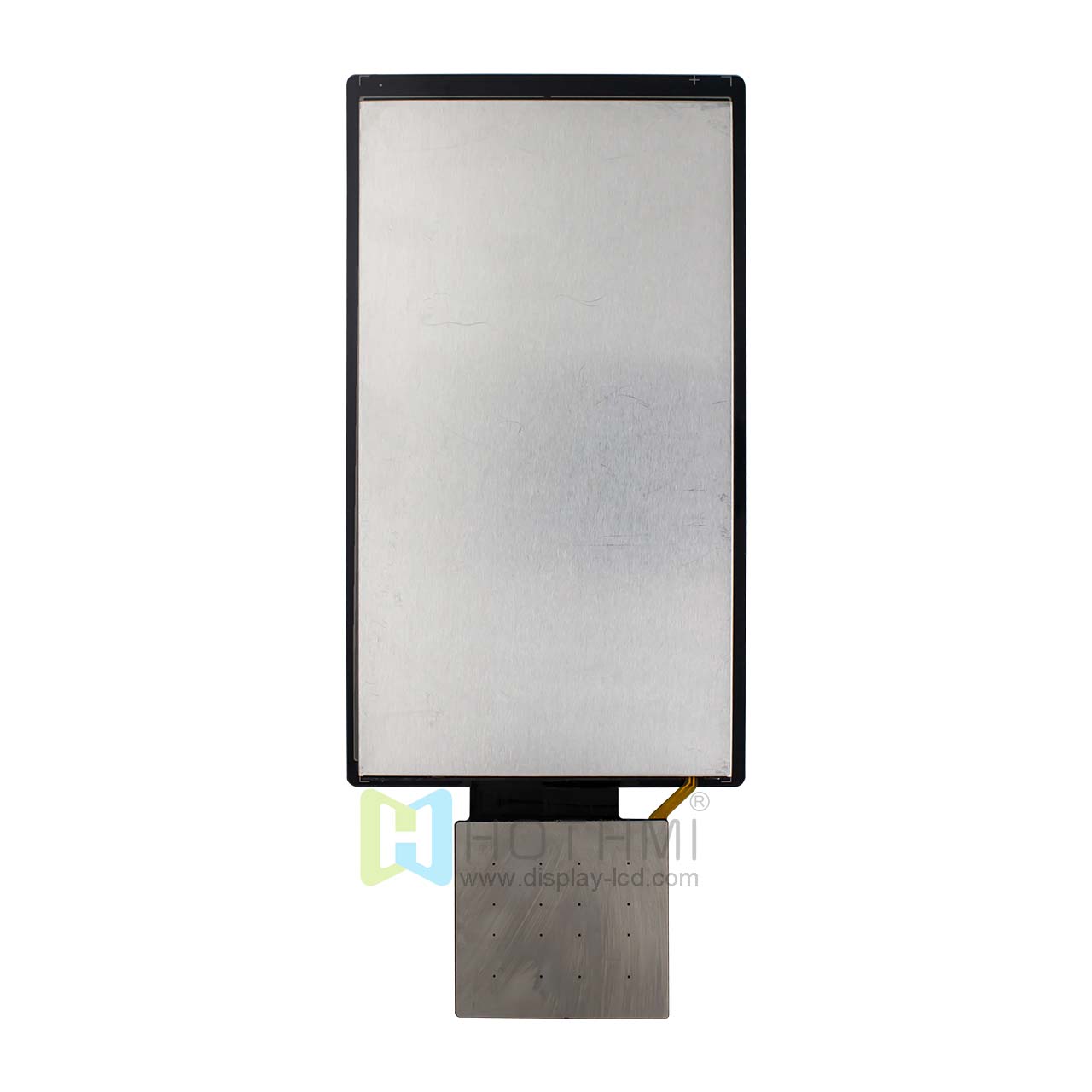

HotDisplay supports customization for selected LCD display projects. Depending on the model and engineering requirements, available services may include:
Capacitive touch integration
Custom FPC length, position and pinout
Connector configuration
Interface adaptation
Custom cover glass
Optical bonding
Touch glass shape and thickness adjustments
Customized display integration
Share your technical requirements and mechanical drawings with our team to confirm feasible customization options.
When selecting a 5.5 inch TFT LCD display, consider these key factors:
Resolution: Confirm that 720x1280 meets your interface design and image requirements.
Display technology: Choose an IPS model when wide viewing angles are important. Consider In-cell options for integrated touch requirements.
Brightness: Match the display's rated brightness to the ambient lighting conditions of the application.
Interface compatibility: Verify MIPI lane configuration, signal levels, pinout and driver support.
Touch functionality: Decide whether your product requires capacitive touch, integrated In-cell touch or a non-touch display.
Mechanical dimensions: Check the module outline, active area, thickness, FPC routing and mounting requirements.
Operating conditions: Confirm the model's operating temperature, power requirements and other environmental specifications.
Multiple Display Configurations: Compare standard, IPS, high-brightness, In-cell and touch-enabled options.High-Resolution Display: 720x1280 resolution supports detailed graphical interfaces on a compact screen.MIPI Integration: Interface options for compatible embedded processors and display systems.
Brightness Selection: Choose model-specific brightness levels according to your application environment.
Engineering Support: Get assistance with display selection, interface compatibility and system integration.
Customization Services: Explore FPC, touch, cover glass and optical bonding options for your project.
Tell us your required resolution, interface, brightness, touch configuration, operating temperature and mechanical dimensions. HotDisplay can help you identify a suitable display module and discuss project-specific requirements.
Contact HotDisplay for product recommendations, technical support and a quotation.
