| Configuration | Resolution | Key Feature |
|---|---|---|
| TFT LCD | 480x854 | RGB interface |
| IPS TFT LCD | 480x854 | Full viewing angle |
| Touch TFT LCD | 480x854 | Capacitive touchscreen |
| TFT LCD | 268x800 | Compact bar format |
| Bar TFT LCD | 268x800 | Narrow display |
| TFT LCD | 360x640 | RGB interface |
The current 3.0 inch TFT LCD range includes RGB interface configurations. Interface selection should be matched with the host system and display controller requirements during product integration.

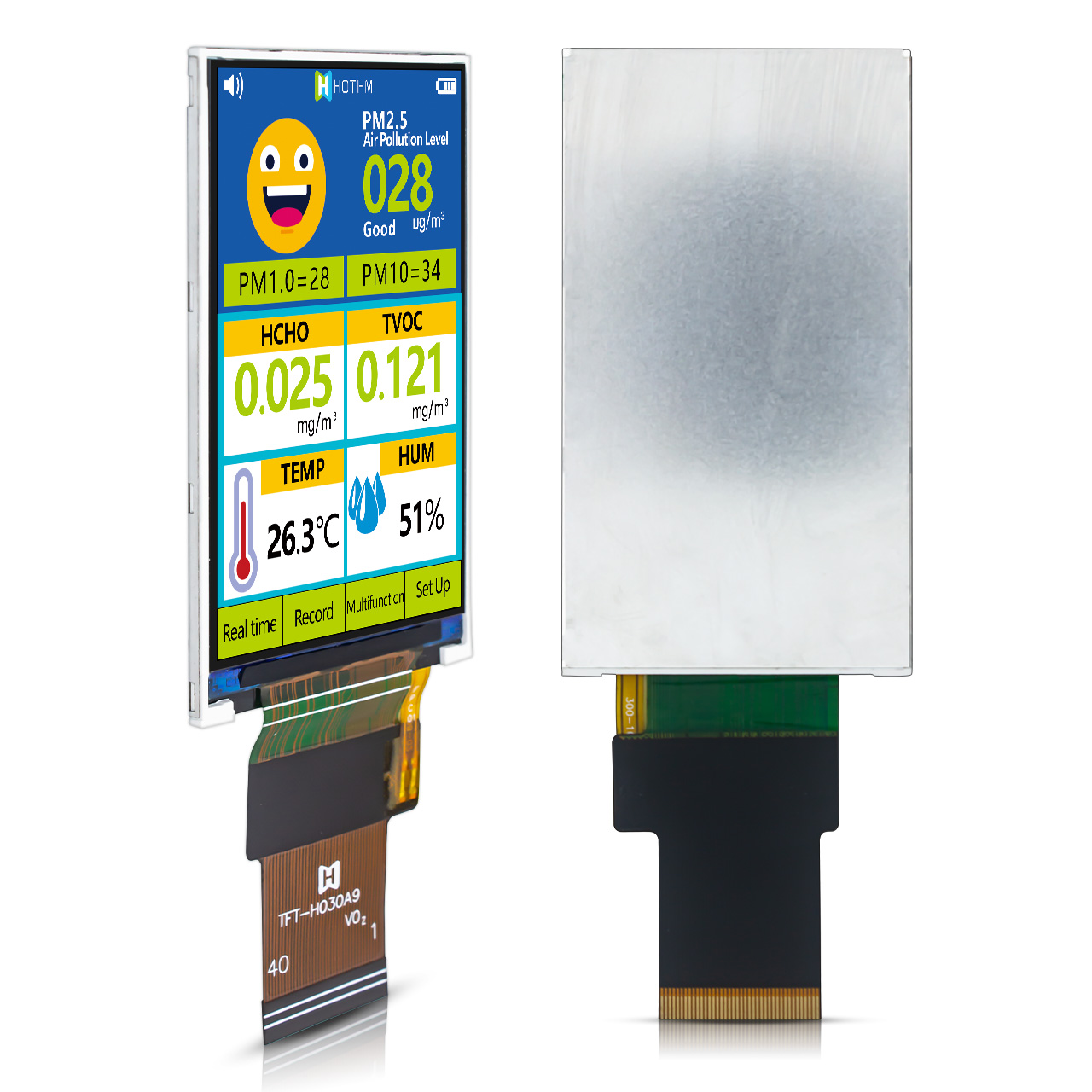

Hotdisplay offers 3.0 inch 480x854 TFT LCD displays in multiple configurations. Models include RGB interface displays, IPS TFT displays and capacitive touch versions.
The TFT-H030A10FWIST3N40 provides 480x854 resolution with dimensions of 41.8 × 73.97 × 2.15 mm.
The TFT-H030A10FWIST3C40 adds a capacitive touchscreen and provides 480x854 resolution with dimensions of 43.5 × 75.4 × 3.8 mm.

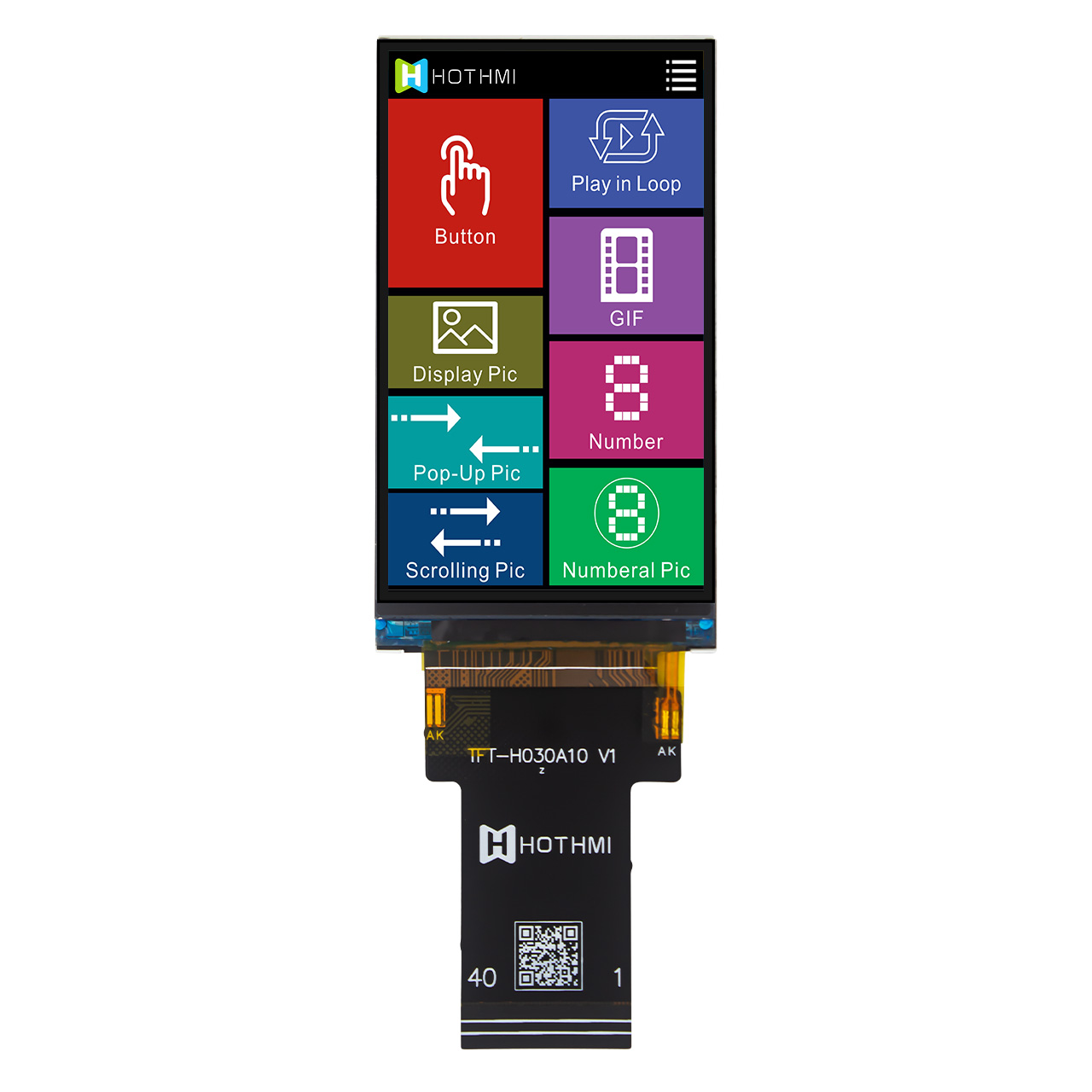

The TFT-H030B07ZCIST8C24 is a 3.0 inch TFT LCD with 268x800 resolution, capacitive touch and optical bonding. Its dimensions are 31.0 × 81.35 × 3.05 mm.
Hotdisplay also offers the TFT-H030A8ZCISTKN40, a 3.0 inch bar TFT display with 268x800 dot-matrix resolution and dimensions of 26.42 × 79.85 × 1.7 mm.

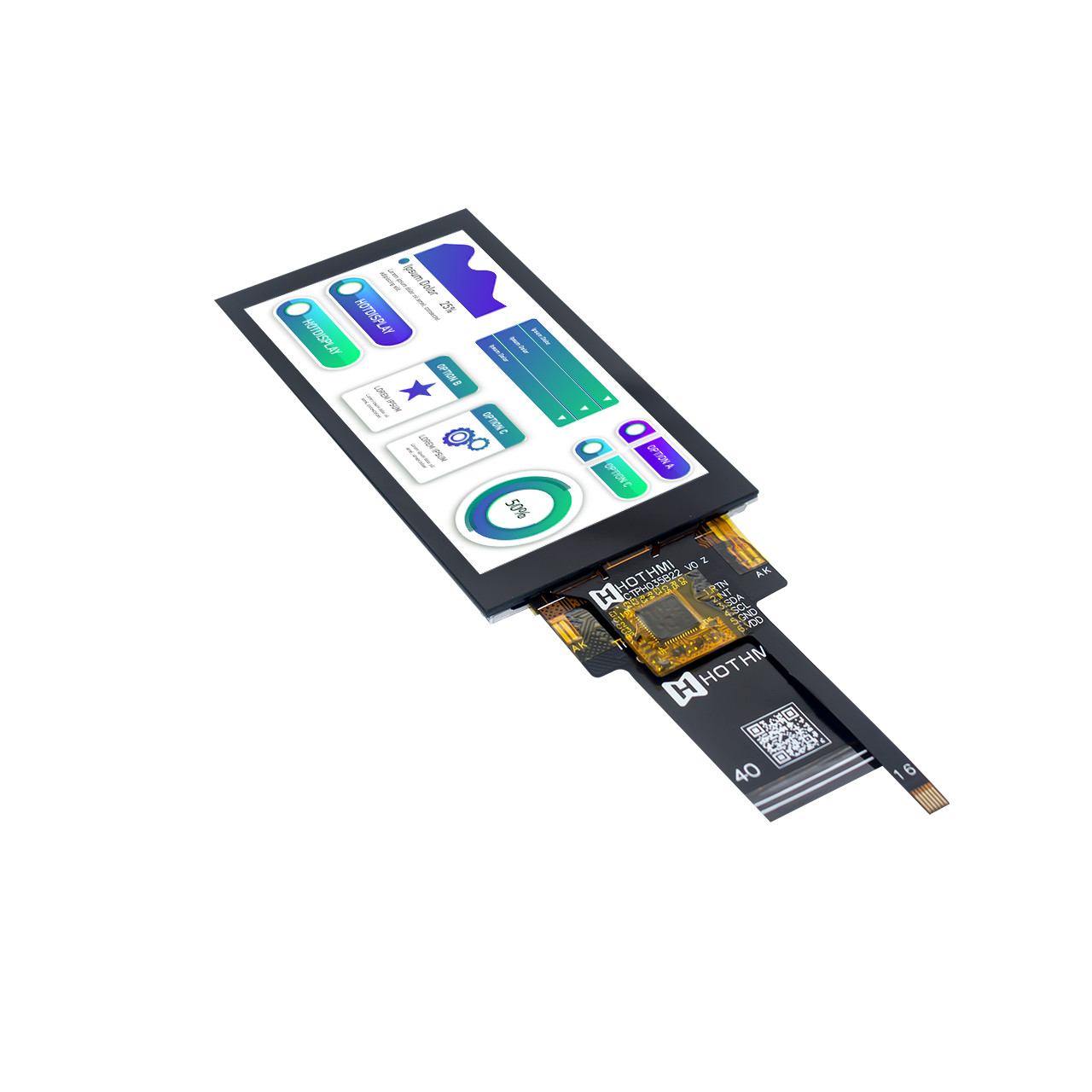

Hotdisplay provides 3.0 inch TFT LCD displays with capacitive touch for products requiring an integrated touch interface.
The TFT-H030A10FWIST3C40 combines a 480x854 display with a capacitive touchscreen, while the TFT-H030B07ZCIST8C24 combines a 268x800 TFT display with capacitive touch and optical bonding.

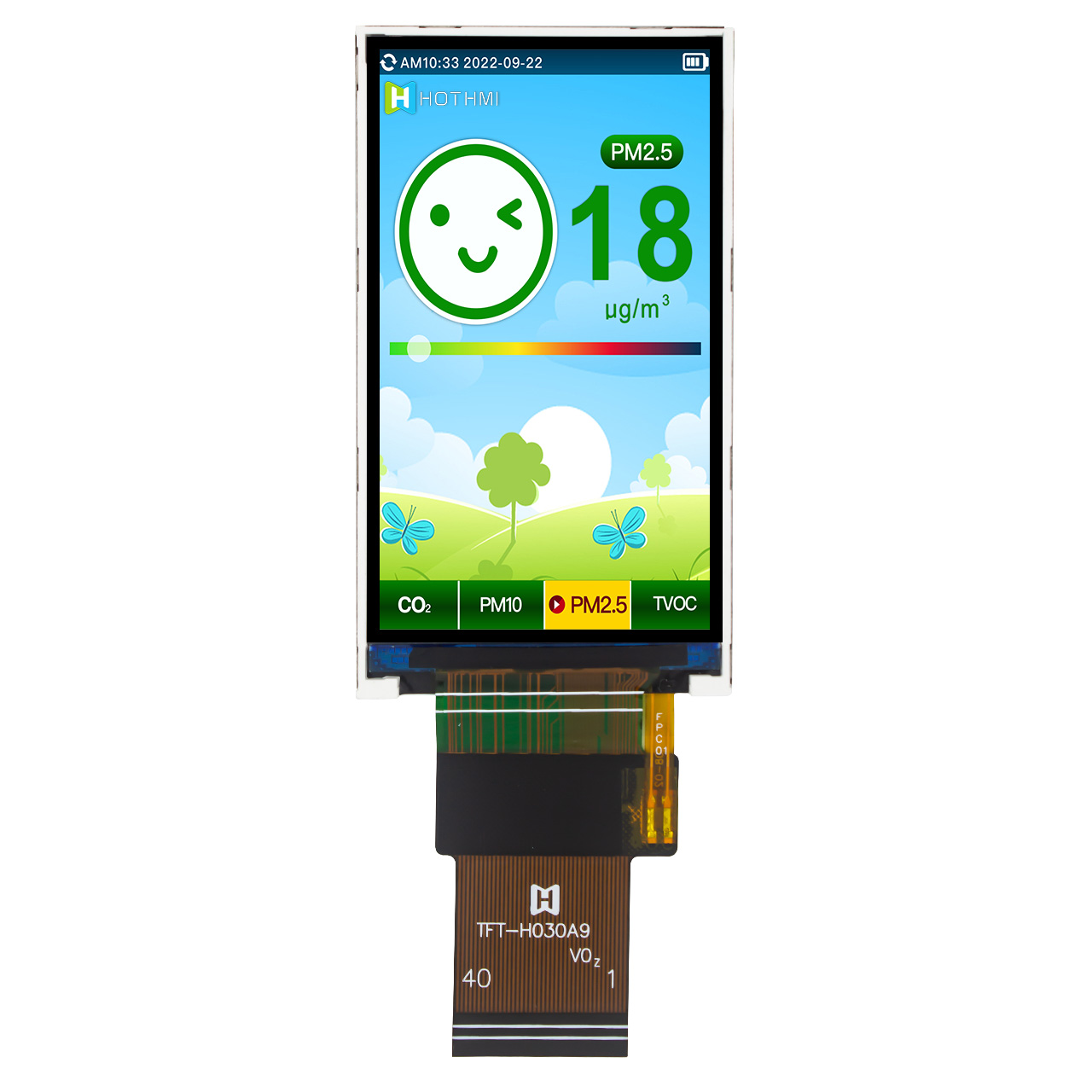

The TFT-H030A2FWIST2N20 is a 3.0 inch IPS TFT color display with 480x854 resolution and dimensions of 41.8 × 73.97 × 2.15 mm.
This provides an IPS option for applications requiring a 3.0 inch display with a full viewing angle configuration.

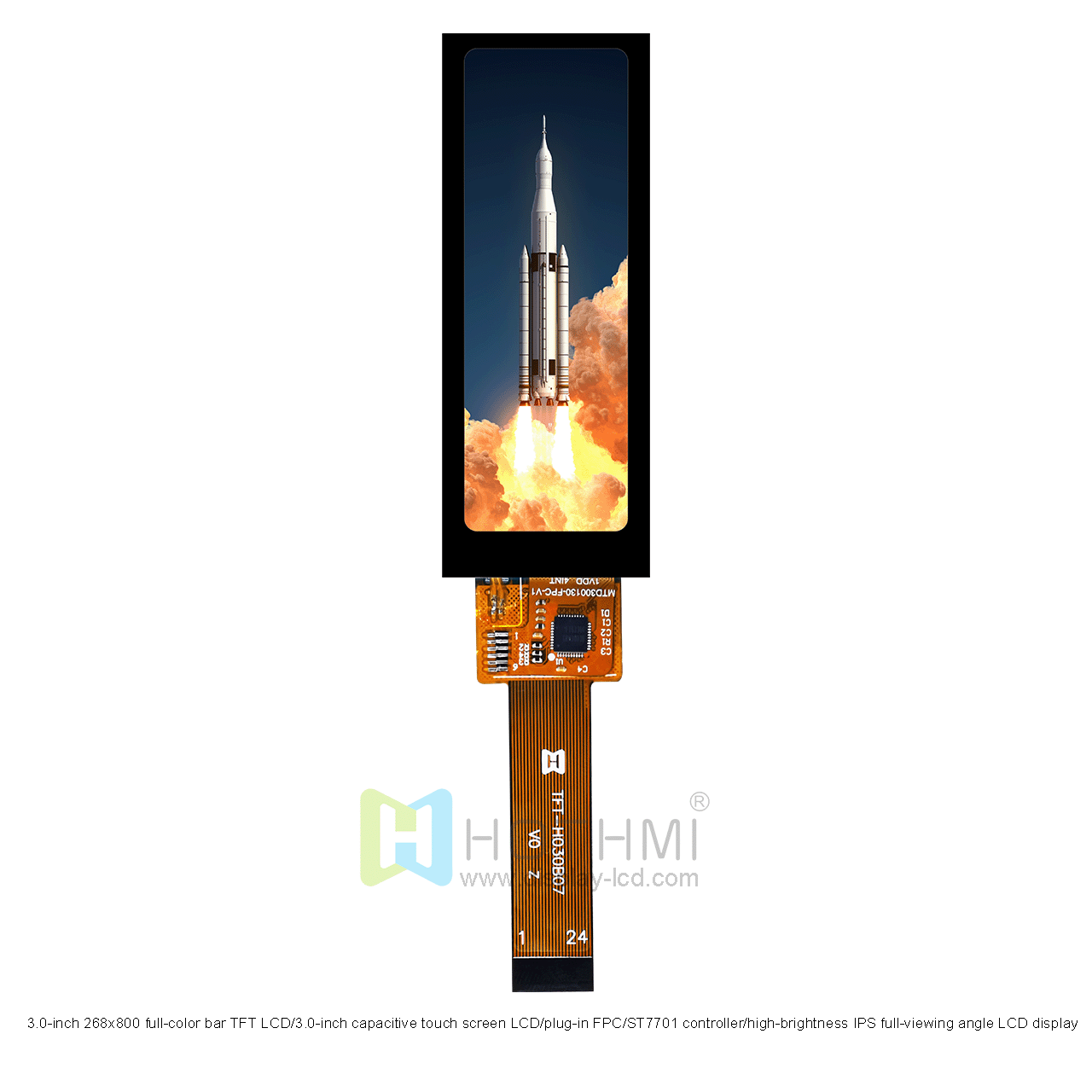

For space-constrained products requiring an elongated screen, Hotdisplay offers 3.0 inch bar TFT LCD displays.
The TFT-H030A8ZCISTKN40 uses a 268x800 pixel resolution and has compact dimensions of 26.42 × 79.85 × 1.7 mm, providing a narrow display format for specialized product designs.
Hotdisplay also offers 2.8 inch IPS TFT LCD configurations.
The product range includes a 2.8 inch IPS TFT LCD using an ST7789V driver chip, with a 240x320 display and 50.0 × 69.2 × 2.3 mm dimensions.
This provides an IPS option within the 2.8 inch TFT LCD category for product designs where the IPS configuration is required.

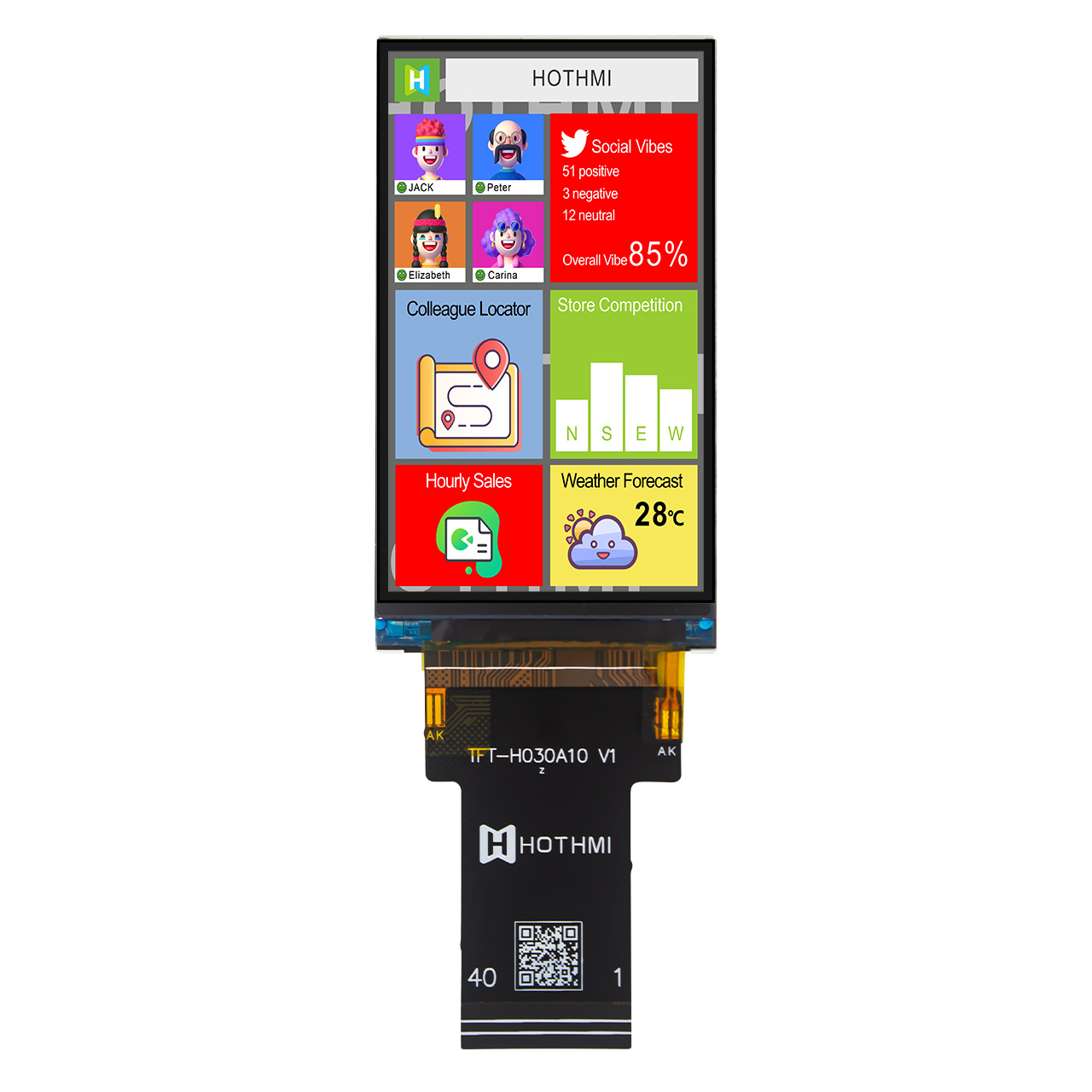

The TFT-H030A9NHIST4N40 is a 3.0 inch TFT LCD display with 360x640 resolution, RGB interface and dimensions of 43.68 × 77.02 × 2.3 mm.

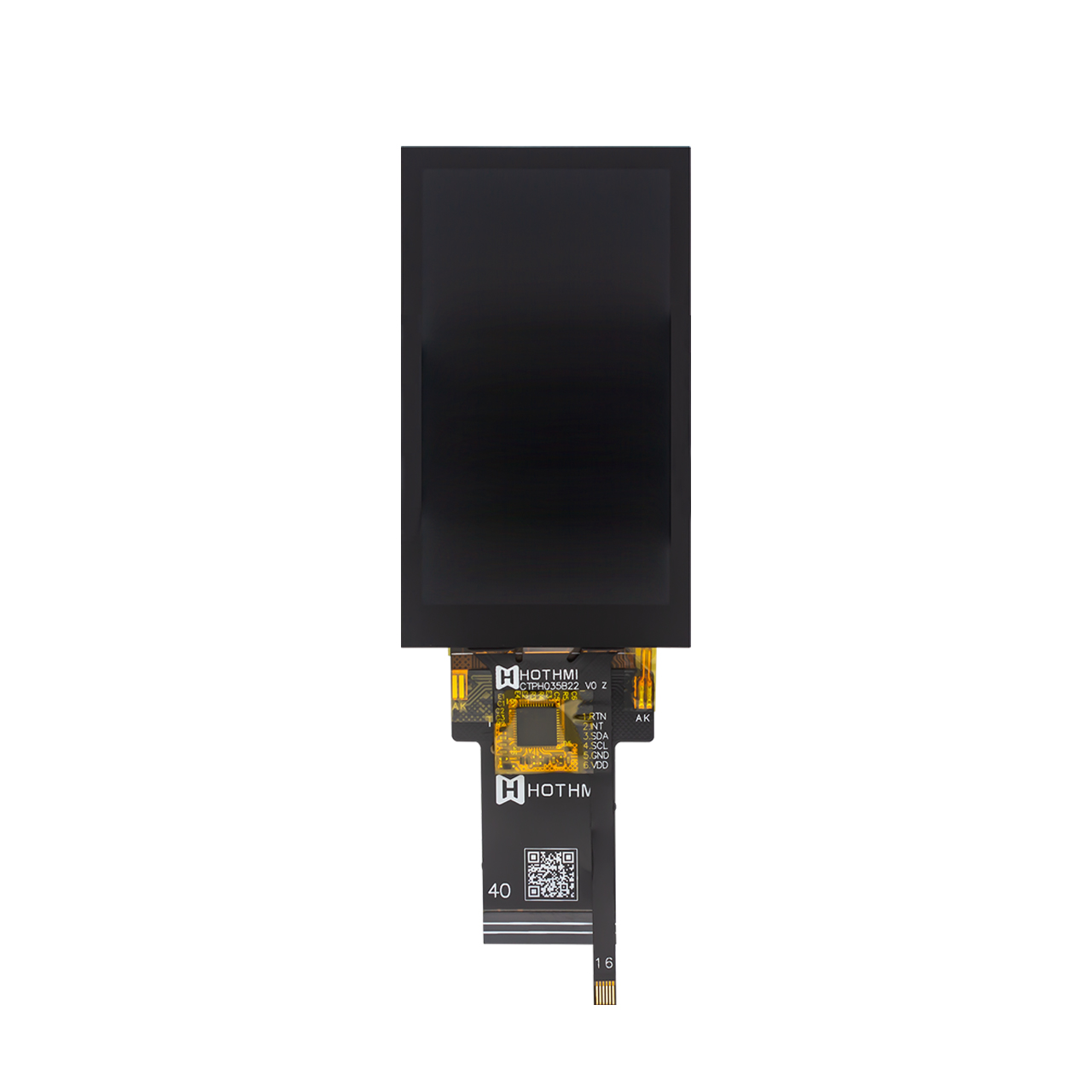

3.0 inch TFT LCD displays can be used for compact embedded products and display systems requiring a small, high-resolution or narrow-format screen.
Typical application areas include:
Embedded electronic devices
Compact control interfaces
Portable equipment
Instrument displays
Industrial display systems
Touch-enabled products
Specialized electronic equipment
Consider the following specifications when selecting a 3.0 inch TFT LCD:
Available options include 360x640, 480x854 and 268x800.
Choose between standard TFT LCD and bar TFT LCD according to available installation space.
Options include IPS TFT, standard TFT and touch configurations.
Select a capacitive touchscreen when interactive operation is required.
Confirm the module length, width and thickness against the product enclosure before integration.
Check the display interface requirements, including available RGB interface configurations.
Multiple 3.0 inch TFT LCD configurations
360x640, 480x854 and 268x800 resolutions
IPS TFT display option
Capacitive touch options
Optical bonding option
Narrow bar TFT LCD option
RGB interface configurations
Different module dimensions for product integration
Hotdisplay currently offers 360x640, 480x854 and 268x800 resolution options.
Yes. Hotdisplay offers multiple 3.0 inch 480x854 TFT LCD configurations, including standard TFT, IPS and capacitive touch versions.
Yes. Capacitive touch options are available for both 480x854 and 268x800 configurations.
Yes. The TFT-H030A8ZCISTKN40 is a 3.0 inch bar TFT LCD with 268x800 resolution.
Yes. Hotdisplay offers a 3.0 inch IPS TFT display with 480x854 resolution.
Compare the required resolution, display format, touch function, display technology, interface and module dimensions with your product design requirements.
Explore Hotdisplay's 3.0 inch TFT LCD displays by resolution, format, touch configuration, display technology and mechanical dimensions.
Contact Hotdisplay for 3.0 inch TFT LCD selection and product development requirements.
