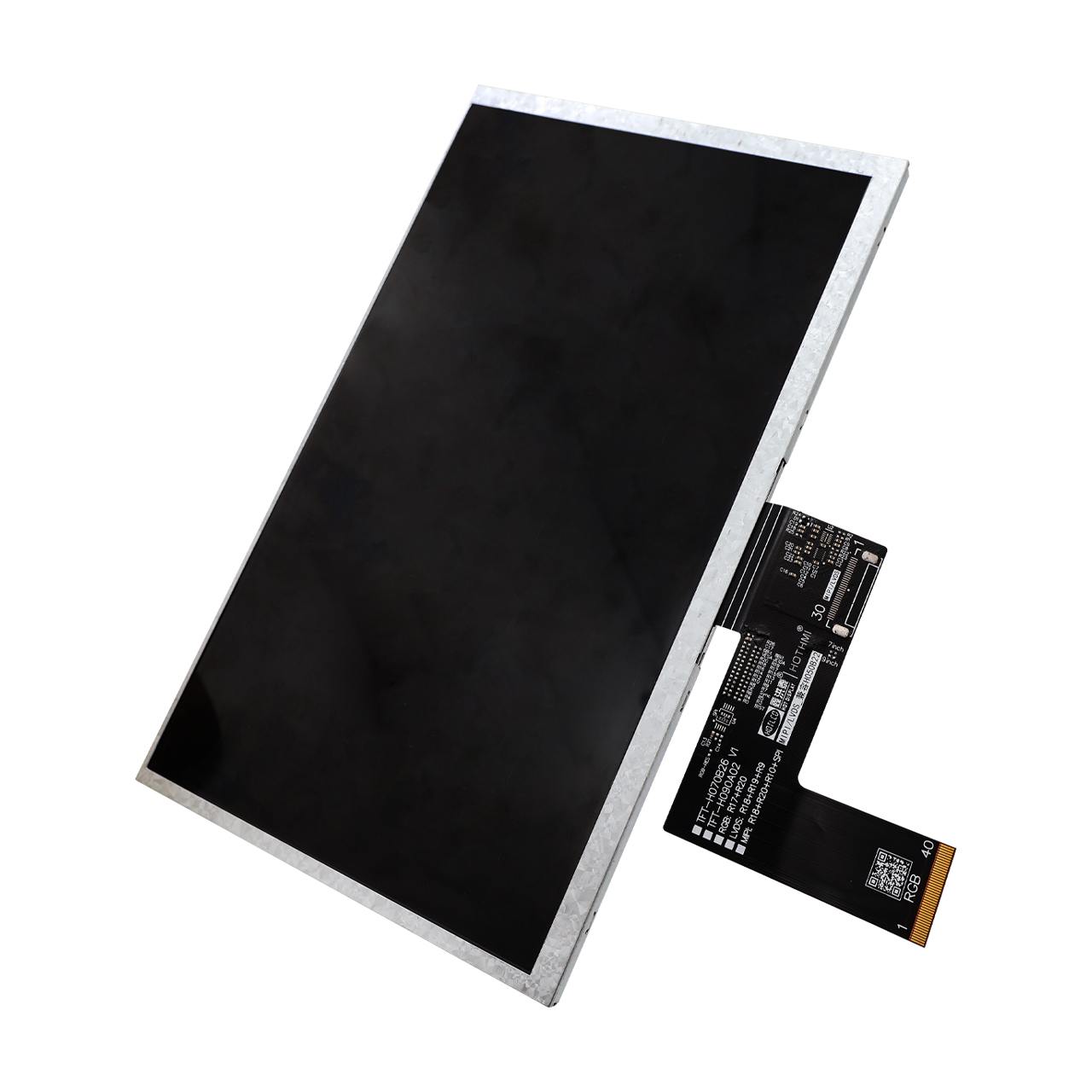

The TFT-H090A02WSIGH7N40 is a 9 inch TFT LCD module designed for applications requiring clear visibility and flexible system integration.
| Specification | Details |
|---|---|
| Display size | 9.0 inch |
| Resolution | 1024 × 600 |
| Aspect ratio | 2:1 |
| Display type | Standard TFT LCD |
| Viewing angle | IPS full viewing angle |
| Brightness | 700 cd/m² |
| Interface options | RGB / LVDS / MIPI |

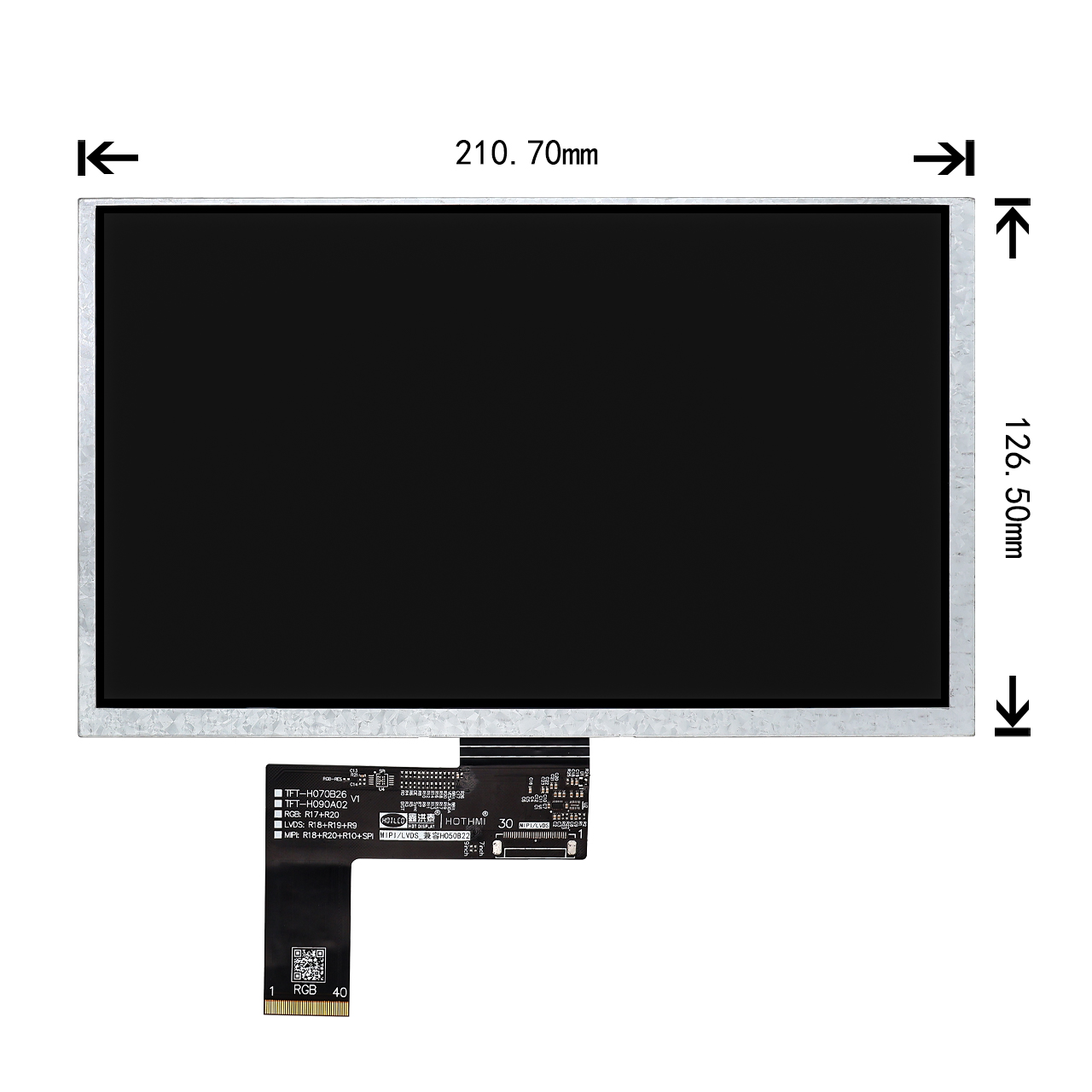

| Module dimensions | 210.7 × 126.5 × 5.0 mm |
| Active area | 196.608 × 114.150 mm |
| Pin configuration | 40-pin |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -20°C to 80°C |
| Supply voltage | 3.3 V |
| ESD protection | 8 kV |
 | What These Features Mean for Your Device
|
We help customers select and integrate a 9 inch TFT LCD according to their display, electrical and mechanical requirements.
Display selection: Match resolution, brightness, viewing angle, dimensions and temperature range to your application.
Interface solutions: Evaluate RGB, LVDS or MIPI configurations based on the host processor and system architecture.
Touchscreen integration: Discuss capacitive or resistive touch options for interactive devices.
FPC and cable customization: Review cable length, connector position, pinout and routing requirements.
Cover glass solutions: Evaluate custom dimensions and optional anti-glare, anti-reflection or anti-fingerprint treatments.
Driver board support: Discuss suitable driver or adapter boards when direct system connection is not available.
Sample evaluation: Support specification review and sample validation before production planning.
Customization options depend on the selected panel and project requirements and are subject to technical confirmation.
Selecting a 9 inch LCD is only the first step. Display compatibility, installation space and operating conditions can all affect the final product.
1. Define the application requirements
We review the device type, viewing distance, display orientation, installation space, ambient lighting and operating environment.
2. Match resolution and optical performance
We evaluate 1024×600 resolution, IPS viewing angle and 700 cd/m² brightness against the interface design and visibility requirements.
3. Verify interface compatibility
RGB, LVDS and MIPI are different signal interfaces. We check the selected configuration against the host processor, controller, signal timing, pinout and electrical requirements.
4. Optimize mechanical integration
We review the 210.7 × 126.5 mm module outline, 5.0 mm thickness, active area, FPC routing and mounting constraints. Touch and cover glass can be evaluated when required.
5. Validate before mass production
Datasheet review and sample testing help confirm image quality, system compatibility, mechanical fit and operating performance before volume production.

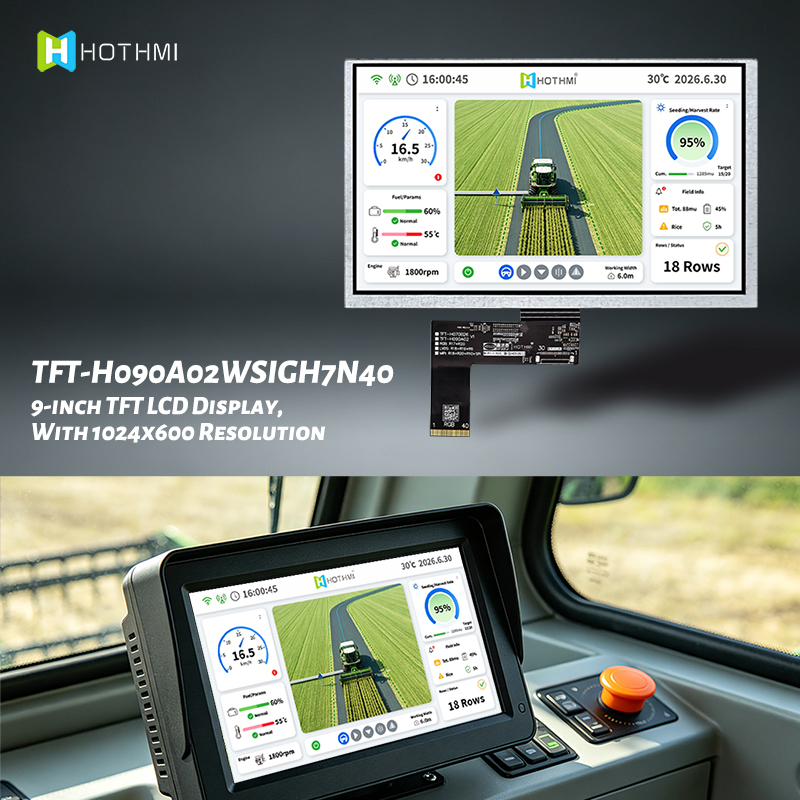

The 9 inch display format offers a practical balance between screen area and equipment size.
Industrial control panels: Display operating status, control menus and process information.
Instrumentation and measurement equipment: Present readings, charts and configuration interfaces.
Portable electronic devices: Provide a larger visual interface for mobile or portable equipment.
Medical and monitoring equipment: Support equipment interfaces and monitoring displays, subject to the product’s regulatory and design requirements.
Self-service and commercial equipment: Enable interactive menus, status information and user guidance.
Embedded smart devices: Support graphical interfaces where a compact widescreen display is required.
Application-based display selection: Focus on the actual requirements of your device, not just screen size.
Flexible integration support: Evaluate display interfaces, touch, FPC and cover glass requirements.
Engineering compatibility review: Address electrical, optical and mechanical concerns before design-in.
Technical documentation: Use product specifications and datasheets to support engineering evaluation.
Project-oriented cooperation: Coordinate sample testing and production requirements for your application.
A 9 inch TFT LCD is a color display module with a diagonal screen size of approximately 9 inches. It is commonly considered for industrial controls, instrumentation, portable electronics and embedded devices that require a larger graphical interface.
The featured TFT-H090A02WSIGH7N40 has a resolution of 1024×600 pixels and a 2:1 aspect ratio. This wide layout is suitable for dashboards, menus and graphical control interfaces.
The choice depends on your host processor, display controller, system design and available interface resources. Confirm the exact interface configuration and pinout for the selected module before hardware design. Do not assume that all interface options are interchangeable on one panel.
The specified brightness is 700 cd/m². It can improve visibility in bright environments, but direct sunlight readability also depends on reflections, cover glass, optical bonding and enclosure design. For outdoor applications, confirm the ambient light conditions and optical requirements.
Touchscreen integration can be evaluated with capacitive or resistive touch options. The touch panel, cover glass, connector and mechanical dimensions should be confirmed for the specific project.
Compare the module dimensions, active area, thickness, mounting arrangement, FPC position and connector pinout with your device design. Review the datasheet and validate the mechanical fit with a sample where necessary.
Project-specific options such as FPC and cable changes, touch integration, cover glass and interface-related solutions can be evaluated. Feasibility, cost and lead time depend on the selected panel and requested modifications.
Provide your application, target quantity, preferred interface, brightness requirements, operating temperature, touch requirements and mechanical drawings if available. This helps the team assess compatibility and recommend a suitable configuration.
Looking for a 9 inch 1024×600 IPS TFT LCD display for industrial equipment, instrumentation or an embedded product?
Share your project requirements, host interface and mechanical constraints with HotDisplay. Our team can help review the specifications and discuss a suitable display solution.
