The 4.7 inch TFT LCD display provides a compact vertical screen with 720x1280 resolution for applications requiring detailed graphics and a wide viewing angle.
The IPS display uses a MIPI DSI interface and ST7703 driver IC for integration with compatible embedded and Android platforms.
HotDisplay provides 4.7 inch TFT LCD displays for handheld devices, Android systems and embedded applications. This 4.7 inch TFT LCD module features 720x1280 resolution, IPS technology, MIPI DSI interface and an ST7703 driver IC in a slim display design.
| Specification | Details |
|---|---|
| Display Size | 4.7 inch |
| Resolution | 720x1280 |
| Display Type | IPS TFT LCD |
| Interface | MIPI DSI |
| Driver IC | ST7703 |
| Brightness | 400 cd/m² |
| Dimensions | 60.3 × 111.4 × 1.75 mm |
| Active Area | 58.104 × 103.296 mm |
| FPC | 20-pin |
| Viewing Angle | IPS |
| Operating Temperature | -20°C to +70°C |
| ESD Protection | 8KV |
| Supply Voltage | 2.8V |
 | Key Features of 4.7 Inch TFT Display
|
The 720x1280 TFT LCD display provides high-resolution image output in a compact 4.7 inch vertical format.
It is suitable for handheld equipment, Android devices, embedded products and other applications requiring detailed graphical interfaces.
The IPS panel provides a wide viewing angle and consistent image performance for applications where screen visibility is important.
The MIPI DSI interface provides a compact display connection for compatible Android and embedded platforms.
The ST7703 driver IC supports display integration with suitable host systems.
The standard display does not include a touch panel. Capacitive or resistive touchscreens can be added according to project requirements.
Custom touch glass and other mechanical configurations are also available.

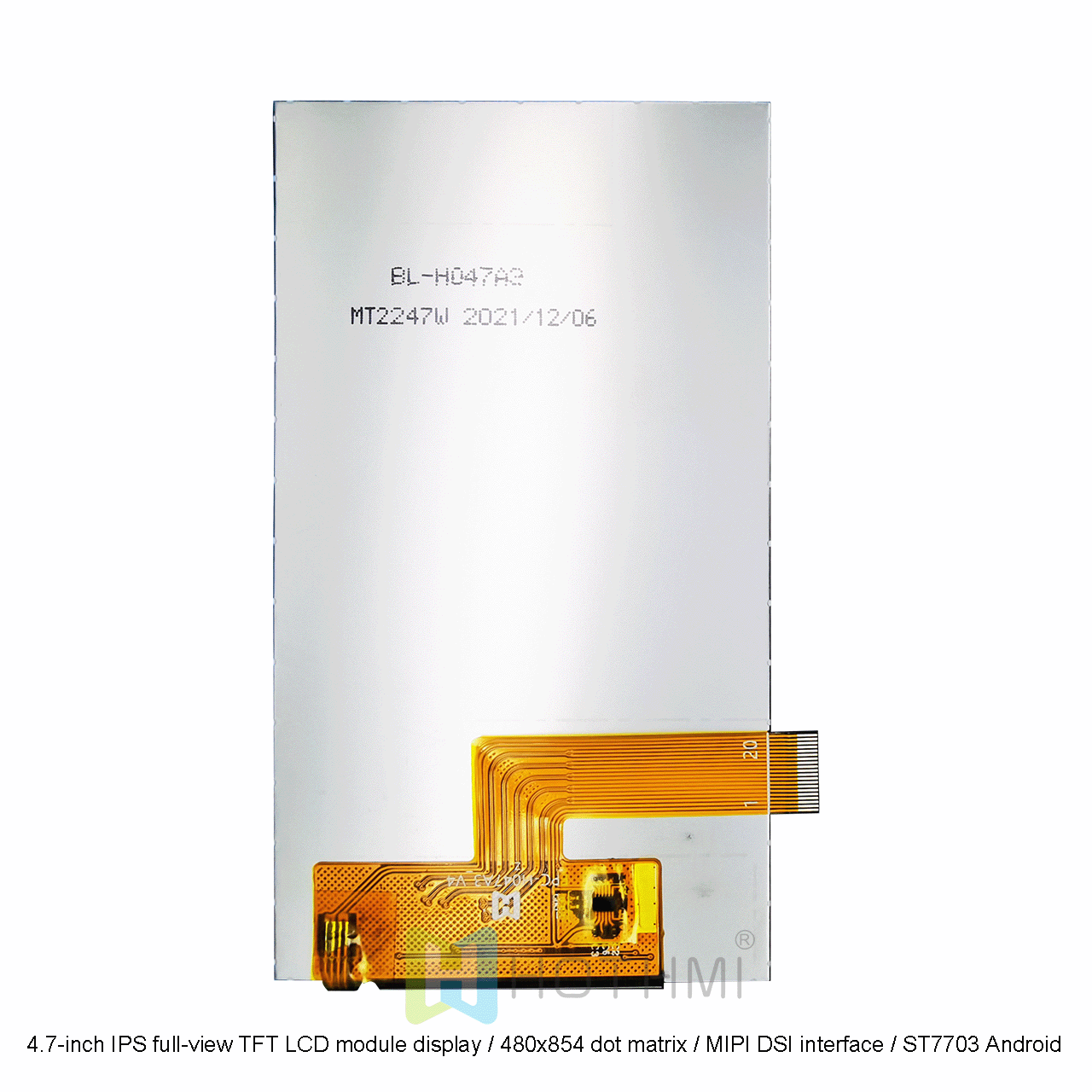

The 4.7 inch TFT LCD display is suitable for:
Android devices
Handheld devices
Embedded systems
Portable electronics
Industrial equipment
Control interfaces
IoT devices
Test and measurement equipment

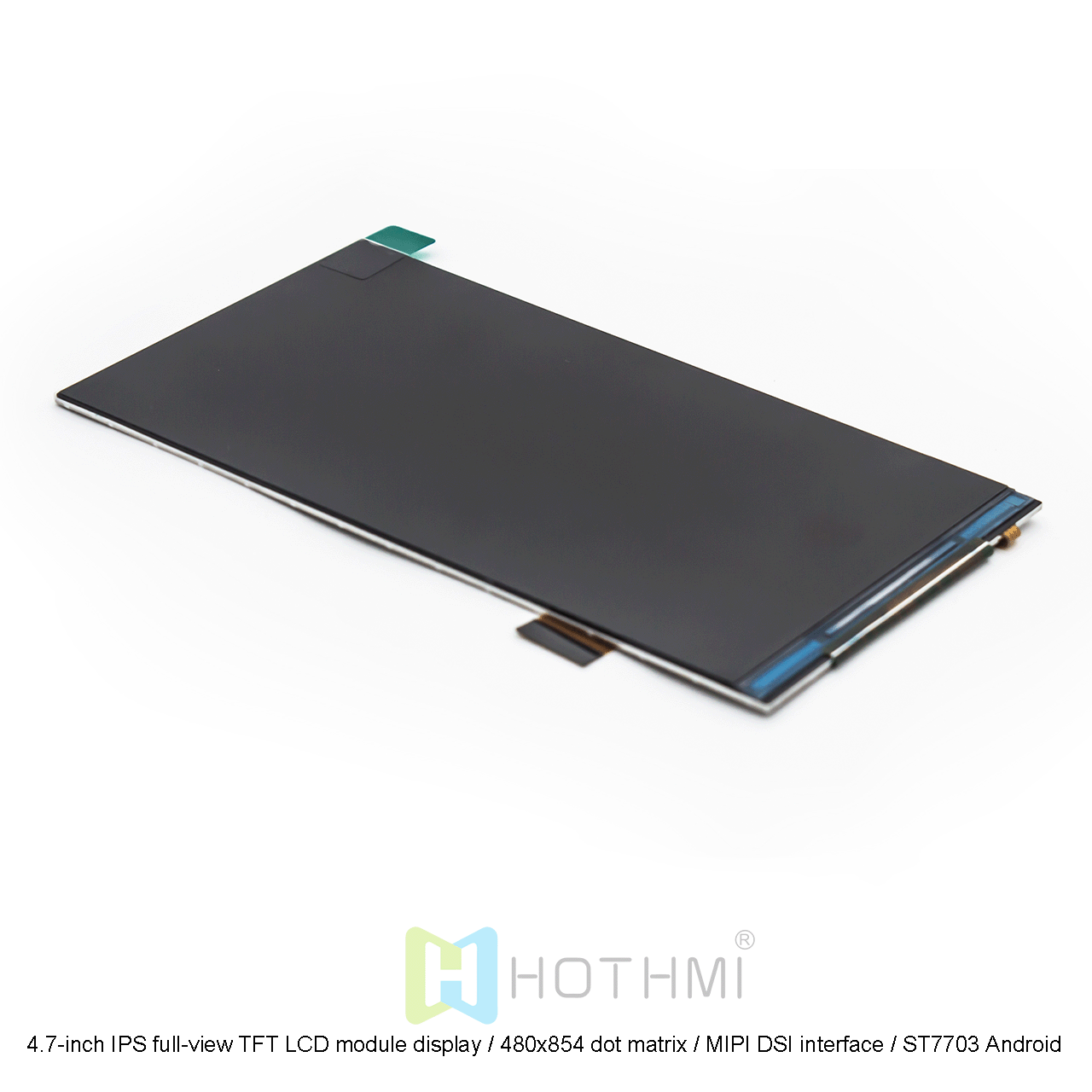

HotDisplay supports customization for project-specific display requirements.
Available options include:
Capacitive touch
Resistive touch
Custom FPC
Custom pin arrangement
Interface customization
Custom cover glass
Optical bonding
The 720x1280 resolution provides detailed graphics in a compact 4.7 inch display.
IPS technology provides a wide viewing angle and consistent image performance.
The MIPI DSI interface supports compact integration with compatible Android and embedded systems.
Capacitive and resistive touch solutions can be integrated according to application requirements.
HotDisplay supports customization of FPC, touch, cover glass and interface configurations.
Looking for a 4.7 inch TFT LCD display for your project? Send us your required resolution, interface, touch type, dimensions and application. Request a Quote Now.
