Transflective TFT LCD technology combines transmissive and reflective display principles to provide visibility under different lighting conditions.
Hotdisplay develops transflective TFT LCD displays for applications where sunlight readability and power consumption are important considerations.
Watch the video below to learn more about Transflective TFT LCD Technology at Hotdisplay

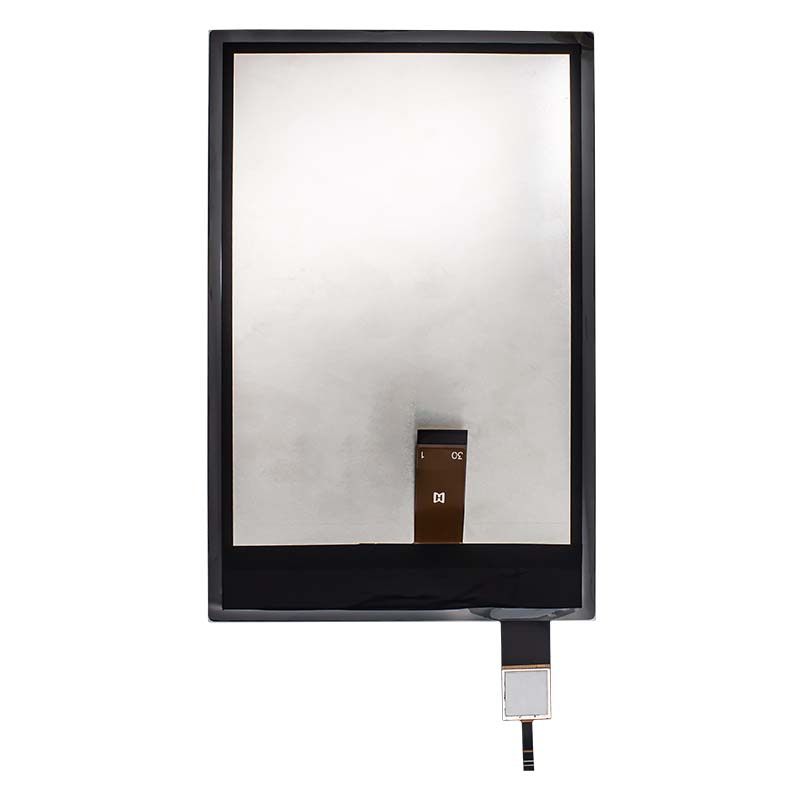

This is a 4-inch transflective TFT LCD display with a 480×800 resolution, powered by the ST7701 driver chip. It uses an RGB interface (FPC-40pin), offers 100cd/m² brightness and full viewing angles, and is suitable for outdoor instruments and portable electronic devices. It operates at -30~80°C, has 8KV ESD protection, and runs on 3.3V power supply.
There are three common LCD lighting approaches:
Transmissive LCD
| Reflective LCD
| Transflective LCD
|

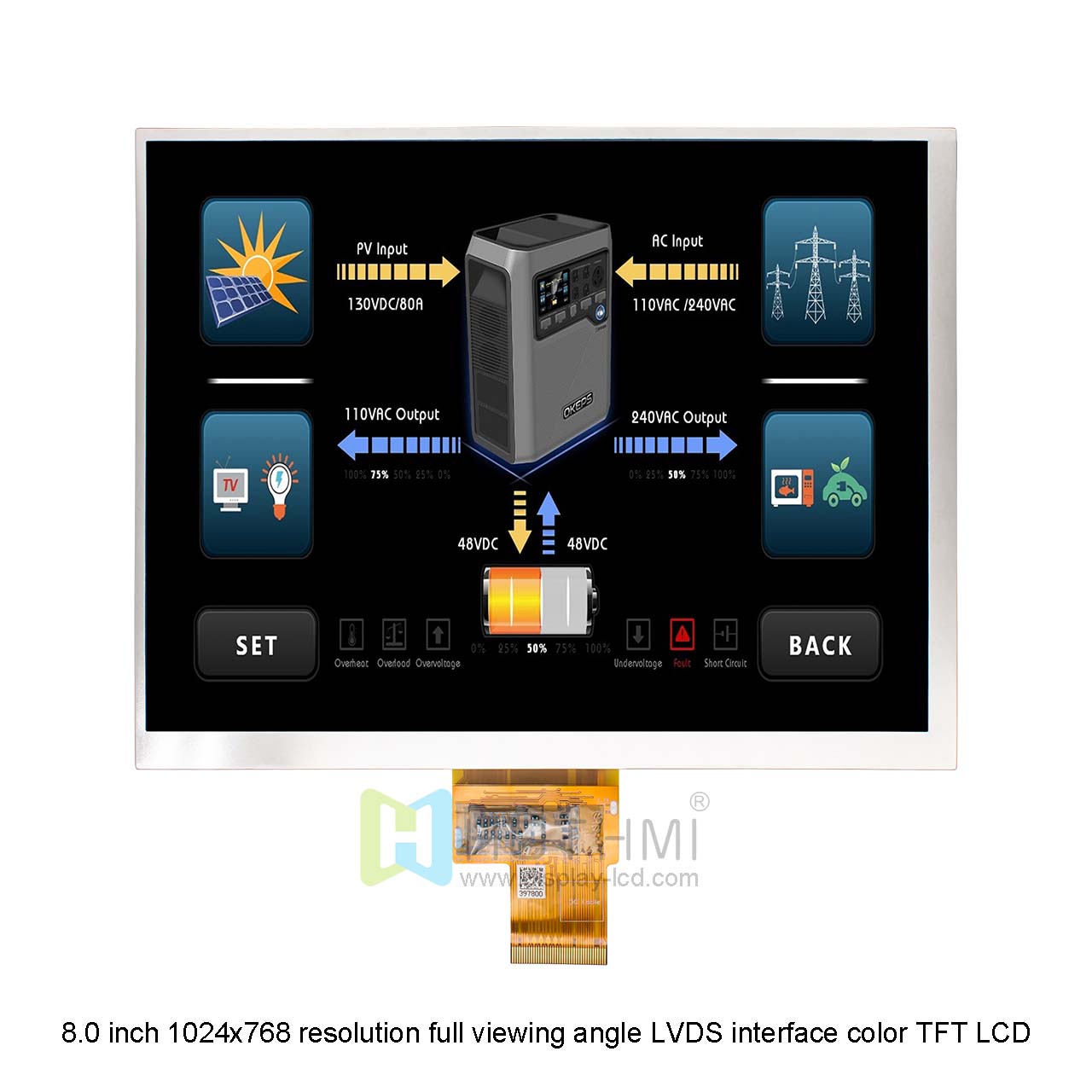

Hotdisplay's transflective TFT LCD technology is designed to provide:
Sunlight readability
Lower power consumption in bright environments
Visibility under different lighting conditions
Outdoor usability
Backlight support for darker environments
Hotdisplay's transflective TFT LCD portfolio includes different sizes and configurations.

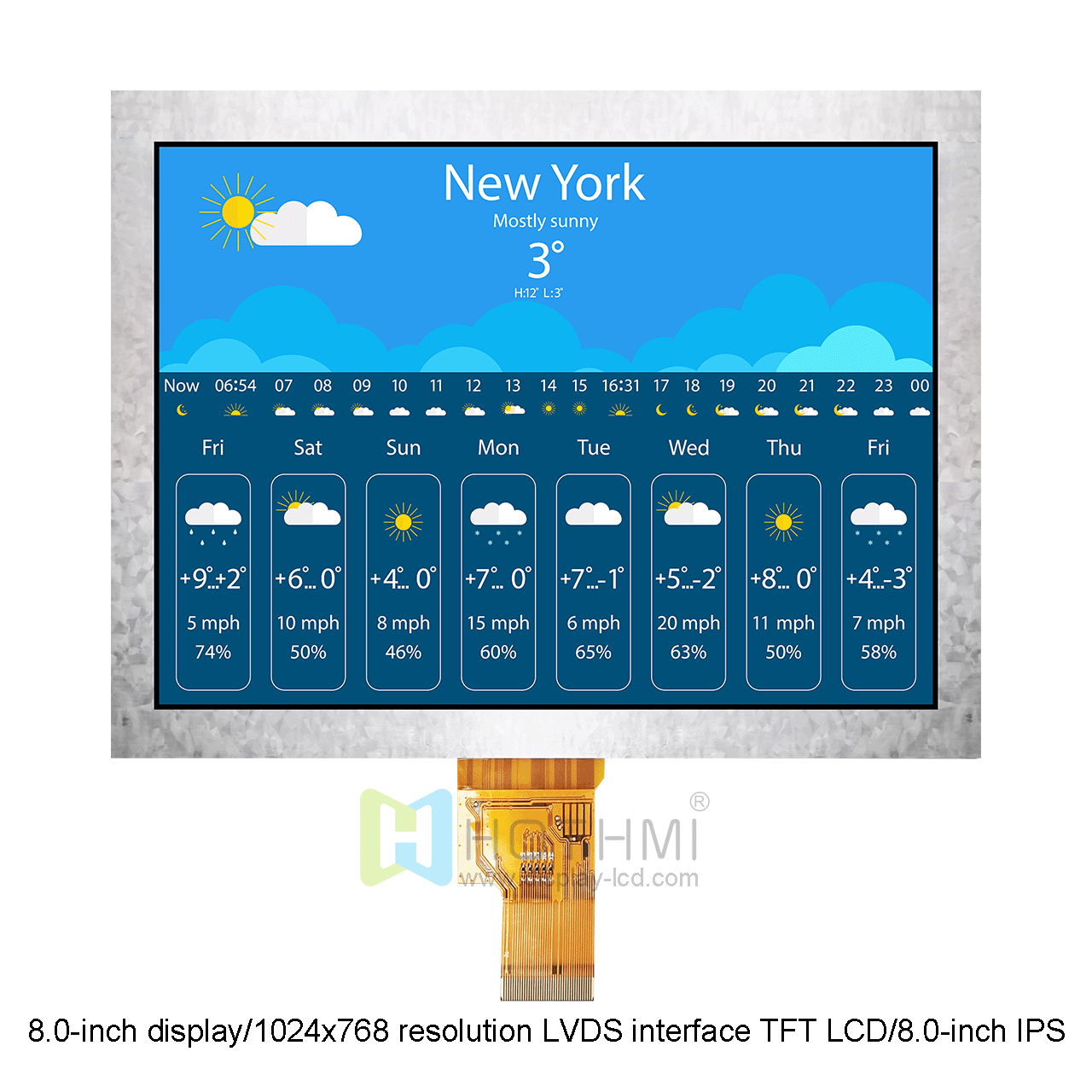

Examples include:
2.4-inch Transflective TFT LCD
240 × 320 resolution with MCU interface.
4-inch Transflective TFT LCD
480 × 800 resolution with RGB interface.
5-inch Transflective TFT LCD
800 × 480 resolution.
The exact configuration depends on the selected product.
Transflective displays can be suitable for applications where the display needs to remain readable in bright outdoor environments while maintaining low power consumption.
Potential applications include:
Handheld GPS equipment
Outdoor measuring instruments
Industrial handheld terminals
HMI equipment
Marine equipment
Vehicle dashboards
Portable medical equipment
Professional outdoor equipment
Hotdisplay can evaluate touch configurations for selected transflective TFT LCD products.
Depending on the project, touch, cover glass and optical bonding can be integrated into the display solution.
Transflective and high-brightness TFT LCD technologies solve outdoor readability in different ways.
Uses stronger backlight output to overcome ambient light.
Uses both ambient light and backlight principles.
The best choice depends on brightness requirements, power consumption, application environment and display content.
Hotdisplay provides engineering support for customized display requirements including:
|
|
If your product needs reliable visibility in direct sunlight and low-power operation is important, transflective TFT LCD technology may be an appropriate solution.
Hotdisplay engineers can evaluate your application and recommend a suitable display configuration.
