 | Key Features of Our 6.8 Inch TFT LCD Display
|
| Parameter | Specification |
|---|---|
| Model | TFT-H068A1ZAINVKN40 |
| Display size | 6.8 inch |
| Resolution | 720 × 1280* |
| Display type | TFT LCD |
| Viewing angle | IPS full viewing angle |
| Brightness | 1000 cd/m² |
| Interface | LVDS |
| Driver IC | NV3051F1 |
| FPC | 40-pin |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Supply voltage | 3.3V |
| Outline dimensions | 67.0 × 181.3 × 4.7 mm |
| Application | Instrumentation and portable electronic devices |

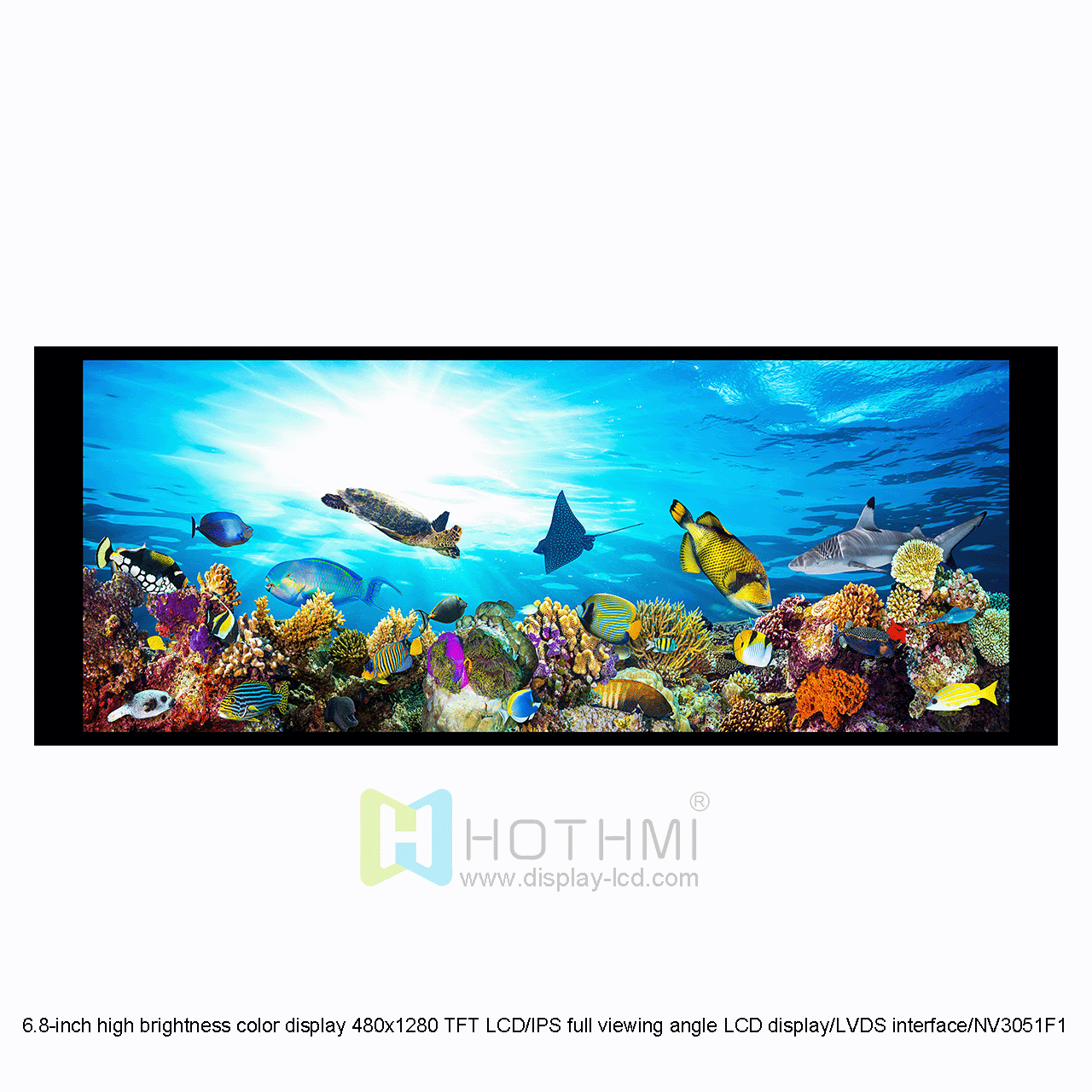

Our 6.8 inch TFT LCD display is suitable for projects such as:
Industrial instrumentation: Displaying operating status, measurement data and equipment interfaces.
Portable electronic devices: Providing a compact, high-resolution visual interface for handheld equipment.
Industrial control systems: Supporting embedded control panels and equipment interfaces where the display specifications match the system.
IoT devices: Presenting device status, control information and user interaction screens.
Test and measurement equipment: Displaying readings, menus and visualized measurement information.
The final suitability depends on the device's interface, mechanical design, operating environment and display requirements.
A standard display may not meet every project's mechanical, optical or electrical requirements. HotDisplay offers display customization and integration support to help customers evaluate a suitable configuration.
Depending on project feasibility and the selected panel, customization discussions may cover:
Display and optical requirements: Brightness, viewing conditions and display configuration.
FPC and connection design: Cable length, connector position and connection requirements.
Touchscreen integration: Touch panel options for projects that require user interaction.
Cover glass and mechanical integration: Front-cover dimensions and assembly requirements.
Interface and system compatibility: Reviewing the host board, signal requirements and integration constraints.
PCBA and related solutions: Discussing supporting electronics where required by the project.
Share your target specifications, drawings or existing display model with our team. We can review the requirements and advise on the next steps for sampling and development.
For equipment used in bright indoor areas or environments with strong ambient light, screen brightness is an important selection factor. This 6.8 inch TFT LCD uses a 1000 cd/m² backlight to improve readability compared with standard-brightness displays.
For applications exposed to direct sunlight, the final result also depends on cover glass, surface reflection, installation angle and ambient conditions. Our team can help evaluate whether the display specification is suitable for your actual environment.
The tall format of a 6.8 inch display is useful when a device needs to present vertically arranged menus, status information, measurement data or operating instructions.
Our team can help assess the display dimensions, active area, mounting space and cable routing against your equipment enclosure, reducing the risk of mechanical incompatibility during integration.
The LVDS interface supports integration into compatible embedded display systems. Before selecting the display, customers should verify the host controller's interface support, resolution timing, signal configuration, connector pinout and power requirements.
For projects with different controller or connection requirements, we can review the system specifications and discuss available customization options.
Display product experience: A range of TFT LCD display panels and modules for different sizes and application requirements.
Customization support: Assistance with display, touch, FPC, cover and integration requirements, subject to technical feasibility.
Engineering communication: Specification review to help identify interface, dimensional and operating-condition risks before sampling.
Project-oriented selection: Support for comparing display parameters against your equipment's actual use conditions.
Production and quality support: Product quality and manufacturing information can be discussed with our team for your project and purchasing requirements.
Its 1000 cd/m² brightness can help improve visibility in bright environments. However, outdoor readability depends on sunlight exposure, reflections, cover glass and installation conditions. Confirm the intended environment before choosing the display.
The listed model is presented as a standard display. Touch functionality should not be assumed to be included. If your project requires touch operation, contact us to discuss compatible touch solutions.
Compare the resolution, active area, outline dimensions, thickness, interface, connector pinout, voltage, driver requirements and operating temperature. Matching the diagonal size alone does not ensure compatibility.
Compatibility depends on the board's display interface, timing configuration, signal levels and connector design. Send us your board model or display interface specifications for a technical review.
Contact our team with your required quantity, target schedule and application details. We can confirm sample availability, pricing, lead time and production arrangements for the selected model.
Looking for a 6.8 inch TFT LCD display for an industrial, portable or embedded device?
Send us your required resolution, interface, brightness, operating temperature, mechanical dimensions and estimated order quantity. Our team can help verify the specifications and discuss a suitable display solution for your project.
Contact HotDisplay for product details, datasheets, samples and customization support.
