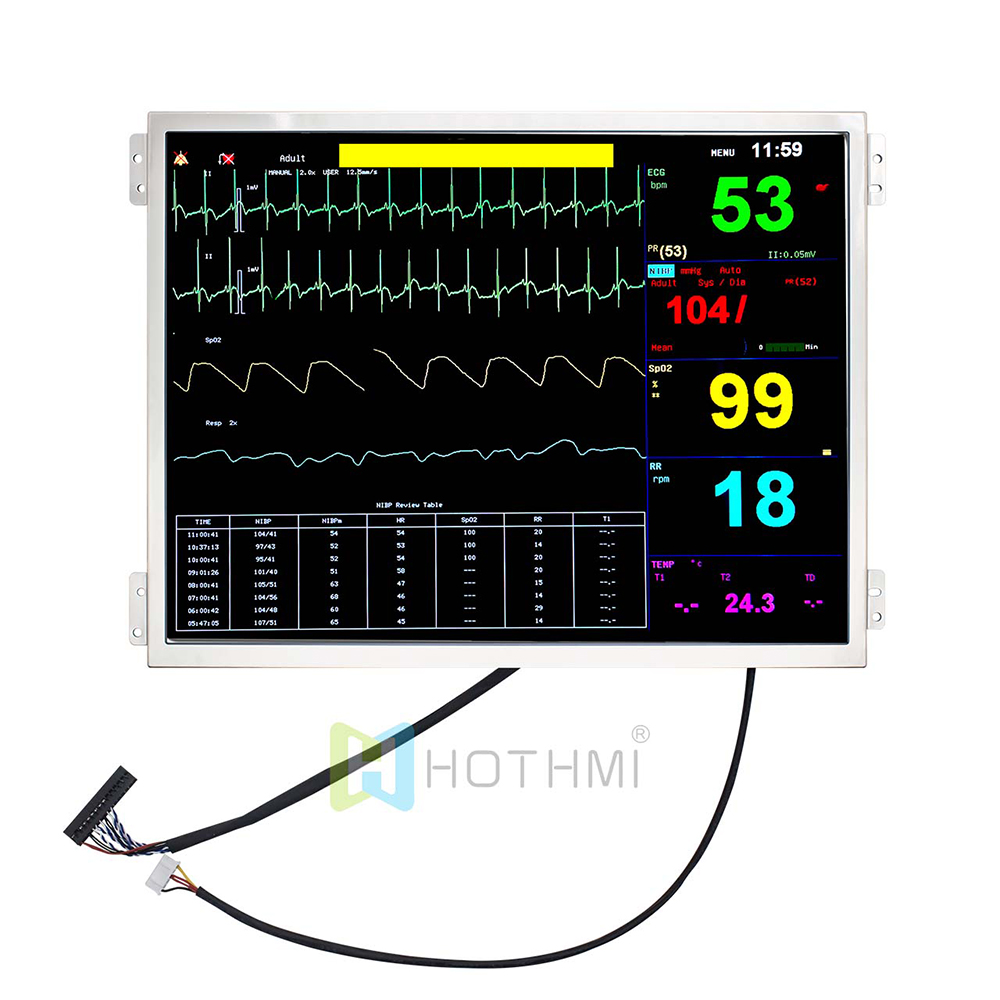

The TFT-104IA-36A is a 10.4 inch TFT LCD module designed for applications requiring a wide viewing angle and stable display performance.
| Specification | Details |
|---|---|
| Model | TFT-104IA-36A |
| Display size | 10.4 inch |
| Resolution | 1024 × 768 |
| Aspect ratio | 4:3 |
| Display type | Transmissive TFT LCD |
| Viewing angle | IPS full viewing angle |
| Brightness | 500 cd/m² |
| Contrast ratio | 1000:1 |
| Interface | LVDS |
| Connector | 30-pin FPC |
| Module dimensions | 238.6 × 175.8 × 6.5 mm |
| Active area | 210.432 × 157.824 mm |
| Supply voltage | 3.3 V |
| Operating temperature | -30°C to 80°C (confirm against datasheet) |
| ESD protection | 8 kV |
 | What These Features Mean for Your Project
|
Choosing the right display requires more than matching the diagonal size. Our project-oriented approach helps address common engineering and procurement concerns.
We review your equipment type, screen layout, viewing distance, installation space and operating environment to identify the essential display requirements.
We evaluate resolution, viewing angle, brightness and contrast against the intended interface and ambient lighting conditions.
We check the host system’s LVDS support, signal configuration, timing, connector pinout and electrical requirements against the display documentation.
We review the module dimensions, active area, thickness, FPC routing and mounting constraints. Touchscreen and cover glass requirements can be evaluated together when needed.
Datasheet review and sample testing help confirm image performance, system compatibility and mechanical fit before volume production.

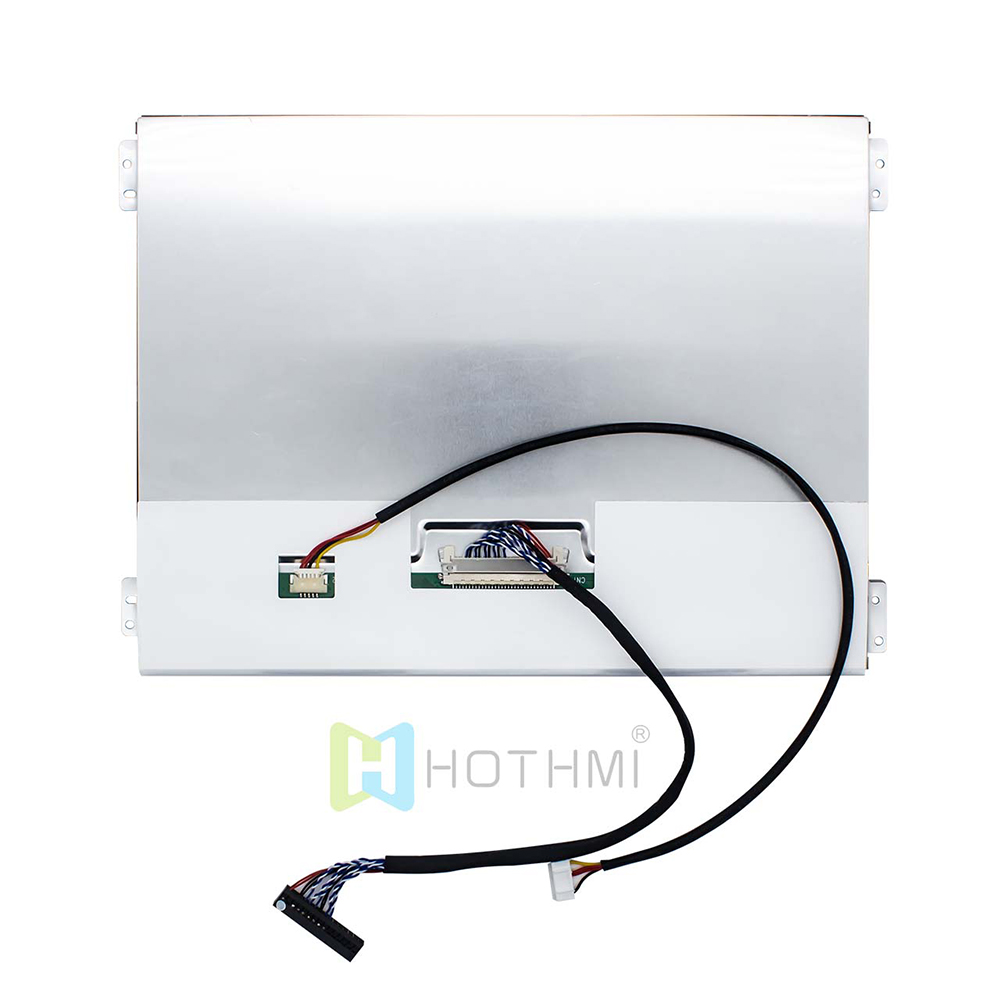

HotDisplay supports customers with display selection and integration requirements beyond the LCD panel itself.
Display selection: Match resolution, brightness, viewing angle, dimensions and operating conditions to your application.
Interface compatibility review: Evaluate LVDS signal requirements, connector pinout and host-system compatibility.
Touchscreen integration: Discuss capacitive or resistive touch options for interactive equipment.
Custom FPC and cable solutions: Review cable length, routing, connector position and pin assignments.
Cover glass customization: Evaluate cover dimensions and optional surface treatments based on the device environment.
Driver board solutions: Discuss suitable driver or adapter boards when required by the host system.
Sample evaluation: Support specification review and sample testing before production planning.
Customization options depend on the selected panel and project requirements and are subject to technical confirmation.

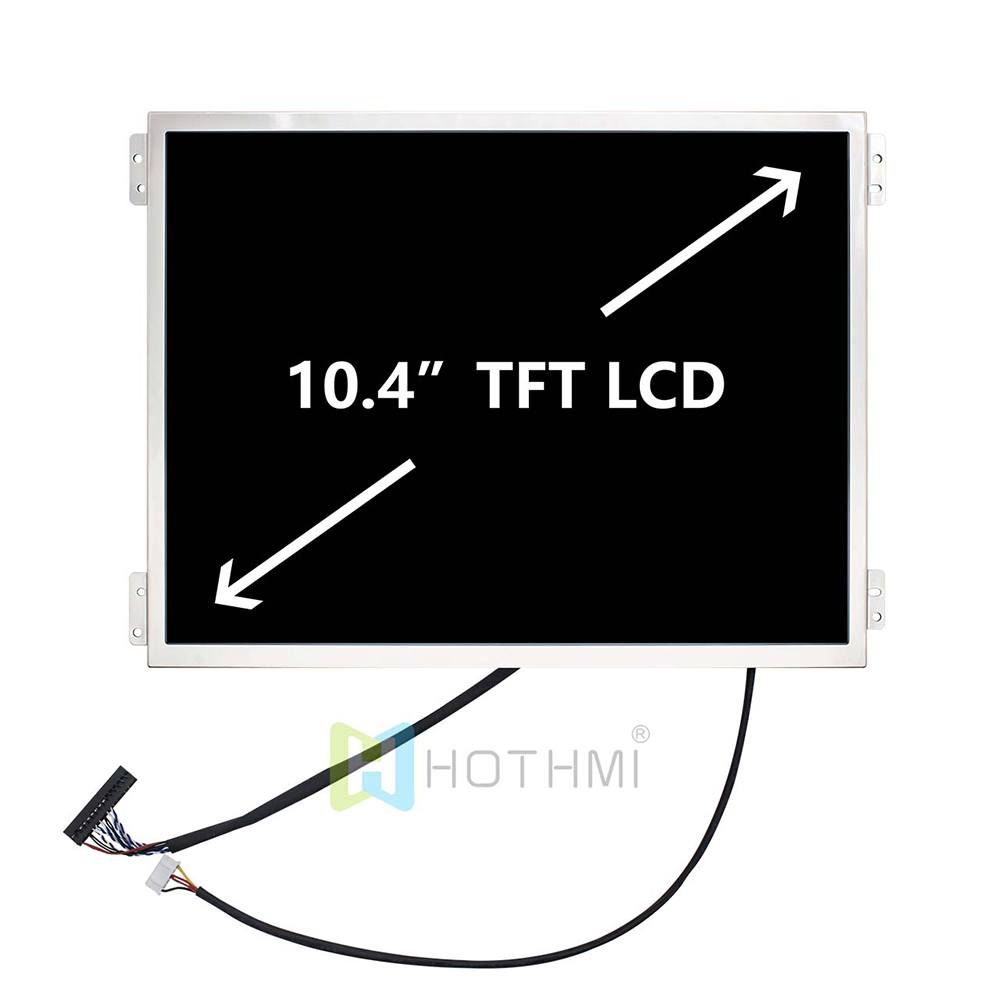

The 10.4 inch 4:3 display format is suitable for equipment that needs a spacious interface without a widescreen layout.
Industrial control panels: Display machine status, operating parameters and control menus.
Measurement and testing instruments: Present readings, charts and configuration information.
Medical and monitoring equipment: Support equipment interfaces and monitoring displays, subject to the device’s specific requirements and approvals.
Industrial automation systems: Provide visual interfaces for equipment operation and process monitoring.
Portable and embedded devices: Offer a larger viewing area for specialized electronic products.
Mini home appliances: Support control panels and graphical user interfaces where the module’s dimensions and specifications are suitable.
Application-based display selection: Focus on actual device requirements rather than screen size alone.
Engineering integration support: Evaluate electrical, optical and mechanical compatibility before design-in.
Flexible customization options: Discuss touch, FPC, cover glass and driver board requirements.
Technical documentation: Use product specifications and datasheets to support engineering evaluation.
Project-oriented cooperation: Coordinate sample assessment and production requirements for your application.
A 10.4 inch TFT LCD is a color display module with a diagonal screen size of approximately 10.4 inches. The featured model uses a 1024×768 resolution and a 4:3 aspect ratio, making it suitable for industrial controls, instruments and embedded equipment.
The TFT-104IA-36A uses an LVDS interface with a 30-pin FPC connector. Check the exact pinout, signal configuration and host-system requirements before hardware integration.
The specified brightness is 500 cd/m². It may be suitable for many indoor applications, but direct sunlight readability depends on reflections, cover glass, optical bonding and enclosure design. For outdoor use, evaluate the complete optical system.
Touchscreen integration can be evaluated for projects requiring capacitive or resistive touch. The touch panel, cover glass, mechanical dimensions and electrical connections should be confirmed for the specific configuration.
A replacement must match more than the diagonal size. Compare resolution, active area, module dimensions, LVDS configuration, connector pinout, voltage and mounting requirements. Share your existing model number or datasheet for a compatibility review.
The featured model specifies a wide operating temperature range and 8 kV ESD protection. Suitability for a specific industrial environment also depends on vibration, humidity, enclosure design and the equipment’s other environmental requirements.
Project-specific requirements such as FPC routing, touch integration, cover glass and driver board solutions can be evaluated. Feasibility, cost and lead time depend on the selected panel and requested modifications.
Share your application, target quantity, host system, interface requirements, brightness and touch requirements, operating temperature and mechanical drawings if available. This helps the team assess compatibility and recommend a suitable configuration.
