| Parameter | Available options |
|---|---|
| Display size | 8.0 inch |
| Resolution | 800×600, 1024×600, 1024×768, 800×1280 and selected high-resolution models |
| Display technology | TFT LCD, selected IPS models |
| Interface | RGB, LVDS, MIPI |
| Touchscreen | Capacitive, resistive and non-touch options |
| Display format | Landscape and portrait configurations |
| Brightness | Standard and selected high-brightness options |
| Compatible platforms | Selected STM32/RK, Linux, industrial control and Android/RK systems |
| Customization | Touch, FPC, cover glass and interface-related project discussions |

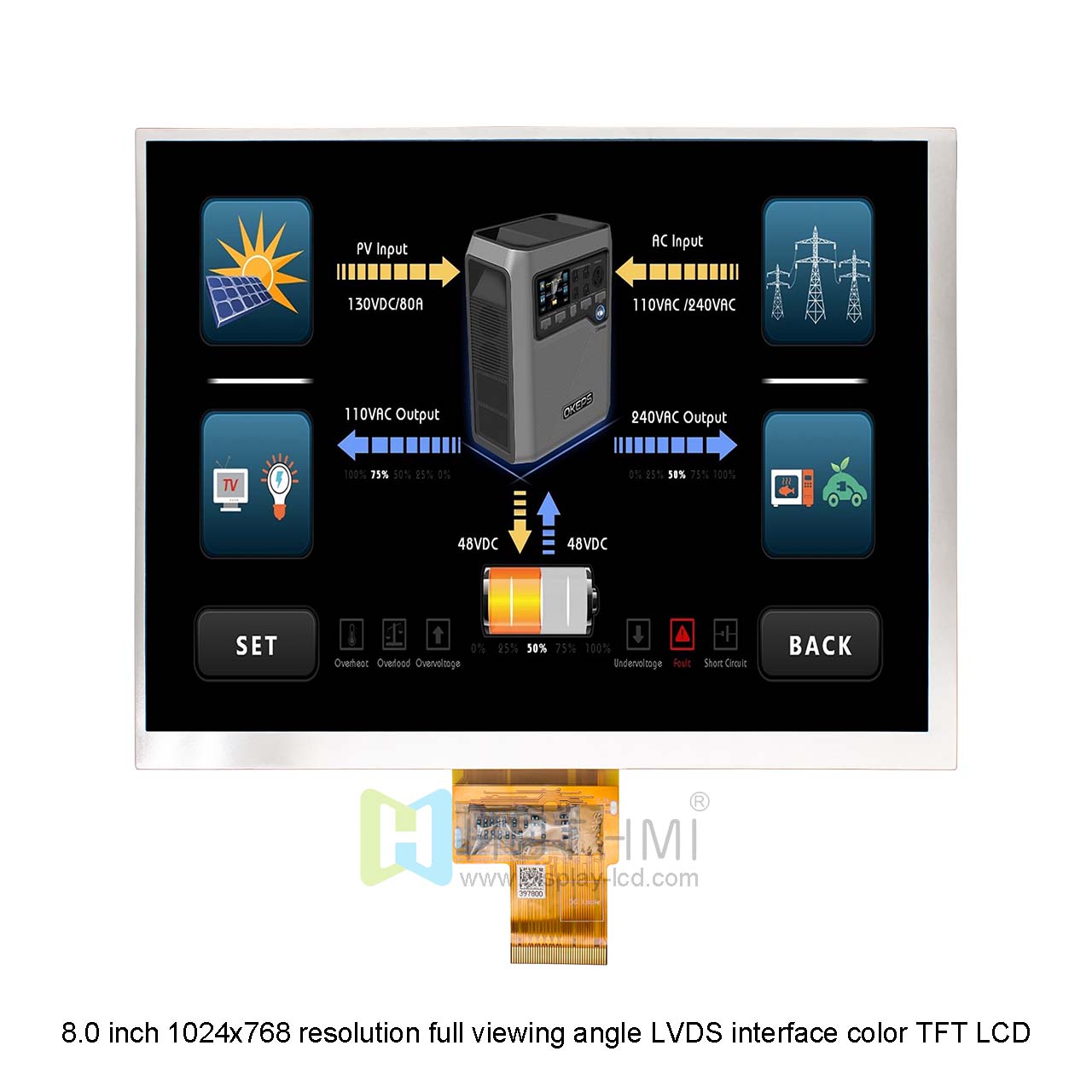

Our standard 8 inch TFT LCD range includes 800×600, 1024×600 and 1024×768 resolution options. These models can be considered for industrial control panels, embedded equipment, monitoring systems and general-purpose display applications.
Different interface and mechanical configurations allow customers to compare products against their existing hardware and installation requirements.

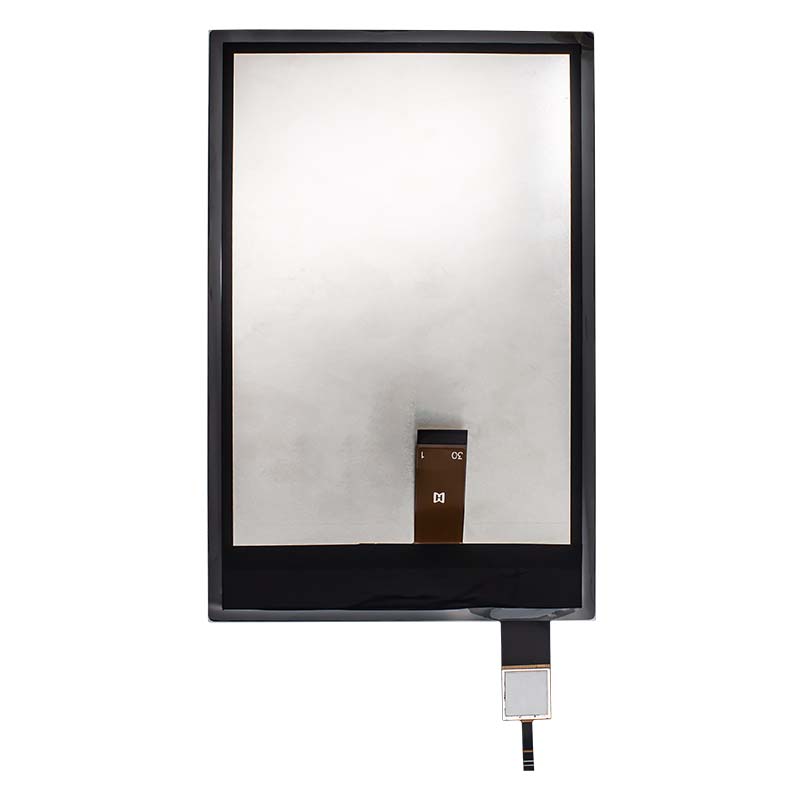

For applications that require detailed graphics, text and image content, selected 8-inch models offer higher-resolution configurations, including 800×1280 and other high-definition options.
Portrait and high-resolution formats are suitable for interfaces designed around vertically arranged content or more detailed visual information. Confirm the resolution, orientation and interface of each model before selection.

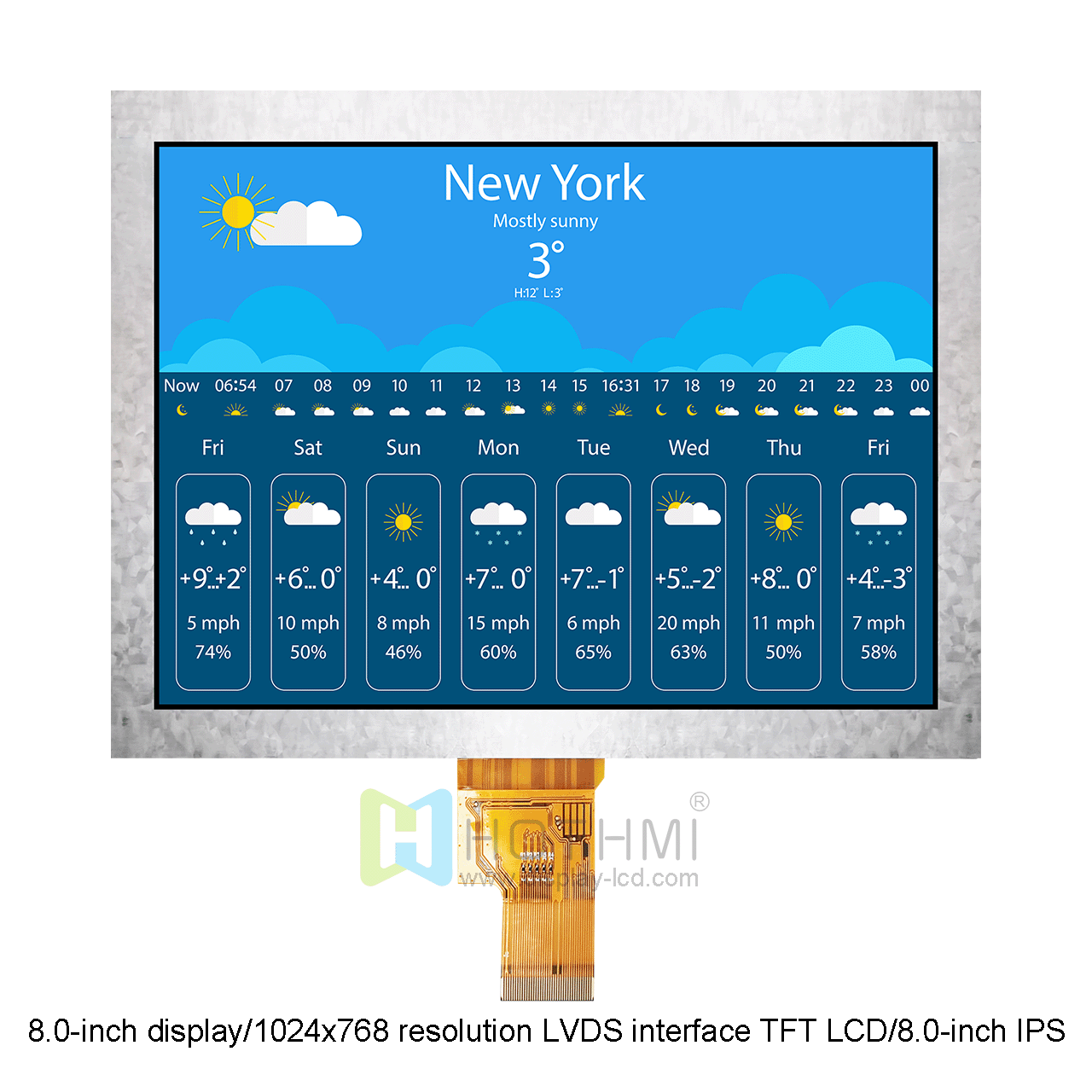

Selected models feature IPS technology for wide viewing angles and consistent visual presentation from different viewing positions.
IPS displays can be considered for industrial interfaces, monitoring equipment and interactive devices where users may view the screen from various angles.
For equipment operating in bright indoor environments or outdoors, selected 8 inch TFT LCD models offer high-brightness and sunlight-readable configurations.
The right optical solution depends on ambient light, surface reflection, cover glass and installation conditions. Our team can help evaluate these factors when selecting a display for demanding viewing environments.

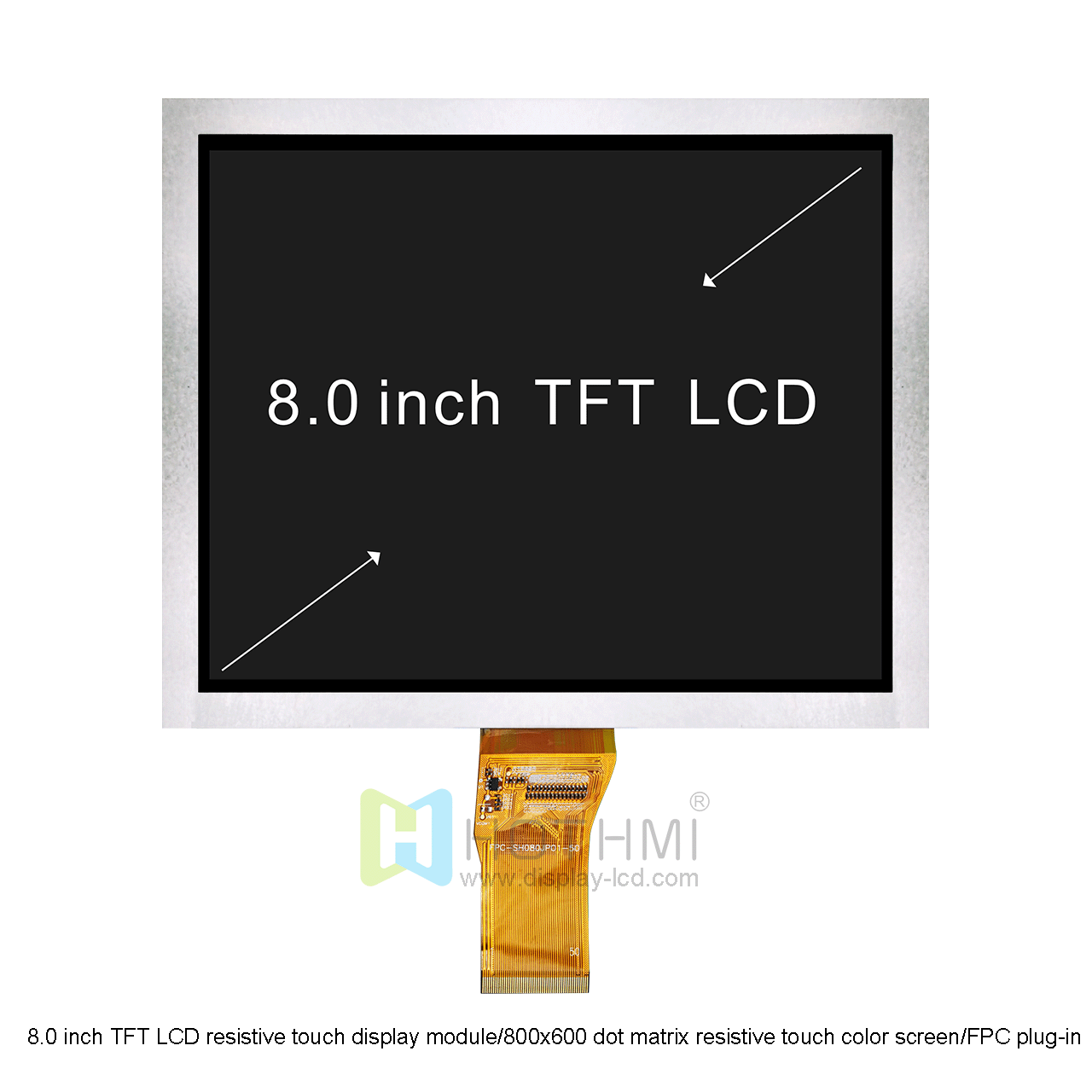

We supply selected 8-inch models with capacitive or resistive touch configurations, alongside non-touch displays.
Capacitive touch: Suitable for interactive interfaces requiring responsive touch input.
Resistive touch: An option for applications with specific input methods or operating requirements.
Non-touch displays: Suitable for systems controlled through external buttons, keyboards or other input devices.
Touch technology, controller compatibility and cover-glass structure should be confirmed for the selected model.
Our product range includes three main interface categories:
RGB interface: For compatible display controllers and embedded systems using RGB output.
LVDS interface: For systems designed around LVDS display connections.
MIPI interface: For compatible embedded platforms using MIPI DSI.
Interface selection must match the host controller, signal configuration, resolution timing and electrical requirements.
We begin with your application and device design. Important factors include screen size, resolution, aspect ratio, brightness, viewing angle, touch requirements and operating environment.
By identifying these requirements first, we can help narrow down the available 8 inch TFT LCD models rather than relying on screen size alone.
Display compatibility is one of the most important considerations during product development or replacement.
Our technical support can help review:
RGB, LVDS or MIPI interface requirements
Host controller and driver compatibility
Resolution and signal timing
Connector pinout and FPC configuration
Supply voltage and electrical requirements
Mechanical dimensions and mounting space
This review helps identify potential incompatibilities before customers proceed to sample evaluation or production.
Different applications need different viewing and interaction experiences. We help customers evaluate standard or high-brightness displays, IPS viewing angles, touch options and cover-glass requirements.
For bright environments, we consider the complete optical configuration rather than brightness alone. For touch applications, we review the touch controller, connection method and mechanical structure.
An 8-inch screen may have different active areas, outline dimensions, thicknesses and connector positions depending on the model.
We can review your enclosure drawings, existing display information or host-board specifications to help assess whether a selected model fits the device's mechanical and electrical design.
Once a suitable model is identified, customers can evaluate it in their own system and operating environment.
HotDisplay can assist with datasheets, sample inquiries, customization discussions and quotations. Sample availability, production lead time and purchasing arrangements are confirmed according to the selected model and project requirements.
Our 8 inch TFT LCD displays can be considered for a wide range of applications:
Industrial control panels: Equipment operation, monitoring interfaces and machine status displays.
Medical and monitoring equipment: Visual presentation of measurements and device information, subject to the equipment's technical and regulatory requirements.
POS and self-service terminals: Interactive menus, transaction information and user guidance.
Embedded systems: Display interfaces for controller-based electronic devices.
Portable instruments: Graphical interfaces for measurement and field equipment.
Smart home and IoT devices: Control interfaces and information displays for connected products.
Outdoor and industrial equipment: Selected high-brightness or wide-temperature models for demanding environments.
Commercial electronics: Display modules for specialized products requiring an 8-inch screen.
When a standard 8 inch TFT LCD does not fully match your product requirements, HotDisplay can discuss customized display and integration options based on technical feasibility.
Our project support may include:
Custom FPC: Cable length, connector position, routing and connection requirements.
Touchscreen integration: Capacitive or resistive touch options based on the application.
Custom cover glass: Dimensions, shape and assembly requirements for your enclosure.
Interface evaluation: Reviewing host-board compatibility and signal requirements.
Optical integration: Evaluating brightness, reflection and optical bonding requirements.
Mechanical integration: Reviewing active area, outline dimensions, thickness and mounting structure.
Related PCBA support: Discussing supporting electronics and assembly requirements where applicable.
Our 8 inch TFT LCD series provides different resolutions, interfaces, brightness levels and touch configurations. Customers can compare available models based on their actual application requirements.
HotDisplay provides standard display products and customized display solutions. Our product and engineering support covers specification review and discussions about touch, FPC, interface and mechanical integration.
Display quality and compatibility depend on product specifications, components, assembly and inspection. HotDisplay provides quality-related information and technical documentation to support product evaluation. Project-specific inspection and documentation requirements can be discussed before ordering.
For projects that cannot use a standard configuration, we can discuss FPC, touch, cover-glass and related integration options based on technical feasibility.
Whether you are developing a new product, replacing an existing display or planning bulk purchasing, our team can help organize product information, sample evaluation and quotation requirements.
Our listed 8-inch range includes 800×600, 1024×600, 1024×768 and 800×1280 configurations, as well as selected high-resolution models. Availability and interface options vary by product.
Yes. Selected models are available with capacitive or resistive touch, while other models are supplied without touch. Check the specific product details to confirm the exact configuration.
The correct interface depends on your controller, signal requirements, resolution and hardware architecture. Provide your host-board information or existing display datasheet so compatibility can be reviewed before ordering.
Selected models offer high-brightness or sunlight-readable configurations. Outdoor visibility also depends on reflection, cover glass, installation angle and environmental conditions. Confirm the actual application requirements before choosing a model.
A replacement must match more than the diagonal size. Compare resolution, active area, outline dimensions, thickness, interface, pinout, voltage and mounting requirements. Send us your original model number or datasheet for a compatibility review.
We can discuss FPC, touch, cover-glass and related integration requirements. Customization feasibility depends on the selected panel, requested changes and project conditions.
Contact our team with your selected model, estimated quantity and project schedule. We can confirm sample availability, pricing, lead time and production arrangements for your requirements.
Looking for an 8 inch TFT LCD display for industrial equipment, embedded electronics or interactive products?
Tell us your application, required resolution, interface, brightness, touch preference and estimated quantity. HotDisplay can help you compare available models, review integration requirements and discuss customization, samples and bulk purchasing.
Contact HotDisplay to find a suitable 8 inch TFT LCD display solution for your project.
