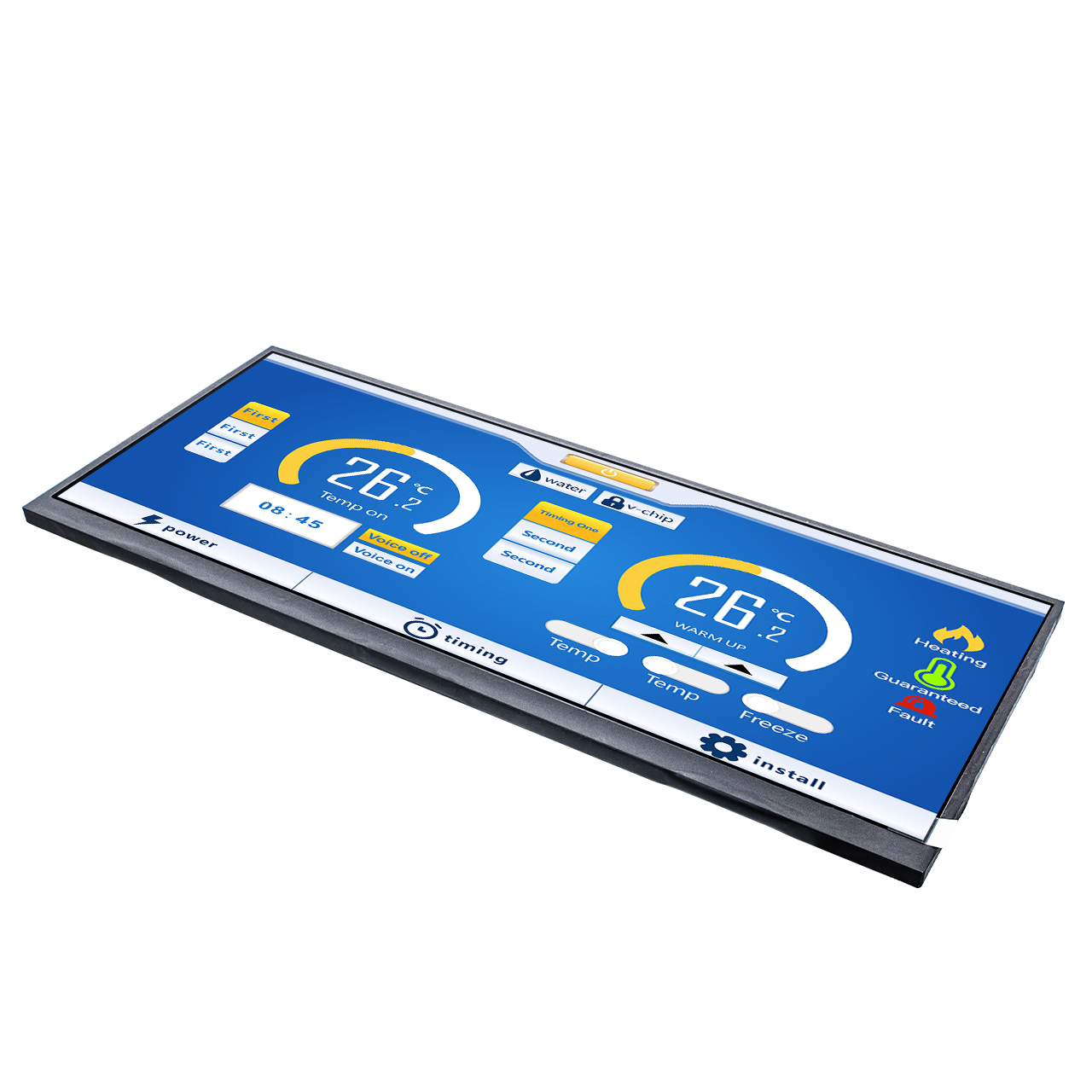

 | Key Features of the 12.3 Inch TFT LCD Display
|
| Parameter | Specification |
|---|---|
| Model | TFT-H123A1ZEIWZ8N50 |
| Display Size | 12.3 inches |
| Resolution | 1920 × 720 |
| Display Type | TFT LCD, normally black |
| Colors | 16.7 million |
| Viewing Angle | Full view, U85/D85/R85/L85 |
| Brightness | 850 cd/m² |
| Interface | LVDS, dual-channel, 48-bit |
| Connector | 50-pin FPC |
| Module Dimensions | 302 × 125.4 × 13.7 mm |
| Active Area | 292.032 × 109.512 mm |
| Module Supply Voltage | 3.3V |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +90°C |
| ESD | 8 kV |
| Backlight | White LED, 44 LEDs (11S4P configuration) |
| Driver IC | To be confirmed |
A high-resolution display must be matched with the host electronics, enclosure, touch system, and operating environment. HotDisplay supports customers through a structured engineering and manufacturing process.
We review resolution, LVDS configuration, signal timing, connector pinout, host-board capability, and cable routing to identify integration risks before prototype production.
For equipment with limited internal space or special connector positions, our team can assess FPC length, routing, connector orientation, and interface adaptation according to project requirements and engineering feasibility.
For interactive applications, HotDisplay can evaluate capacitive touch integration, touch-controller compatibility, cover-glass dimensions, and front-panel structure.
High brightness alone does not guarantee outdoor readability. Depending on the application, we can evaluate cover-glass treatment, optical bonding, mounting structure, and display-stack design to address reflections, dust ingress, and mechanical fit.
HotDisplay coordinates engineering review, sample evaluation, production preparation, and quality checks to support consistent display integration. Project-specific tests can be defined according to the equipment's temperature, vibration, operating hours, and reliability requirements.

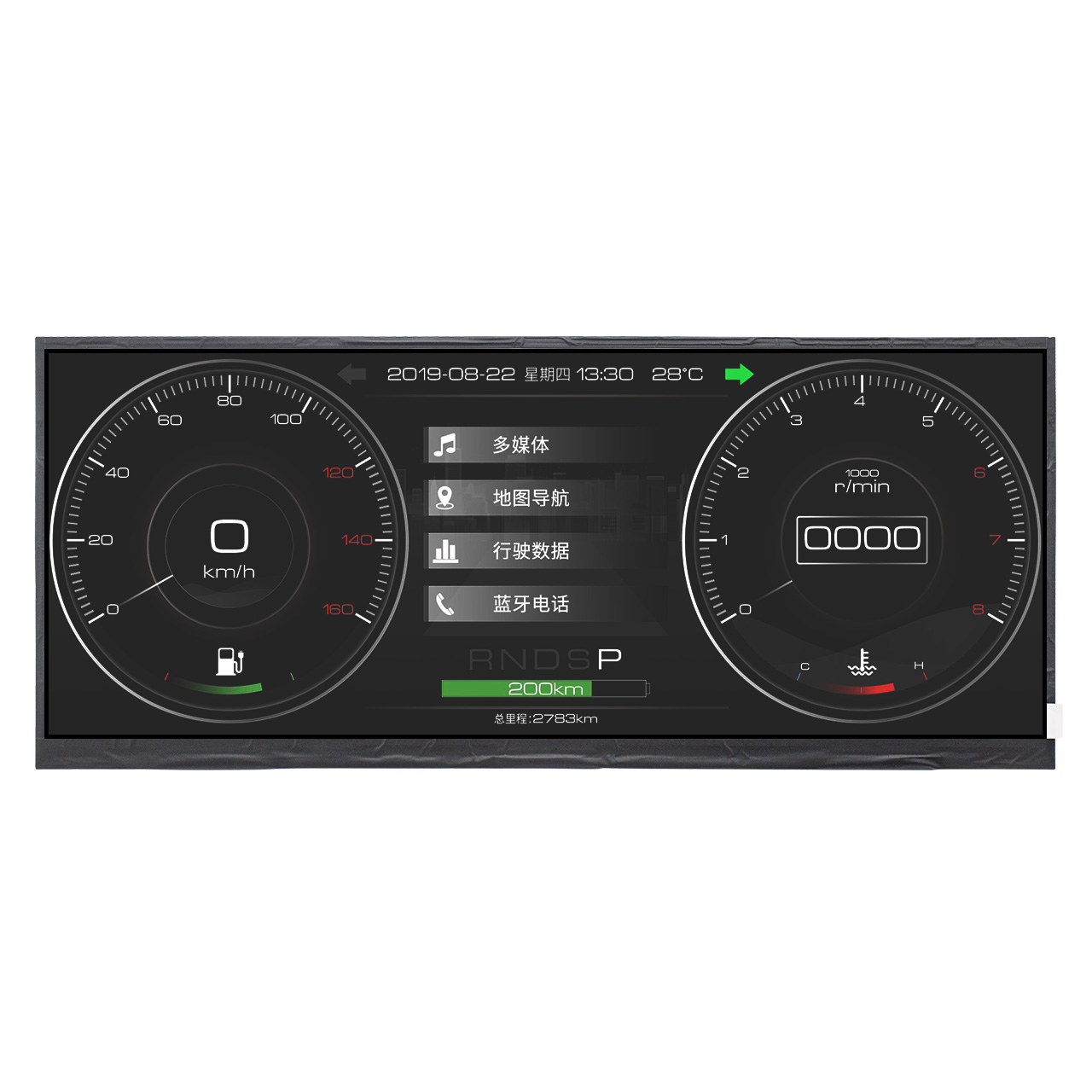

The ultra-wide 1920×720 format is suitable for vehicle dashboards, central control displays, and other horizontal information interfaces. For automotive projects, evaluate vibration, temperature cycling, sunlight readability, and system-level qualification requirements.

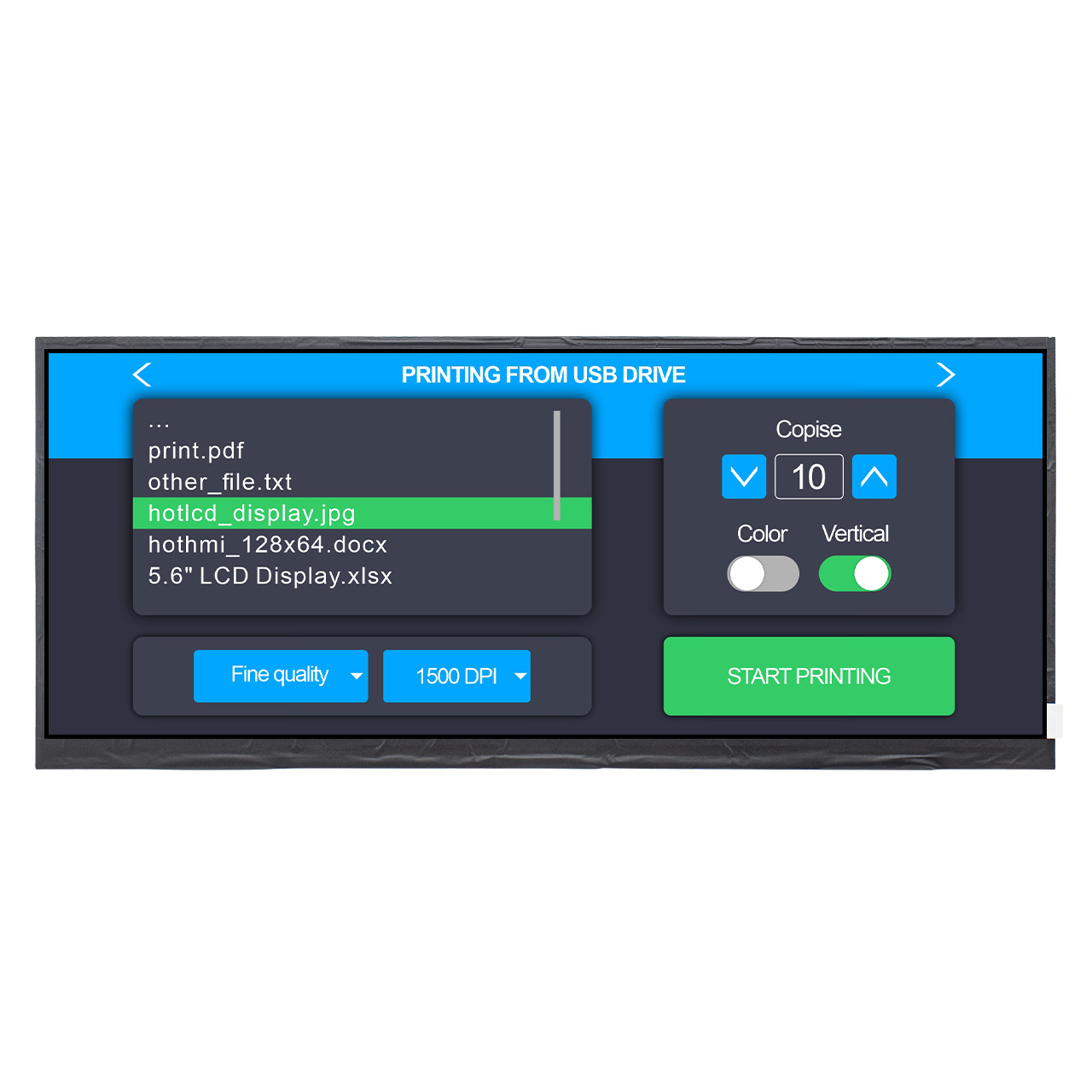

The wide screen can display equipment status, process information, charts, and control elements in a single interface. Its operating temperature range makes it a candidate for industrial environments when the complete system meets the required conditions.
The high resolution and wide display area support detailed measurement data, operating parameters, and graphical indicators. Confirm the viewing angle and brightness under the actual installation conditions.
The LVDS interface and FPC connection support integration into compatible embedded platforms. Host-board timing, connector orientation, cable routing, and display-controller compatibility should be checked during development.
Before purchasing, evaluate these important factors:
Resolution and aspect ratio: Confirm that the host system supports 1920×720 and that the software interface is designed for the ultra-wide format.
LVDS compatibility: Verify dual-channel configuration, signal timing, pin assignment, and host-controller support. A matching connector alone does not guarantee compatibility.
Brightness and sunlight readability: 850 cd/m² is a high-brightness specification, but direct sunlight performance also depends on reflections, cover glass, and optical bonding.
Touch requirements: Confirm whether touch is required, the touch technology, controller interface, and front-glass structure. The standard display configuration should not be assumed to include a complete touch assembly.
Backlight power and thermal design: Check LED voltage, current, dimming method, heat dissipation, and backlight-driver compatibility. High brightness can increase power consumption and internal heat.
Mechanical dimensions: Check the complete module dimensions, active area, mounting points, connector clearance, and FPC bending radius.
Operating environment: Confirm that the stated temperature range covers actual operating conditions, including heat inside the equipment enclosure.
Long-term supply: Request lifecycle status, production change notification arrangements, and an alternative-material plan for products with long service lives.
Its ultra-wide format provides more horizontal space for dashboards, navigation elements, status panels, and multi-column interfaces. It is especially useful when the product design requires a wide screen rather than a conventional 16:9 layout.
Its 850 cd/m² brightness and wide operating temperature range make it a candidate for bright or demanding environments. Actual suitability depends on sunlight readability, vibration, temperature cycling, electrical design, and the project's qualification requirements.
The listed module uses dual-channel LVDS, not a direct HDMI input. An appropriate controller or conversion board may be required. Confirm resolution, timing, signal configuration, and backlight control before selecting a solution.
The product page mentions a built-in touch chip, but the standard specification does not fully define the touch assembly. Confirm whether the quotation includes the touch panel, controller, FPC, and cover glass before ordering.
HotDisplay can assess FPC routing, connector position, cable length, cover-glass dimensions, and optical integration based on project requirements. Customization feasibility depends on the panel structure and should be confirmed during engineering review.
Check the actual resolution, image orientation, viewing angles, brightness, LVDS signal compatibility, touch operation (if required), mechanical fit, backlight temperature, and performance under the intended operating conditions. Test the display with the actual host board whenever possible.
For long-term equipment programs, ask for lifecycle information and change-notification procedures. Agree on sample approval, revision control, and a replacement evaluation process before mass production.
Looking for a 12.3-inch ultra-wide TFT LCD display for automotive interfaces, industrial HMI, instrumentation, or embedded equipment?
Send HotDisplay your application, target quantity, host interface, touch requirements, mechanical drawings, and operating conditions. Our engineering team can help review compatibility and recommend a display integration solution for your project.
