A 5.2 inch TFT LCD display is a thin-film transistor liquid crystal display with a 5.2-inch diagonal screen size. TFT technology uses active-matrix pixel control to produce full-color images, text and graphical user interfaces.
HotDisplay's 5.2 inch TFT LCD module features a 416x1280 resolution and an elongated bar-type screen. With a TTL RGB interface, it is designed for integration into compatible embedded display systems. The long-screen format provides a different display layout from conventional 16:9 screens, making it suitable for equipment and devices with narrow installation spaces or vertically arranged information.

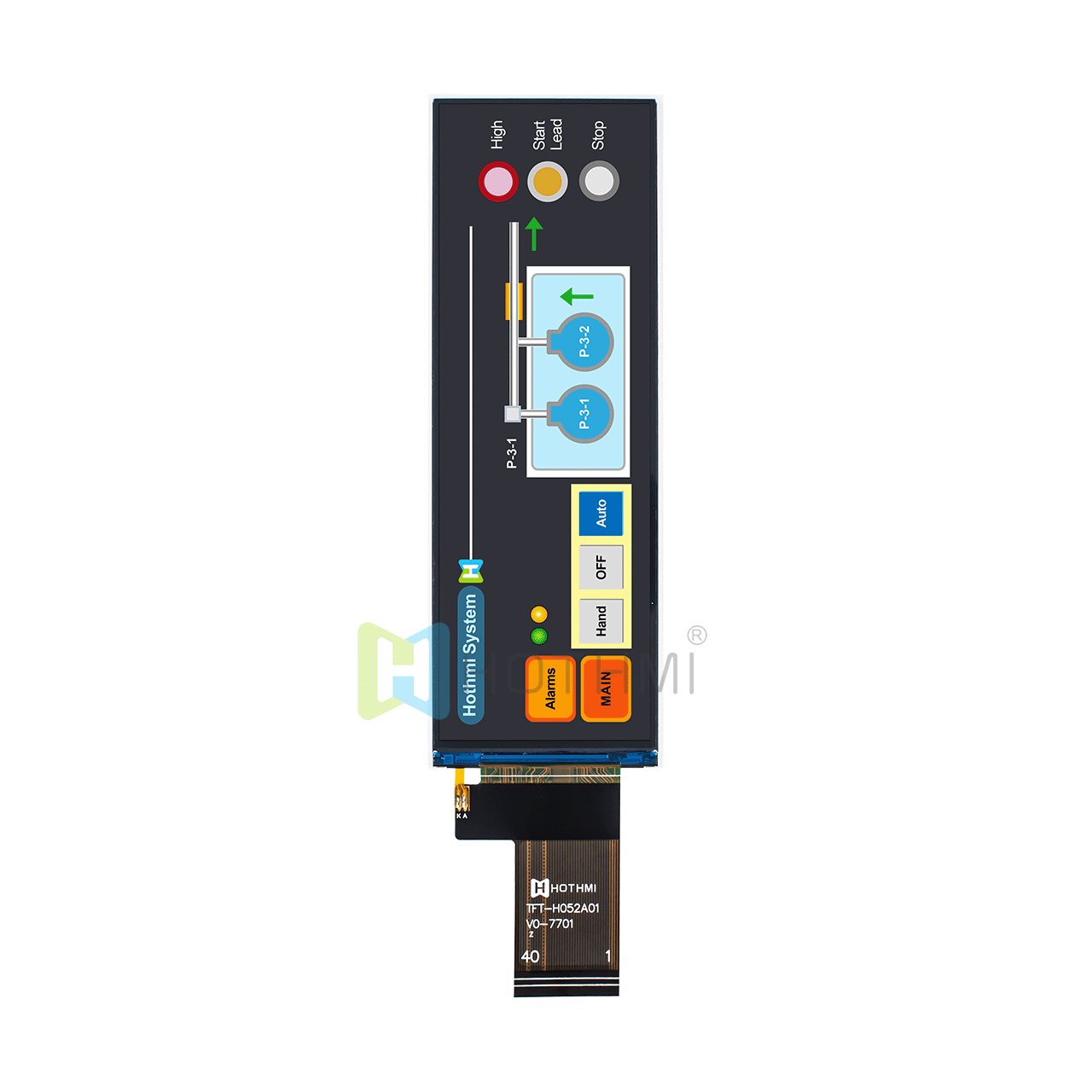

| Specification | Available Configuration |
|---|---|
| Display Size | 5.2 inch |
| Resolution | 416x1280 |
| Display Type | Full-color TFT LCD |
| Display Format | Long screen / bar-type |
| Interface | TTL RGB |
| Touch Options | Non-touch, capacitive touch |
| Module Dimensions | 43.55 × 131.28 × 2.10 mm |
| Compatible Platforms | Refer to the selected model's product details |
HotDisplay provides 5.2 inch TFT LCD displays featuring a 416x1280 resolution, long bar-type design and TTL RGB interface. Designed for embedded systems, industrial equipment and smart electronic devices, these 5.2 inch TFT LCD modules are available with non-touch and capacitive touch configurations. Their slim, elongated display format supports applications that require a narrow screen with a vertically extended viewing area.
|
|

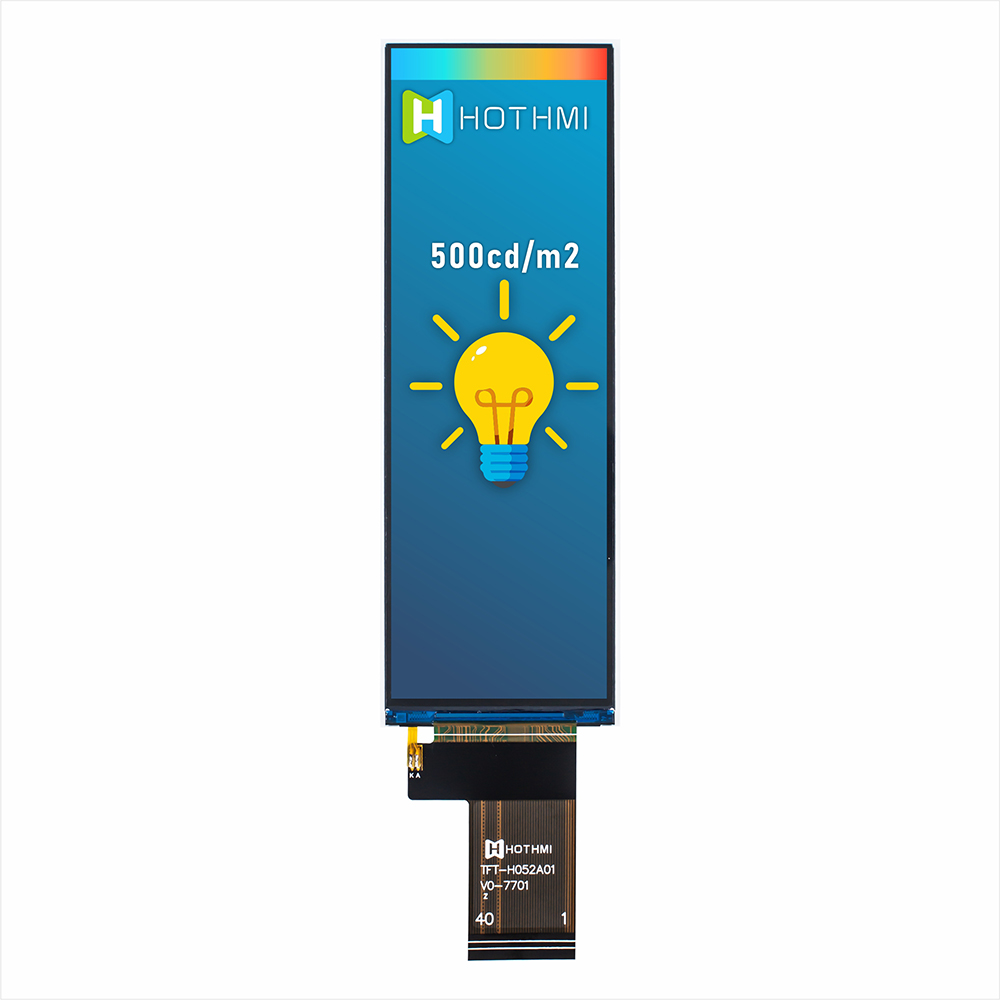

HotDisplay's 5.2 inch TFT LCD range includes the following configurations:

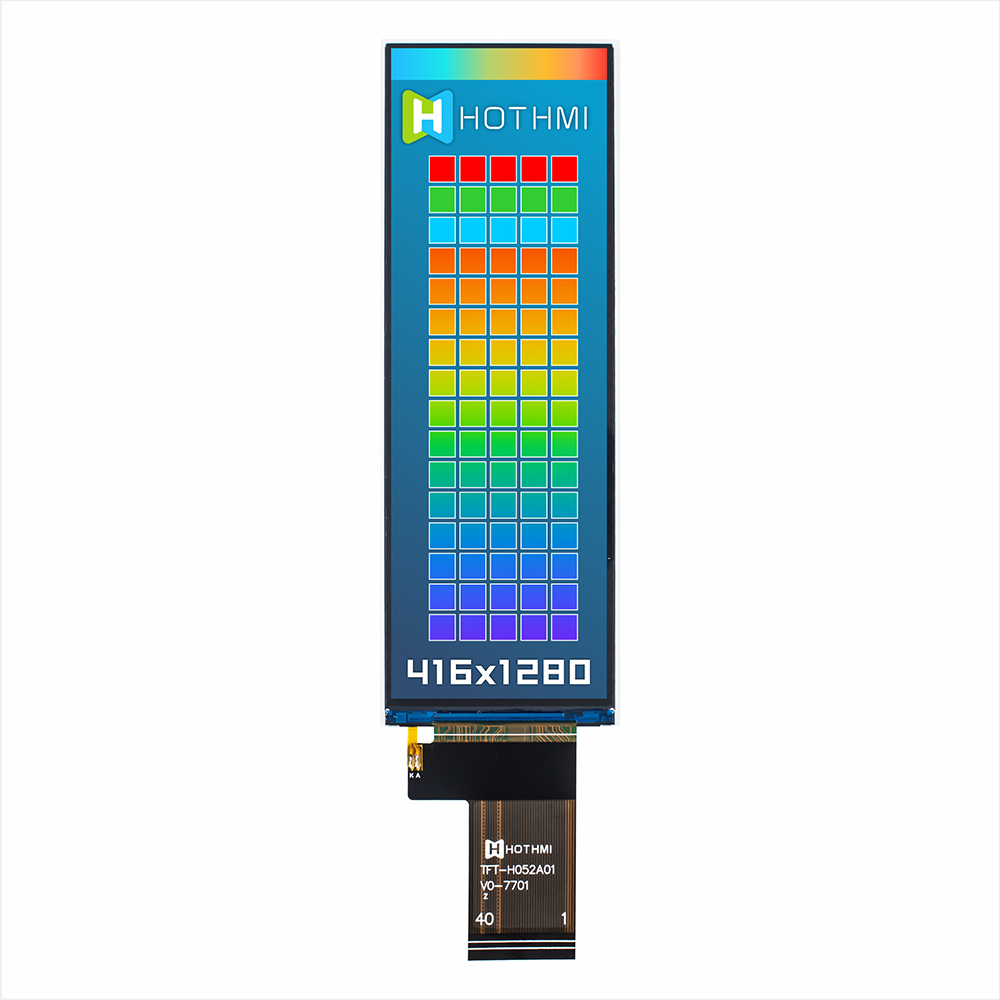

The 416x1280 TFT LCD display combines a compact 5.2-inch diagonal size with a high-resolution elongated screen format. It is suitable for interfaces that need to display vertically arranged information, detailed graphics, menus or equipment status.
Display size: 5.2 inch
Resolution: 416x1280
Display format: Long screen
Interface: TTL RGB
Display technology: Full-color TFT LCD
A 5.2 inch bar-type TFT LCD display features an elongated screen layout for applications where a conventional rectangular display may not fit the product design. Its long format can support vertical information layouts, compact control interfaces and specialized embedded equipment.
The module measures 43.55 × 131.28 × 2.10 mm, offering a slim form factor for space-conscious integration.
The 5.2 inch RGB TFT LCD module uses a TTL RGB interface for connection to compatible display controllers and embedded platforms. Interface compatibility, timing requirements, connector pinout and controller support should be checked against the selected module's datasheet before system integration.
For interactive applications, a capacitive touch configuration is available. It supports touch-based user input for compatible control panels, smart terminals and embedded devices.
Touch performance and integration requirements depend on the selected model and touch configuration.
The non-touch 5.2 inch TFT LCD module is suitable for applications that require visual output without a touch input layer. It can be considered for status displays, information panels and embedded interfaces operated through external buttons, controllers or other input devices.
The elongated 5.2 inch TFT LCD format can be used in products and systems that need a narrow, vertically extended display area.
Typical application areas include:
Industrial control interfaces
Embedded display systems
Smart electronic devices
Equipment status and information displays
Specialized control panels
Instrumentation and monitoring equipment
Smart terminals
Custom electronic products
The suitability of a display depends on the required screen layout, interface compatibility, brightness, operating environment and mechanical installation conditions.

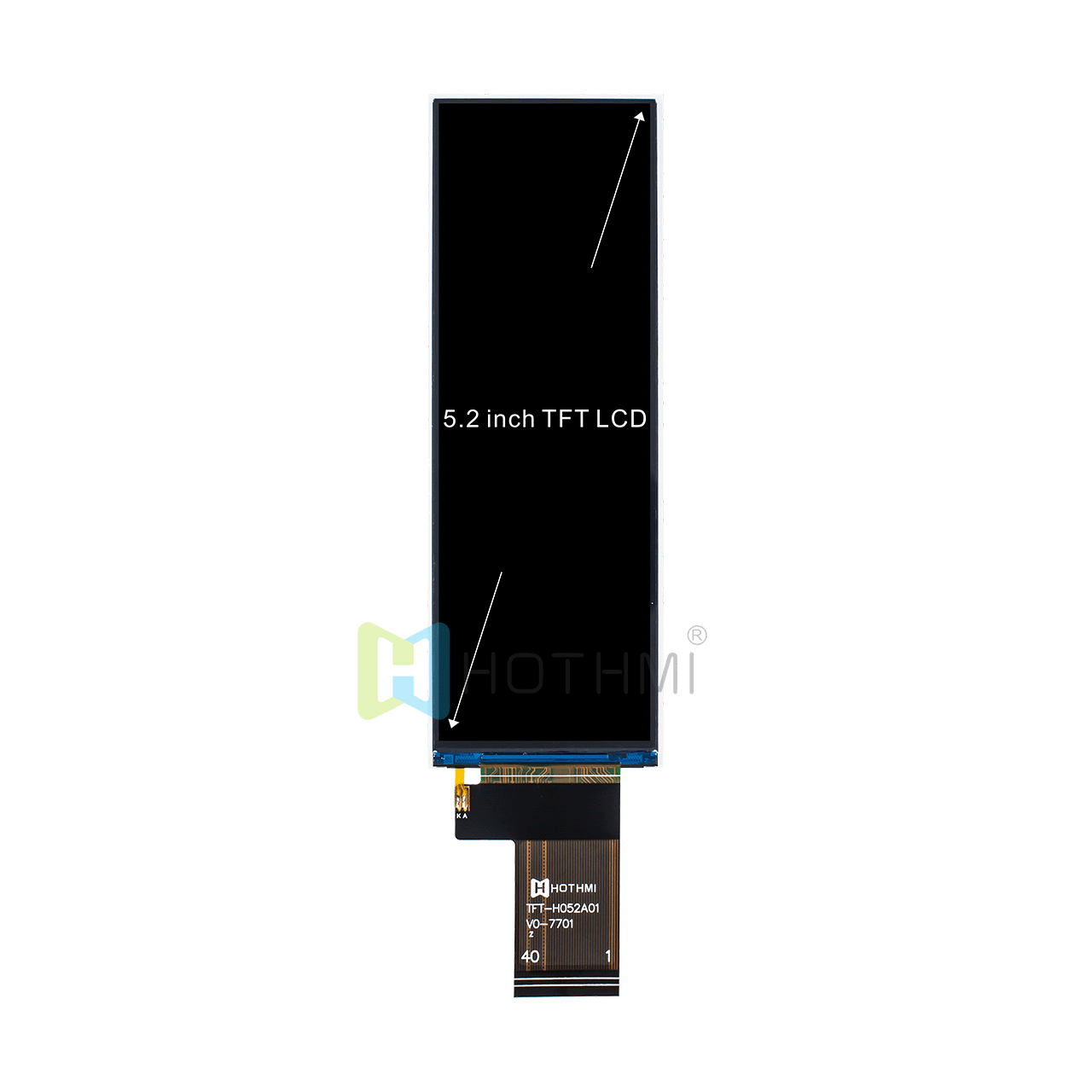

HotDisplay offers display customization services to support project-specific integration requirements. Depending on the selected product and engineering feasibility, customization may include:
Capacitive touch integration
Custom FPC length and routing
Connector and pin configuration
Interface adaptation
Cover glass customization
Optical bonding
Customized LCD and touch solutions
Contact HotDisplay with your mechanical drawings, interface requirements and application details to discuss the available options.
When selecting a 5.2 inch TFT LCD display for a project, consider the following factors:
Resolution and screen layout: Confirm that 416x1280 meets your graphical interface and content requirements.
Interface compatibility: Check TTL RGB timing, signal levels, pinout and controller support against your mainboard.
Touch requirements: Choose between a non-touch module and a capacitive touch configuration based on the user interaction design.
Mechanical dimensions: Verify the module's 43.55 × 131.28 × 2.10 mm dimensions and FPC routing against your enclosure.
Display performance: Confirm brightness, viewing angle, operating temperature and other optical specifications in the datasheet.
System integration: Review driver support, power requirements and initialization settings before finalizing your hardware design.
Specialized Long-Screen Format: A 416x1280 elongated display for products requiring a narrow screen layout.
Multiple Touch Configurations: Non-touch and capacitive touch options for different interaction requirements.
RGB Interface: TTL RGB connectivity for compatible embedded display systems.
Integration Support: Technical assistance for checking interface, mechanical and display requirements.
Customization Services: Support for selected FPC, touch, cover glass and display integration requirements.
Tell us your required interface, touch configuration, installation dimensions and application. Our team can help you identify a suitable 5.2 inch TFT LCD module and discuss customization options. Contact HotDisplay for product details, technical support and a quotation.
