Outdoor and high-ambient-light environments create a common display problem: screen content can become difficult to read when sunlight and surrounding light reflect from the display surface. Increasing backlight brightness can help, but a successful design must also consider reflection, contrast, power consumption and heat.

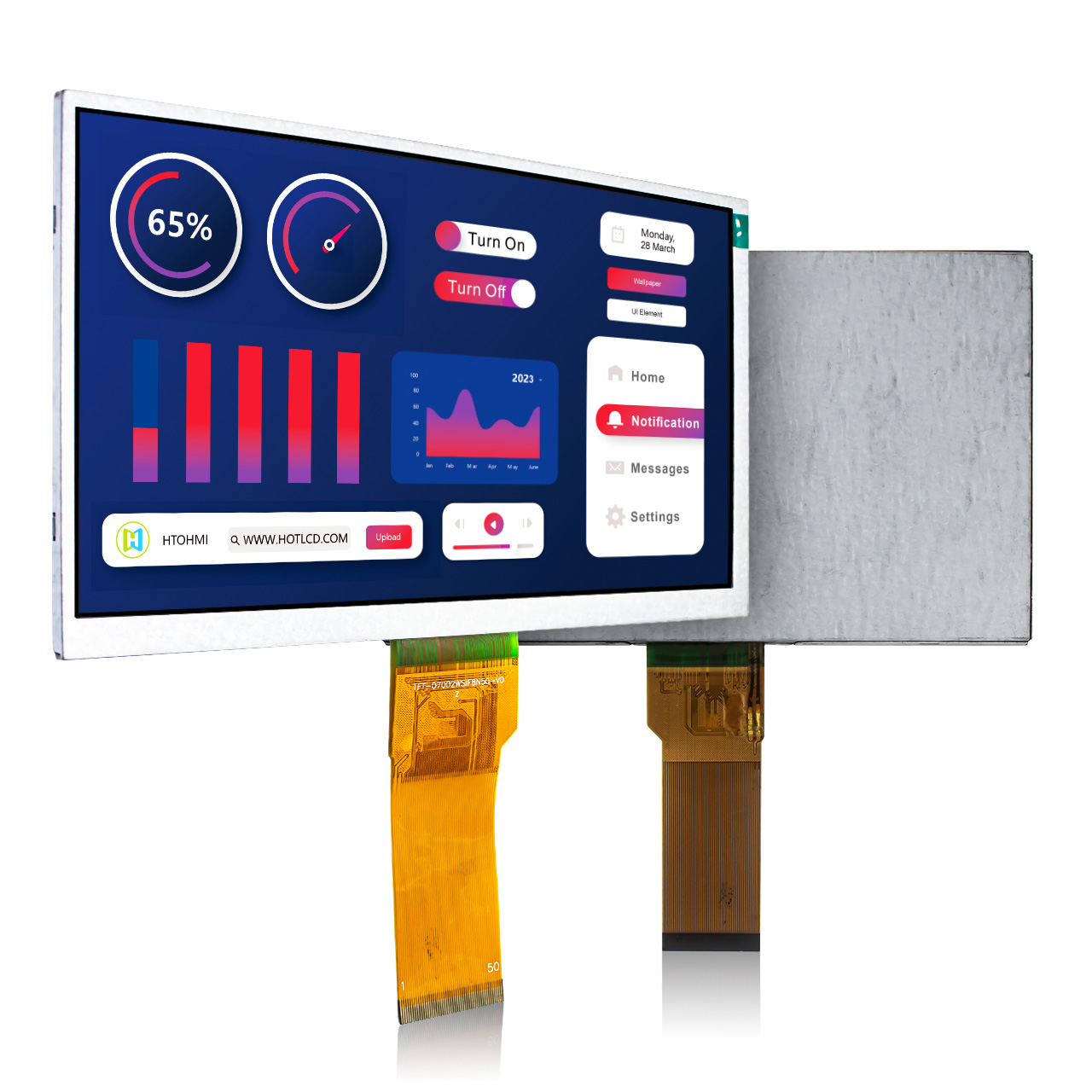

HOTDISPLAY provides high-brightness TFT LCD options for selected industrial and outdoor applications, with product configurations that vary by screen size, resolution, interface, touch capability and operating temperature.
A brighter backlight can improve the visibility of text, graphics and operating information under strong ambient lighting. The appropriate brightness depends on the viewing environment and system power budget.
Optical bonding can reduce internal air gaps and associated reflections when the panel, touch layer and cover glass are integrated. Depending on the project, anti-reflective or anti-glare surface treatments may also be evaluated.
Higher backlight output can increase power consumption and heat. Engineers should evaluate heat dissipation, backlight drive conditions, enclosure temperature and expected operating duration.
Outdoor terminals may need a touch panel, cover glass, sealing structure and mechanical protection. These components can affect optical performance and should be evaluated as a complete assembly.

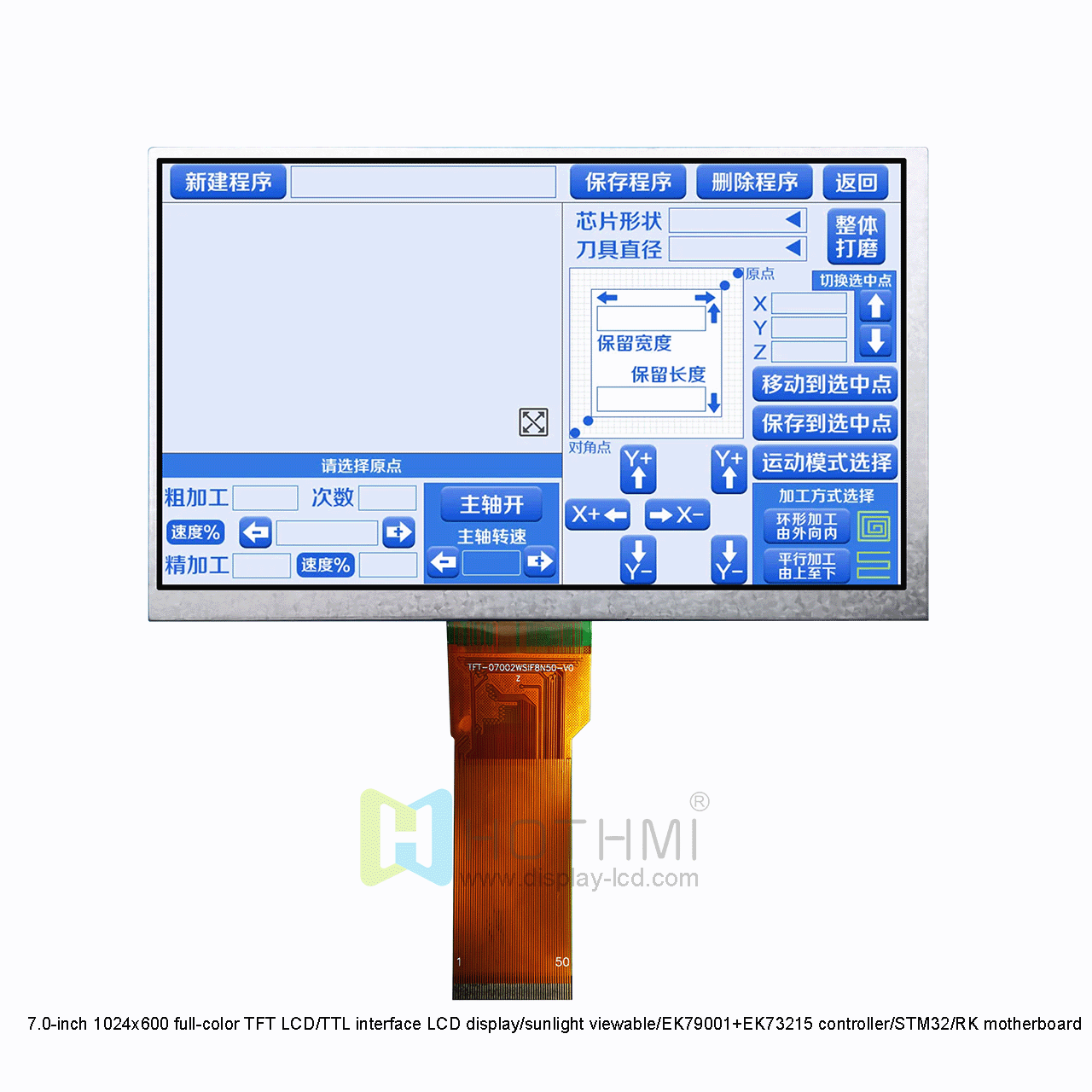

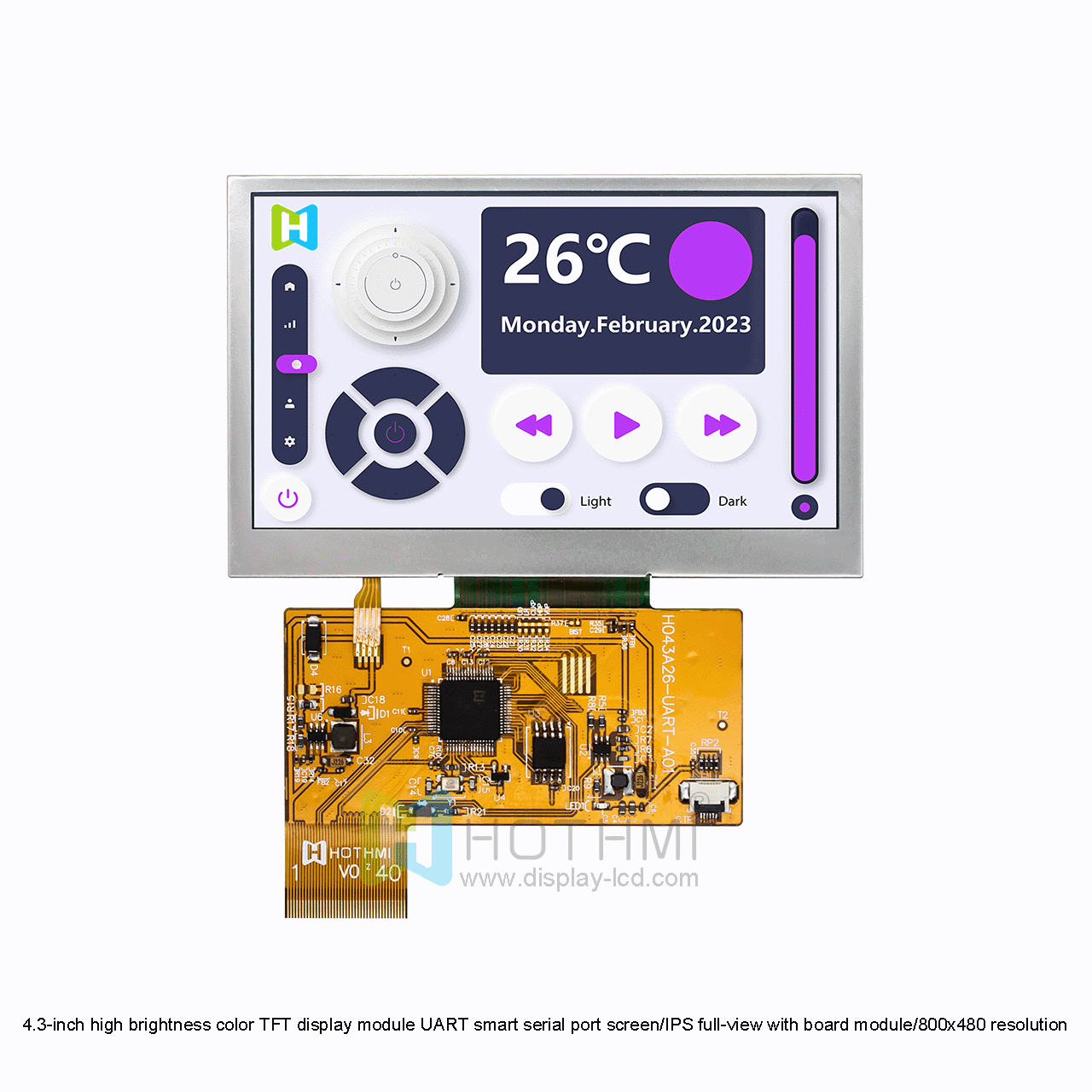

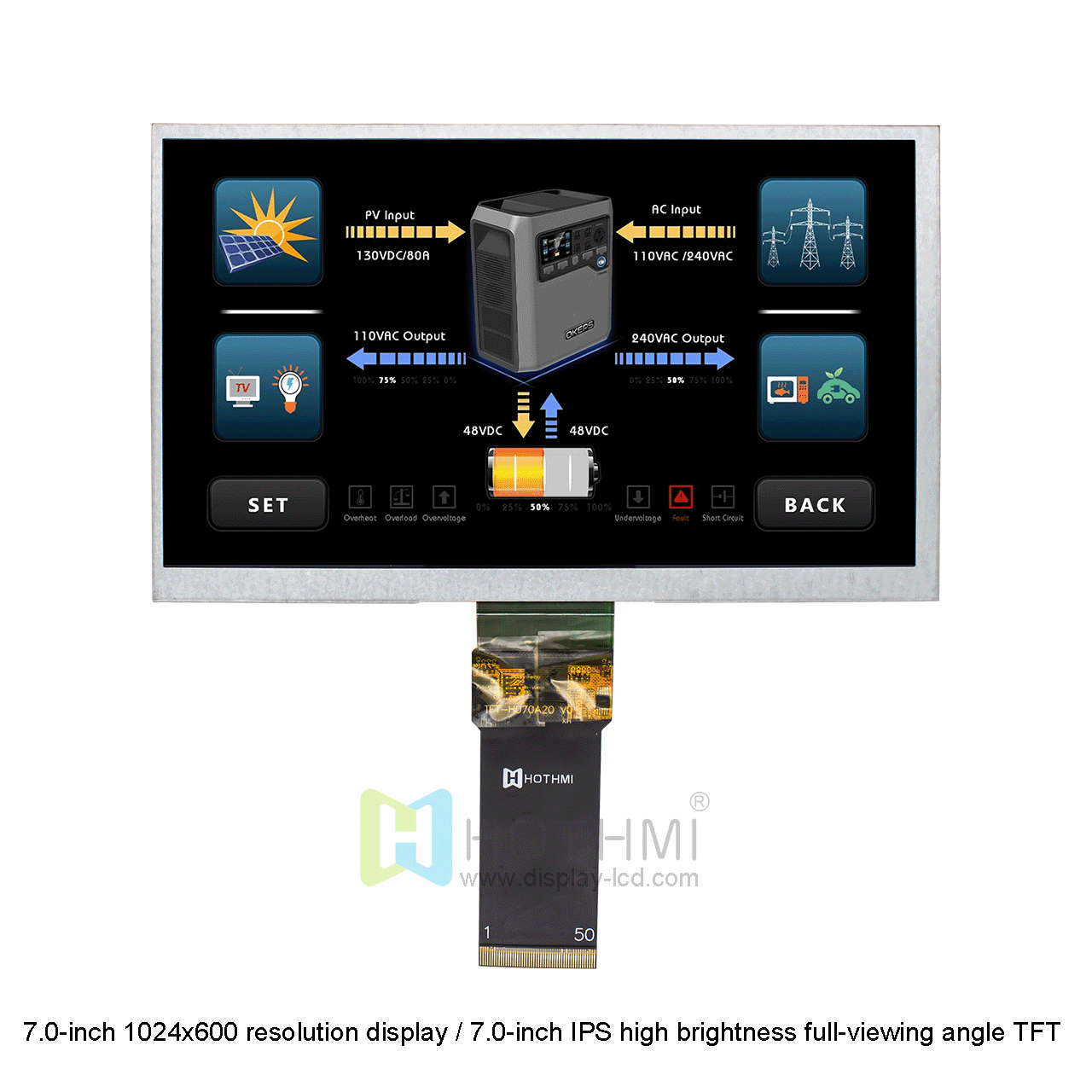

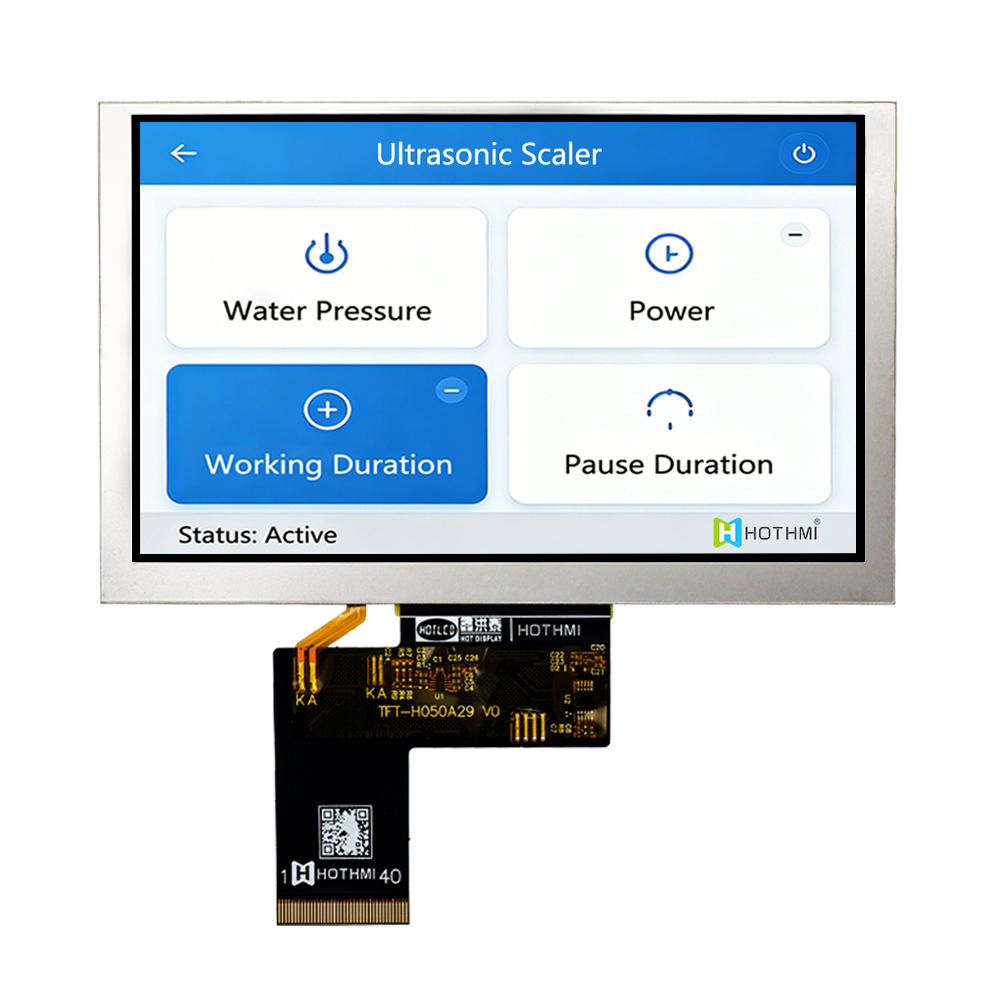

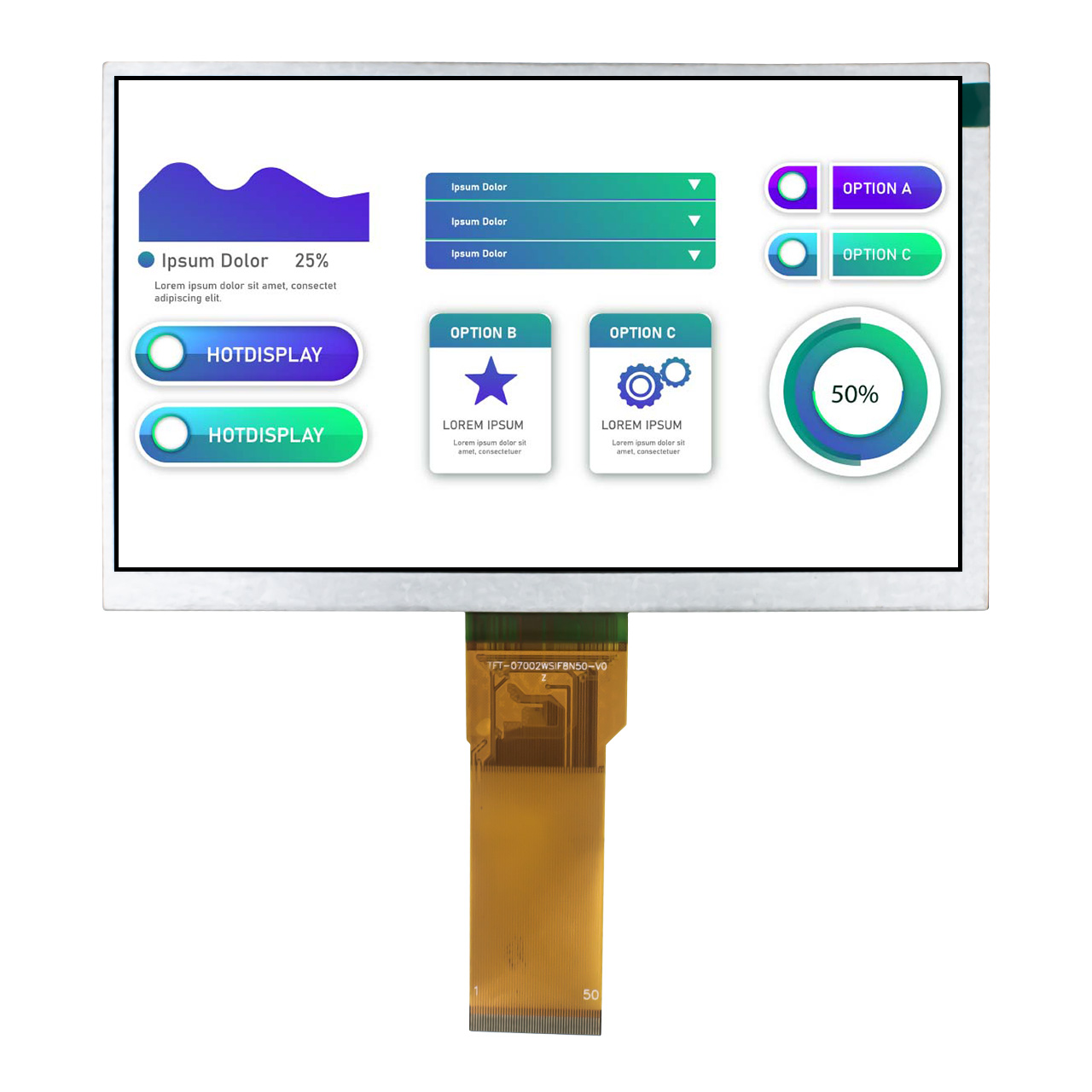

HOTDISPLAY's existing product range includes high-brightness displays, sunlight-readable touchscreens and TFT LCD modules. Published examples include 800–2000 cd/m² high-brightness options, with individual models offering their own specified brightness and temperature ranges.
The final selection should be based on actual product datasheets rather than assuming that every model supports the same optical or environmental features.

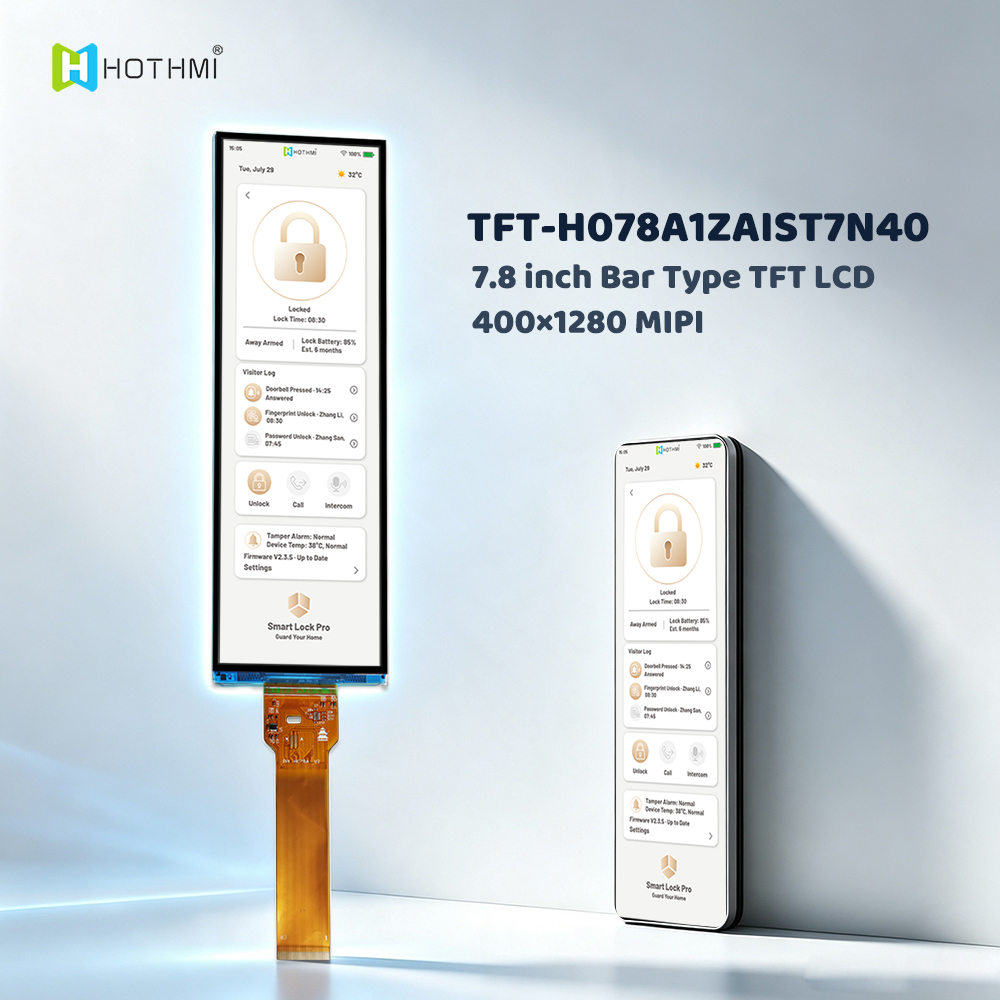

Sunlight Readable & High Brightness LCD Displays are widely used in the follow applications:
Outdoor kiosks
industrial control equipment
EV charging stations
vehicle equipment
field instruments
outdoor terminals and other devices exposed to strong ambient light.
There is no universal threshold. The required brightness depends on ambient light, screen reflectivity, viewing angle, contrast and whether the product is exposed to direct sunlight.
No. Reflections from the cover glass, touchscreen and LCD surface can reduce perceived contrast. Optical bonding and surface treatment may improve readability.
High brightness can increase backlight power and heat. Efficient LEDs, optical design and appropriate brightness control can help manage system requirements.

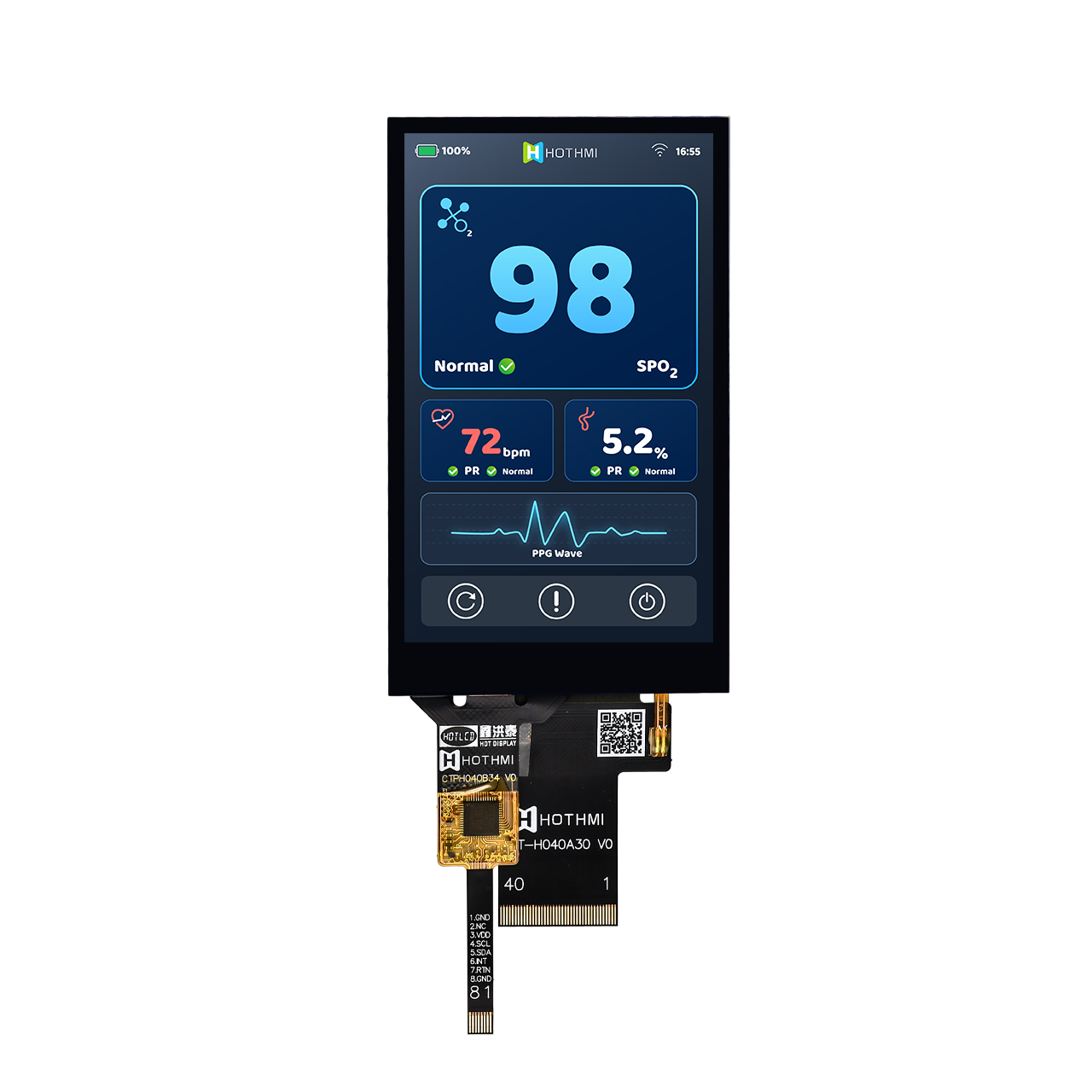

Selected products include touch options. The specific brightness, touch configuration, optical treatment and operating temperature must be confirmed for the chosen model.
Tell HOTDISPLAY where the display will be used, whether it faces direct sunlight, your target screen size, brightness, touch and temperature requirements. We can help evaluate suitable display options for your application.
