The 4.2 inch TFT LCD display provides a compact 4:3 screen format with high-resolution image output. With 1280x960 pixels, it is suitable for applications that require detailed information in a compact display size.
The display module is available with a MIPI DSI interface, FPC connection and GH7005 driver IC for embedded system integration.
HotDisplay provides 4.2 inch TFT LCD displays for industrial equipment, instrumentation and portable electronic devices. Our 4.2 inch TFT LCD module features a 1280x960 resolution, 4:3 aspect ratio, MIPI DSI interface, full viewing angle and high brightness up to 1200 cd/m².
| Specification | Details |
|---|---|
| Display Size | 4.2 inch |
| Resolution | 1280x960 |
| Aspect Ratio | 4:3 |
| LCD Type | TFT LCD |
| Interface | MIPI DSI |
| Brightness | 1200 cd/m² |
| Viewing Angle | Full View |
| Driver IC | GH7005 |
| FPC | 30-pin |

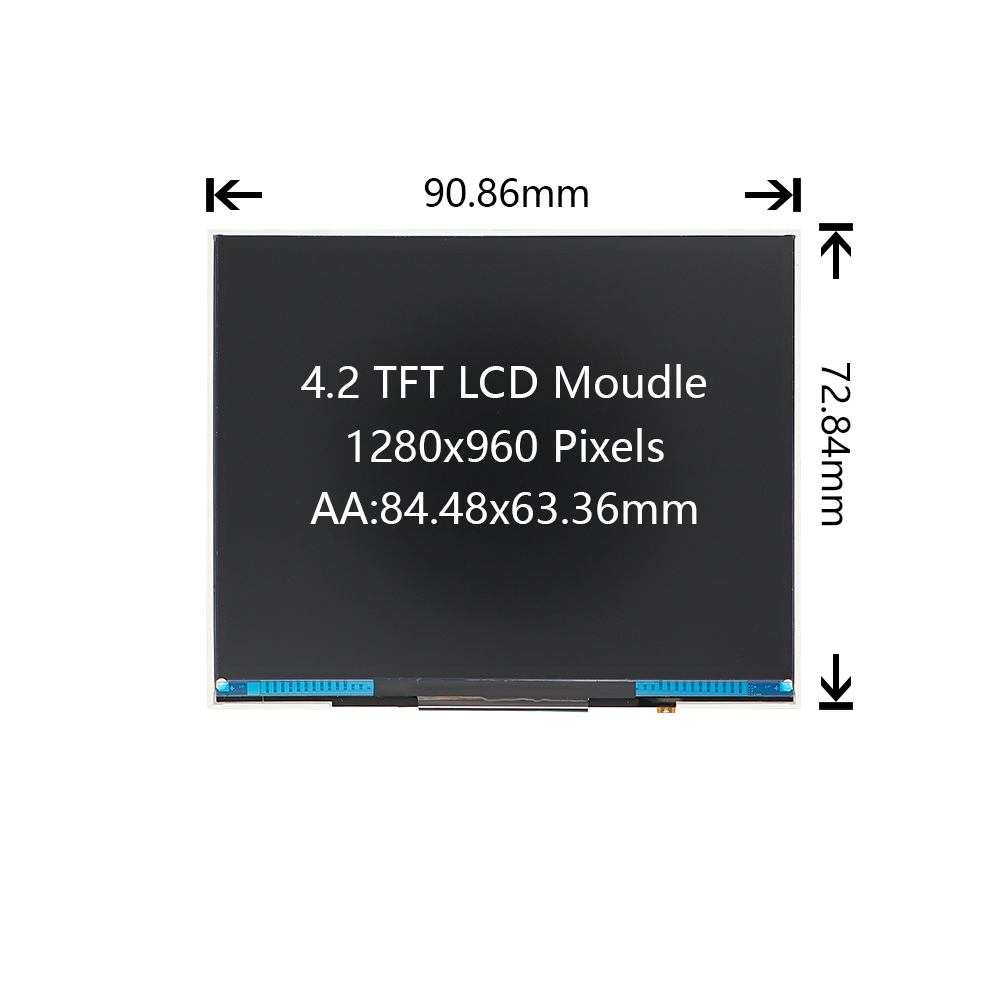

| Dimensions | 90.86 × 72.84 × 3.65 mm |
| Active Area | 84.48 × 63.36 mm |
| Supply Voltage | 3.3V |
| Operating Temperature | -30~80°C |
| ESD Protection | 8KV |
Display Size: 4.2 inch
Resolution: 1280x960
Aspect Ratio: 4:3
Interface: MIPI DSI
Brightness: 1200 cd/m²
Viewing Angle: Full View
Driver IC: GH7005
FPC: 30-pin
ESD Protection: 8KV
Operating Temperature: -30~80°C
Supply Voltage: 3.3V
The 1280x960 TFT LCD display provides high pixel density in a compact 4:3 format. It is suitable for displaying detailed graphics, instruments, data interfaces and control information.
The native 4:3 aspect ratio makes this 4.2 inch TFT LCD display suitable for equipment designed around traditional 4:3 screen layouts. The format provides a balanced display area for instrumentation, control interfaces and portable electronic devices.
With brightness up to 1200 cd/m², the display is designed for applications requiring enhanced visibility in high ambient-light environments.
The MIPI DSI interface provides a compact connection solution for embedded systems and electronic devices requiring high-speed display communication.
The 4.2 inch TFT LCD module is suitable for:
Industrial instrumentation
Test and measurement equipment
Industrial control panels
Portable electronic devices
Embedded systems
Monitoring equipment
Medical instruments
High-ambient-light applications
The 1280x960 resolution provides detailed image output within a compact 4.2 inch screen.
The native 4:3 aspect ratio supports equipment and systems designed around a traditional display format.
1200 cd/m² brightness provides enhanced visibility for applications with strong ambient lighting.
The MIPI DSI interface supports compact integration into embedded electronic systems.
HotDisplay provides TFT LCD display solutions for industrial, instrumentation and portable electronic applications.
Customization options can include FPC, interface, touch panel, cover glass and other display components according to project requirements.
Looking for a 4.2 inch TFT LCD display for your project? Send us your required resolution, interface, brightness, dimensions and application. Request a Quote.
