 | Features of 6.2 Inch TFT LCD Display at Hotdisplay
|
| Specification | Available Options |
|---|---|
| Display Size | 6.2 inch |
| Resolution | 1024x600, 800x480, 640x320, 360x960 |
| Display Type | Color TFT LCD, monochrome TFT |
| Screen Format | Landscape, bar-type |
| Interface | MCU, TTL RGB, LVDS, MIPI |
| Viewing Angle | IPS options on selected color models |
| Brightness | Model-dependent; high-brightness options available |
| Operating Temperature | Model-dependent; selected wide-temperature models: -35°C to +80°C |
| Touch Options | Confirm by model |
| Applications | Industrial control, outdoor equipment, instrumentation and embedded systems |
Need a 6.2 inch TFT LCD display for an industrial control system, outdoor equipment or a specialized embedded device? HotDisplay offers 6.2 inch TFT LCD modules in multiple screen formats, resolutions and interface configurations.
Choose from 1024x600 high-brightness wide-temperature displays, a 360x960 bar-type RGB display, a 640x320 monochrome module and other listed configurations. With options for IPS viewing angles, sunlight-readable performance and different interface architectures, HotDisplay helps you find a display that fits your application—not just its screen size.

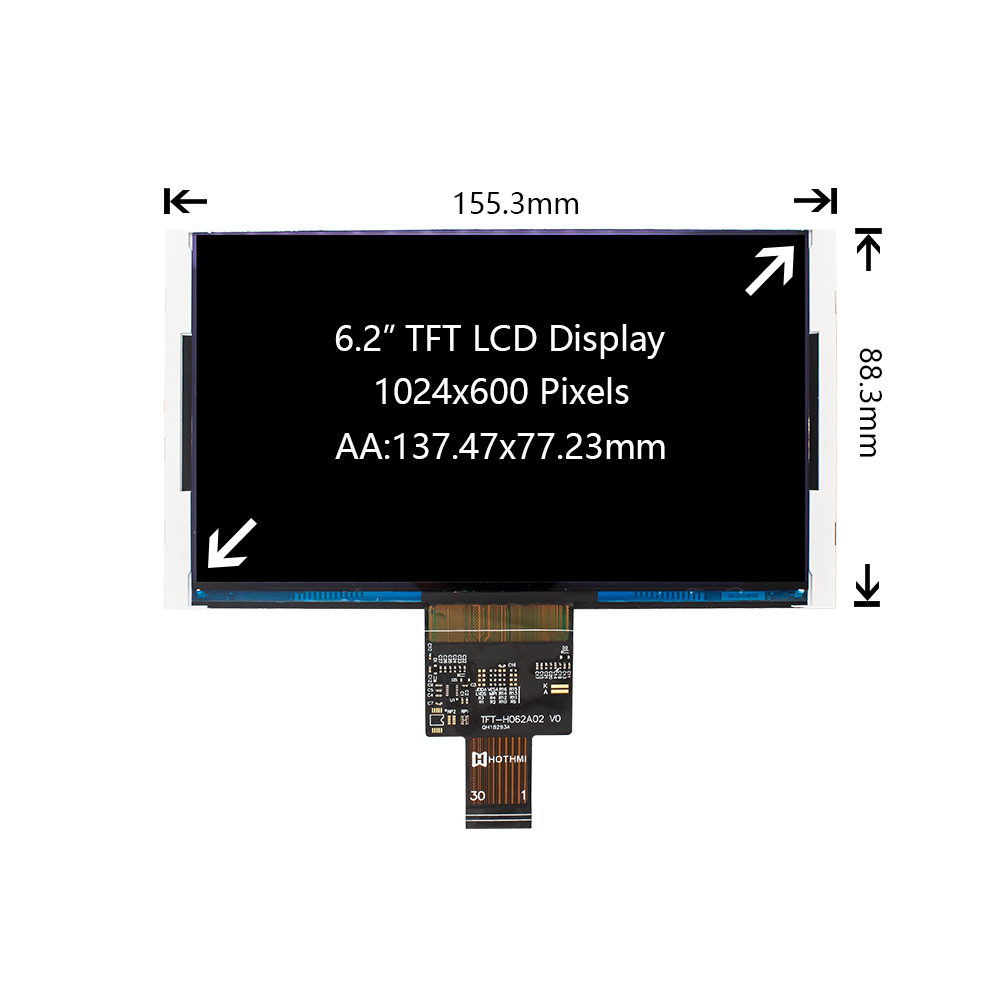

The 1024x600 resolution provides a wide landscape display format for graphical interfaces, system status screens and control applications. Selected models feature IPS viewing angles, high brightness and a wide operating temperature range.
These displays are suitable for equipment that needs detailed visual information and reliable operation across changing environmental conditions.
Bright ambient light can reduce screen visibility, especially in outdoor equipment and installations near windows or strong lighting. HotDisplay offers selected 6.2 inch models with high-brightness backlighting, including configurations listed at 900 cd/m² and higher-brightness options.
For direct-sunlight use, evaluate the complete optical design—including reflections, cover glass, surface treatment and optical bonding. A high-brightness panel can improve visibility, but brightness alone does not guarantee readability in every environment.
Industrial and outdoor equipment may experience cold starts, high internal temperatures and rapid temperature changes. Selected 6.2 inch wide-temperature models are specified for operation from -35°C to +80°C.
This temperature range can help reduce display-related integration concerns in equipment exposed to demanding conditions. Confirm the selected model's temperature rating and test the complete system under its actual operating conditions.
The 360x960 bar-type TFT LCD provides an elongated screen layout for products that need a narrow display area rather than a conventional landscape format.
With an RGB 24-bit interface, IPS viewing angles and a 40-pin FPC, this module can be considered for specialized embedded interfaces, smart devices and equipment with vertical information layouts.
For applications that prioritize clear information presentation over full-color graphics, HotDisplay offers a 640x320 monochrome TFT LCD module with an MCU interface.
Its 500 cd/m² brightness, 1000:1 contrast ratio and 20-pin FPC make it an option for instrumentation and equipment that uses a simpler visual interface.
Interface compatibility is essential when selecting a display. The 6.2 inch product range includes listed MCU, TTL RGB, LVDS and MIPI interface options, depending on the model.
MCU: An option for compatible embedded controllers and systems using a parallel MCU display interface.
TTL RGB: A parallel RGB interface for compatible display controllers and embedded platforms.
LVDS: A display connection option for systems designed around LVDS signaling.
MIPI: A digital interface option for compatible processors and display systems.
These interfaces are not interchangeable without appropriate hardware and engineering support. Always confirm signal requirements, pin assignments, timing and controller compatibility before ordering.

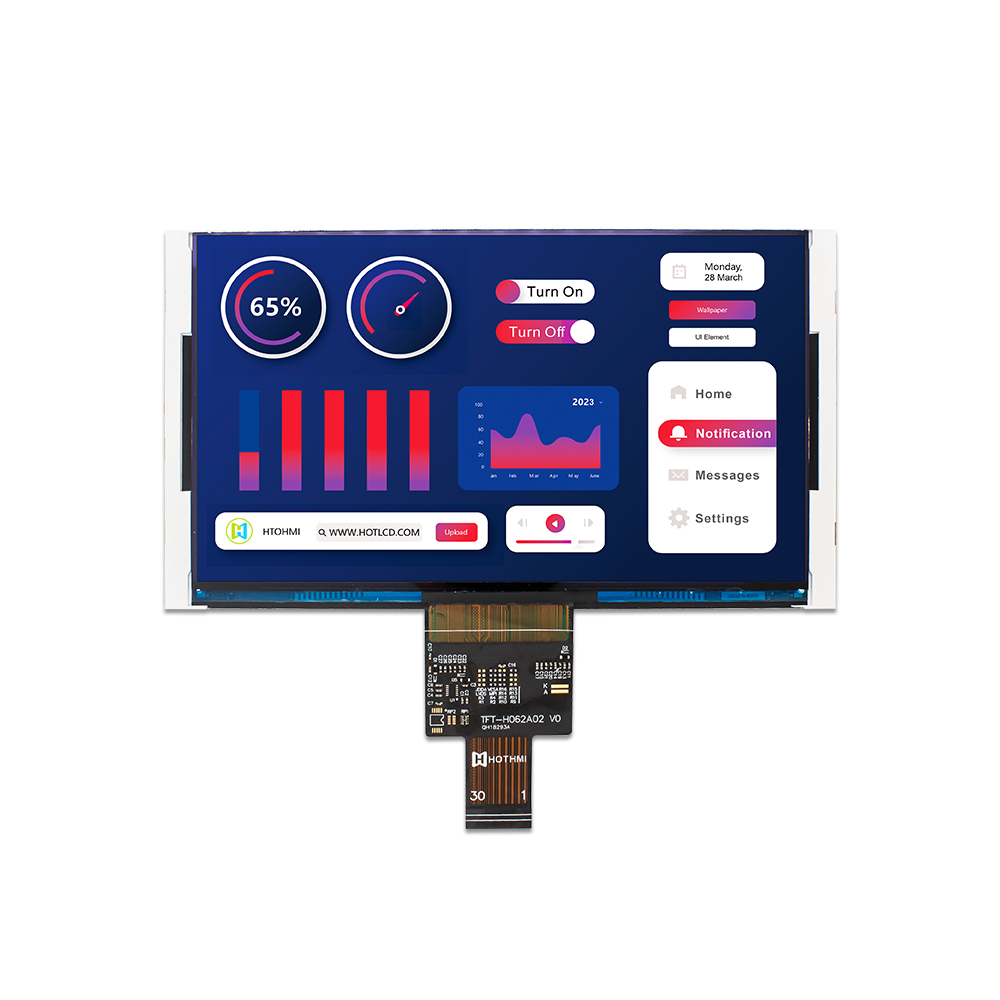

HotDisplay supports project-specific display integration for eligible models. Depending on the product and engineering feasibility, customization services may include:
Custom FPC length, position and pin arrangement
Connector and cable configuration
Capacitive or resistive touch integration
Custom cover glass
Anti-glare, anti-reflection and anti-fingerprint treatments
Optical bonding
Interface adaptation
Customized LCD and PCBA solutions
Send your mechanical drawings, interface requirements, target operating conditions and expected order quantity to discuss a suitable configuration.

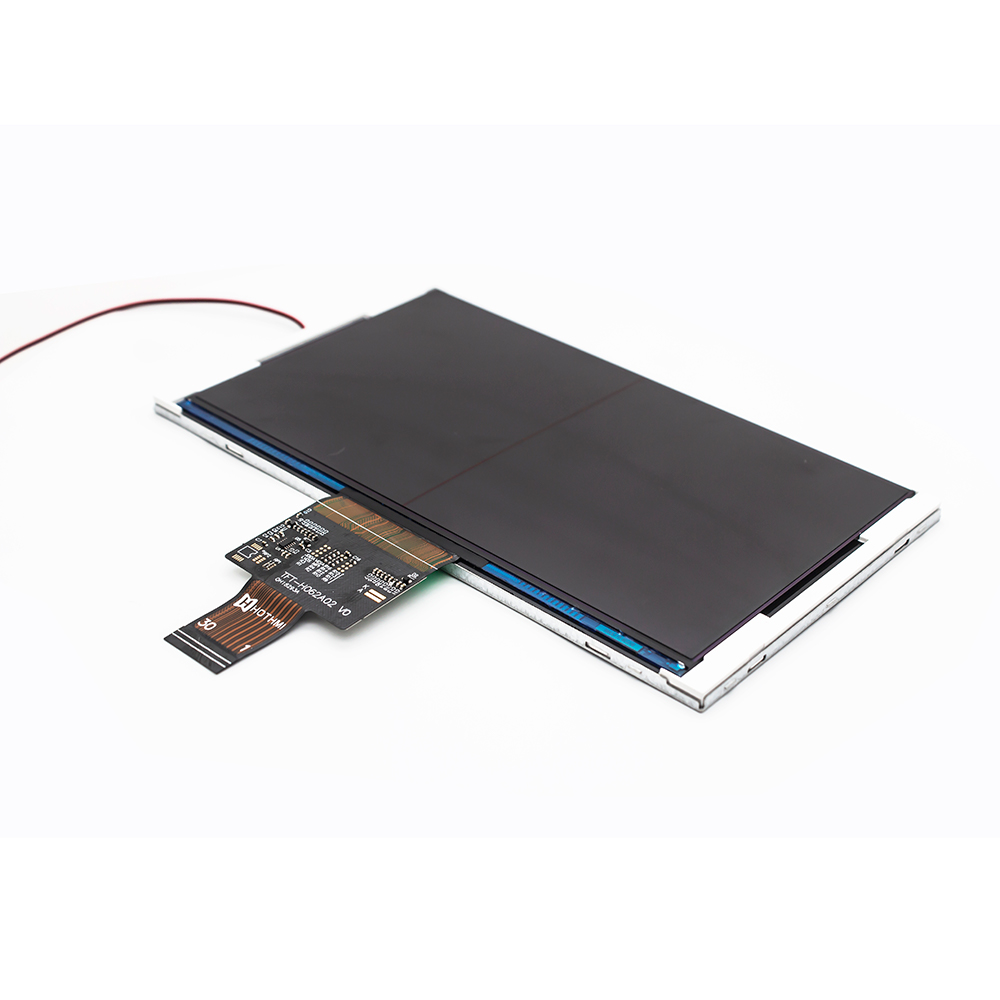

HotDisplay 6.2 inch TFT LCD modules can support applications that require a compact screen, specialized display format or operation in demanding environments.
Industrial Control and Monitoring
| Outdoor and Transportation Equipment
|
Instrumentation and Specialized Devices
| Custom Embedded Products
|
Choosing a display by diagonal size alone can lead to compatibility problems, unexpected engineering work or costly redesigns. HotDisplay can help you evaluate the key requirements before sampling or production.
First, confirm the resolution and physical screen layout your user interface requires. A 1024x600 landscape display and a 360x960 bar-type display serve different design purposes, even though both are 6.2 inches.
Share your interface layout or target resolution so the suitable options can be identified early.
A display may have the correct size and resolution but still be incompatible with your mainboard. Confirm the interface type, signal timing, pinout, voltage and driver requirements.
If you provide your current display model, controller information or board documentation, HotDisplay can help review the compatibility requirements.
For outdoor or bright environments, discuss the required brightness together with viewing angle, cover glass, surface reflection and optical bonding.
This helps avoid choosing a panel based on a brightness figure alone when the real requirement is readable information under specific lighting conditions.
For equipment used in cold or hot environments, check the display's rated operating temperature against the system's real internal temperature range.
Also confirm the module outline, active area, thickness, FPC position and mounting arrangement before finalizing the enclosure.
If the standard module does not match your design, HotDisplay can review customization possibilities for FPC length and pinout, connectors, touch solutions, cover glass and optical bonding.
Early technical review can help identify design constraints before the project reaches the prototype or mass-production stage.
Compare landscape, bar-type and monochrome configurations within the 6.2 inch range instead of adapting your product design to a single panel format.
Selected high-brightness and wide-temperature models support projects where ordinary indoor display specifications may not be sufficient.
Interface, pinout, temperature, brightness and mechanical requirements can be reviewed before sampling to help reduce integration risk.
FPC, connectors, touch, cover glass and optical bonding options can help adapt eligible modules to your product design.
For volume projects, ask about production continuity, component lifecycle, forecast planning and potential alternatives if a panel or driver IC becomes unavailable. HotDisplay states that it works to identify compatible materials when components are discontinued; confirm the specific product's lifecycle and supply arrangements with the sales team.

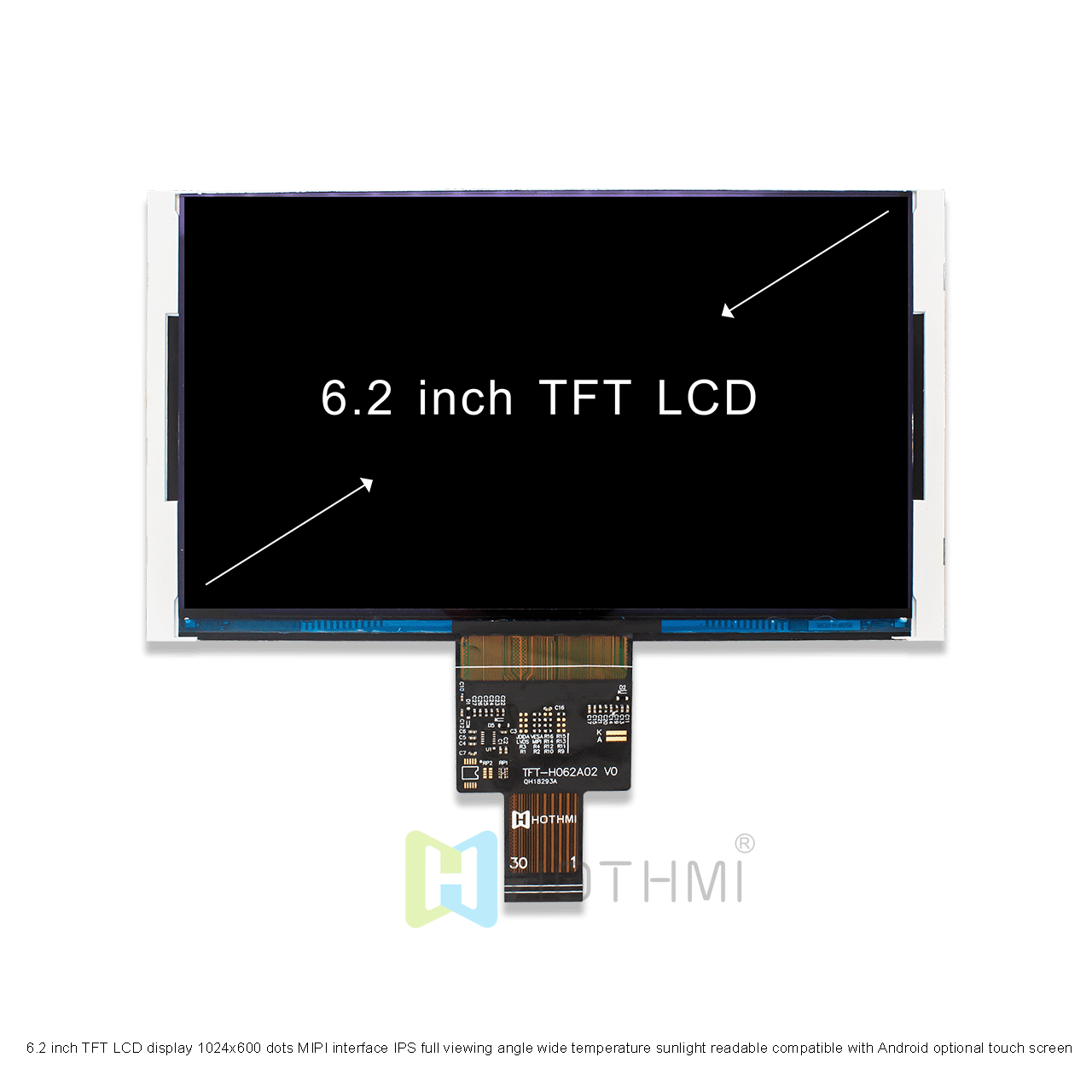

Consider a high-brightness model with a suitable operating temperature range. The 1024x600 wide-temperature options are worth evaluating for demanding environments. For direct sunlight, also review optical bonding, surface reflection and cover glass requirements.
The 1024x600 model uses a landscape format suitable for conventional graphical interfaces. The 360x960 model has an elongated bar-type layout for applications that need a narrow, vertically extended screen.
Possibly, but matching the diagonal size is not enough. Resolution, module dimensions, active area, interface, connector, pinout, voltage and initialization requirements must also be checked. Send the original model number or datasheet for a compatibility review.
No. Brightness and temperature ratings vary by model. Check the exact product datasheet and confirm the requirements for your application before ordering.
HotDisplay provides customization services for eligible display projects. For bulk purchasing, share your target model, estimated annual demand, forecast, customization needs and project schedule so the team can confirm pricing, sample arrangements and supply planning.
To speed up product selection and quotation, provide:
Required screen size and resolution
Interface and controller information
Brightness and viewing requirements
Operating temperature range
Mechanical dimensions and connector details
Touch and cover glass requirements
Sample quantity and estimated production volume
Target schedule and expected product lifecycle
Looking for a 6.2 inch TFT LCD display for a new design, an outdoor application or an existing equipment replacement?
Send HotDisplay your display requirements, original module information if applicable, and expected order quantity. Our team can help compare available models, review integration risks and discuss customization and supply arrangements. Contact HotDisplay for product recommendations, datasheets, samples and a quotation.
