The interface is one of the most important technical considerations when integrating a TFT LCD into an electronic product.
Hotdisplay provides TFT LCD modules with multiple interface options, allowing engineers to select the appropriate connection according to the host processor, system architecture and display requirements.
Learn more about TFT LCD Interfaces at Hotdisplay from the video below, explore the MCU, SPI, QSPI, RGB, LVDS, MIPI, MIPI DSI, eDP, HDMI interfaces for your project
The video above show a 5.0-inch TFT LCD display module with an 800×480 pixel resolution, delivering sharp black-and-white visuals via a MIPI interface. It operates at 5.0V and withstands extreme temperatures (-20°C to 70°C), featuring 8KV ESD anti-static protection for durability. Its compact 108.0×64.8mm (A.A.) size makes it ideal for industrial and embedded applications requiring high reliability.

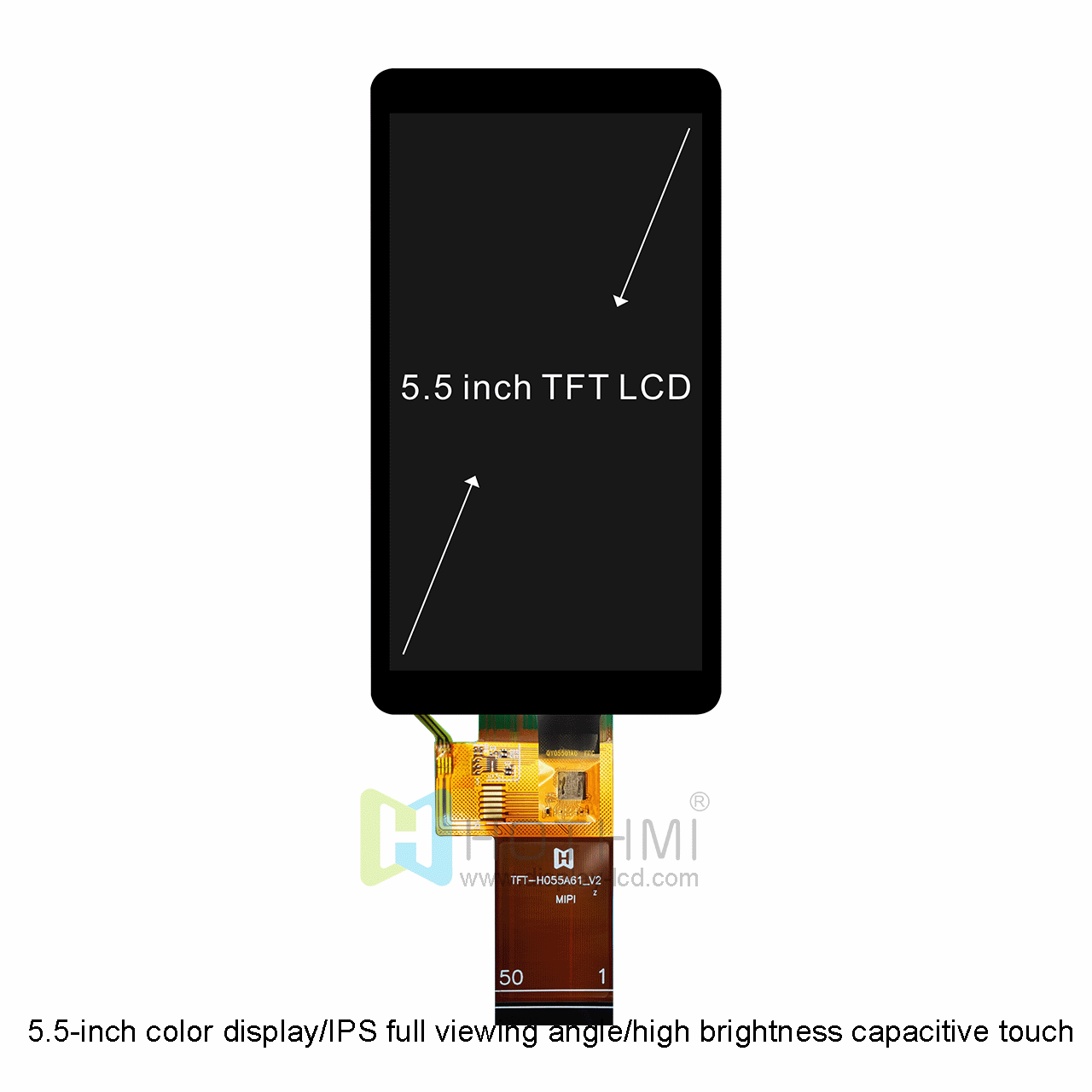

TFT LCD Interface Options at HotdisplayHotdisplay's TFT LCD portfolio supports a range of interfaces, including:
The exact interface depends on the selected TFT LCD model. |  |
MCU interfaces are available for TFT LCD modules designed for microcontroller-based systems.
Selected Hotdisplay TFT products support parallel MCU interfaces, including different bit configurations depending on the display model.
SPI provides a serial communication option for compact embedded systems.
Hotdisplay offers SPI TFT LCD modules for applications where a serial interface is suitable for the system architecture.
RGB interfaces are used for TFT LCD modules requiring direct RGB signal transmission.
Hotdisplay provides RGB TFT LCD products in different sizes and resolutions.
LVDS is available for TFT LCD applications requiring differential signal transmission.
Hotdisplay provides LVDS TFT LCD configurations for selected display sizes and resolutions.
MIPI DSI is supported across Hotdisplay's TFT LCD product portfolio.
Selected MIPI TFT LCD products provide high-speed data transmission and are available in different display sizes and resolutions.
Hotdisplay's TFT LCD product portfolio also includes eDP interface options for selected display applications.
For applications requiring HDMI connectivity, Hotdisplay provides selected display solutions supporting HDMI-related configurations.

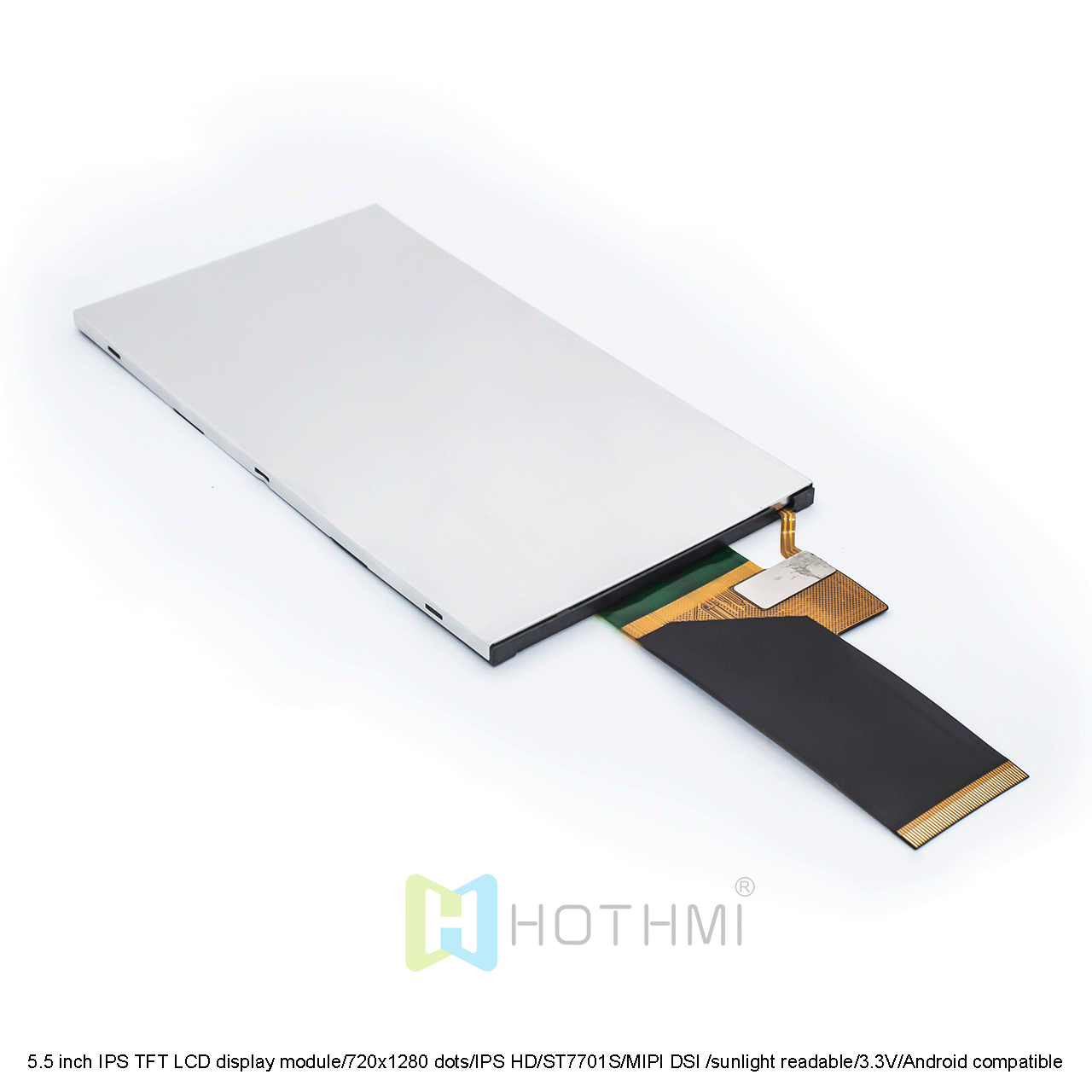

The correct interface depends on the complete system design.
Engineers should consider:
Host processor
Signal type
Resolution
Refresh requirements
Cable length
Connector
Power requirements
Available PCB architecture
Display size
Hotdisplay can help evaluate the appropriate interface based on the customer's existing system.
For customized projects, Hotdisplay can evaluate interface, connector, FPC and related electrical requirements.
This allows the TFT LCD module to be designed around the customer's actual product architecture.
Hotdisplay also provides TFT LCD modules with integrated driver boards and supports development platforms including Arduino, Raspberry Pi and LVGL-related applications.
This module-based approach can simplify display integration for engineers.
