An 1.1-inch TFT LCD Display is a miniature active-matrix liquid crystal display that utilizes Thin-Film Transistor technology to control individual pixels, delivering vibrant colors and high-contrast visuals in a compact form factor. It is characterized by high pixel density, wide viewing angles, and low power consumption. Structurally, it consists of a TFT glass substrate, a liquid crystal layer, a color filter, an LED backlight, and a driver IC (like GC9A01) supporting SPI interfaces. It works by applying voltage via the transistors to twist the liquid crystals, which precisely modulates the backlight passing through the RGB color filters to generate sharp images. Due to its ultra-portable, space-saving design, it is widely used in smartwatches, fitness trackers, IoT smart knobs, industrial instruments, and portable medical monitors.
As a leading factory-direct lcd display manufacturer with over a decade of OEM/ODM expertise, Hotdisplay delivers high-performance 1.1-inch bar TFT LCD display solutions tailored for demanding industrial and commercial applications. Leveraging advanced IPS full-viewing-angle technology and high-speed MIPI DSI interfaces, we provide high-definition, grain-free visual performance in an ultra-slim form factor. Our manufacturing capabilities support both standard wholesale distributions and highly customized ODM projects—including bespoke flexible printed circuit (FPC) designs, customized driver board combinations (such as the HTM-H011A1-SPI-V0), and specialized multi-interface adaptations (SPI or MIPI). Whether for outdoor sunlight-readability or low-power embedded integrations, Hotdisplay provides robust, industrial-grade micro-display solutions backed by global certifications (CE, FCC, RoHS) and strict quality control.

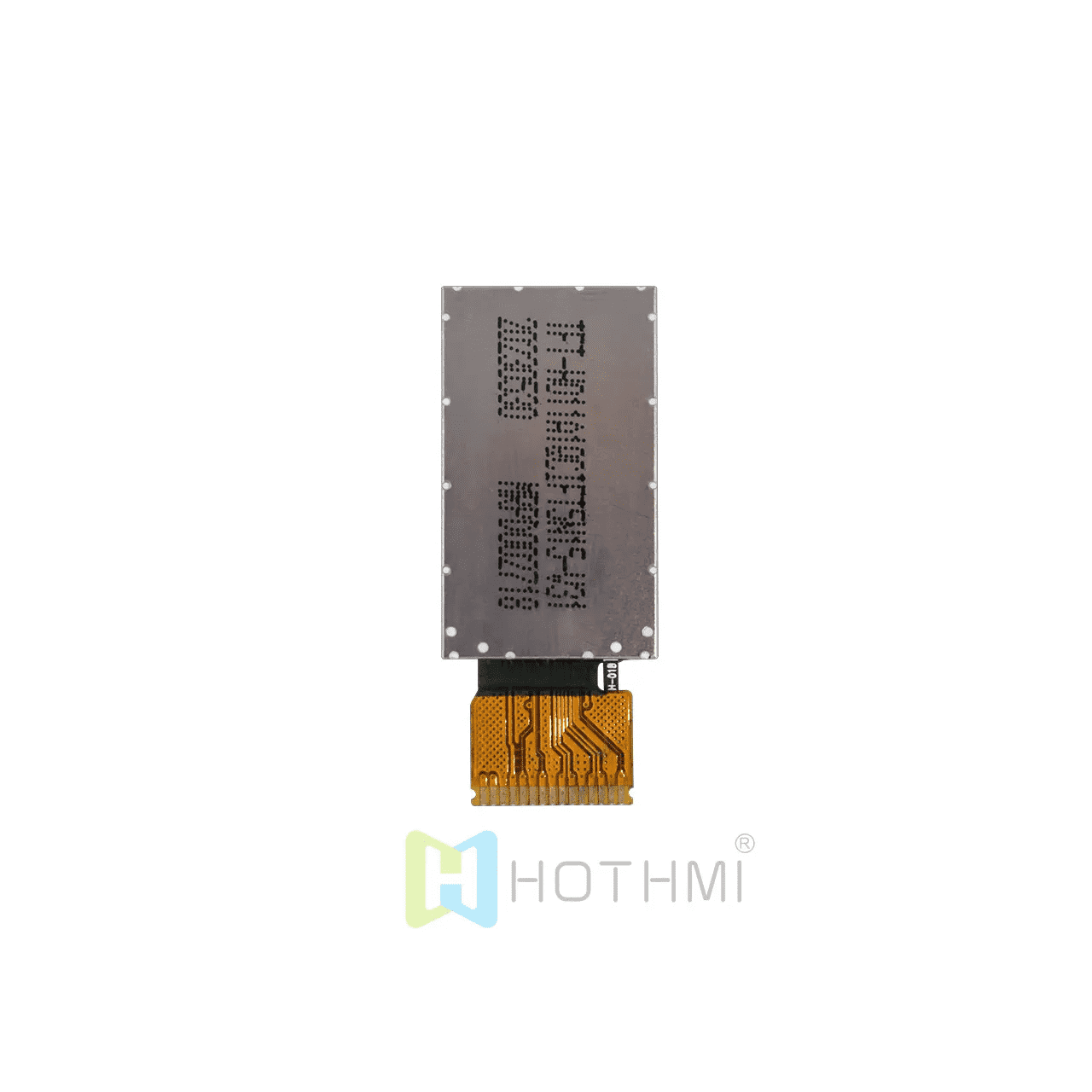

Model Number: TFT-H011A1QCIFT5N15 (Standard MIPI Version)
Resolution & Panel Type: 135×240 Pixels with premium IPS full-viewing-angle technology (80/80/80/80°).
Compact Dimensions: Ultra-slim outline profile of 17.60mm × 31.0mm × 1.65mm; Active Area (AA) of 14.86mm × 24.91mm.
High-Bandwidth Interfaces: Dual options available—High-speed MIPI DSI interface for rich 65K/262K true colors and smooth UI animations, or a 4-wire SPI interface model (TFT-H011A1QCIST3N10) for low-power microcontrollers.
Sunlight-Readable Brightness: Premium 500 cd/m² (nits) high brightness for superior outdoor legibility.
High-Performance Driver IC: Integrated JD9852 controller for optimized power efficiency and stable signal transmission.
Industrial-Grade Reliability: Wide operating temperature range from -20°C to 70°C; storage temperature from -30°C to 80°C.
Advanced Ruggedization: Built-in 8KV anti-static (ESD) protection to dramatically minimize electrostatic discharge failures during handling and dry-climate operations.

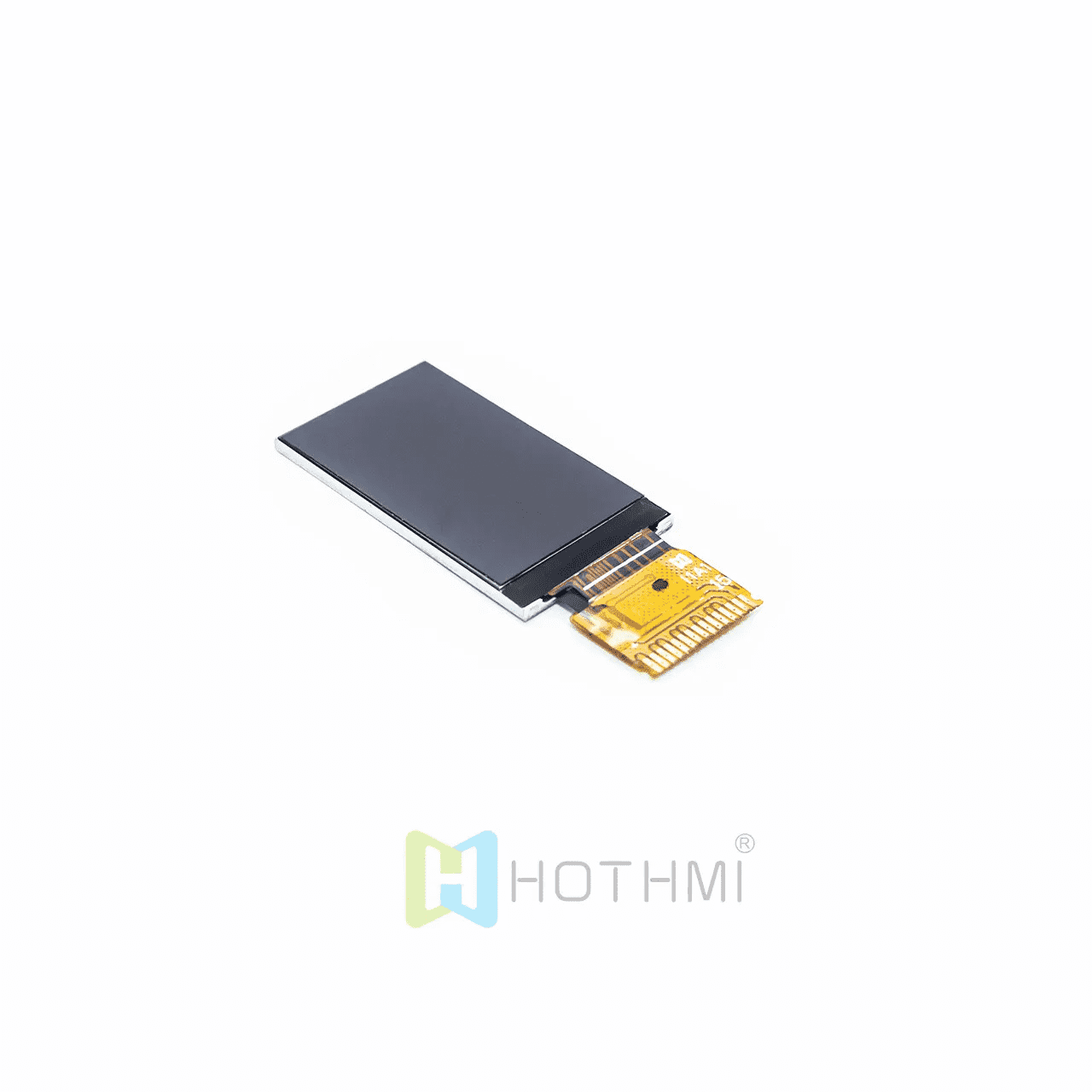

Seamless Legacy Upgrades: The 17.60 x 31.0 x 1.65 mm footprint fits directly into existing chassis cutouts, letting engineers replace old segment screens without costly tooling redesigns.
High-Bandwidth MIPI Protocol: Utilizing MIPI DSI via the JD9852 driver bypasses traditional SPI bottlenecks, enabling fluid UI rendering without taxing the host processor.
Rapid Prototyping: Pairs natively with advanced evaluation hardware like the ESP32-P4 platform, cutting down hardware debugging time.
Optimized for Narrow Profiles: The bar-type aspect ratio is ideal for space-constrained enclosures like industrial smart knobs, cylindrical handles, and sleek thermostats.
Ultra-Sharp Pixel Density: Packing a 135 x 240 resolution into a tight 1.1" active area ensures small text, complex icons, and medical waveforms remain perfectly crisp and grain-free.
Industrial Footprint Efficiency: Packages a sunlight-readable 500-nit backlight, a -20°C to 70°C temperature range, and 8KV ESD protection into a micro-chassis to minimize weight.
Hotdisplay excels at transforming standard display components into tailored, application-specific solutions. Our dedicated R&D division works closely with product engineering teams to overcome physical and electrical constraints, delivering bespoke 1.1 inch TFT LCD Display solutions that seamlessly match your target product design.
Our customizable hardware parameters include:
Bespoke FPC Design: Tailored pinout configurations, shapes, and structural lengths for the 1.1 inch TFT LCD Display to flawlessly match proprietary enclosures and compact internal routing.
Interface Adaptation: Flexible swapping between high-bandwidth MIPI DSI or resource-efficient SPI protocols for the 1.1 inch TFT LCD Display based on your master controller (e.g., STM32, Arduino, or ARM Cortex-A/Rockchip platforms).
Optical Customization: Enhanced backlight configurations to meet ultra-high brightness demands or the seamless integration of custom-engineered touch panel sheets directly onto the 1.1 inch TFT LCD Display module.
Turnkey Driver Module Kits: Matched plug-and-play adapter accessories and pre-tested development boards specifically configured for the 1.1 inch TFT LCD Display to accelerate your product’s time-to-market.
