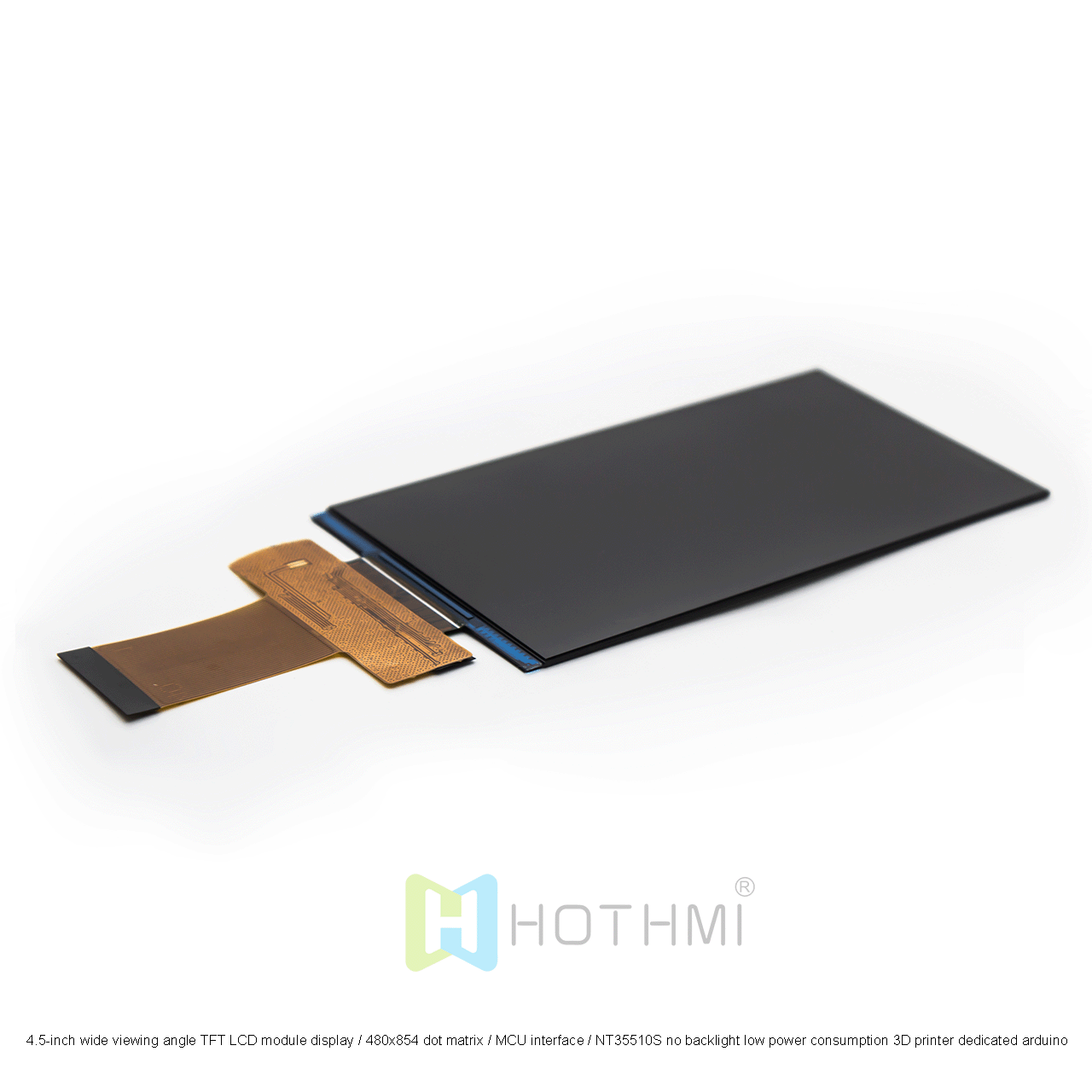

A 4.5 inch TFT LCD display provides a compact vertical screen with 480x854 resolution for applications requiring detailed color graphics in a space-efficient display format.
The standard module uses an MCU interface and NT35510S driver IC, making it suitable for embedded display systems and controller-based applications.
HotDisplay provides 4.5 inch TFT LCD displays for embedded systems, industrial equipment and portable electronic devices. The 4.5 inch TFT LCD module features a 480x854 resolution, vertical display format, MCU interface and NT35510S driver IC, with optional capacitive or resistive touch solutions.
| Specification | Details |
|---|---|
| Display Size | 4.5 inch |
| Resolution | 480x854 |
| Display Format | Vertical |
| Interface | MCU |
| Driver IC | NT35510S |
| Dimensions | 58.24 × 105.59 × 1.30 mm |
| Active Area | 55.44 × 98.64 mm |
| FPC | 40-pin |
| Viewing Angle | 12H |
| ESD Protection | 8KV |
| Operating Temperature | -20°C to +60°C |
| Supply Voltage | 2.8V |
Specifications may vary according to the selected configuration. Please refer to the individual product page for complete technical data.
The 480x854 TFT LCD display provides a high-resolution vertical format for compact embedded products, instruments and electronic devices.
Its 480x854 pixel resolution provides detailed image and interface display while maintaining a slim module profile.
The 4.5 inch TFT LCD uses an MCU interface for integration with embedded controllers and compatible electronic platforms.
The display can be used with systems based on platforms such as STM32 and Arduino, depending on the project configuration.
Touchscreen options can be added according to application requirements.
Available touch solutions include:
Touch glass can also be customized according to required size, thickness and mechanical design.
Display Size: 4.5 inch
Resolution: 480x854
Display Format: Vertical
Interface: MCU
Driver IC: NT35510S
Active Area: 55.44 × 98.64 mm
Module Dimensions: 58.24 × 105.59 × 1.30 mm
FPC: 40-pin
Viewing Angle: 12H
ESD Protection: 8KV
Operating Temperature: -20°C to +60°C
Supply Voltage: 2.8V

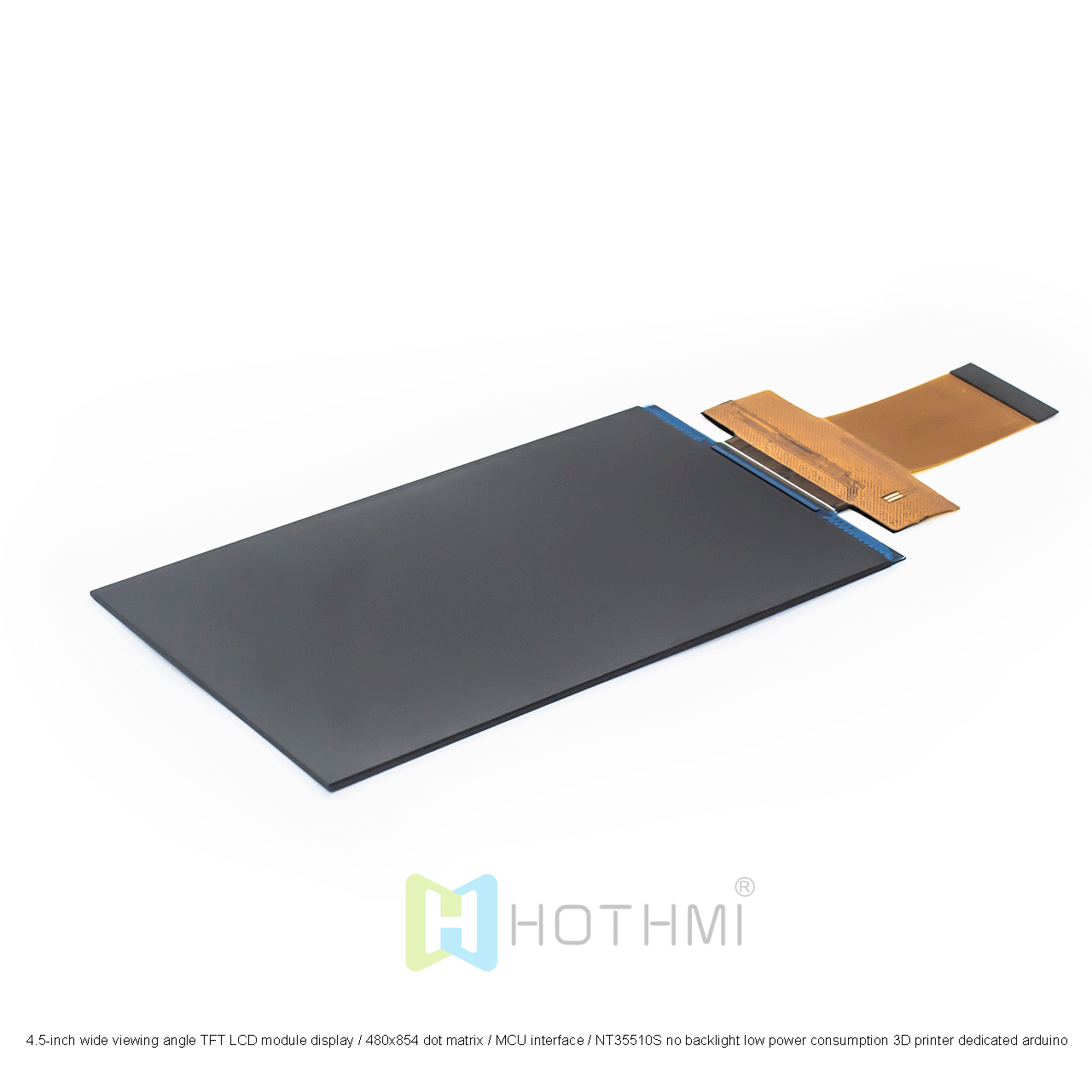

The 4.5 inch TFT LCD display is suitable for:
Embedded systems
Industrial equipment
Instrumentation
Portable electronic devices
Control interfaces
3D printers
STM32-based devices
Arduino-based devices
Smart electronic products

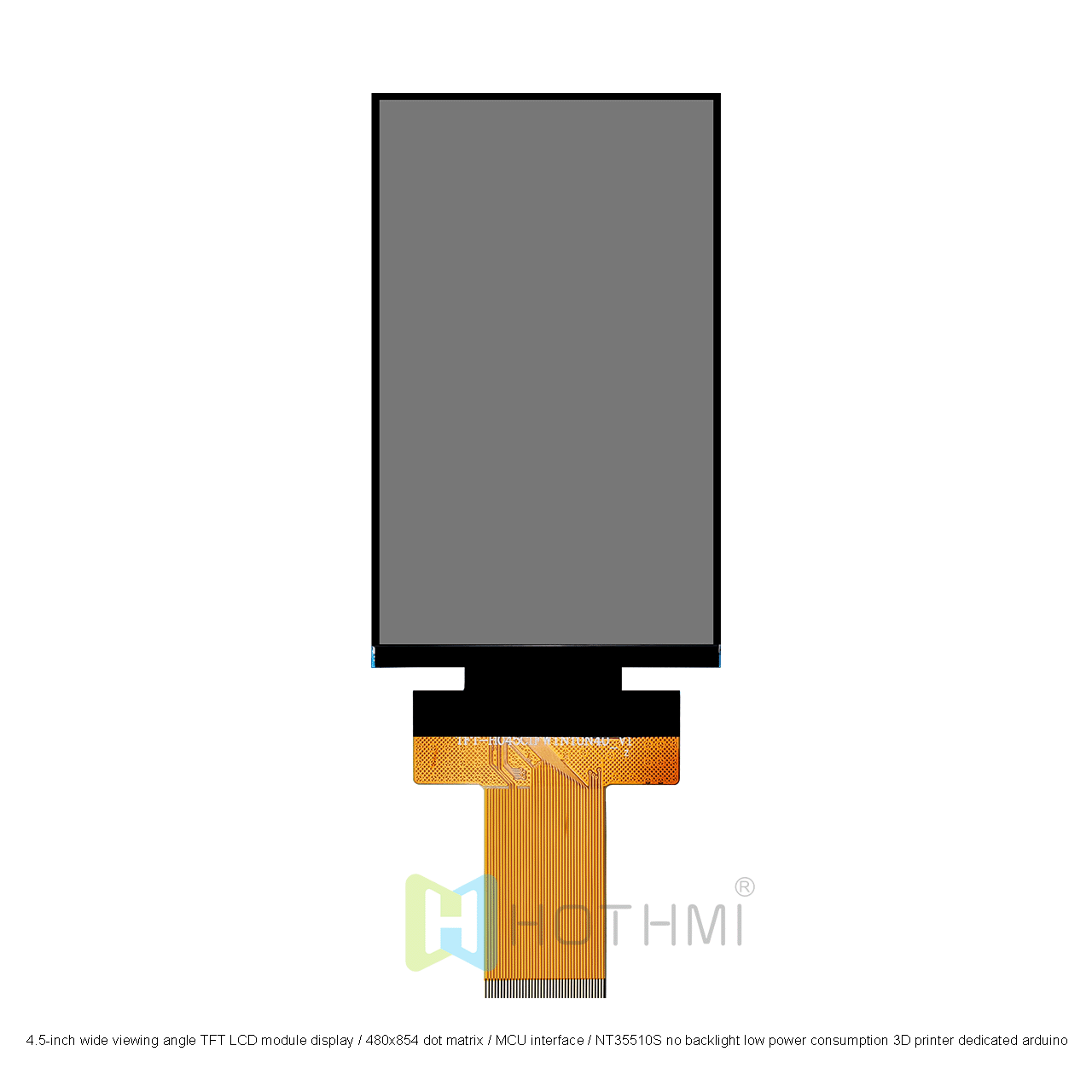

HotDisplay supports display customization for different project requirements.
Customization options include:
Custom FPC length and pin configuration
Capacitive or resistive touch
Custom touch glass
Cover glass
Interface configuration
Optical bonding
Display integration

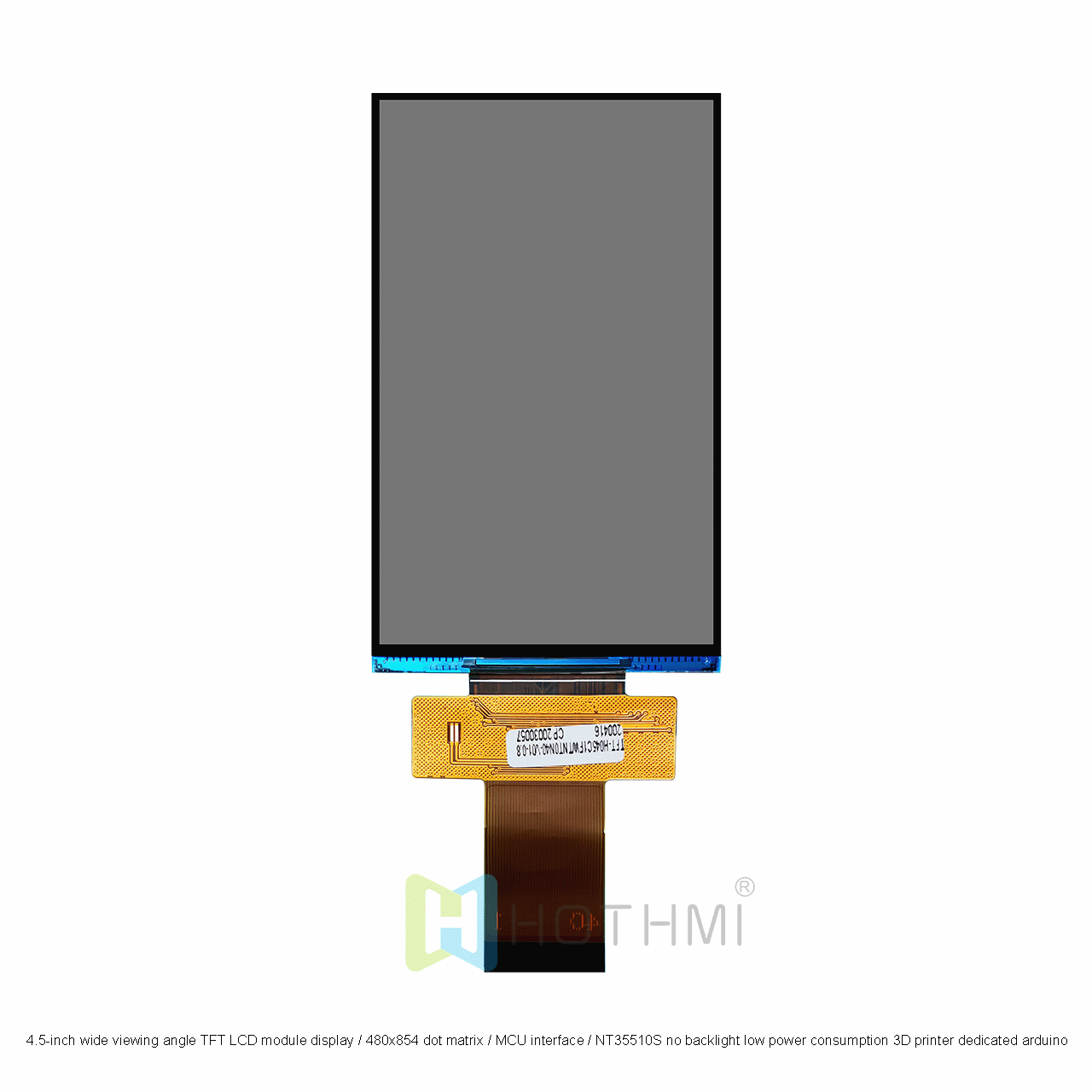

The 4.5 inch format provides a balance between screen area and compact system design.
The 480x854 resolution delivers detailed graphics for vertical embedded interfaces.
The MCU interface supports integration with embedded controllers and electronic systems.
Capacitive and resistive touch solutions are available for interactive applications.
HotDisplay can customize FPC, touch, cover glass and interface configurations according to project requirements.
The display is suitable for industrial equipment, instrumentation, portable electronics and embedded systems.
Looking for a 4.5 inch TFT LCD display for your project? Send us your required resolution, interface, touch type, dimensions and application. Request a Quote Now.
