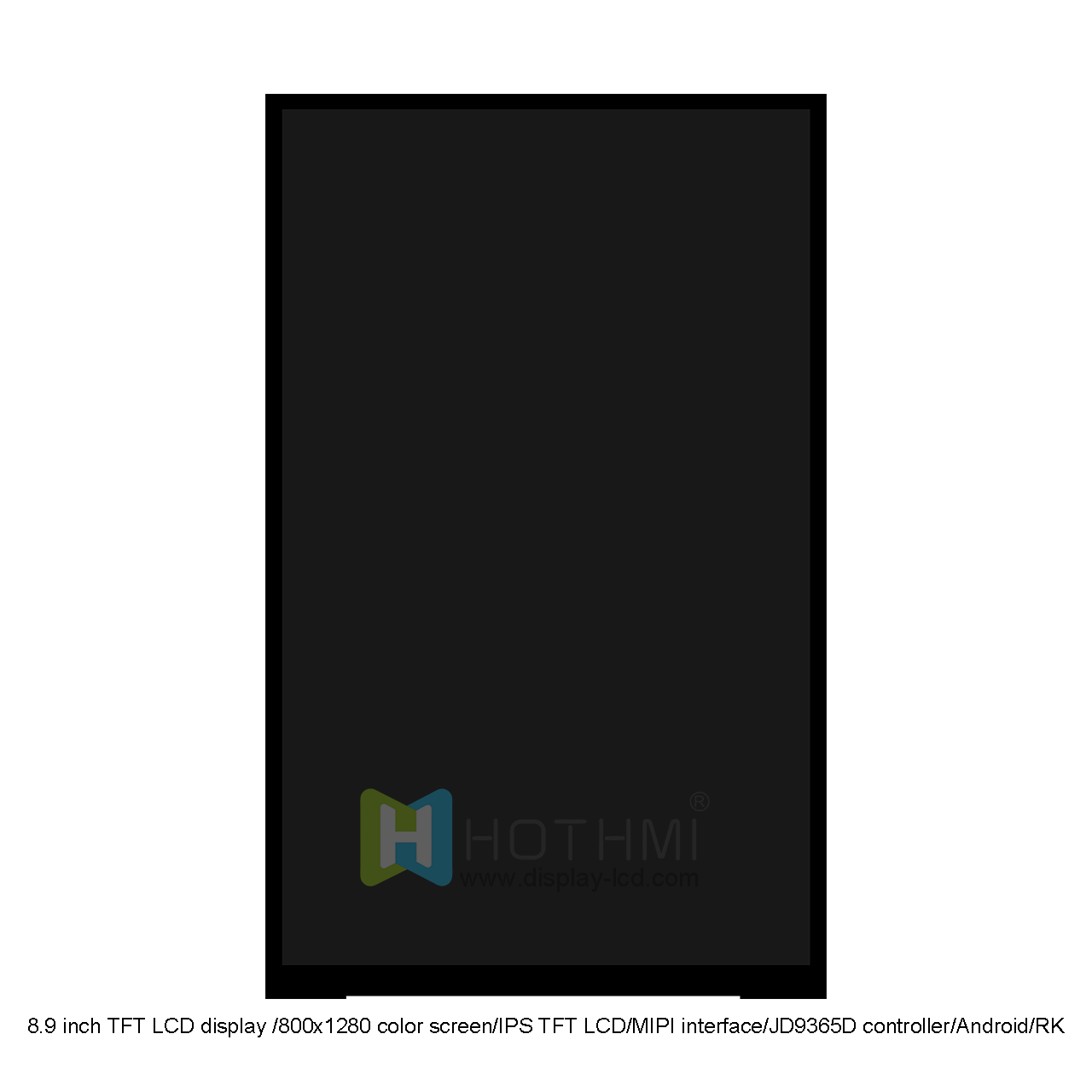

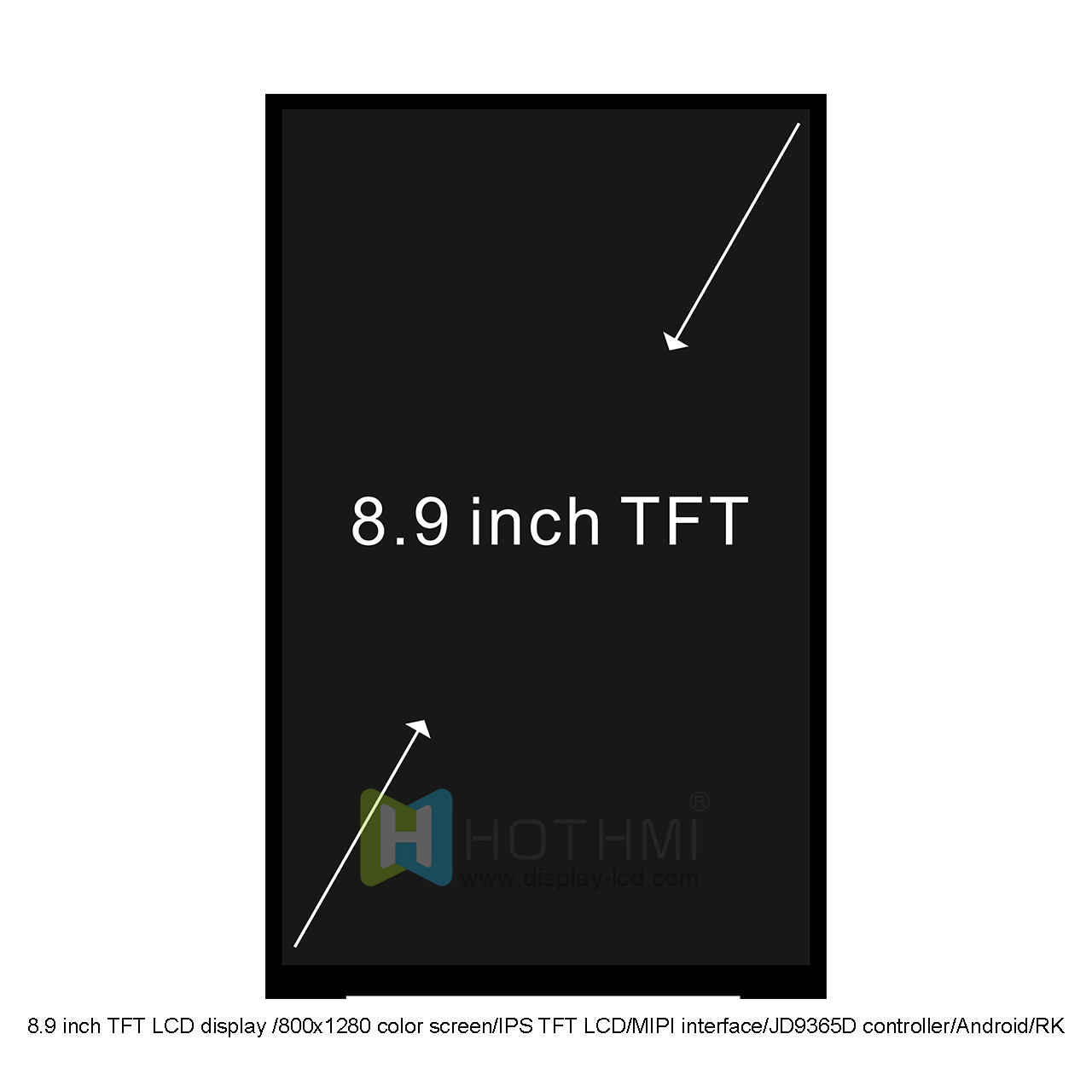

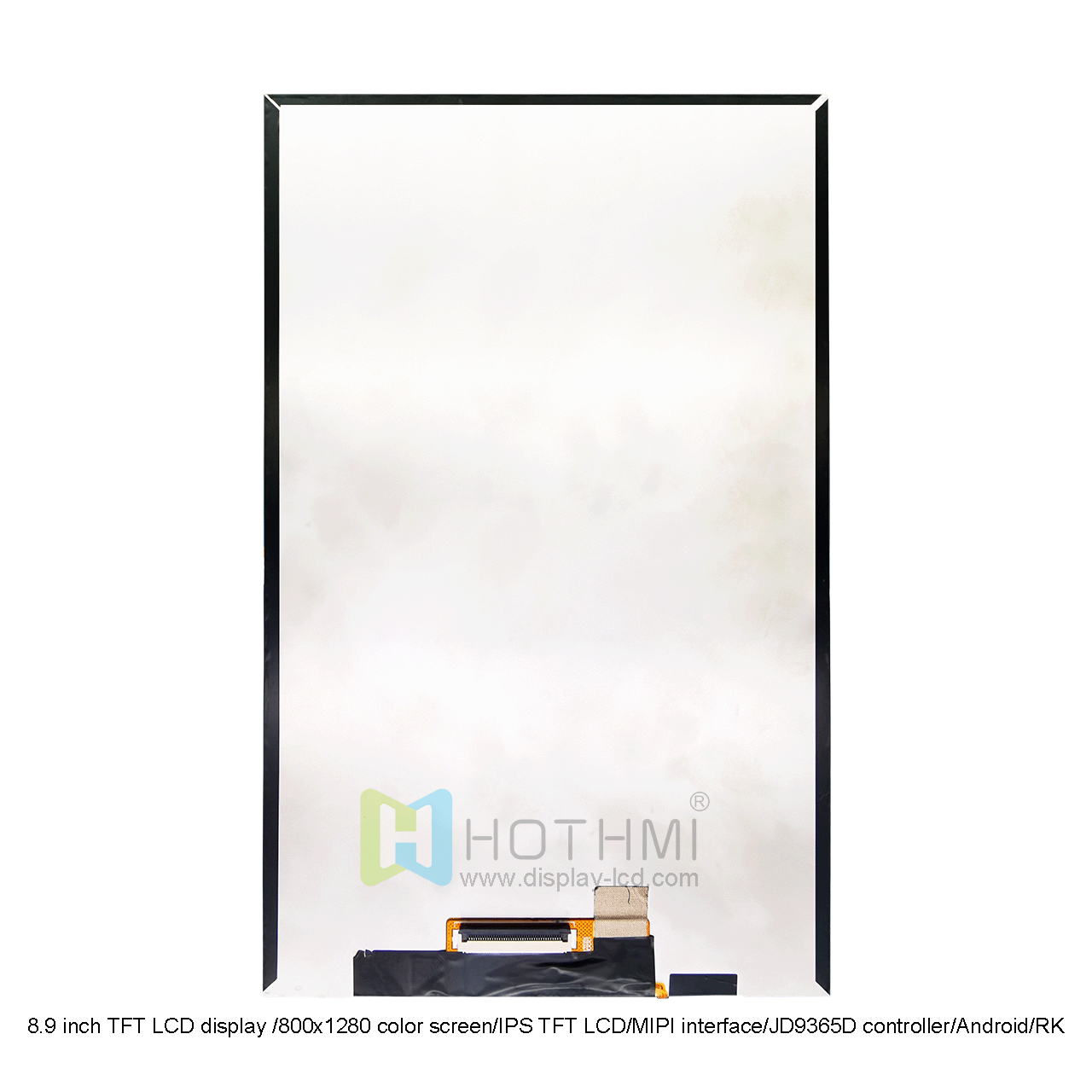

The TFT-H089A1WXIFT5N40 combines a slim module design with a high-resolution vertical display format.
| Specification | Details |
|---|---|
| Display size | 8.9 inch |
| Resolution | 800 × 1280 |
| Display type | TFT LCD, IPS full viewing angle |
| Aspect ratio | 1:1.5 |
| Brightness | 500 cd/m² |
| Interface | MIPI |
| Driver IC | JD9365D |
| FPC | 40-pin, ZIF connector |
| Module dimensions | 125.38 × 202.84 × 2.55 mm |
| Active area | 119.28 × 190.85 mm |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -30°C to 80°C |
| Supply voltage | 3.3 V |
| Touch | Standard listed version without touch; touch options require confirmation |
What These Features Mean for Your Project
|
Choosing an LCD module involves more than matching its diagonal size. HotDisplay helps customers assess display and integration requirements across the project.
Display selection: Match resolution, brightness, viewing angle, size and operating conditions to the device.
Interface and controller evaluation: Review MIPI compatibility, driver requirements, pin assignment and host-system constraints.
Touchscreen integration: Discuss capacitive touch options for applications that require direct user interaction.
FPC and connector customization: Evaluate cable routing, connector position and connection requirements.
Driver board options: Discuss suitable driver-board configurations where the application requires one.
Sample and project support: Review specifications and sample requirements before production planning.
Customization and optional configurations are subject to technical evaluation and project confirmation.
1. Understand the device requirements
We review the product’s screen layout, viewing distance, installation space, operating environment and user interaction needs.
2. Match the display specifications
We evaluate the 800×1280 resolution, active area, brightness, viewing angle and temperature range against the application.
3. Verify MIPI system compatibility
MIPI support alone does not guarantee compatibility. The host processor, display timing, lane configuration, driver IC, FPC pinout and initialization sequence must be checked against the display documentation.
4. Plan mechanical and touch integration
We review module dimensions, connector access, cable routing and any touchscreen or cover-glass requirements to reduce design and assembly risks.
5. Validate with samples
Before volume production, engineers can use the relevant datasheet and samples to verify image performance, electrical compatibility and mechanical fit in the target device.
The 8.9 inch vertical display format can be considered for:
Industrial control equipment: Operating menus, machine status and process information.
Elevator controllers and access systems: Vertical interfaces for settings, status and user instructions.
Office automation equipment: Display panels for printers, scanners and other equipment.
Household appliances: Control interfaces for smart appliances and home equipment.
Security and monitoring devices: Visual interfaces for control, monitoring and equipment operation.
Embedded and handheld systems: Compact products that require a relatively large vertical color display.
Display-focused expertise: Support for TFT LCD selection and project-specific display integration.
Flexible solution options: Access to display, touch, FPC, interface and driver-board solution discussions.
Engineering compatibility review: Attention to electrical, optical and mechanical requirements before design-in.
Technical documentation: Product specifications and datasheets to support engineering evaluation.
Project-oriented support: Coordination of sample assessment and production requirements.
An 8.9 inch TFT LCD is used in equipment that needs a relatively large color interface. Its 800×1280 vertical format can suit industrial controls, office automation, household appliances and embedded devices.
It has a vertical 800×1280 format and a 1:1.5 aspect ratio. This elongated layout is useful for portrait-oriented interfaces, although it is not an ultra-wide, narrow bar display.
The listed TFT-H089A1WXIFT5N40 version is specified without a touchscreen. Touch integration or an alternative touch configuration should be confirmed according to the project’s mechanical and electrical requirements.
The module uses a MIPI interface, but direct connection depends on the host board’s MIPI display support, driver compatibility, pinout and initialization requirements. Check the display datasheet and host documentation before integration. A suitable driver board may be considered where needed.
The listed brightness is 500 cd/m². It may suit many indoor applications, but direct sunlight readability also depends on reflections, cover glass, optical bonding and the device enclosure. For outdoor equipment, confirm the optical requirements before selecting the display.
Project-specific options such as touch integration, FPC routing, connector requirements and driver-board configurations can be evaluated. Feasibility, cost and lead time depend on the requested changes and should be confirmed before ordering.
Share your target quantity, application, preferred interface, operating temperature, touch requirements, mechanical drawings and project schedule. This information helps the team assess compatibility and identify the appropriate configuration.
Need an 8.9 inch 800×1280 IPS display for an industrial control panel, office equipment or embedded product?
Send HotDisplay your application details, interface requirements and mechanical constraints. We can help review the display specifications and discuss a suitable solution for your project.
