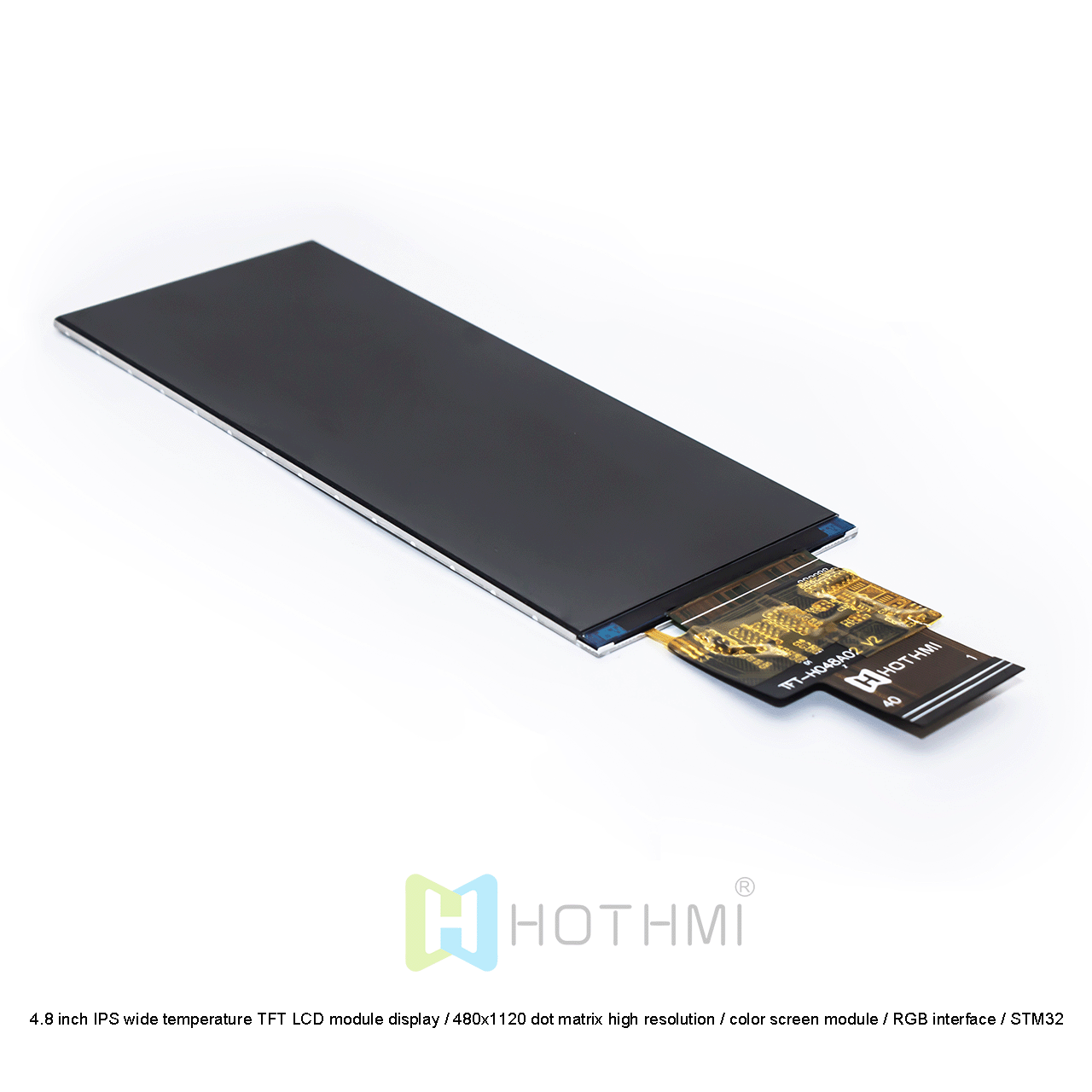

The 4.8 inch TFT LCD display combines a compact vertical format with 480x1120 high resolution for detailed graphics and information-rich interfaces.
The IPS panel provides a wide viewing angle, while the RGB 24-bit interface supports integration with compatible embedded platforms including STM32 and RK series systems.
HotDisplay provides 4.8 inch TFT LCD displays for industrial equipment, instrumentation, embedded systems and portable electronic devices. The 4.8 inch TFT LCD module features 480x1120 resolution, IPS full-view display, RGB 24-bit interface and 500 cd/m² brightness, with wide-temperature operation for demanding applications.

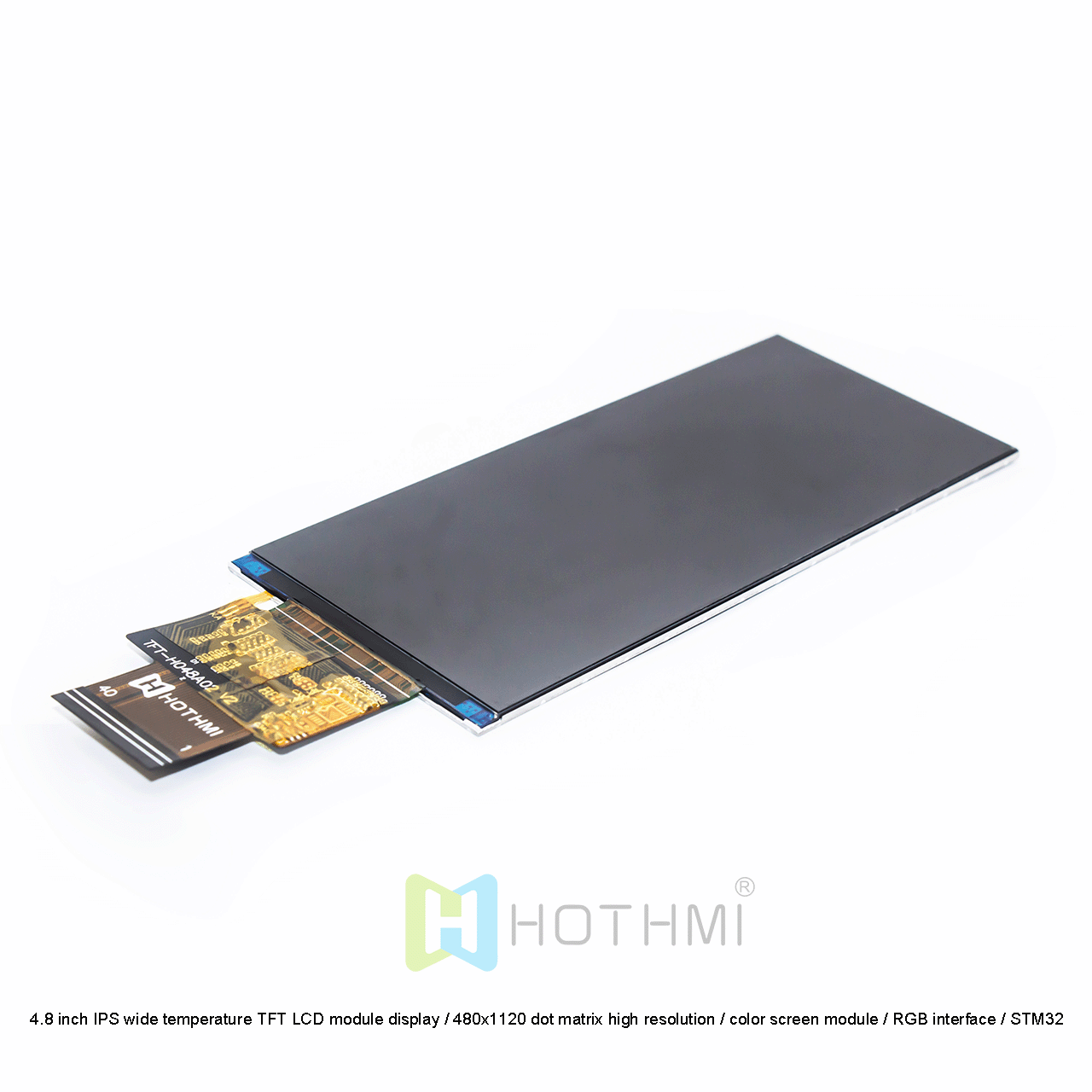

| Key Features of 4.8 Inch TFT LCDDisplay Size: 4.8 inch Resolution: 480x1120 Display Type: IPS TFT LCD Display Format: Vertical Interface: RGB 24-bit Brightness: 500 cd/m² Viewing Angle: U80/D80/L80/R80 Dimensions: 51.46 × 119.67 × 2.08 mm Active Area: 47.95 × 112.56 mm FPC: 40-pin Operating Temperature: -30°C to +80°C Supply Voltage: 3.3V ESD Protection: 8KV |
| Specification | Details |
|---|---|
| Display Size | 4.8 inch |
| Resolution | 480x1120 |
| Display Type | IPS TFT LCD |
| Display Format | Vertical |
| Interface | RGB 24-bit |
| Brightness | 500 cd/m² |
| Viewing Angle | U80/D80/L80/R80 |
| Dimensions | 51.46 × 119.67 × 2.08 mm |
| Active Area | 47.95 × 112.56 mm |
| FPC | 40-pin |
| Operating Temperature | -30°C to +80°C |
| Supply Voltage | 3.3V |
| ESD Protection | 8KV |
The 480x1120 TFT LCD display provides a high-resolution vertical screen for applications requiring detailed graphics and compact installation dimensions.
The resolution is suitable for graphical interfaces, instrument displays, data monitoring and embedded control systems.
The IPS TFT LCD panel provides a wide viewing angle with stable image performance from different viewing directions.
This makes the display suitable for equipment where clear information visibility is required.
The RGB 24-bit interface provides a parallel display connection for compatible embedded systems.
The module can be integrated with platforms including STM32 and RK series according to system requirements.
With an operating temperature range of -30°C to +80°C, the display is suitable for industrial and embedded applications operating across a wide temperature range.

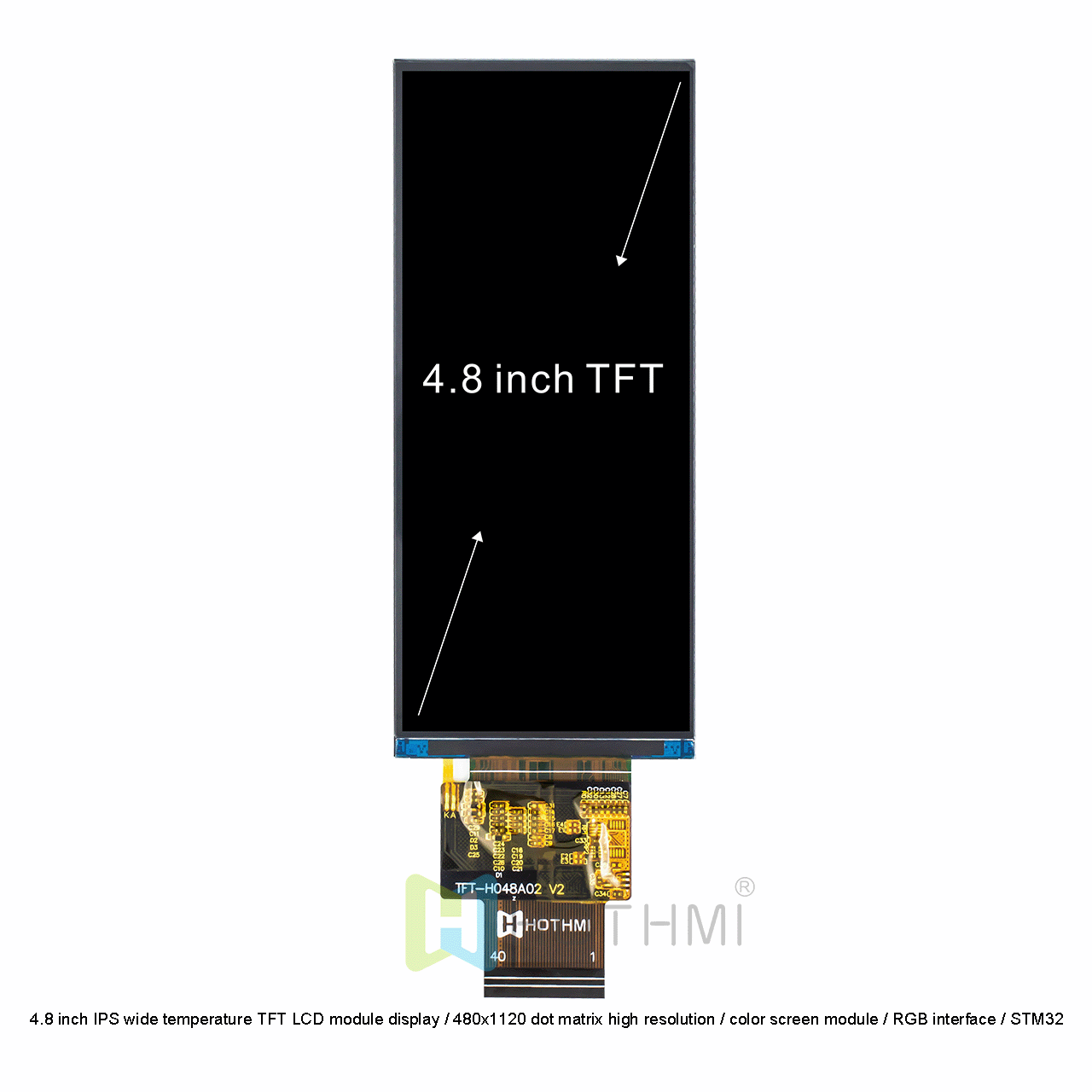

The 4.8 inch TFT LCD display is suitable for:

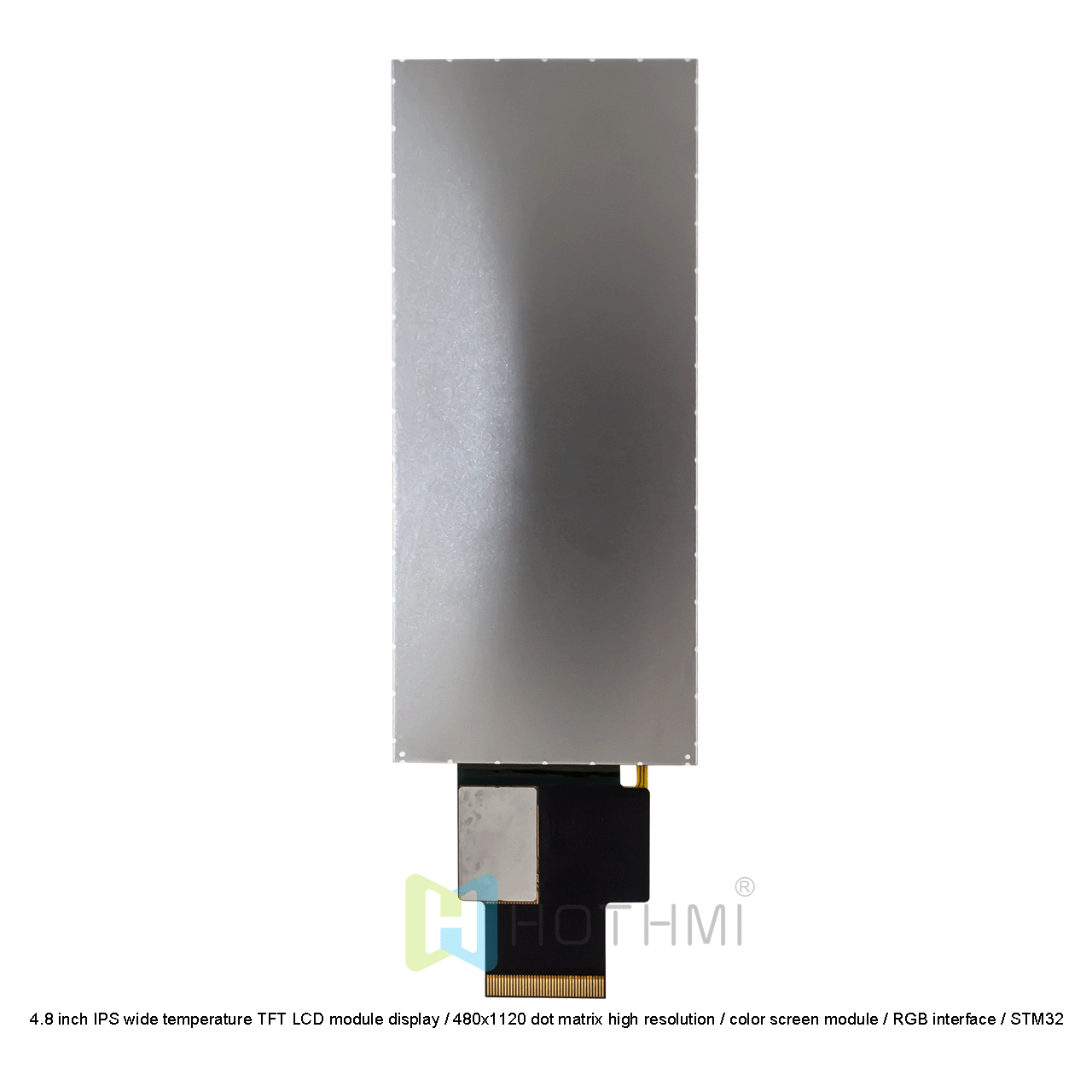

HotDisplay supports customization for project-specific display requirements.
Available options include:
Capacitive touch
Resistive touch
Custom FPC
FPC length and pin configuration
Interface customization
Custom cover glass
Optical bonding
The 480x1120 resolution provides detailed image output in a compact 4.8 inch display.
IPS technology provides a wide viewing angle for clear and consistent image performance.
The RGB interface supports integration with compatible embedded controllers and processors.
The -30°C to +80°C operating range supports demanding industrial and embedded environments.
Touch, FPC, interface and cover glass configurations can be adapted to project requirements.
Looking for a 4.8 inch TFT LCD display for your project? Send us your required resolution, interface, brightness, dimensions, touch type and application. Request a Quote Now.
