A module with a suitable controller or driver board can simplify the connection between a display and a compatible host system. It may be useful when the host does not directly support the native interface of the LCD panel.
Before selecting a board-based solution, confirm the supported input signal, output interface, resolution, operating system or driver requirements, power supply and physical dimensions. Board availability and compatibility vary by product.
SPI TFT modules and MCU-interface TFT modules can be suitable for microcontroller-based products when the interface bandwidth and resolution meet the application requirements.
For a small interface showing menus, measurements or status information, these interfaces may be practical options. For higher-resolution graphics or frequent screen updates, evaluate data-transfer performance, available memory and processor resources before selecting a module.
RGB TFT LCD modules are designed for host systems that support the required parallel RGB signals and display timing. Confirm the pixel clock, horizontal and vertical timing, color depth, signal voltage and connector pinout.
An RGB display cannot be assumed to work with every microcontroller or processor simply because the screen resolution is supported.
LVDS and MIPI DSI are used in display systems with compatible host interfaces. The correct choice depends on the processor, available display output, resolution, cable design and system architecture.
Before ordering, verify the exact interface version, signal mapping, power requirements, connector and initialization requirements. LVDS and MIPI DSI are not directly interchangeable without compatible hardware.
Selected HOTDISPLAY TFT modules support capacitive or resistive touch. Touch selection should consider the intended interaction, cover-glass structure, touch-controller interface, operating conditions and software integration.
If the product requires a custom cover glass, logo, surface treatment or a specific mounting structure, provide the mechanical drawing and requirements for review.

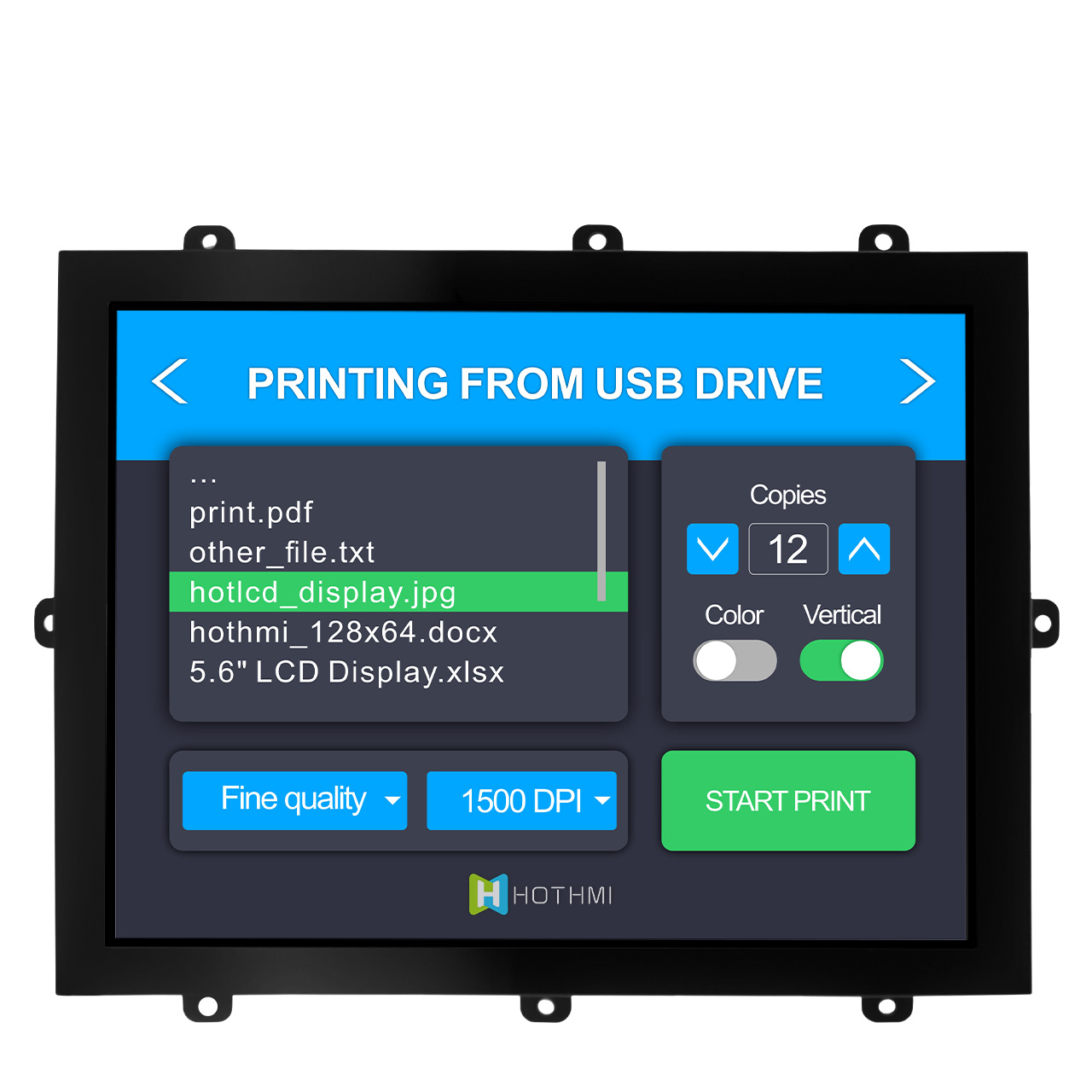

A standard TFT module may need adjustments to fit a product's interface, structure or user-interaction requirements. HOTDISPLAY lists customization options for selected products, including:
FPC and connector customization: Discuss cable length, position, pin assignment and compatible connectors.
Interface and controller-board options: Review the host interface and the available board configuration for the target display.
Touch and cover-glass customization: Discuss touch technology, glass dimensions, thickness and applicable surface treatments.
Mechanical integration: Provide enclosure drawings and mounting requirements to assess the module's fit.
Display configuration: Specify size, resolution, brightness, viewing angle and operating-temperature requirements.
Not every option is available for every model. Confirm technical feasibility, development scope, order quantity and lead time with HOTDISPLAY before approving the final design. Explore Hotdisplay TFT LCD Technology, Complete TFT Solutions
TFT modules can provide color interfaces for embedded products. Confirm the development board, display interface, software environment and available driver support before starting integration.

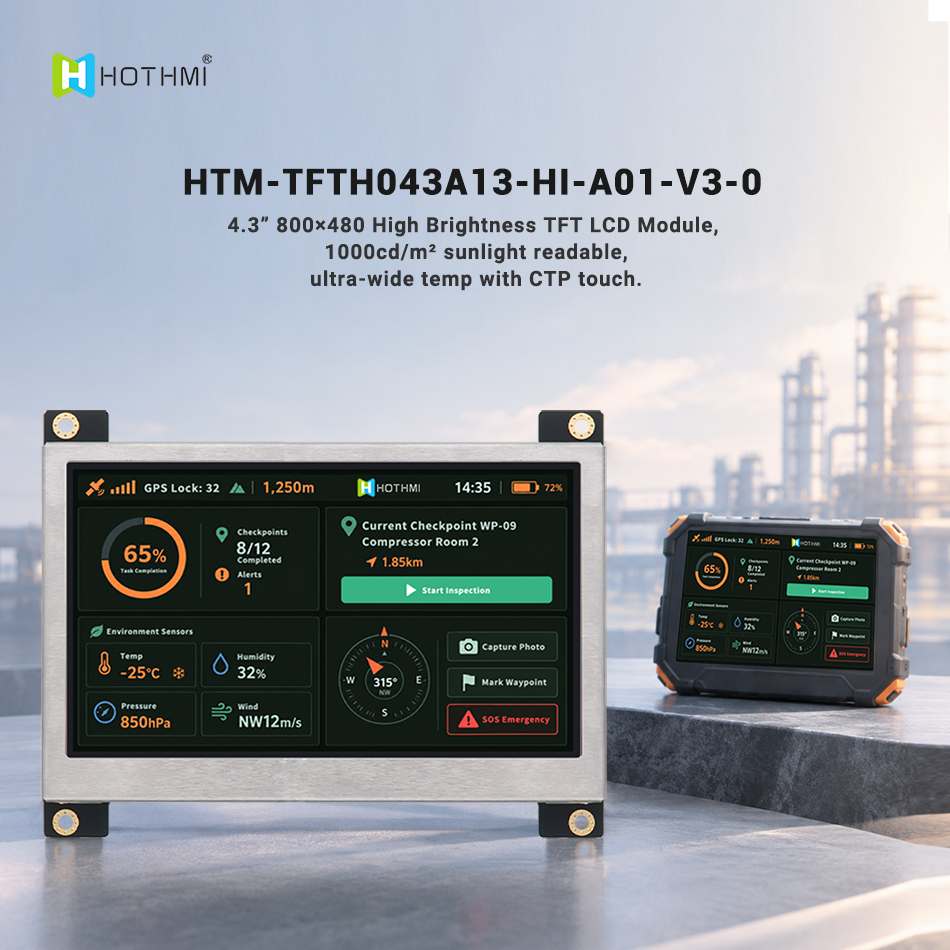

Industrial interfaces may display operating status, parameters, alarms and control menus. Choose the module based on viewing conditions, interface compatibility, installation space and required operating temperature.
Display selection should consider readability, information density, host compatibility and enclosure integration. Confirm that the chosen module meets the requirements of the complete instrument.
Smart controllers and connected devices may require color graphics, menus, icons or touch interaction. Screen dimensions, power budget, interface and touch requirements should guide the selection.
POS terminals and commercial devices may require responsive touch input and a clear graphical interface. Evaluate the display, touch panel, cover glass and host system as one integrated design.

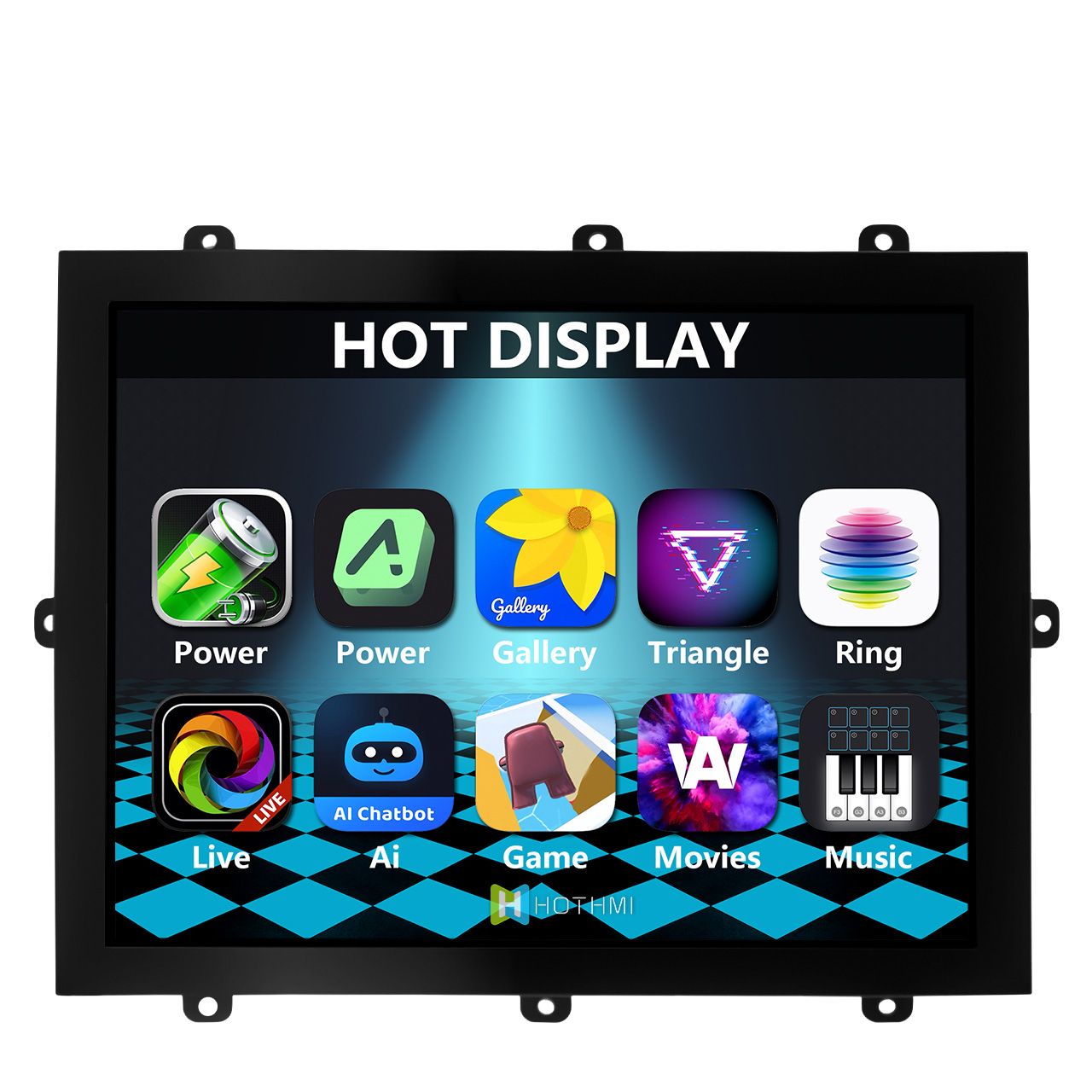

HOTDISPLAY has published TFT LCD module solutions covering multiple interfaces, screen formats and touch options. The company also lists customization services for selected display products, including cables, connectors, touch panels and integration-related structures.
For engineers and purchasing teams, the practical value is a display selection process that considers the entire integration requirement: host compatibility, resolution, optical performance, mechanical fit, touch requirements and production needs.
When contacting HOTDISPLAY, provide your host processor or development board, required interface, target size and resolution, touch requirement, operating environment and estimated quantity. This information helps determine which available models are suitable for further evaluation.
Identify the processor, microcontroller, development board or mainboard that will drive the display. Check which display interfaces it supports and whether a suitable display driver is available.
Provide the exact host model or development platform when asking for a recommendation. This is more useful than requesting an interface based on screen size alone.
Higher resolution can improve detail but may require more graphics memory, higher data bandwidth and greater processing capacity.
Consider the user interface, image complexity, update frequency and host resources together. Confirm that the processor and software can support the selected resolution and color depth.
Select the interface based on the host hardware and application:
SPI: Consider when a serial interface and modest display-update requirements are appropriate.
MCU parallel: Consider when the host supports a compatible parallel display interface.
RGB: Consider when the processor provides the required RGB output and timing.
MIPI DSI: Consider for compatible embedded processors and display architectures.
LVDS: Consider for systems designed to support LVDS display output.
HDMI or a controller-board solution: Consider when the selected display system provides a compatible HDMI input path.
Check the exact model's specifications before assuming that any particular interface or adapter is available.
For indoor devices, standard brightness may be sufficient. For bright environments, consider high-brightness options and assess reflections, cover glass and power consumption together.
For industrial or outdoor equipment, confirm the specified operating-temperature range of the complete display module. The enclosure, backlight, host electronics and thermal design can affect actual system performance.
Specify whether the display requires capacitive touch, resistive touch or no touch. For a customized touch panel, define the active area, cover dimensions, thickness, surface treatment and connection requirements.
Where optical bonding or other assembly options are required, confirm availability and suitability for the selected model before finalizing the design.
Review the module's overall dimensions, active area, thickness, mounting points, FPC length and position, connector type and pin assignment. Confirm that the display fits the enclosure and can be connected without stressing the cable.
For an existing product redesign, provide the original display part number and drawings where available. Matching the diagonal size alone is not sufficient to confirm a replacement.
A TFT LCD panel refers mainly to the display panel. A TFT LCD module may include additional components such as the driver IC, backlight, FPC or supporting PCB. Some solutions also include a controller or driver board. Always check the exact product configuration.
Compatibility depends on the exact board, display interface, resolution, driver and software support. HOTDISPLAY identifies Arduino and Raspberry Pi among relevant development platforms for its display products, but not every TFT module works directly with every board. Confirm the model-specific requirements before purchase.
There is no universally best interface. SPI may suit simpler display-update requirements, while RGB, LVDS and MIPI DSI are appropriate for host systems designed to support those interfaces. Compare the host's native display output, bandwidth, resolution, cable and software requirements.
Not always. The answer depends on the TFT module's internal driver arrangement and the host system. A compatible controller board may simplify integration when the host cannot directly drive the panel, but it adds requirements for power, signal compatibility, dimensions and mounting.
Selected HOTDISPLAY products support capacitive or resistive touch. Confirm the availability of the required touch technology, cover-glass design, controller and cable configuration for the exact module.
Not necessarily. The replacement must also match the resolution, interface, pinout, voltage, controller requirements, dimensions, FPC and mounting arrangement. Provide the original model number or datasheet to help assess compatibility.
Provide the target size, resolution, interface, host processor, brightness, viewing-angle requirements, operating-temperature range, touch requirements, mechanical constraints, estimated quantity and application. Include a drawing or existing model number if the project involves a replacement or customization.
