A 5.6 inch TFT LCD display is a full-color thin-film transistor liquid crystal display with a 5.6-inch diagonal screen. TFT active-matrix technology controls individual pixels to display text, images and graphical user interfaces.
The HotDisplay 5.6 inch TFT LCD module combines a 640x480 resolution with a 4:3 screen format. Its IPS viewing technology supports wide-angle visibility, while the MIPI DSI interface enables integration with compatible processors and embedded display systems. The capacitive touchscreen adds interactive input functionality for equipment that requires direct user control.

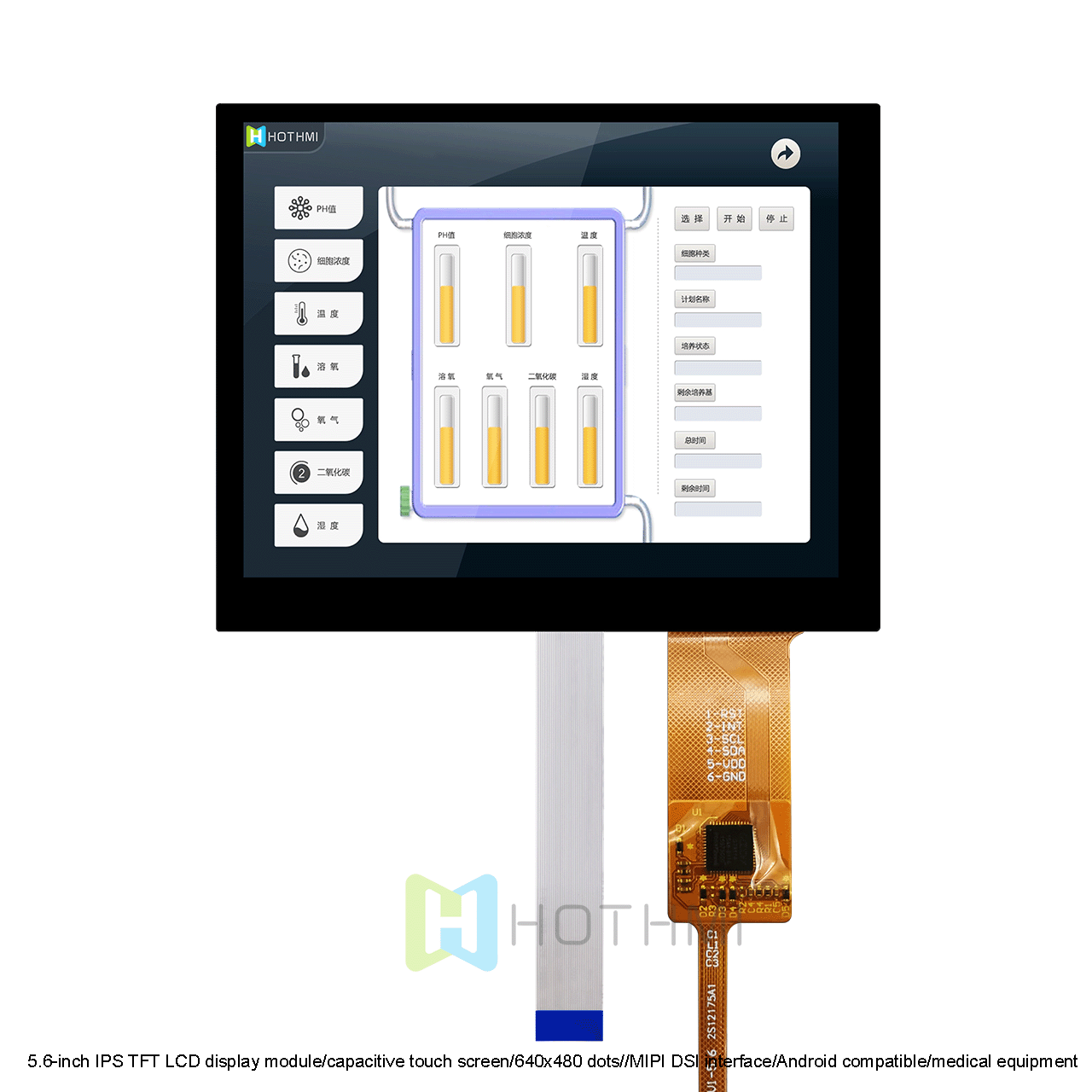

 | 5.6 Inch TFT LCD Display Features
|
| Specification | Details |
|---|---|
| Model | LCM-TFT056T1VGM2N30F-V01 |
| Display Size | 5.6 inch |
| Resolution | 640 × 480 |
| Aspect Ratio | 4:3 |
| Display Type | TFT LCD |
| Viewing Angle | IPS, U80/D80/L80/R80 |
| Interface | MIPI DSI |
| Touch Type | Capacitive touch |
| Brightness | 250 cd/m² |
| Module Dimensions | 126.5 × 100 × 9.5 mm |
| Active Area | 112.9 × 84.67 mm |
| FPC | 30-pin |
| Supply Voltage | 5.0V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| ESD Protection | 8KV |
| Driver IC | TBD |
HotDisplay provides a 5.6 inch TFT LCD display module featuring 640x480 resolution, IPS viewing angles, MIPI DSI interface and capacitive touch. With a 4:3 aspect ratio, 250 cd/m² brightness and a wide viewing angle, this 5.6 inch LCD module is designed for AI equipment, embedded systems, industrial devices and interactive applications.
The 640x480 resolution provides a 4:3 display format for equipment interfaces, graphical controls and monitoring screens. It is suitable for systems that require a conventional aspect ratio and a compact color display.
The IPS TFT LCD panel offers wide viewing angles, helping maintain image visibility from different viewing directions. This feature is useful for equipment where the screen may be viewed from different operator positions.

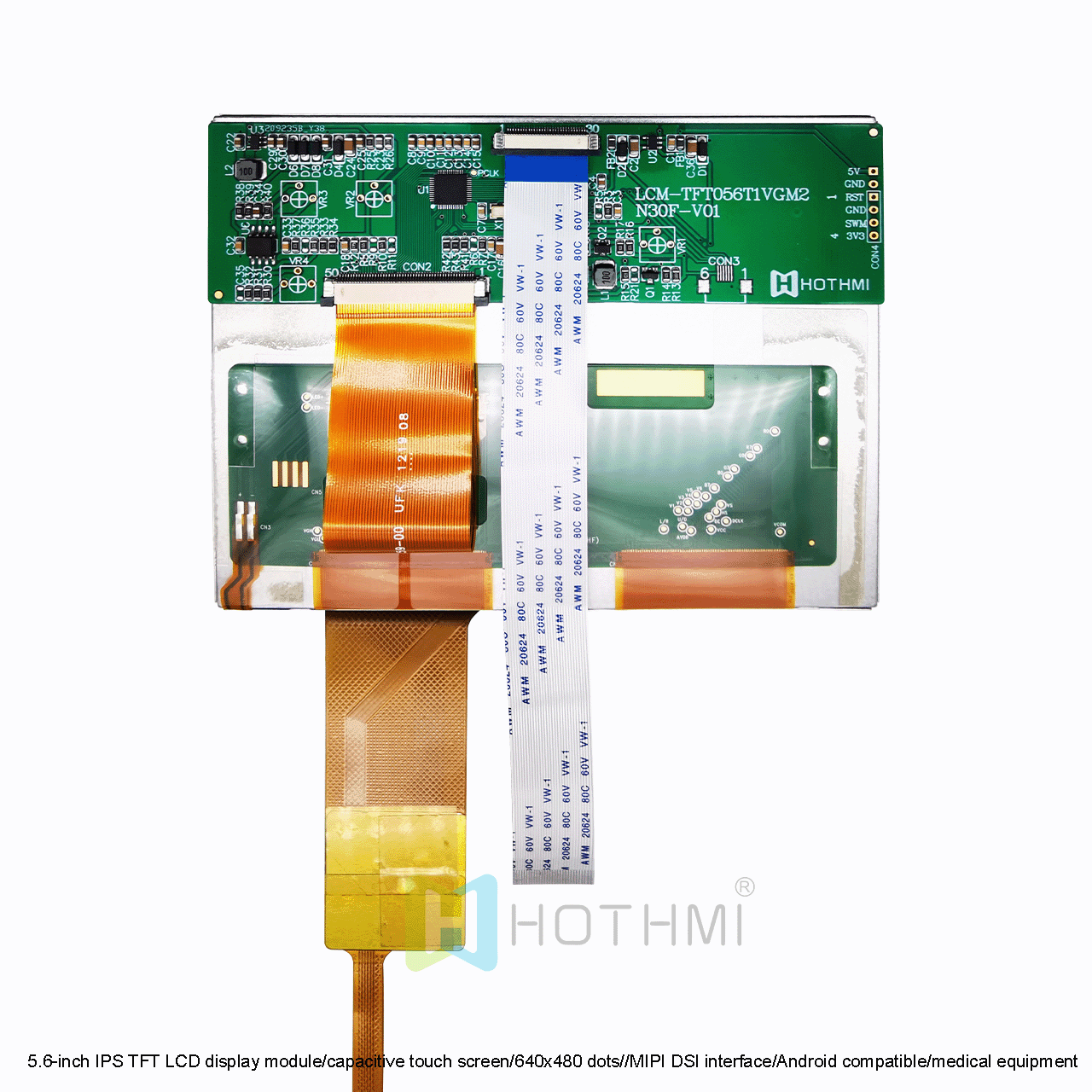

The MIPI DSI interface supports connection to compatible embedded processors and display controllers. The module uses a 30-pin FPC connection. Check interface specifications, signal requirements, pin assignments and driver compatibility before system integration.
The capacitive touchscreen supports interactive user input through touch-based controls. It is suitable for equipment interfaces, AI devices and embedded products that require a touchscreen user experience.
The 5.6 inch 640x480 IPS TFT LCD module is designed for applications requiring a compact color screen with touch functionality.
Typical application areas include:
Artificial intelligence equipment
Embedded computing systems
Industrial equipment interfaces
Interactive control panels
Instrumentation and monitoring devices
Smart terminals
Electronic control systems
Custom touchscreen devices
The final application suitability depends on interface compatibility, brightness requirements, mechanical integration and the operating environment.

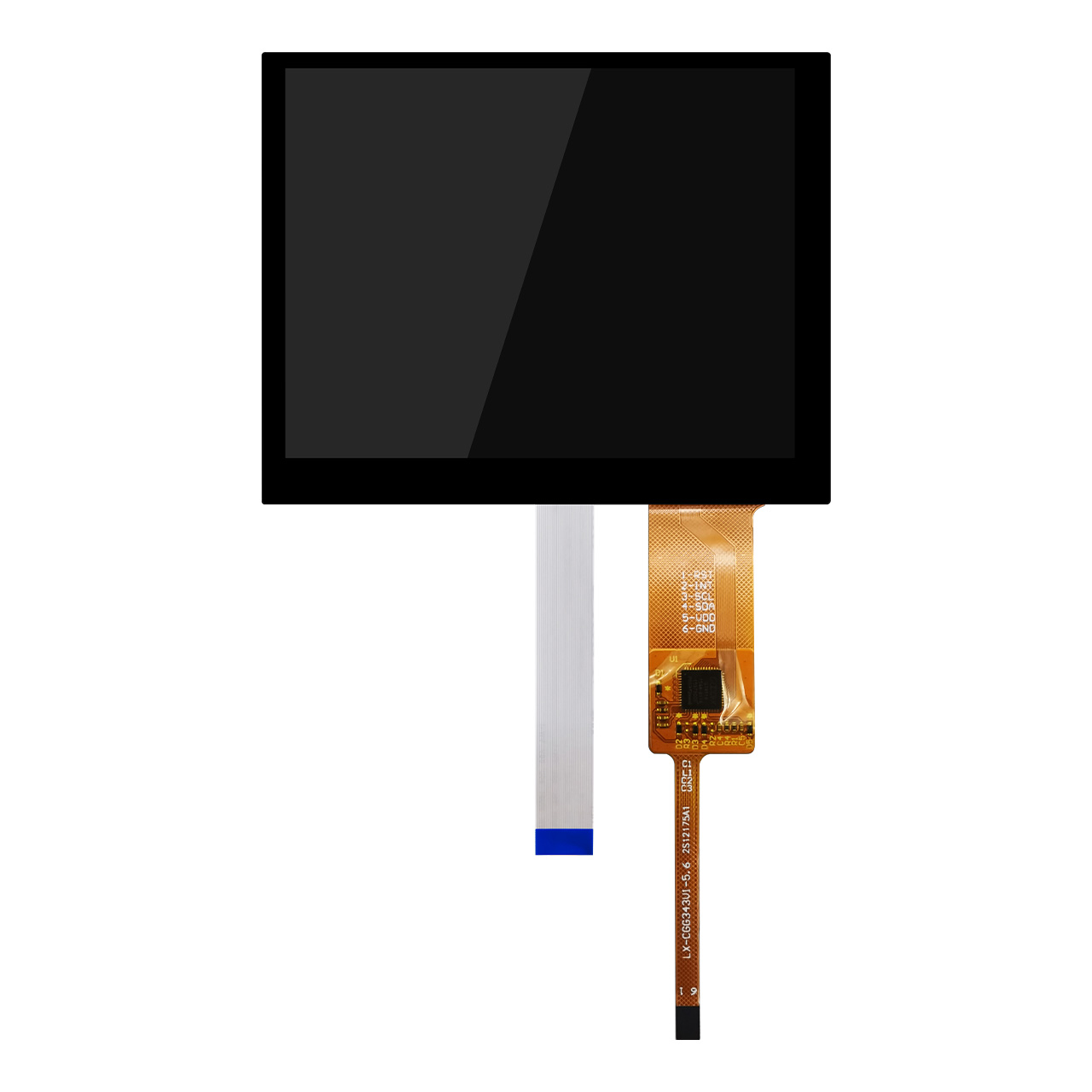

HotDisplay provides customization support for display integration projects. Depending on engineering feasibility, available options may include:
Custom FPC length and pin arrangement
Connector and cable configuration
Capacitive or resistive touch solutions
Touch glass shape and thickness
Custom cover glass
Optical bonding
Interface adaptation
Customized display integration
Contact our team with your mechanical drawings and interface requirements to confirm available customization options.
Before selecting a 5.6 inch TFT LCD display, evaluate the following requirements:
Resolution and aspect ratio: Confirm that 640x480 and the 4:3 format fit your user interface and display layout.
Interface compatibility: Verify MIPI DSI support, connector pinout and driver compatibility with your mainboard.
Touch functionality: Confirm the capacitive touch requirements and touch-controller integration for your application.
Brightness: Evaluate whether 250 cd/m² is sufficient for the intended ambient lighting conditions.
Mechanical dimensions: Check the 126.5 × 100 × 9.5 mm module outline and the available mounting space.
Operating temperature: Ensure the -20°C to +70°C range meets your equipment's environmental requirements.
Power requirements: Confirm the module's 5.0V supply requirement and the system's electrical design.
IPS Display Technology: Wide viewing angles for equipment and embedded interfaces.
4:3 Screen Format: A conventional display ratio for compatible graphical interfaces.
MIPI DSI Connectivity: Digital display interface for compatible processors and embedded systems.
Integrated Touch: Capacitive touch functionality for interactive equipment.
Engineering Support: Assistance with display selection and system integration.
Customization Services: Support for selected FPC, touch, cover glass and optical bonding requirements.
Share your interface requirements, mechanical dimensions, operating environment and application details with HotDisplay. Contact HotDisplay for product information, technical support and a quotation.
