An RGB LCD display transfers pixel information through parallel RGB data signals and associated timing signals. It is a practical option for embedded products that require responsive graphical interfaces, colorful screen content and direct communication between a display controller and TFT panel.

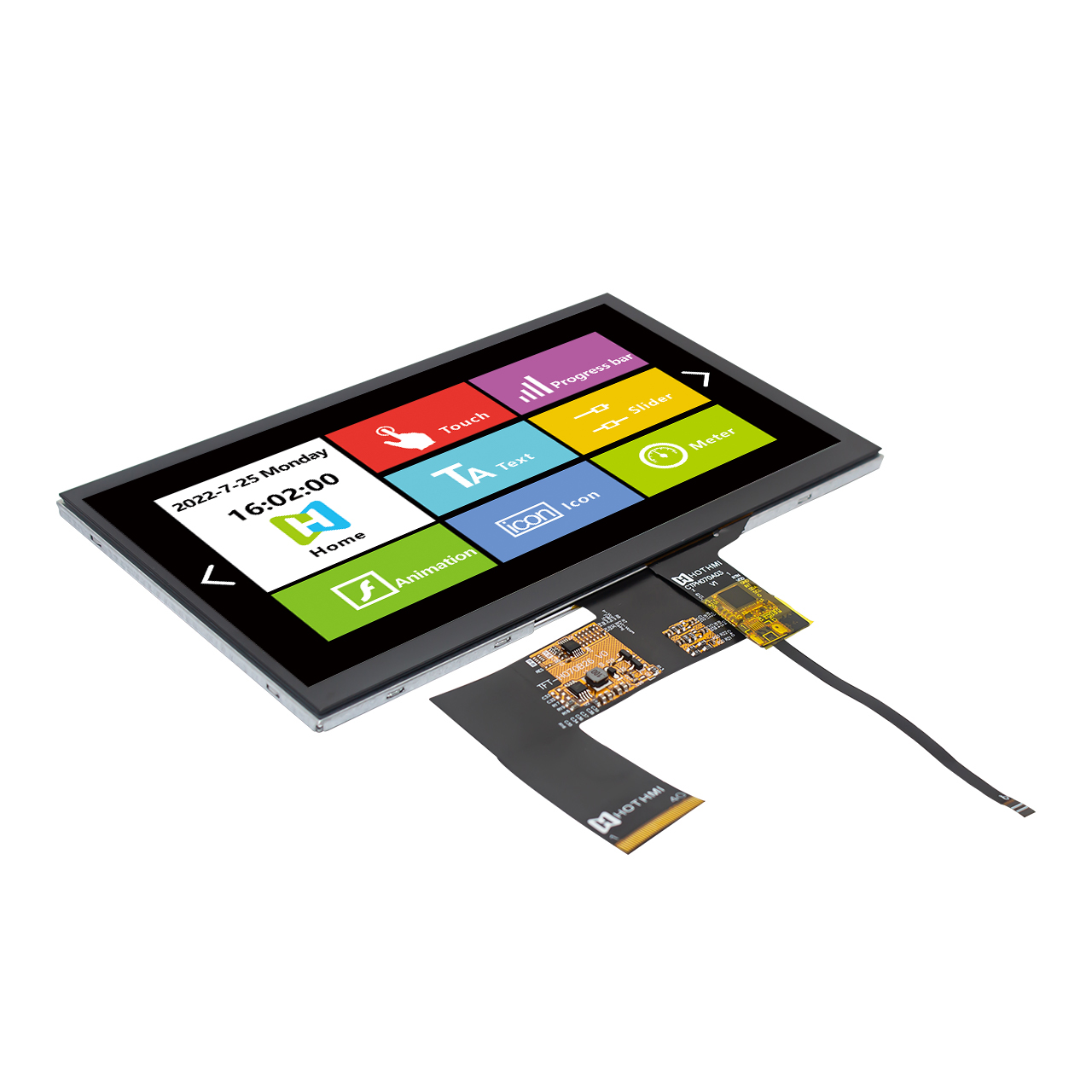

HOTDISPLAY offers TFT LCD products with RGB interface options for applications where the host processor, display controller and panel specifications can be matched.
Watch the video below to learn examples of our RGB interface LCD display, TFT-H048A02ZAIJD5N40 is a 4.8‑inch high‑definition TFT LCD display module designed for industrial control, smart terminals, and embedded systems. Featuring a 480×1120 high‑resolution portrait display panel combined with IPS full‑viewing‑angle technology, it delivers clear and detailed image quality with stable and consistent color performance, providing a high‑performance display solution for main control platforms such as STM32 and RK series processors.
The module adopts an RGB 24‑bit parallel interface, supporting rich color reproduction and high‑speed data transmission, enabling easy connection to various embedded processing platforms for smooth human‑machine interaction. Compared to traditional low‑resolution displays, the 480×1120 high‑resolution panel can present more information content, making it particularly suitable for menu interfaces, data monitoring, graphical control, and complex UI applications.
In terms of mechanical design, the display module features an ultra‑thin form factor with overall dimensions of just 51.46×119.67×2.08 mm and an active display area of 47.95×112.56 mm, providing a larger viewing area within a limited installation space—ideal for integration into portable devices, industrial instruments, and smart control terminals.
An RGB interface generally carries red, green and blue pixel data alongside synchronization and pixel-clock signals. Depending on the implementation, the host system must generate the correct timing signals and provide sufficient bandwidth for the selected resolution and refresh rate.

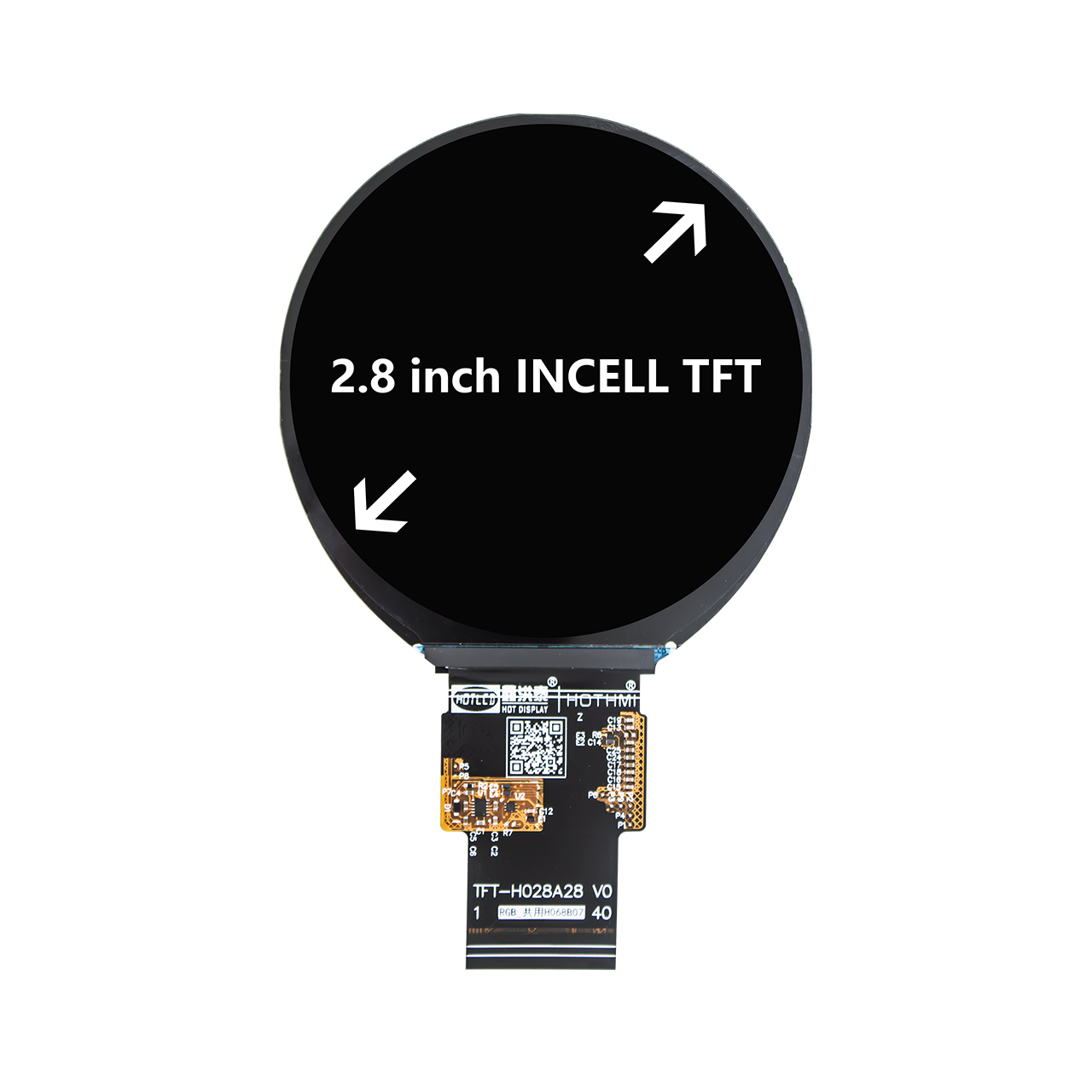

Resolution and refresh rate: Confirm the required pixel count, frame timing and available bandwidth.
Host compatibility: Check whether the processor or controller supports the required RGB output format.
Signal connections: Verify the data width, synchronization signals, voltage levels and FPC pinout.
Display characteristics: Compare size, brightness, viewing angle and operating temperature.
Touch integration: Determine whether a capacitive or resistive touch panel is required.
HOTDISPLAY's existing product range includes RGB TFT LCD options in different sizes and resolutions. For example, the published 4.3-inch TFT-H043A10SVIST6N40 is an 800 × 480 display with an RGB interface and optional capacitive or resistive touch configurations. Actual availability and configuration should be confirmed against the current product specification.
We help customers evaluate candidate displays against their controller, display timing, mechanical layout and intended environment.
RGB TFT displays can be considered for industrial control panels, embedded HMI systems, smart home devices, instrumentation and other products with compatible display controllers.
RGB typically requires multiple parallel data signals plus timing signals. MIPI DSI uses high-speed serial lanes, so the connection requirements differ substantially.
No. The MCU must provide a compatible display interface, adequate memory or data throughput, and the necessary timing signals.
Touch options depend on the specific model and project. Confirm the touch technology, controller, interface and mechanical requirements when requesting a quotation.
Send your processor model, required resolution, display size, RGB data width if known, voltage, pinout and touch requirements.
Share your system specifications with HOTDISPLAY to identify a compatible RGB display and reduce integration risks during hardware development.
