A 1.4 inch TFT LCD Display is a micro-sized, square-profile active-matrix liquid crystal display module designed for high-density graphic and user interface (UI) rendering.
What 1.4 TFT LCD Is

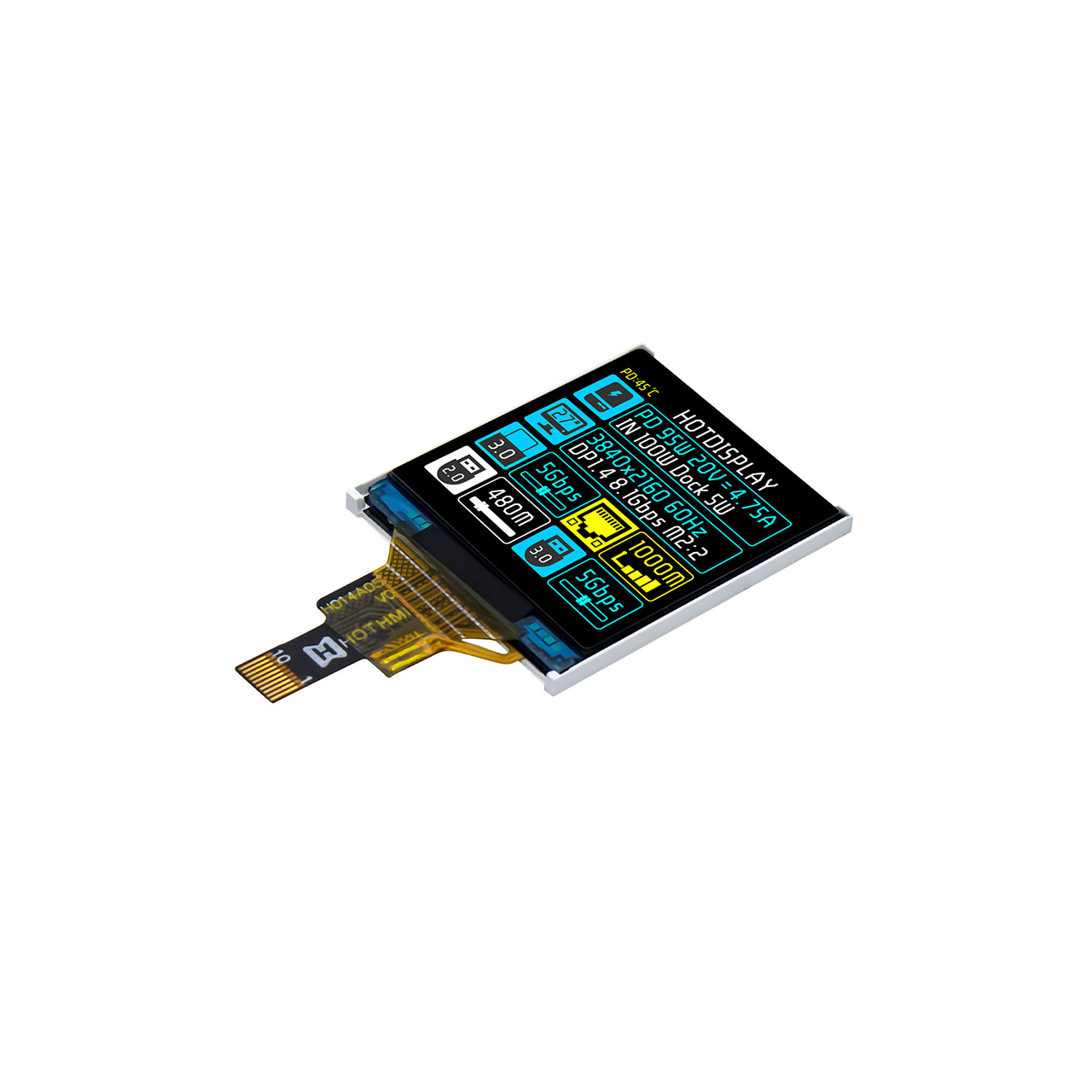

| Core Hardware & Technology
| What 1.4 inch LCD Is Used ForIt serves as a primary visual human-machine interface (HMI) for space-restricted, battery-powered embedded hardware. It enables engineers to deploy rich 65K/262K true-color interactive graphics, real-time wave monitoring data, and multi-line text notifications without penalizing system space or power budgets. |
As an original lcd display manufacturer (factory-direct supplier), Hotdisplay provides full-scale wholesale distribution and specialized OEM/ODM engineering paths for the 1.4-inch display family, categorized by hardware integration tiers:
Raw Panels with Flexible FPC (For Custom Integration)
| Turnkey Modules with Built-in Driver Boards
| Cross-Platform Prototyping Systems
|

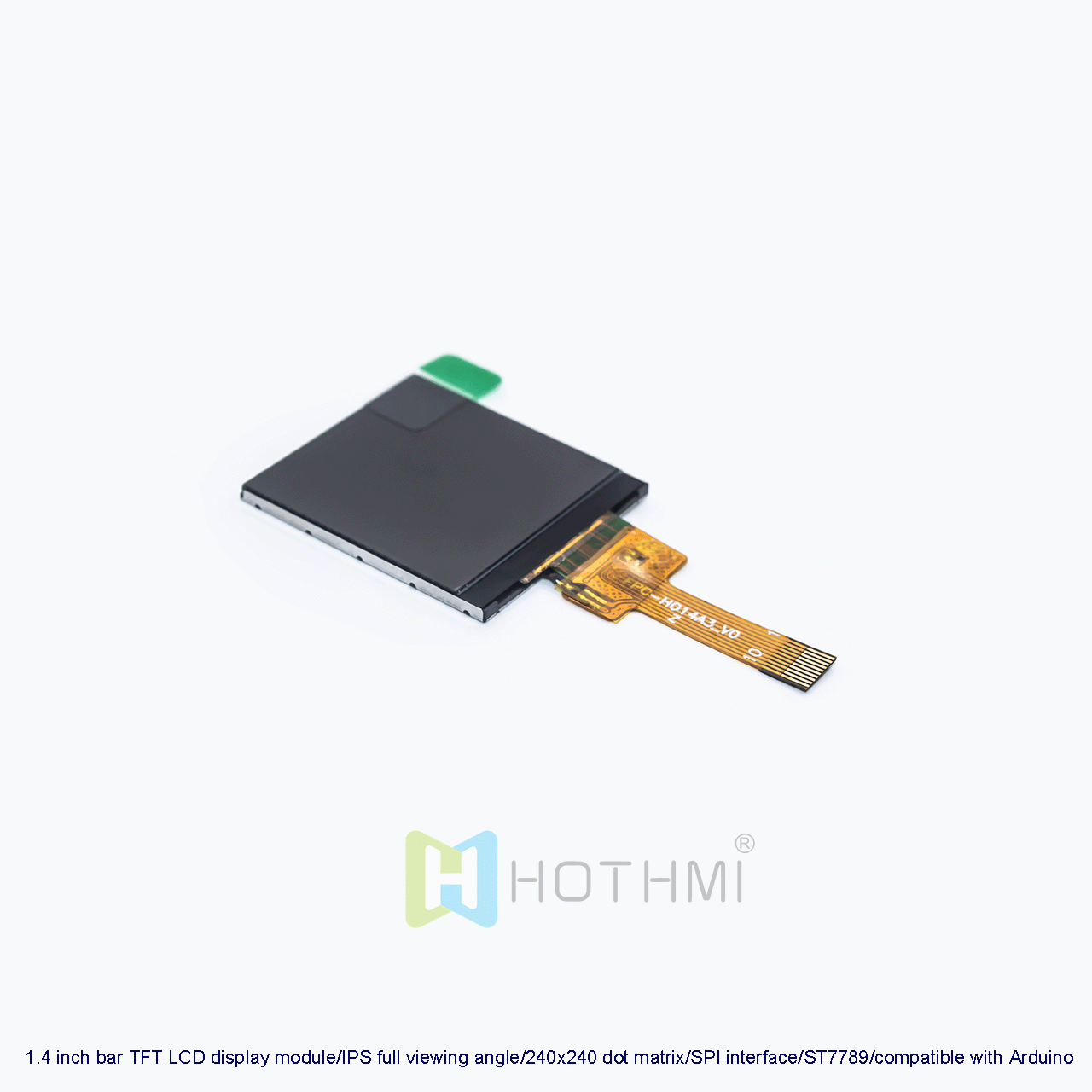

Vibrant Square UI Graphics: True 240x240 square aspect ratio delivers symmetrical layout properties, matching modern smartwatches and square bezel configurations perfectly.
Sunlight-Readable Performance: Engineered with an elevated 400 cd/m2 (nits) typical brightness to ensure high contrast and readable UI assets under harsh outdoor ambient light.
True IPS Wide Viewing Angles: Features full U80/D80/L80/R80 degree optical viewing axes, preventing contrast shifting or color inversion when viewed from off-center angles.
Advanced Electrostatic Protection: Onboard industrial ruggedization includes 8KV anti-static (ESD) air-discharge immunity to maximize field life and reduce failure rates in dry zones.
Extreme Thermal Endurance: Functions reliably in harsh environmental criteria, supporting an operating temperature spectrum from -20°C up to 70°C (with driver board options achieving -30°C to 80°C).
True Color Reproduction: Supports 65K/262K depth mapping, allowing for smooth color gradations and fluid UI animation playback on a tiny profile.
High-Bandwidth ST7789 Controller: This chip features wide driver compatibility and efficient internal frame memory management, minimizing the data overhead placed on host microcontrollers during heavy layout updates.
Sub-0.2mm Mechanical Precision: Key hardware components like the PCB backplane and the TFT glass are built to ultra-tight manufacturing tolerances of within 0.2mm, offering a predictable footprint for dense component arrays.
Full O'Clock Display Rotation: Built-in software-controlled hardware orientation settings permit 90, 180, and 270-degree panel inversion to accommodate different vertical or horizontal hardware installations.
Optimized Electrical Efficiency: Operates over a low 2.8V to 3.3V supply matrix, perfectly aligning with low-power battery operations and mobile device tracking algorithms.
EMI-Protected Pin Layouts: FPC lines and matching adapter pins are structured to filter high-frequency noise, maintaining clean signal communication even in dense RF or industrial environments.

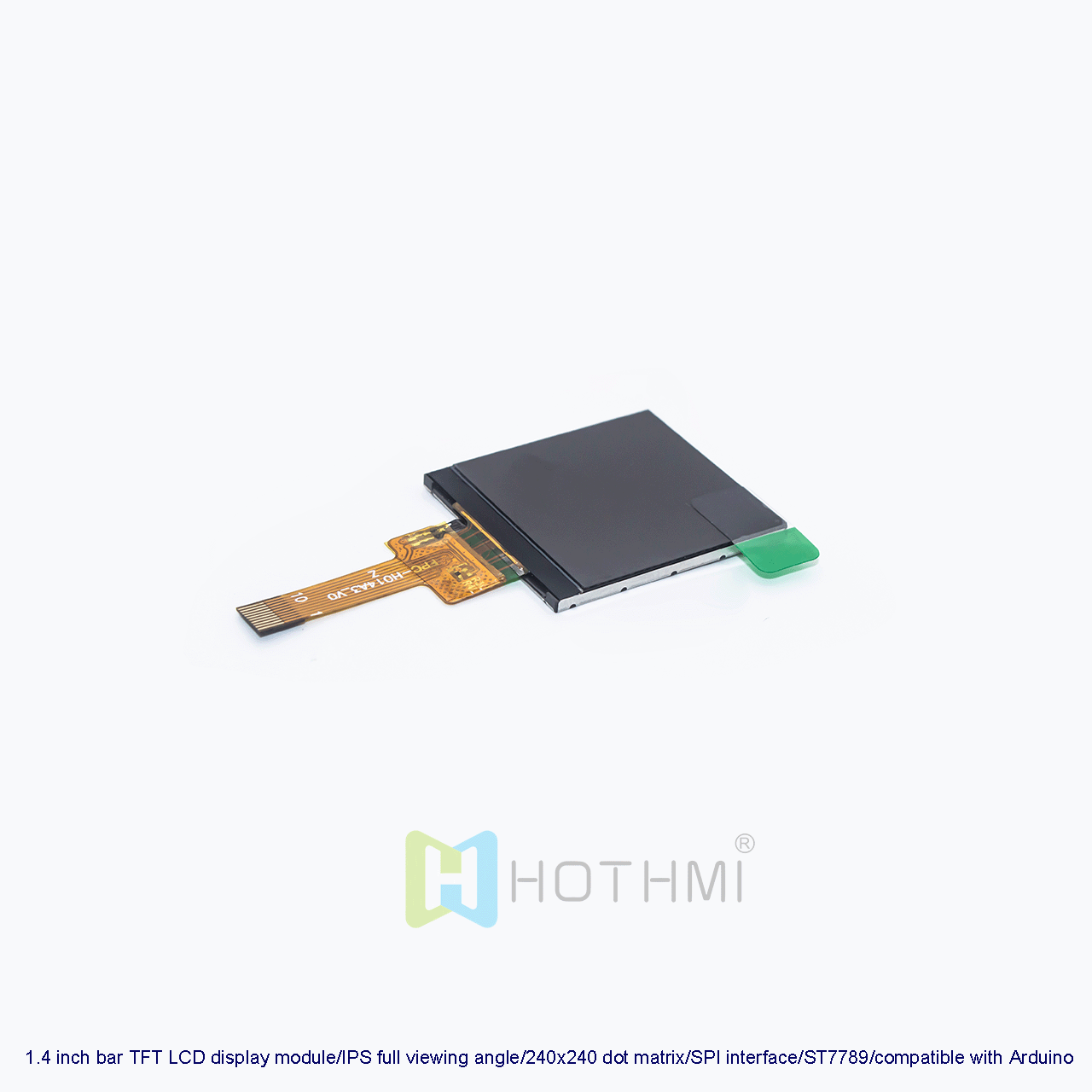

When evaluating options or completing an RFQ form for Hotdisplay engineering teams, verify these hardware criteria:
Hardware Tier Requirements: Decide if your team requires a raw FPC panel (TFT-H014A3DQIST4N10) to minimize footprint depth inside a custom enclosure, or an integrated module with an adapter board (HTM-H014A3-SPI-V0) for swift hardware assembly.
Host Interface Configuration: Verify if your MCU requires a low pin-count 3-wire/4-wire SPI serial pipeline to save I/O resources, or if your application calls for a high-speed multi-bit parallel interface (such as 8080 parallel) to push fast animation refresh rates.
Touchscreen Expansion Needs: Clearly define if your product interface is display-only or if it requires factory lamination of a projected capacitive touch panel (CTP) sheet for swipe and press interactions.
Mechanical Clearance Dimensions: Check the physical clearance within your chassis; the raw display module features a thin 1.82mm height, while the variant with a driver board spans 3.42mm thick.
The 1.4 inch TFT module is a mandatory hardware selection for hardware developers, embedded systems engineers, and sourcing managers developing mobile handheld instruments, automotive dashboards, smart wearables, medical health monitors, and outdoor environmental detectors.
The 1.4-inch form factor becomes the best choice when a standard circular screen wastes layout area and a traditional rectangular display takes up too much horizontal room. It excels in designs that require a perfectly square layout to maximize real estate for graphs, icons, or text boxes, while keeping the physical hardware light and compact.
Buy directly from Hotdisplay, your experienced industrial-grade LCD display manufacturer. We offer factory-direct wholesale pricing, large stock margins for immediate shipping, global RoHS regulatory compliance, and extensive custom OEM/ODM services from prototype to mass production. Contact our sales engineering desk today for dynamic datasheets, 10-pin adapter board components, and volume-discount quotes. You can also buy it from alibaba.com, or google search for more suppliers.
