A 1.44 Inch TFT LCD Display is a compact color Thin-Film Transistor Liquid Crystal Display with a 1.44-inch diagonal viewing area. It typically consists of a TFT LCD panel, liquid-crystal layer, color filter, LED backlight, driver IC and interface/FPC, converting electrical signals into visible images. HOTDISPLAY offers 1.44-inch solutions including 128×128 square displays, SPI and MCU-compatible interfaces, LED backlights and optional touch/custom FPC solutions. These displays help product designers add compact visual interfaces, icons, measurements, status information and graphical controls to space-constrained electronic products.
HOTDISPLAY provides several 1.44-inch TFT LCD configurations for different product designs and integration requirements:
1.44" 128×128 Square TFT LCD
| 1.44" SPI TFT LCD Module with Driver Board
|
1.44" MCU/SPI Compatible TFT LCD
| Custom 1.44" TFT LCD
|

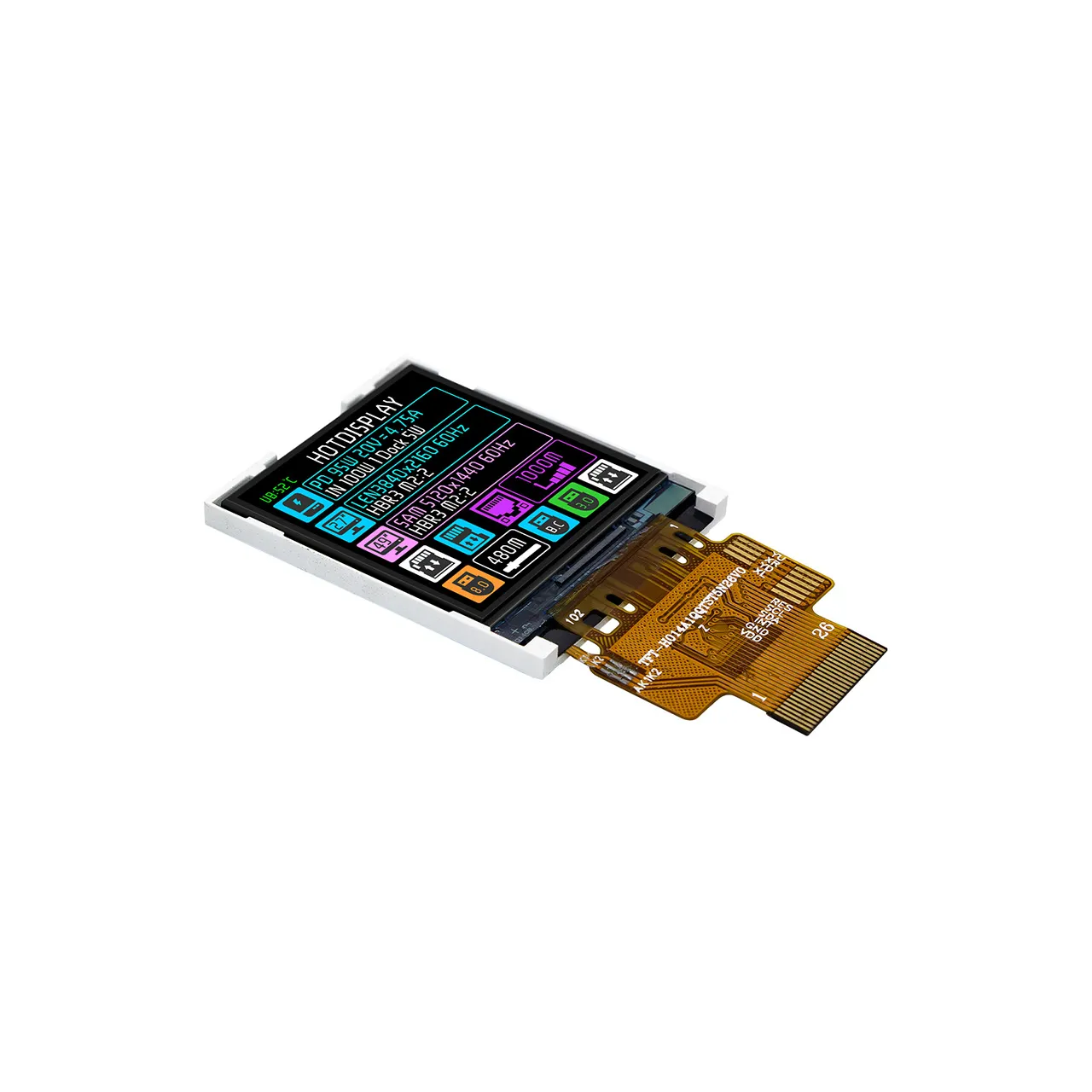

TFT-H014A1QQTST5N26
▶ Type: 1.44" Color Display
▶ Display pixels: 128x128
▶ Dimensions (mm): 29.5x36.5x2.55
▶ Display inches: 1.44"
▶ AA size (mm): 25.498x26.496
▶ Application: Handheld electronic devices, wearable devices
▶ Viewing angle: 12 O'Clock (U70/D60/L70/R70)
▶ Backlight/brightness: 500cd/m2
▶ Pin: FPC-26 pin
▶ Interface mode: MCU 8 bit compatible with SPI 3L/4L
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 2.8V
▶ Driver IC :ST7735S
▶ Model：

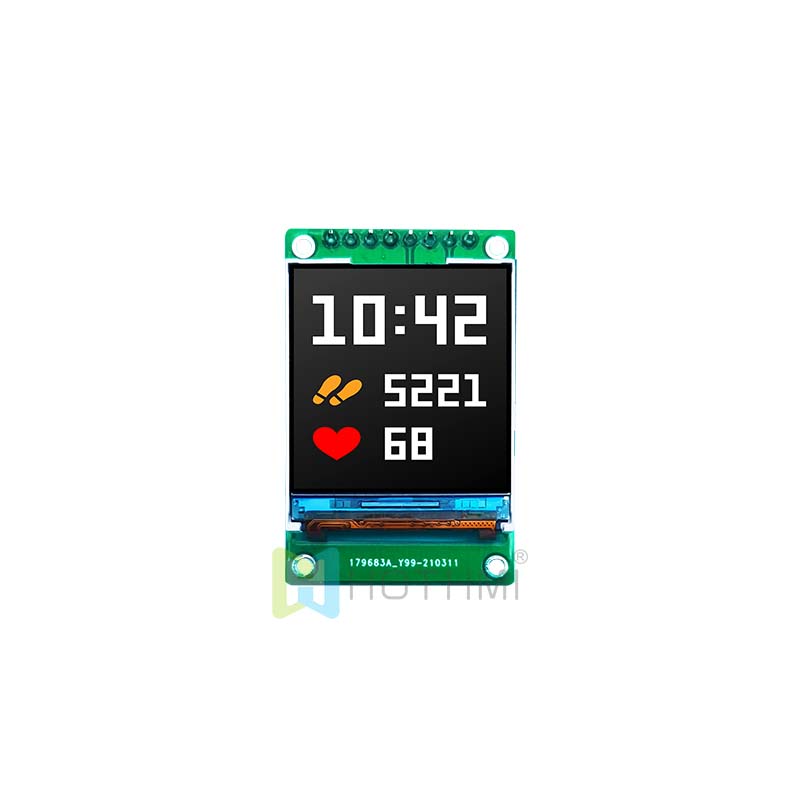

LCM-TFT014T1QQS4LN08D
▶ Type: TFT module
▶ Display pixels: 128x128 Px
▶ Overall dimensions (mm): 30x46.5x11.3
▶ Display inches: 1.44"
▶ Effective size (mm): 25.5x26.5
▶ Application: Printer
▶ Viewing angle: 12H
▶ Brightness: 400cd/M²
▶ Pin: 8 PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7735S
HOTDISPLAY provides complete 1.44-inch TFT LCD solutions rather than a single standard display model. Customers can select the appropriate resolution, viewing angle, brightness, interface, driver IC, FPC and module configuration according to their application.
Typical solutions include:
|
|
HOTDISPLAY also provides supporting development boards and accessories for SPI/MCU displays, helping engineers move from prototype development to mass production more efficiently
The 1.44-inch format provides a useful balance between display visibility and limited installation space, making it suitable for compact electronic products.
The 128×128 configuration provides a square 1:1 display format, which is particularly useful for icons, numerical information, simple graphics and compact control interfaces.
SPI interfaces can simplify communication with microcontrollers and embedded platforms, making 1.44-inch TFT displays attractive for development projects and embedded products. HOTDISPLAY specifically notes compatibility with platforms such as Arduino and C8051 for its SPI model.
Different brightness levels, interfaces, FPC configurations and module structures allow engineers to select or customize a display according to the final product's mechanical and electrical requirements.
Compared with larger TFT displays, a 1.44-inch screen requires less installation space while still providing full-color graphical information, making it useful when a simple monochrome display is insufficient.
